2-head numerical control mortiser machine – SDC 1200 2 2/SDC 1500 2 2/SDC 2000 2 2 is designed for medium-scale manufacturers with optimal output capacity. It saves on capital investment while fully meeting production requirements. The dual left-right worktables enable continuous operation without interruption during workpiece loading and unloading.
Introducing details of 2-head numerical control mortiser machine
Features of 2-head numerical control mortiser machine
- Versatile features: The machine processes a wide variety of mortises, performs hole drilling, machines chair leg mortises, routes oval slots, and mills arc profiles as well as complex contours. Motion axes driven by servo motors ensure high operational stability.
- High durability & ease of use: This is currently the most popular 2-head CNC mortising machine line due to its user-friendly interface, low error rate, and time-saving operation.
Outstanding features of 2-head numerical control mortiser machine
CNC mortising, drilling, and slotting machine capable of processing a wide variety of mortise types.
High processing speeds that significantly boost production output.
X, Y, and Z axes driven by servo motors with ball screw transmission mechanisms to maximize machining precision.
Widely used in modern furniture production lines.
Structure of CNC 2-head recessed tenon milling machine
Center positioning device
Supports the most accurate positioning of the machining point
Automatic oil supply
Workpiece clamp set
Can be adjusted easily
Servo motor
Using sero motor to make the machine run stably and with high accuracy
Control system
Using window technology, easy to operate
Specifications of 2-head numerical control mortiser machine
| MODEL | SDC 1200 2 2 | SDC 1500 2 2 | SDC 2000 2 2 |
| Max. X-Axis Travel | : 1100 mm | : 1100 mm | : 1200 mm |
| Max. Y-Axis Travel | : 1200 mm | : 1500 mm | : 2000 mm |
| Max. Z-Axis Travel | : 220 mm | : 220 mm | : 220 mm |
| Min. Distance Between 2 Processing Spindles | : 200 mm | : 200 mm | : 200 mm |
| Spindle Speed | : 18000 r/min | : 18000 r/min | : 18000 r/min |
| Motor Power | : 3.7 kW × 2 | : 3.7 kW × 2 | : 3.7 kW × 2 |
| Servo Motor Power | : 1 kW × 3 | : 0.85 kW × 3 | : 1.0 kW × 3 |
| Dust Extraction Port Diameter | : 100 mm × 2 pcs | : 100 mm × 2 pcs | : 100 mm × 2 pcs |
| Machine Dimensions | : 2200 × 2000 × 1900 mm | : 2400 × 2230 × 1900 mm | : 3230 × 2000 × 1900 mm |
| Machine Weight | : 1100 kg | : 1300 kg | : 1650 kg |
Note: Technical specifications, design features, and machine colors are subject to change without prior notice, without altering the machine’s overall functionality or operational performance. Products supplied by Quoc Duy are exclusive, as every single component is meticulously selected by Quoc Duy to suit the machine’s specific function, ensuring that the pricing directly corresponds to the value delivered to you.
- Mortising Machine Systems || Quoc Duy
- CNC oscillating mortiser machine – SM 3725 2
Video of operation of cnc 2-head mortise lock machine
Mortising Router Bits for 2-head numerical control mortiser machine
Modern production lines create durable, long-lasting, and sharp drill bits. Specialized negative tenon chisels provide high-quality, beautiful, and proportionate cuts for a more aesthetically pleasing end product.
Notes when using CNC 2-head numerical control mortiser machine effectively
To ensure optimal performance and safety of the machine, it is crucial to conduct regular checks and maintenance procedures. Here are some essential steps to follow:
- Check the power source regularly to ensure that the input power source is stable and within the range of 380V/50Hz.
- Keep the input compressed air flow at or above 6 Mpa.
- Verify that the steam relay is always open.
- Apply grease regularly to the X, Y, and Z machining axes.
- Ensure that the internal oil pump tank is always full.
- Check the drill bit frequently, and if it is chipped or damaged, replace it with a new one.
- Regularly inspect the bolts and nuts, and if there is any abnormality, correct it immediately before continuing the operation.
- Clean the machine daily after use, both inside and outside, using a vacuum.
By following these steps, you can prolong the lifespan of the machine and avoid potential accidents or malfunctions.
Latest 2-head numerical control mortiser machine price
To receive detailed advice and quotation information about our CNC negative oval tenoner machine line, please get in touch with us directly or leave your contact information and we will get back to you as soon as possible.
You can reach us via:
- Email : info@quocduy.com.vn
- Hotline : +84 903 600 113
Additionally, you’re welcome to visit our factory at 401 To Ngoc Van Street, Thoi An Ward, Ho Chi Minh City, Vietnam to see our modern woodworking machines in operation.

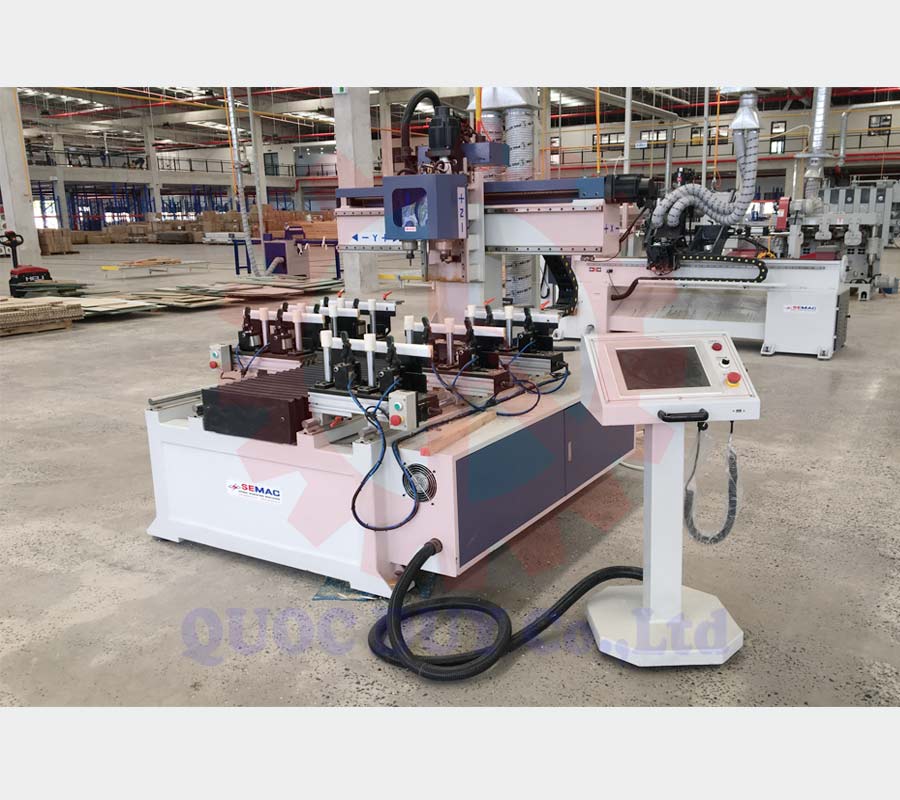

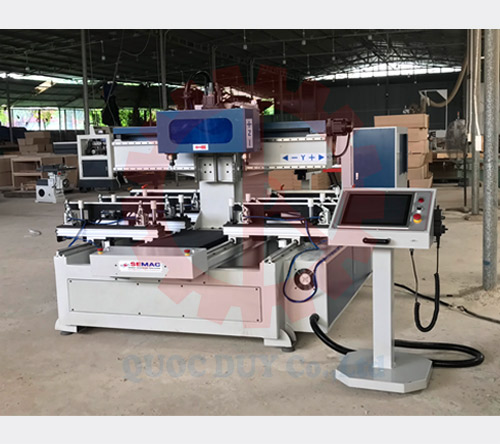

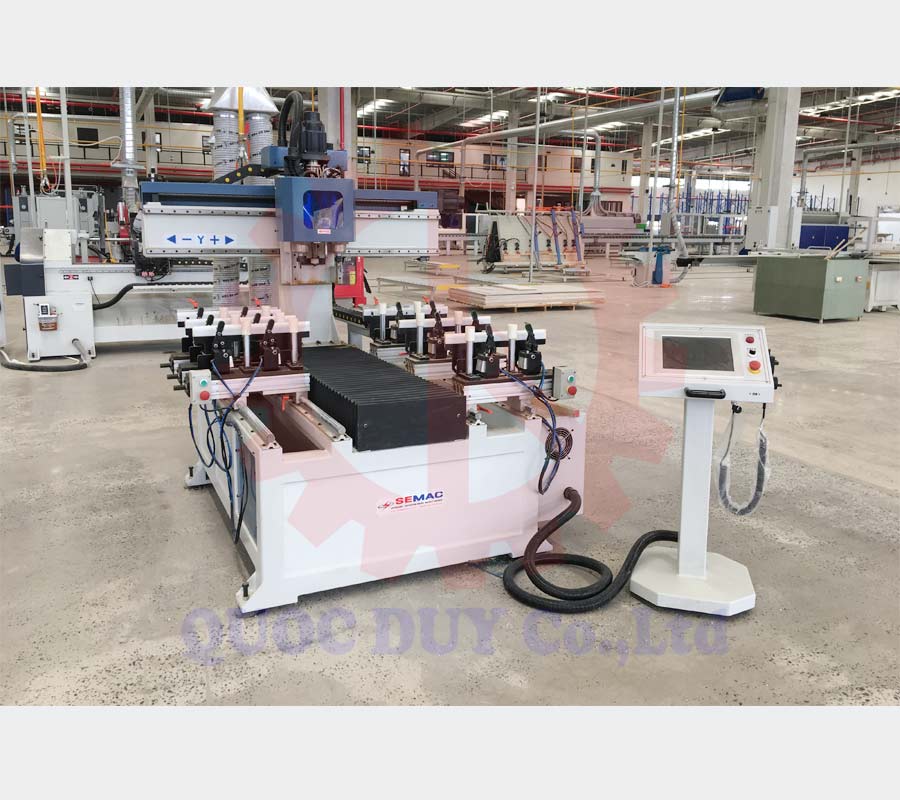

2-head numerical control mortiser machine price
