4 head cnc seat mortising machine – SDC 1200 4 4/SDC 1500 4 4/SDC 2000 4 4 is engineered with dual independent worktables and 4 high-power multi-purpose milling heads, ensuring continuous and high-efficiency machining. Capable of processing a wide variety of mortise joint types, it brings exceptional flexibility and versatility to the production process—making it the perfect choice for furniture manufacturers and woodworking enterprises.
Introduction of 4 head cnc seat mortising machine
Features of 4 head cnc seat mortising machine
- The machine is designed with two independent working tables
- Can process a variety of types of tenons such as oval tenons, negative oval tenons, round tenons, etc.
- CNC negative tenon milling machine performs unlimited workpiece size, improving productivity.
- The sturdy clamping system helps hold the workpiece tightly throughout the machining process
- The working screen is simple, user-friendly, and quick to operate
- Outstanding productivity: CNC recessed tenon milling machine performs a variety of tenon types, without limitation on workpiece size.
- With 4 milling heads for drilling holes, milling grooves, milling negative oval tenons, running arc grooves, milling profiles, etc.
- The left and right worktables operate independently, ensuring a continuous, uninterrupted machining process. Only one worker needs to stand at the machine to load and unload the workpiece.
- Uses the “point to point” programming method, with support for importing CAD graphic files. User-friendly interface design, just a few hours of training for your workers to operate proficiently.
- High-quality components: All machine components are carefully selected to ensure stability when working. Using famous components from Taiwan.
Application of 4 head cnc seat mortising machine

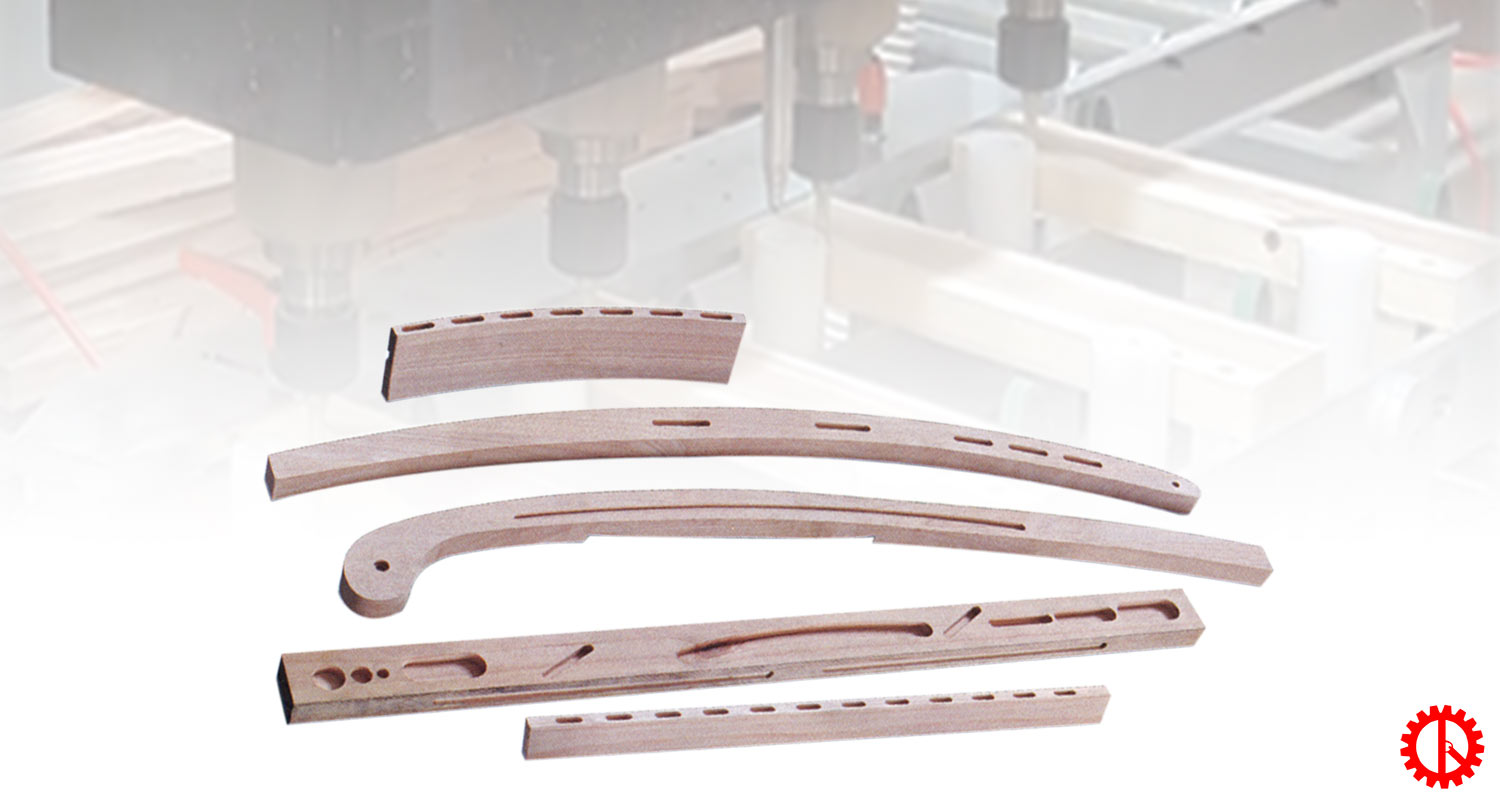

Used to process components and interlocking joints across a wide range of wooden furniture products.
Featuring simultaneous milling and drilling capabilities, the machine flexibly executes arc slotting, profile milling, hole drilling, and complex shaping operations.
Images of the 4 head cnc seat mortising machine

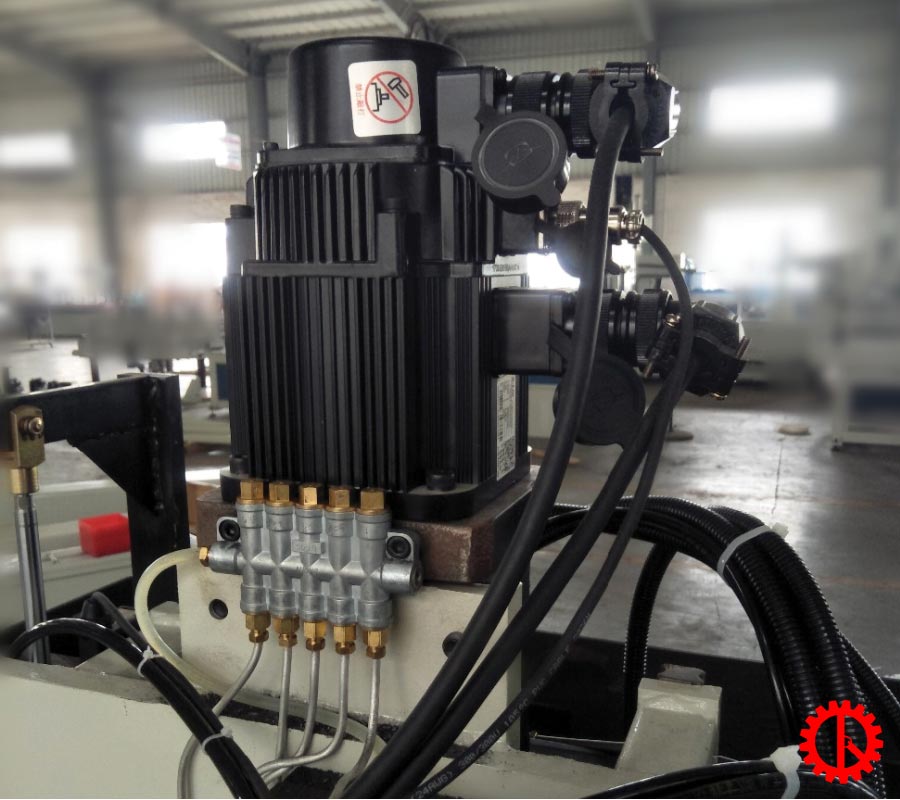

X/Y/Z-Axis Servo Motors
Utilizing servo motors ensures smooth, stable motion across all axes, delivering high precision and processing accuracy.

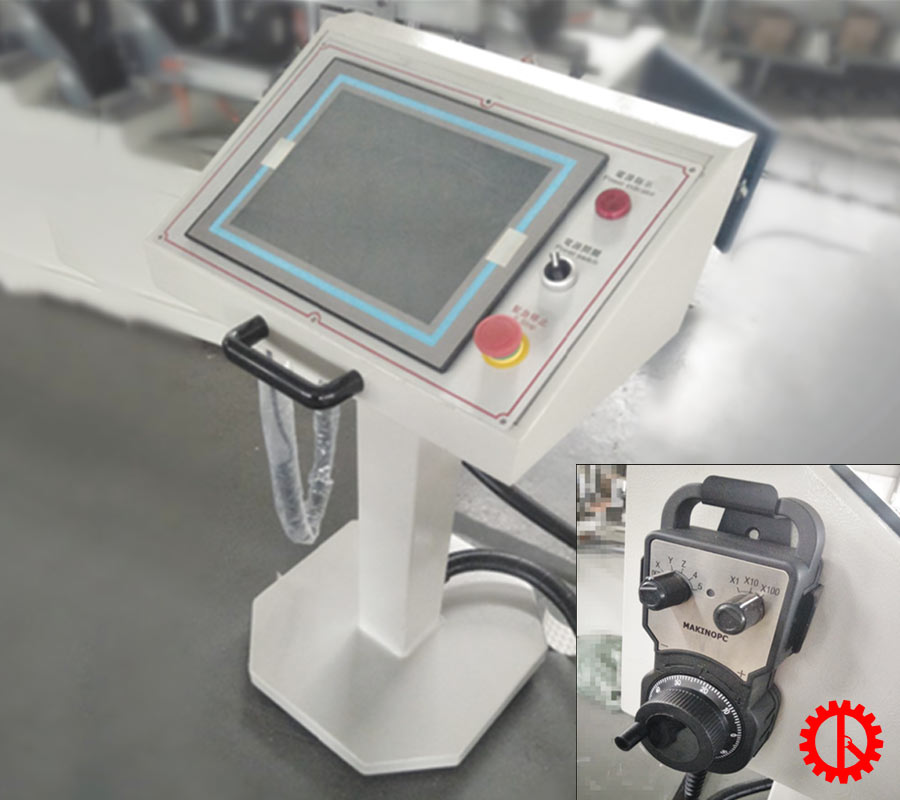

Simple and Fast Control
Powered by an industrial Windows OS for easy operation, paired with a handheld controller (pendant) for rapid tool setup.

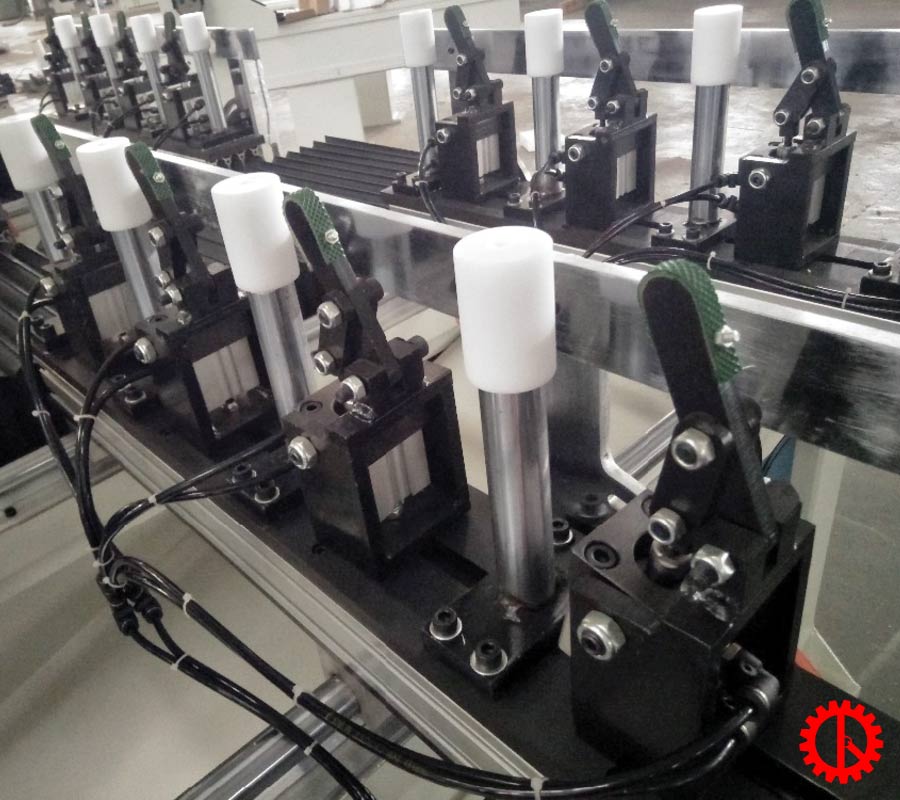

Workpiece Clamping System
Pneumatic clamping gantry powered by a compressed air system.

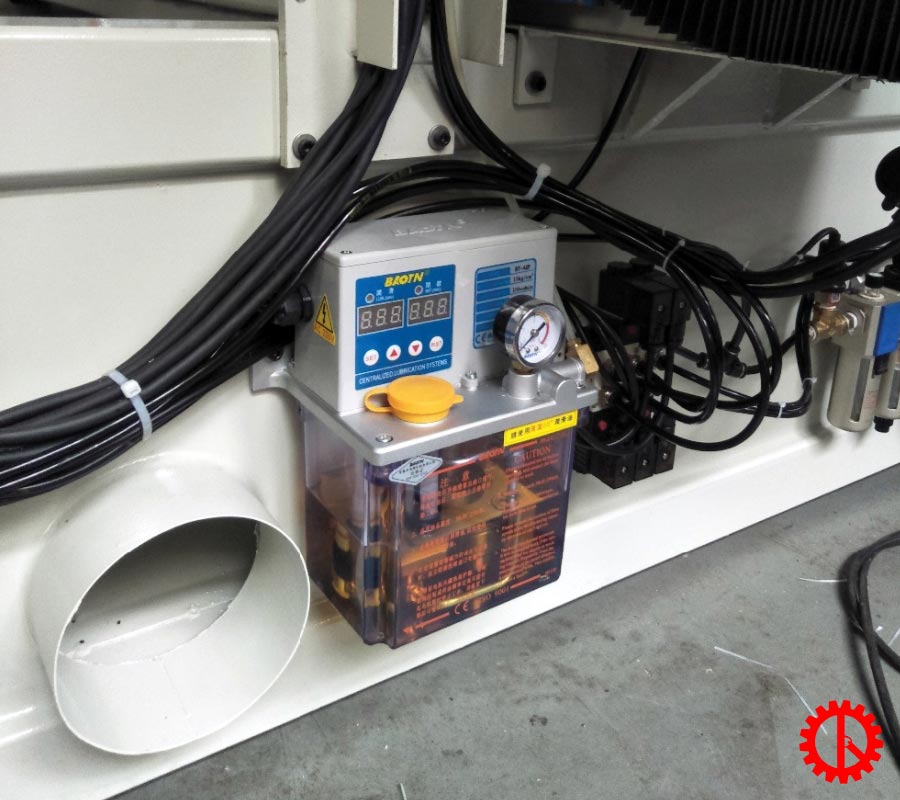

Automatic Lubrication System
Minimizes the risk of over- or under-lubrication, effectively preventing component wear and mechanical failures caused by inadequate oiling.

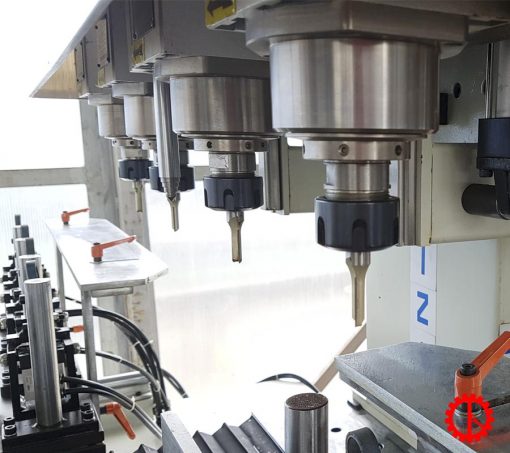

Mortising Motors
Equipped with 4 high-power milling motors, optimizing the machining process for maximum efficiency.

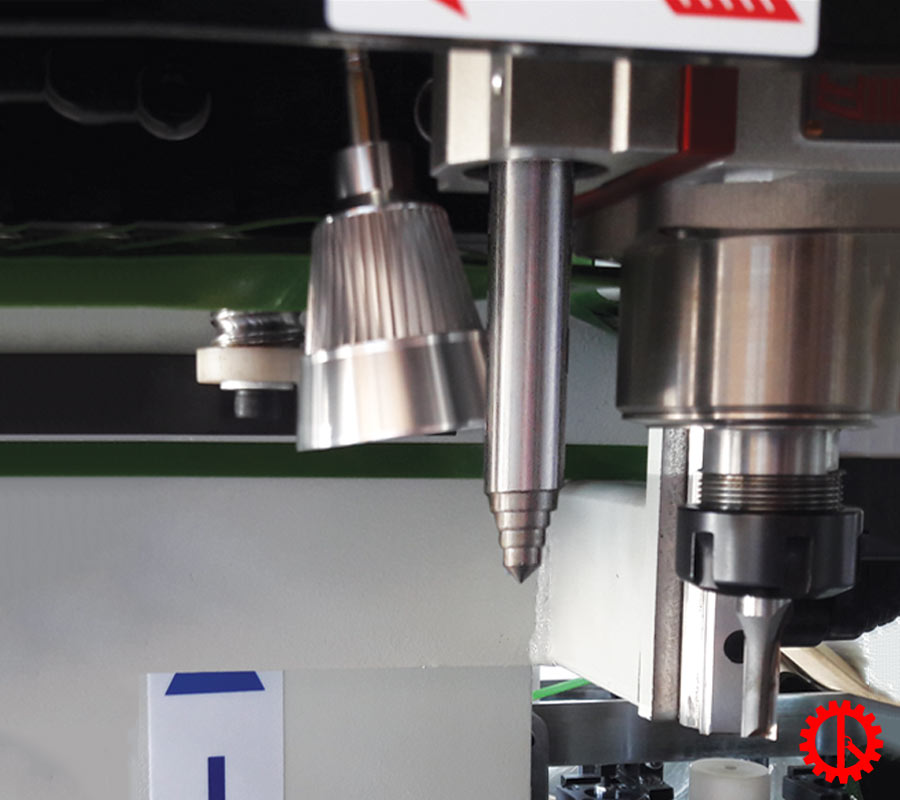

Centering Device
Accurately positions the workpiece to ensure every produced component maintains exact dimensions and shape.

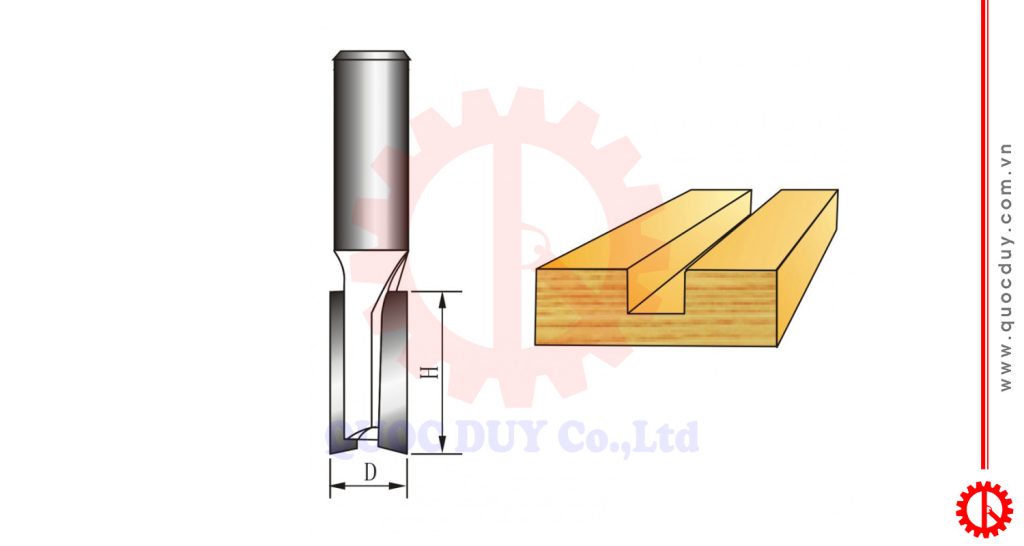

CNC Mortising Bits
Specifications of 4 head cnc seat mortising machine
| MODEL | SDC 1200 4 4 | SDC 1500 4 4 | SDC 2000 4 4 |
|---|---|---|---|
| X-Axis Travel | 1100 mm | 1500 mm | 2000 mm |
| Y-Axis Travel | 1200 mm | 1100 mm | 1200 mm |
| Z-Axis Travel | 220 mm | 220 mm | 220 mm |
| Min. Distance Between 2 Processing Spindles | 200 mm | 200 mm | 200 mm |
| Spindle Speed | 18000 rpm | 18000 rpm | 18000 rpm |
| Motor Power | 3.7 kW x 4 | 3.7 kW x 4 | 3.7 kW x 4 |
| Travel Motor Power | 0.85 kW x 3 | 0.85 kW x 3 | 0.85 kW x 3 |
| Machine Dimensions | 2300 x 2230 x 1900 mm | 2400 x 2230 x 1900 mm | 3230 x 2230 x 1900 mm |
| Machine Weight | 1700 kg | 1350 kg | 1900 kg |
Note: Technical specifications, design features, and machine colors are subject to change without prior notice. However, such changes will not affect the machine’s functionality, performance, or operating capabilities
Review – instructions for operating the cnc negative tenon machine
Related Mortising Machines
Haven’t found the right solution yet? Quoc Duy offers a wide range of CNC mortising machines tailored to satisfy any production requirement, such as: 8 Head CNC seat mortising machine – SDC 2400 4 4, 4 Head numerical control mortiser – SMJH 1500 4A, …
Warranty policy for 4 head cnc seat mortising machine
The product has a 12-month warranty. When the machine has an error or technical problem, Quoc Duy will be present at the customer’s factory within 12 – 48 hours to perform inspection and repair. You will not incur any costs if it is due to the supplier’s fault.
Latest 4 head cnc seat mortising machine price
If you are interested in receiving quotation information and detailed advice on the CNC negative oval tenon machine line, please feel free to contact us directly. Alternatively, you can leave your information and we will get back to you as soon as possible.
- Email : info@quocduy.com.vn
- Hotline : +84 903 600 113
Additionally, you’re welcome to visit our factory at 401 To Ngoc Van Street, Thoi An Ward, Ho Chi Minh City, Vietnam to see our modern woodworking machines in operation.

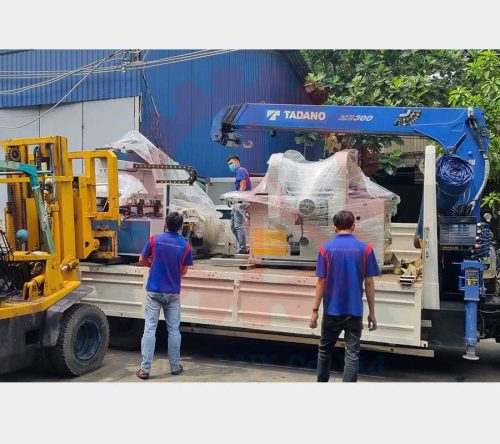

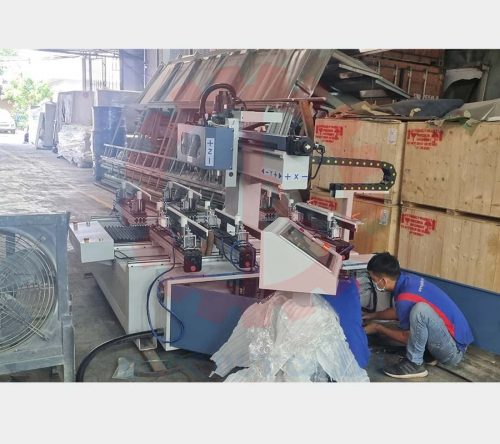

Machine delivered to customer workshop
