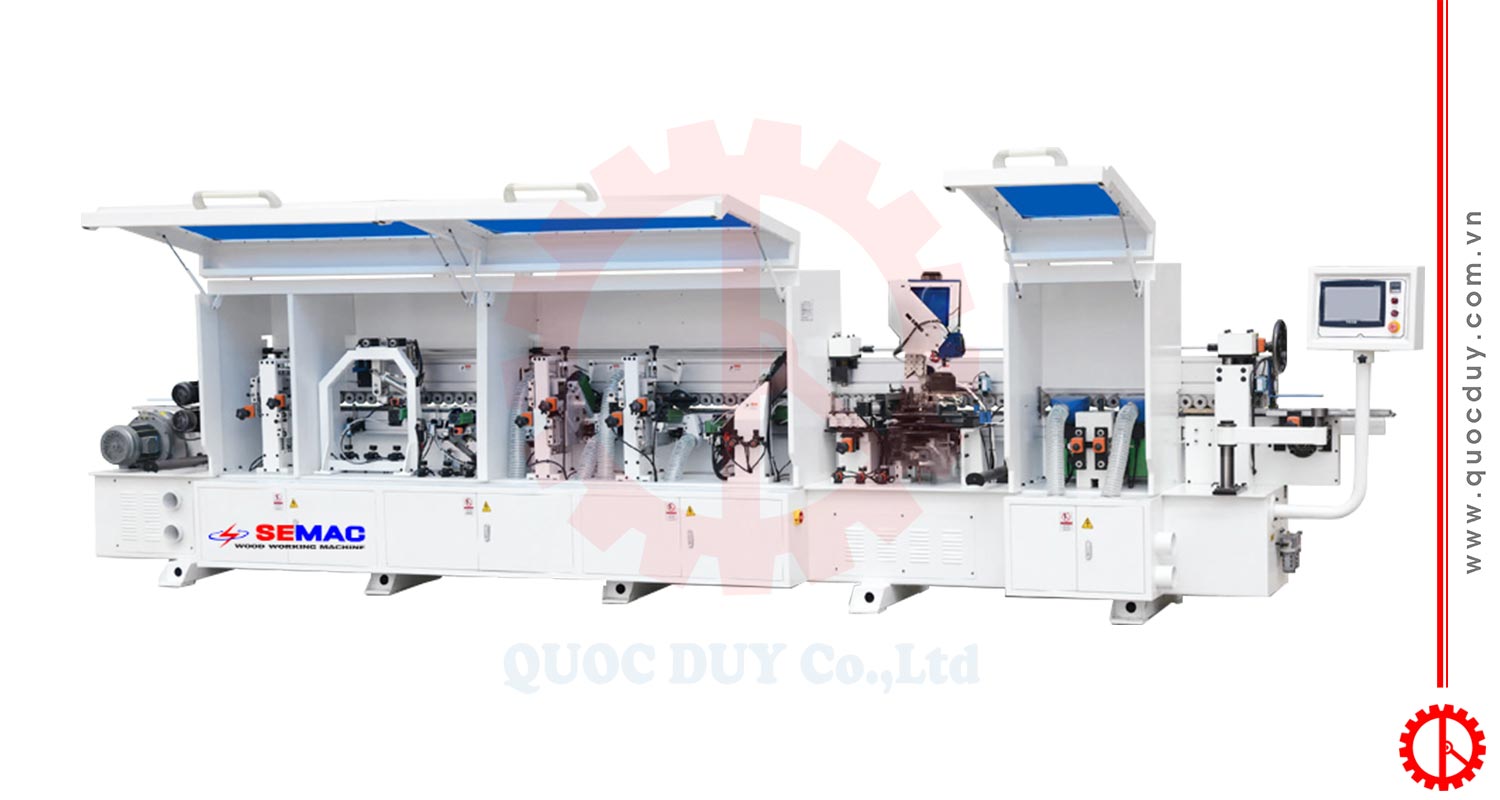

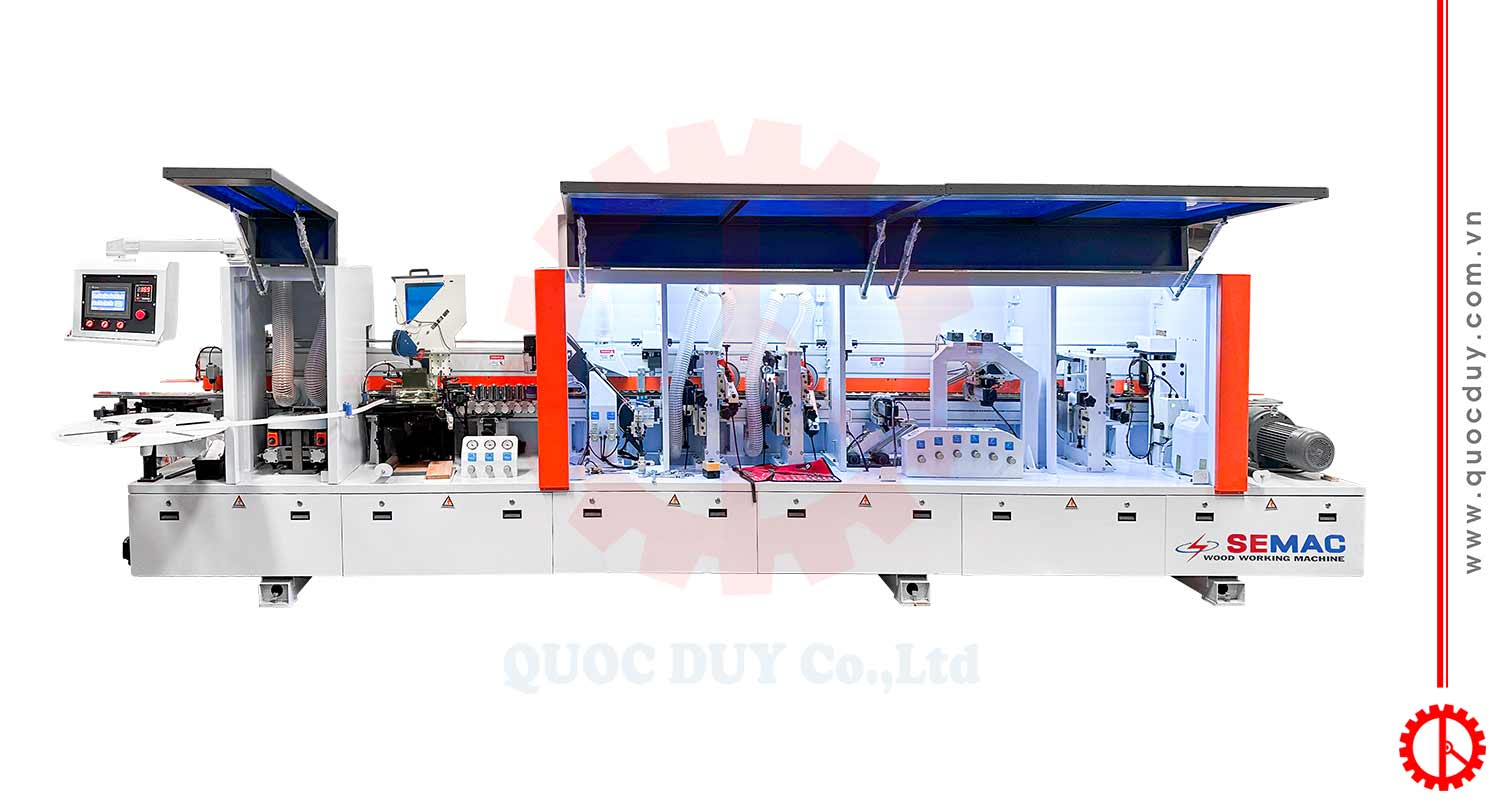

AUTO EDGE BANDING MACHINE
| Panel thickness | 10 – 60 | mm |
| Panel width | 80 | mm |
| Panel length | ≥150 | mm |
| Edge banding tape thickness | 0.4- 3 | mm |
| Gluing motor power | 0.75 x 2 | kw |
| Heating power | 1.5 x 2 | kw |
| Ending trimming motor power | 0.37 x 2 | kw |
| Fine trimming motor power | 0.75 x 4 | kw |
| Buffing motor power | 0.37 x 2 | kw |
| Belt motor power | 5.5 | kw |
| Working speed | 12 – 20 | m/min |
| Working air pressure | 0.6 – 0.8 | Mpa |
| Machine size | 8300 x 1200 x 1900 | mm |
