Optimizing cut off saw Taiwan CFS 200 B1 high-speed automatic blank cutting machine adopts advanced electrical components to ensure the stability of machine performance. Windows PC operating system is easy to understand and operate.
INTRODUCTION OF OPTIMIZING CUT OFF SAW TAIWAN
Features of optimizing cut off saw Taiwan
- The wood sawing machine has a cutting speed of 180 times/minute
- There is a table box to put workpieces into to help the board-cutting process go faster
- Reduce production staff
Advantages of optimizing cut off saw Taiwan
- Key icon guides help operators easily identify and understand key functions.
- The controller adopts a four-axis control with high-speed computing characteristics. To ensure the accuracy of dimension scanning and optimization calculations.
- The controller has stable performance, long life, and does not require air conditioning heat dissipation.
- The computer can record a month’s progress, making troubleshooting more convenient.
- You can design the workpiece selection cutting optimization calculation function yourself, and you can set the dimensions indefinitely. Provides 100% optimized calculation results for all sizes.
- It uses a Mitsubishi servo motor to drive the feeding system, which has high-speed response, high torque, and perfect protection properties.
- A total of 7 sets of upper and lower press wheels, for sawing curved wood, highlight the machine’s unique stability.
Specifications of optimizing cut off saw Taiwan
|Saw motor||: 10 HP|
|Saw spindle speed||: 3300 rpm|
|Feed speed||: 15- 200 m/min|
|Sawblade diameter||: Ø 500 mm|
|Max. feed speed||: 200 m/min|
|Cutting speed||: 180 times/min|
|Working length||: 400 – 6500 mm|
|Working width||: 30 – 200 mm|
|Working height||: 12- 95 mm|
|Max. allow accuracy||: ± 5 mm|
|Cutting accuracy||: ± 0.5 – 1.5 mm|
|Infeed table size||: length 15m, automatic belt|
|Outfeed table size||: length 9m, automatic belt|
|Classification system embryos after cut||: 4 automatic fertilizers|
|Feed motor:||: 7 KW|
|Fix size of cutting model||: Yes|
|Many size of cutting model||: Yes|
|Eye removal mode||: Yes|
|Cut 1 recommended eye size and quit||: Yes|
|Calculate the product after cutting||: Yes|
|Cutting program to save before cutting||: Yes|

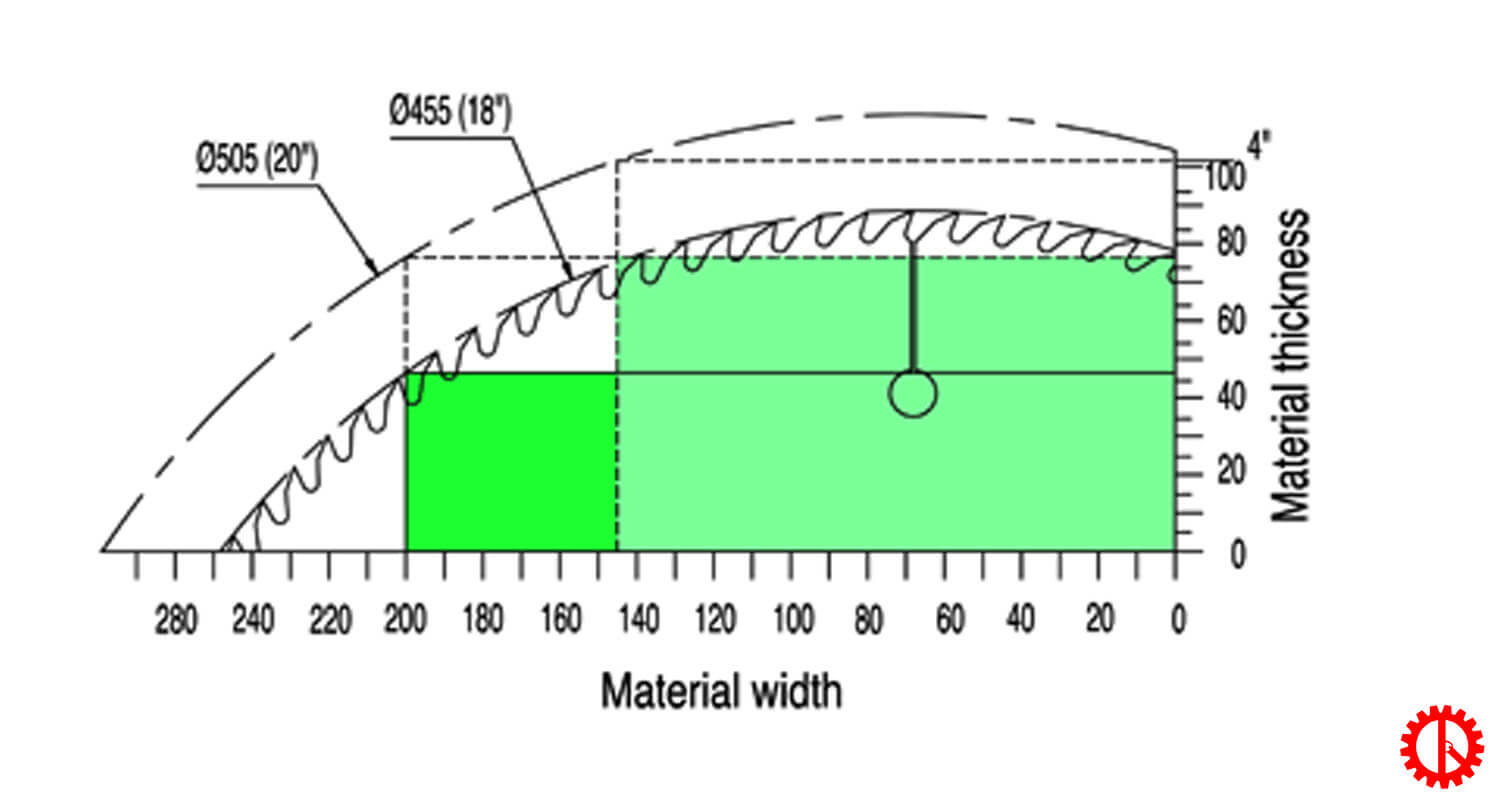

structure of optimizing cut off saw Taiwan
LATEST OPTIMIZING CUT OFF SAW TAIWAN PRICE
When it comes to carpentry businesses, Optimizing cut off saw is the top choice. At Quoc Duy Woodworking Machine, we offer a variety of machine models at reasonable investment costs.
We provide modern wood sawing machines, including Optimizing cut off saw machine, pneumatic cutting saws, and more.
Our commitment to delivering high-quality and reasonably priced product lines has earned us over 20 years of experience in providing woodworking machine and painting lines.
If you need expert advice and a quick quote, please don’t hesitate to reach out to Quoc Duy using the following contact information:
