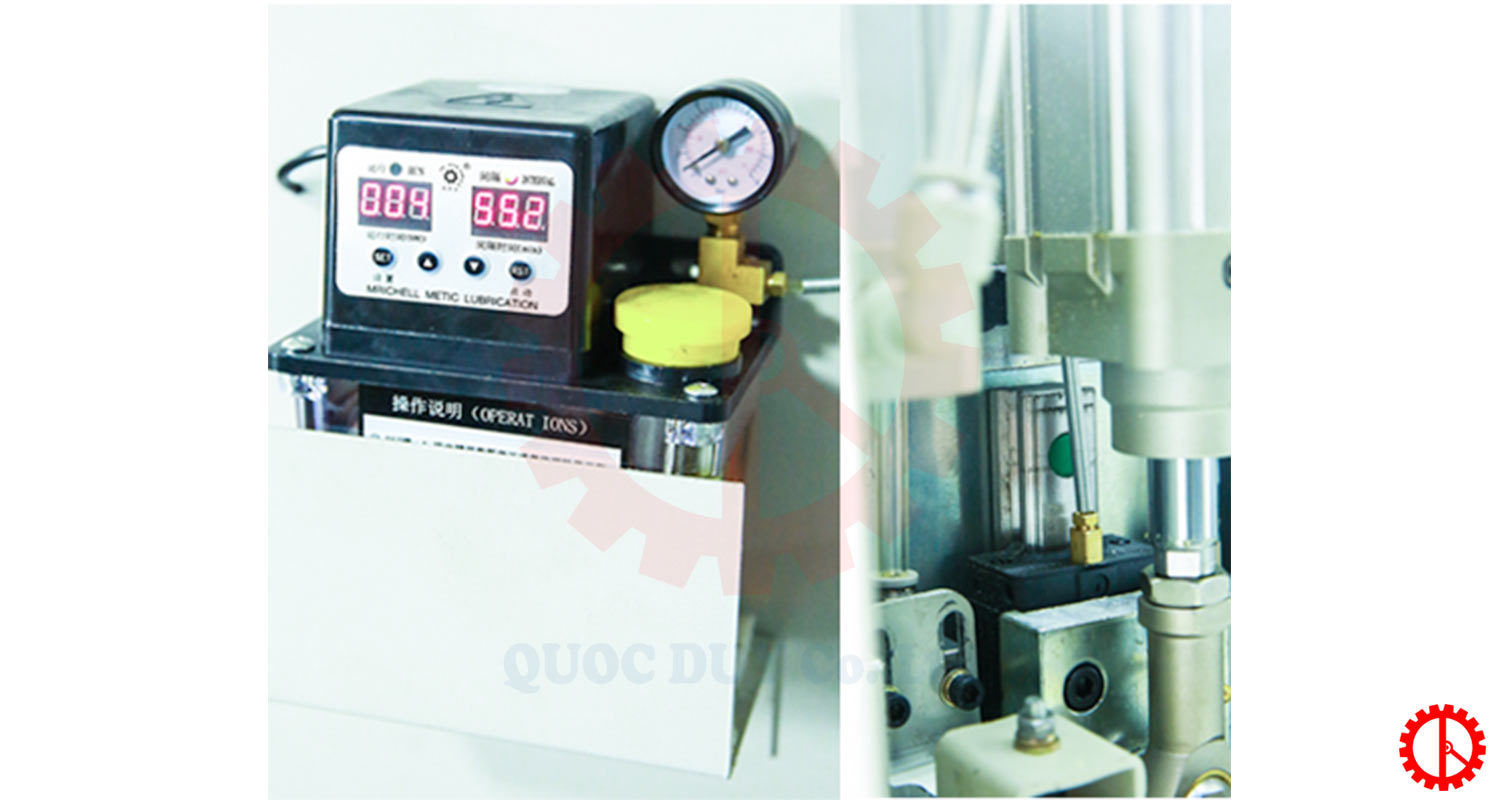

High speed optimizing crosscut saw – SM 244 features 4 smart cutting modes and an automatic lubrication system for smoother operation it is equipped with a new technology control screen for user friendly operation while the precise saw blade unit structure ensures high accuracy and maximum efficiency.
Introduction high speed optimizing crosscut saw – SM 244
Features of high speed optimizing crosscut saw
Large-sized woodworking saw control screen for easy and user-friendly operation.
Equipped with 4 smart cutting modes.

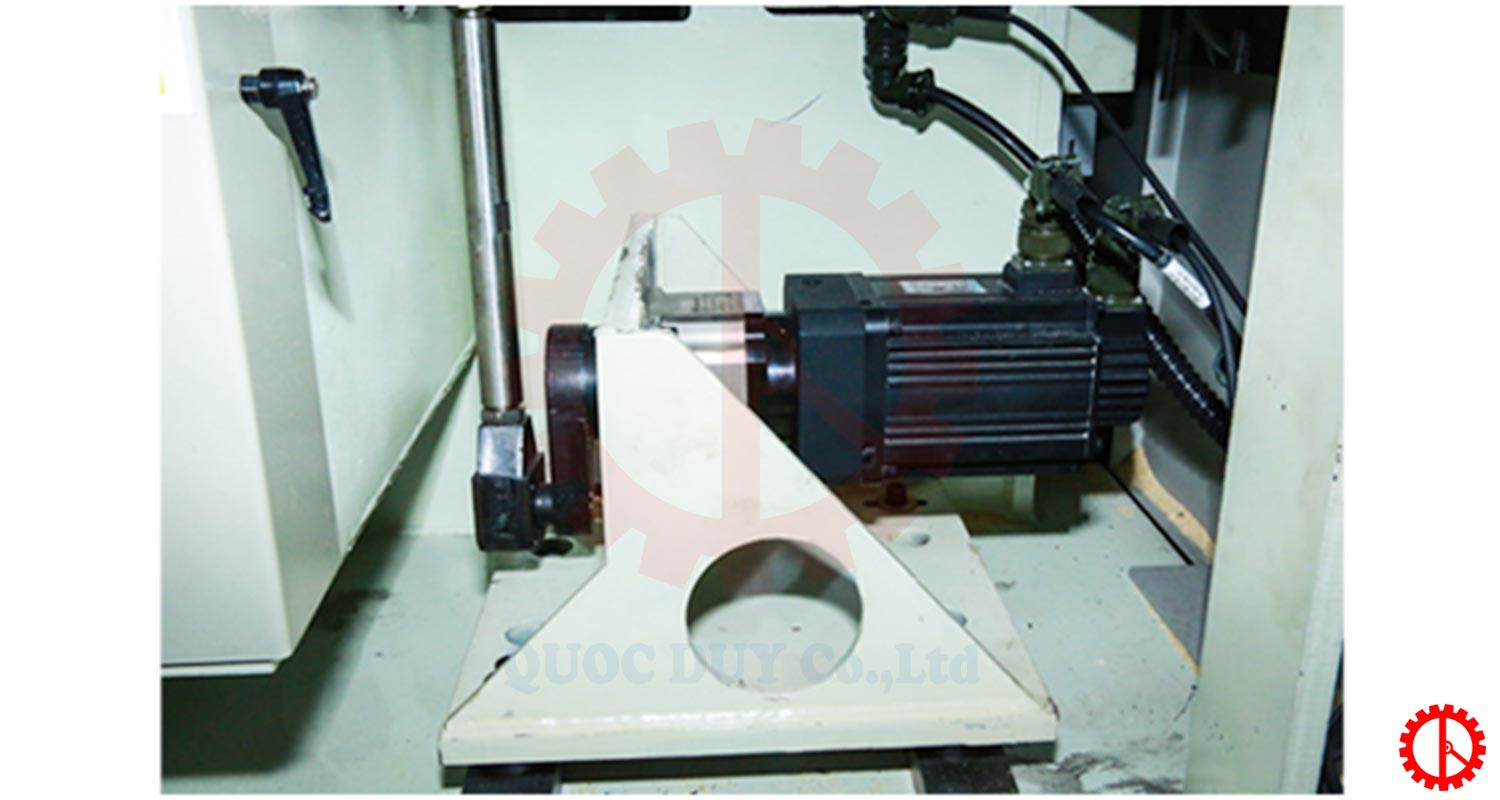

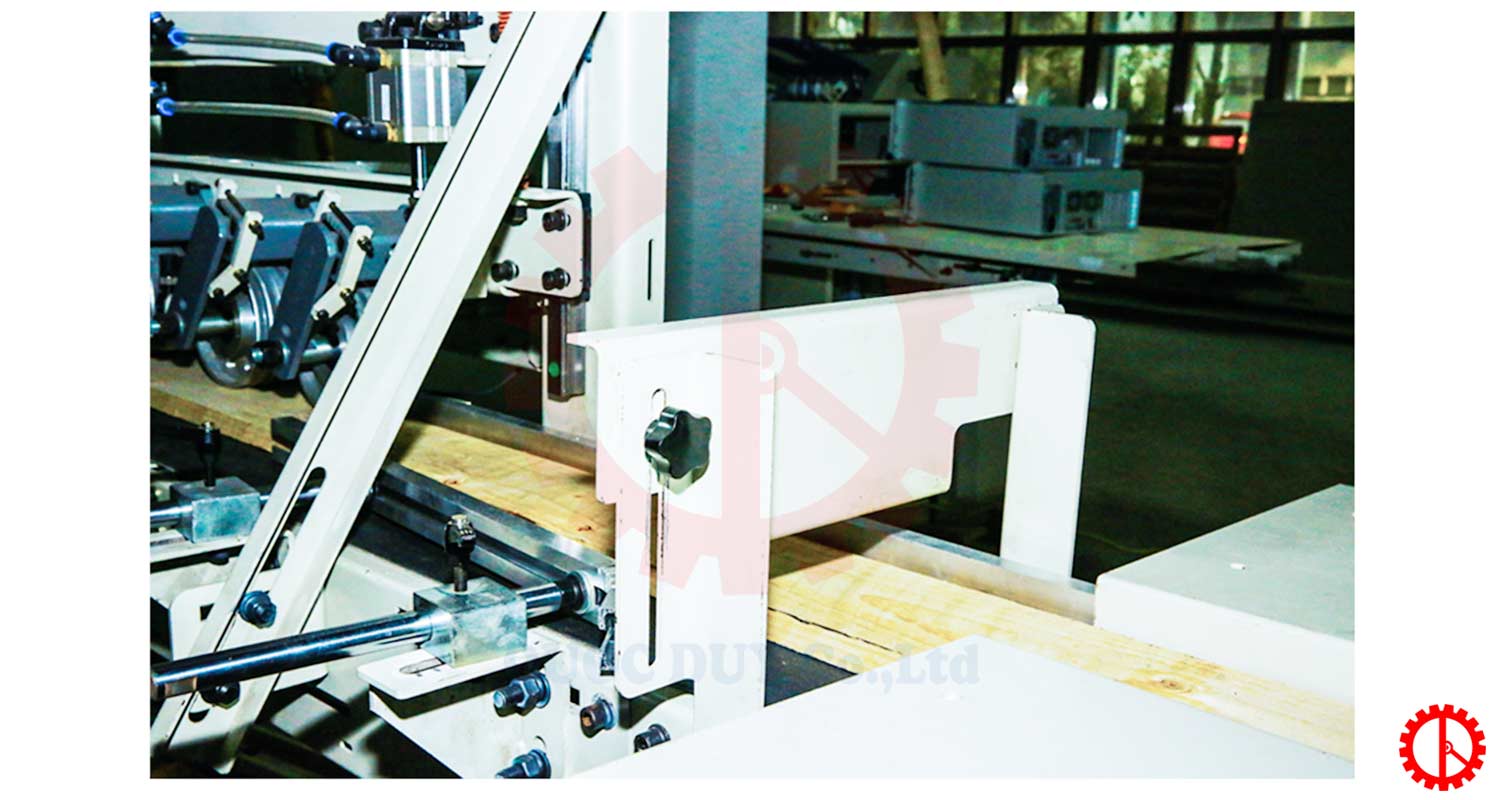

Both the saw blade lifting and infeed systems are powered by servo drivers, ensuring a highly stable, precise, and efficient cutting process.
High-precision sensors and linear guide rails guarantee smooth and high-speed material feeding.
Fully enclosed machine components with safety guards, ensuring maximum protection for the operator.
Reduces labor costs, boosts production output, and maximizes profitability.
Specifications of high speed optimizing crosscut saw – SM 244
| Working Length | 350 – 6500 mm |
| Maximum Feeding Speed | 150 m/min |
| Saw Blade Speed | 3700 RPM |
| Processing Capacity | 150 × 20 mm ; 120 × 50 mm |

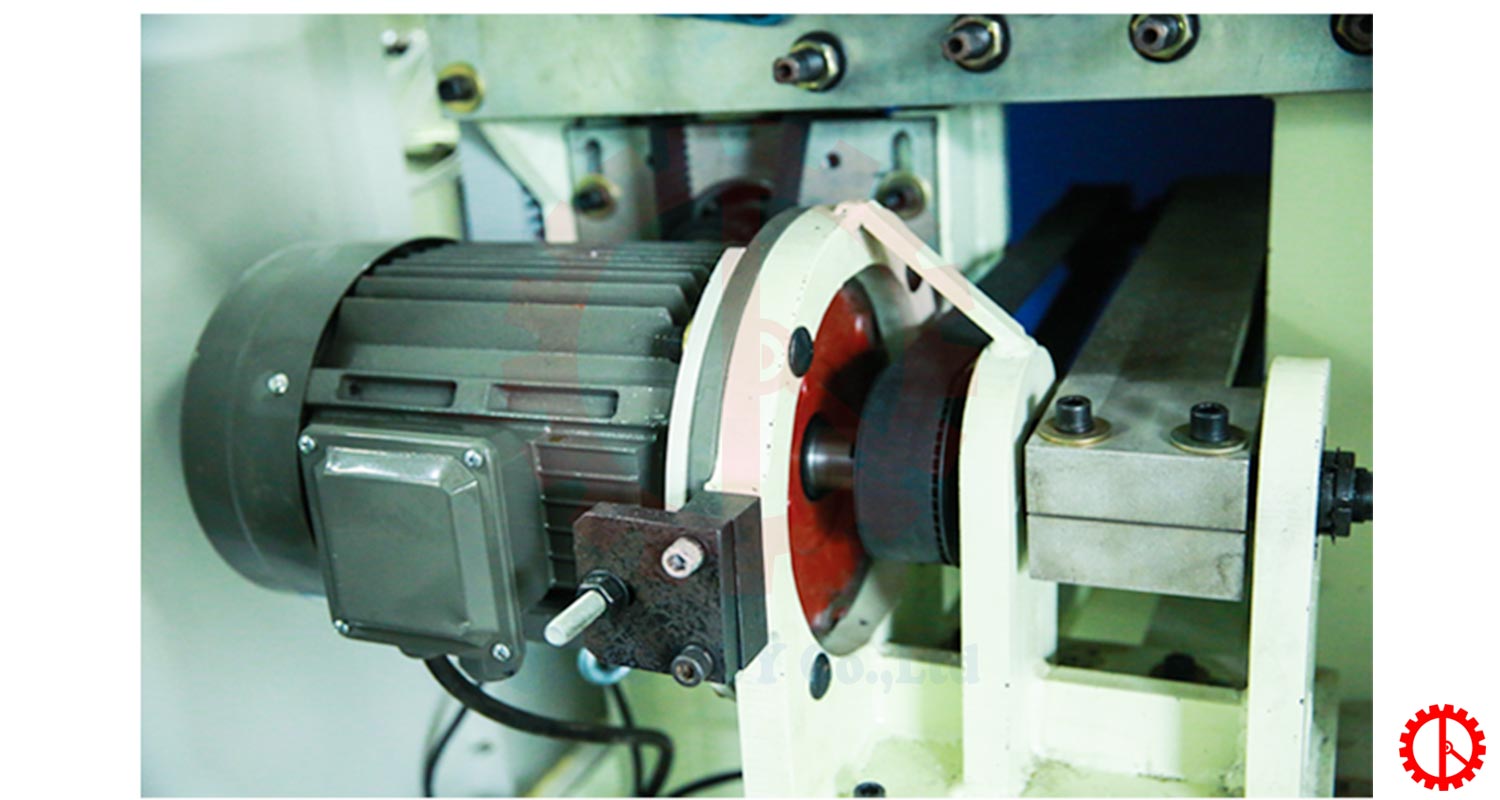

| Main Spindle Motor | 3 kW |
| Saw Blade Lifting Servo Motor | 2.9 kW |
| Feeding Servo Motor | 4.4 kW |
| Outfeed Motor | 0.37 kW |
| Total Power | 14.5 kW |
| Saw Blade Lifting Cycle Time | ≤ 0.2 s |
| Conveyor Width | 220 mm |
| Cutting Accuracy | ± 0.5 mm |
| Dust Collection Port | Ø98 mm × 2 |
| Air Pressure | 6 – 8 bar |
| Required Air Consumption | 1000 L/min |
| Saw Blade Clamp Diameter | Ø180 mm |

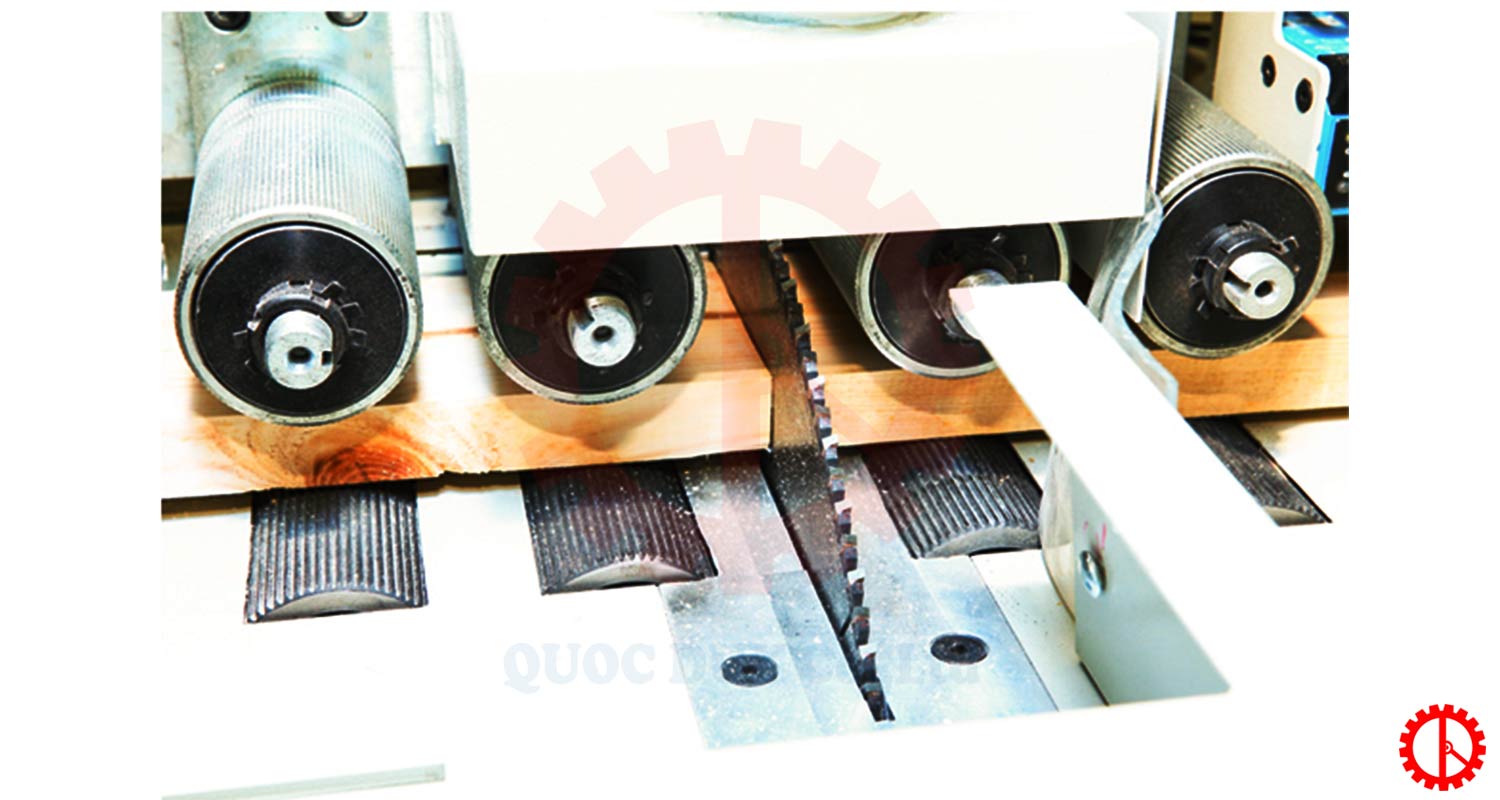

| Upper Pressure Wheels | 6 pcs |
| Lower Feeding Wheels | 6 pcs |
| Dimensions | 6000 × 1300 × 1600 mm |
Note: Technical specifications, design features, and machine colors are subject to change without prior notice. However, such changes will not affect the machine’s functionality, performance, or operating capabilities.
OPERATION VIDEO HIGH SPEED OPTIMIZING CROSSCUT SAW – SM 244

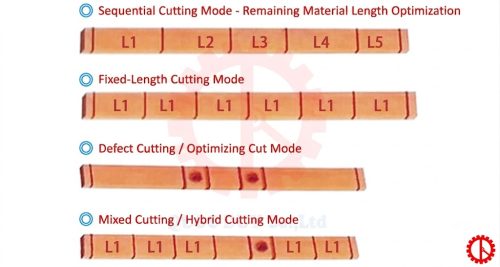

Wood cutting modes
