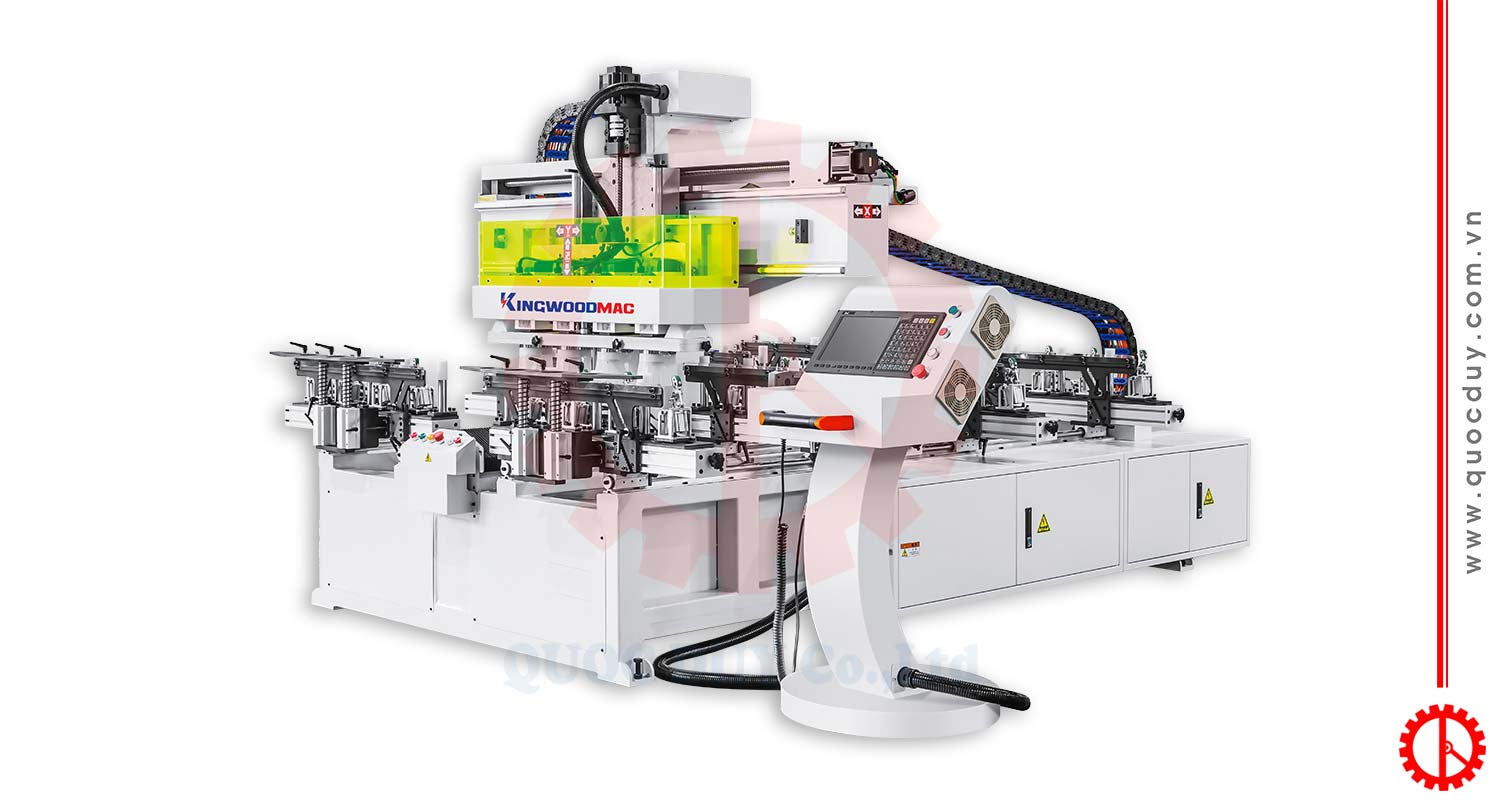

2200mm 4 Head CNC mortising machine – KW 2200 T4 is the optimal solution for furniture workshops requiring fast, precise, and consistent slot mortising. Featuring 4 milling spindles operating flexibly across a 2200mm working length, the machine drastically boosts productivity, making it particularly suitable for long components or mass production. With powerful capacity, stable operation, and easy programming, it is a reliable choice for modern manufacturing facilities.
Features of 2200mm 4 Head CNC mortising machine – KW 2200 T4
Versatile Joint Processing: Specialized in machining oval mortises, round mortises, slot routing, and various other joint profiles with high precision.

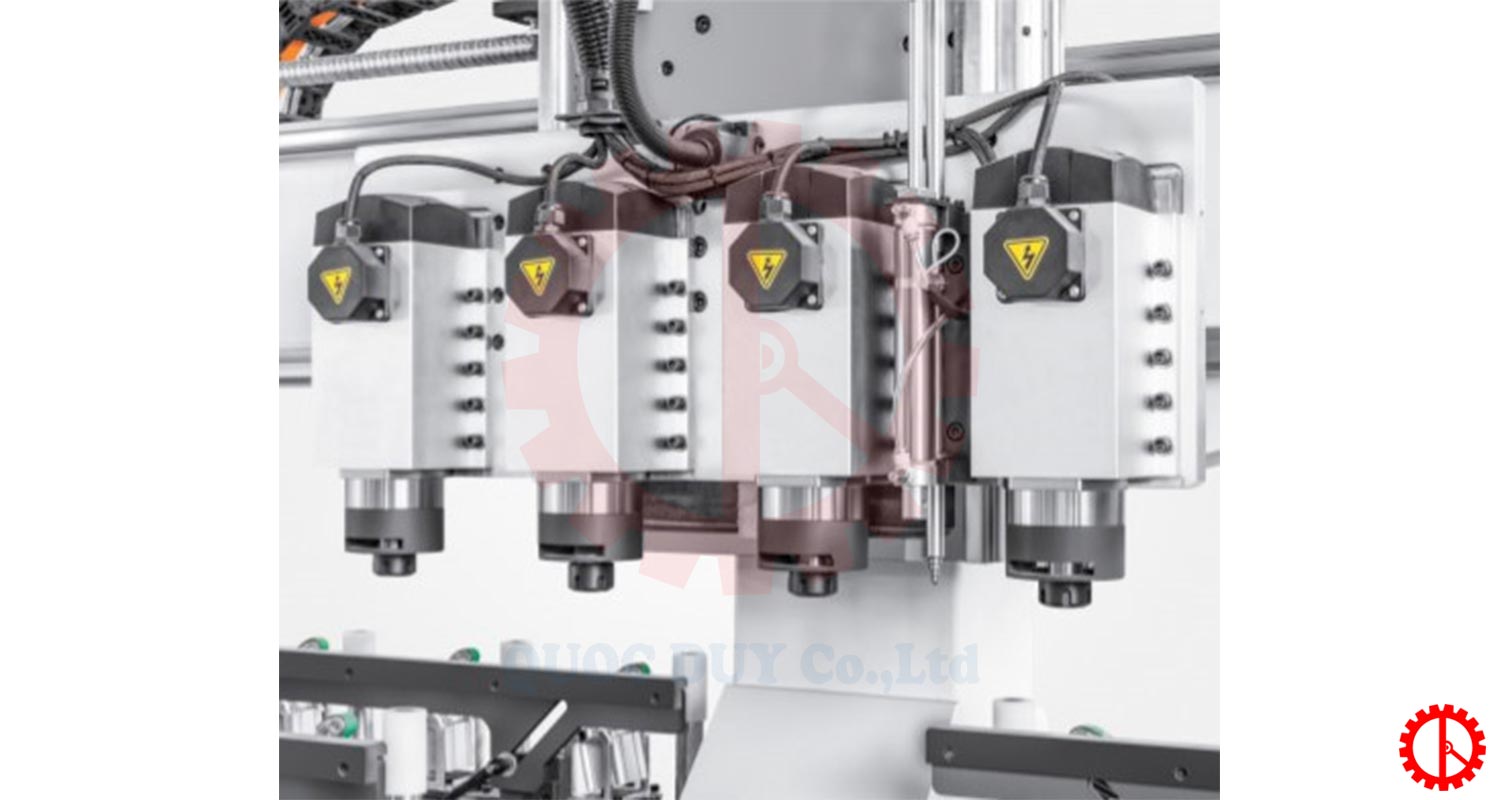

Simultaneous 4-Head Machining: Features a system of 4 machining heads operating concurrently to process 4 workpieces at the same time, with each head boasting a powerful 3.7kW capacity to drastically accelerate processing speed and significantly boost output.
Dual Independent Working Tables: Designed with 2 independent working tables supporting a maximum workpiece length of up to 2200mm perfectly accommodating a wide range of component sizes.
High-End Servo Drive: Equipped with premium servo motors to guarantee absolute precision and stability throughout the entire operating process
Specifications of 2200mm 4 Head CNC mortising machine – KW 2200 T4
| Maximum Working Length | 2200 mm |
| Maximum Working Width | 140 mm |
| Maximum Working Thickness | 180 mm |
| Spindle Motor | 3.7 kW × 4 |
| Spindle Speed | 18000 rpm |
| X-axis Servo Motor | 1.3 kW |
| Y-axis Servo Motor | 0.85 kW |
| Z-axis Servo Motor | 0.85 kW |
| Total Power | 17.8 kW |
| Voltage | 380V/50Hz |
| Air Pressure | 0.5 – 0.7 MPa |
| Weight | 2000 kg |
| Machine Dimensions | 3500 × 2400 × 2000 mm |
Note: Technical specifications, design features, and machine colors are subject to change without prior notice. However, such changes will not affect the machine’s functionality, performance, or operating capabilities.
