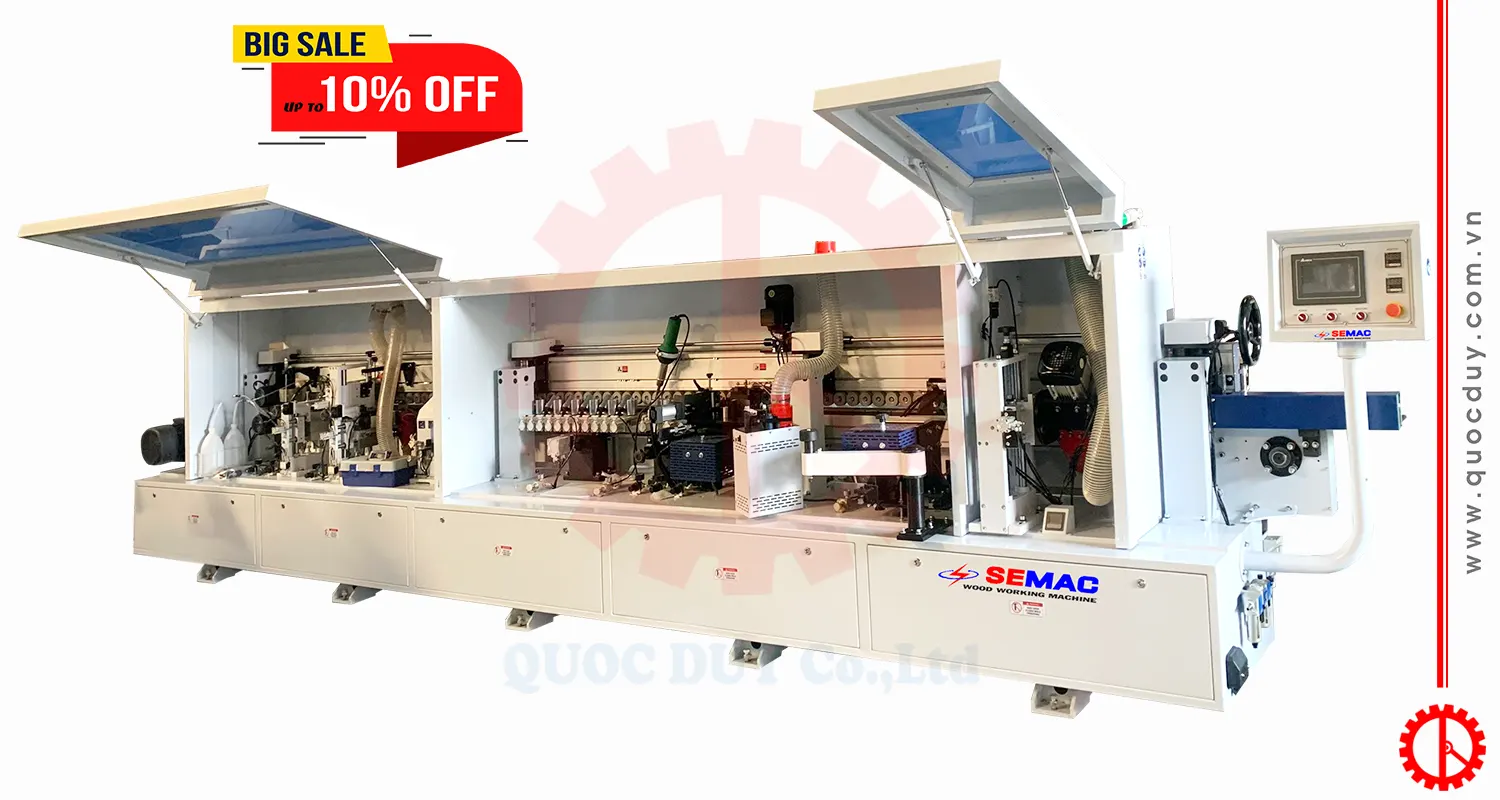

Straight inclined edge banding machine – SM 450DT is used for straight edge gluing + slanted gluing of products made of wood, MDF, oak, plywood, MFC, MDF… Many applications in today’s interior products.
Features of auto inclination edge banding machine
- Integrates straight gluing and slanted gluing in the same machine. Switching between straight and tilted gluing requires just 1 touch on the screen.
- The milling system bevels the board edges at a 45-degree angle, helping to prepare effectively before rolling glue and pressing inclined splints.
- The edge banding machine is designed with 2 glue pots: a 90-degree straight glue pot and 45 45-degree inclined glue pot.
- The system sprays the cleaning solution on the edge of the board.
- Touch screen operation is quick – saves time
- Paste splints with high adhesion, beautiful seams, and outstanding productivity.
- The machine frame is sturdy and has a precise mechanical structure that is easy to align.
- High-end machine component systems: Siemens, Schneider, Airtac, Delta…
- The automatic oil pump system protects the machine.
Application of auto inclination edge banding machine
- Specialized machine for straight edge gluing + slanted gluing of products made of wood, MDF, oak, plywood, MFC, MDF,…
- Can attach all kinds of threads (splints): PVC, wood splints, veneer,…
- Many applications in furniture products that do not use handles: handles next to kitchen cabinets, next to wardrobes, next to beds, tables and chairs,…
Function of auto inclination edge banding machine
- Pre – milling
- Gluing 1
- Grooving
- Gluing 2
- End trimming
- Fine trimming
- Scraping
- Buffing
- Spray cleaning solution
Specifications of auto inclination edge banding machine
| Workpiece thickness when edge banding at an angle | : 17–25mm |
| Workpiece thickness when edge banding straight | : 12–55mm |
| Edge band thickness | : 1–2mm |
| Feeding speed | : 12–20m/min |
| Minimum workpiece length | : 150mm |
| Minimum workpiece width | : 110mm |
| Operating air pressure | : 0.6MPa |
| Power supply voltage | : 380V 50Hz |
| Adjustable bonding angle | : 45°/90° |
| Tilting milling motor | : 4kW |
| Tilting glue roller motor | : 0.75kW |
| Straight glue roller motor | : 0.75kW |
| Groove milling motor | : 0.75kW |
| Front/rear excess trimming motor | : 0.37kW x 2 |
| Upper/lower edge trimming motor 1 | : 0.75kW x 2 |
| Upper/lower edge trimming motor 2 | : 0.75kW x 2 |
| Polishing motor | : 0.37kW x 2 |
| Roller lift motor for workpiece support | : 0.37kW |
| Conveyor motor | : 5.5kW |
| Dust extraction port diameter | : Ø100mm x 5 |
| NET weight | : 2200kg |
| Machine dimensions | : 8600 x 1100 x 1600mm |
Note: Technical specifications, design features, and machine colors are subject to change without prior notice. However, such changes will not affect the machine’s functionality, performance, or operating capabilities
View more: Inclined edge banding machine – SMBL 450DT
Video of Straight Inclined Edge Banding Machine
Components for straight inclined edge banding machine
In order for the auto edge banding machine to operate well and bring high efficiency, it is essential to monitor and check the wear and tear of materials and equipment in the machine. The 45-degree diagonal edge banding machine has many functions, so many devices need to be renewed or replaced.
- Beveled saw blade: sharpened to improve cutting quality, without chipping edges
- Slotted knife: new sharpened

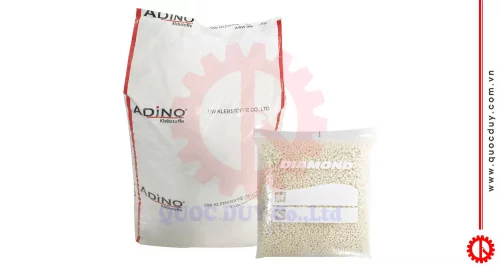

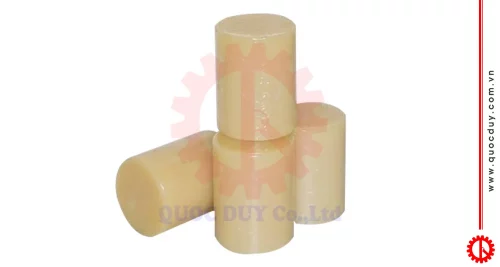

- Edge glue: choose the appropriate temperature and color of glue
- Tail-cutting saw blade: Has 2 sharpened blades or can be replaced

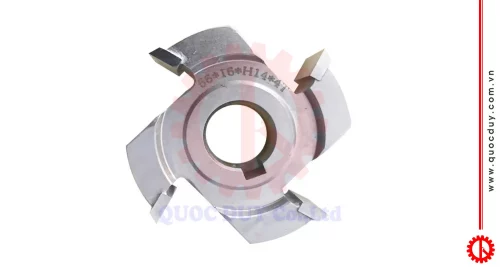

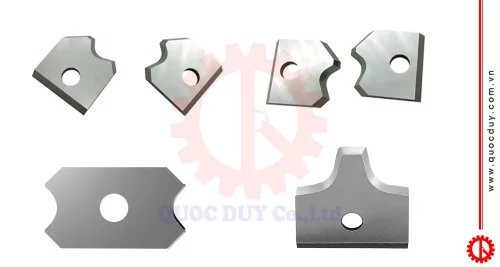

- Upper and lower edge milling cutters: 2 knives
- Glue scraper: 2 knives

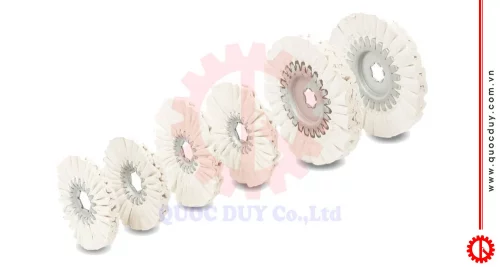

- Polishing brush wheel: only when it has a lot of fraying does it need to be replaced
