Automatic Edge Banding System - EVA 695

Automatic edge banding system – EVA 695

Features of Automatic Edge Banding System

Automatic precise end cutting eliminates excess or insufficient material.

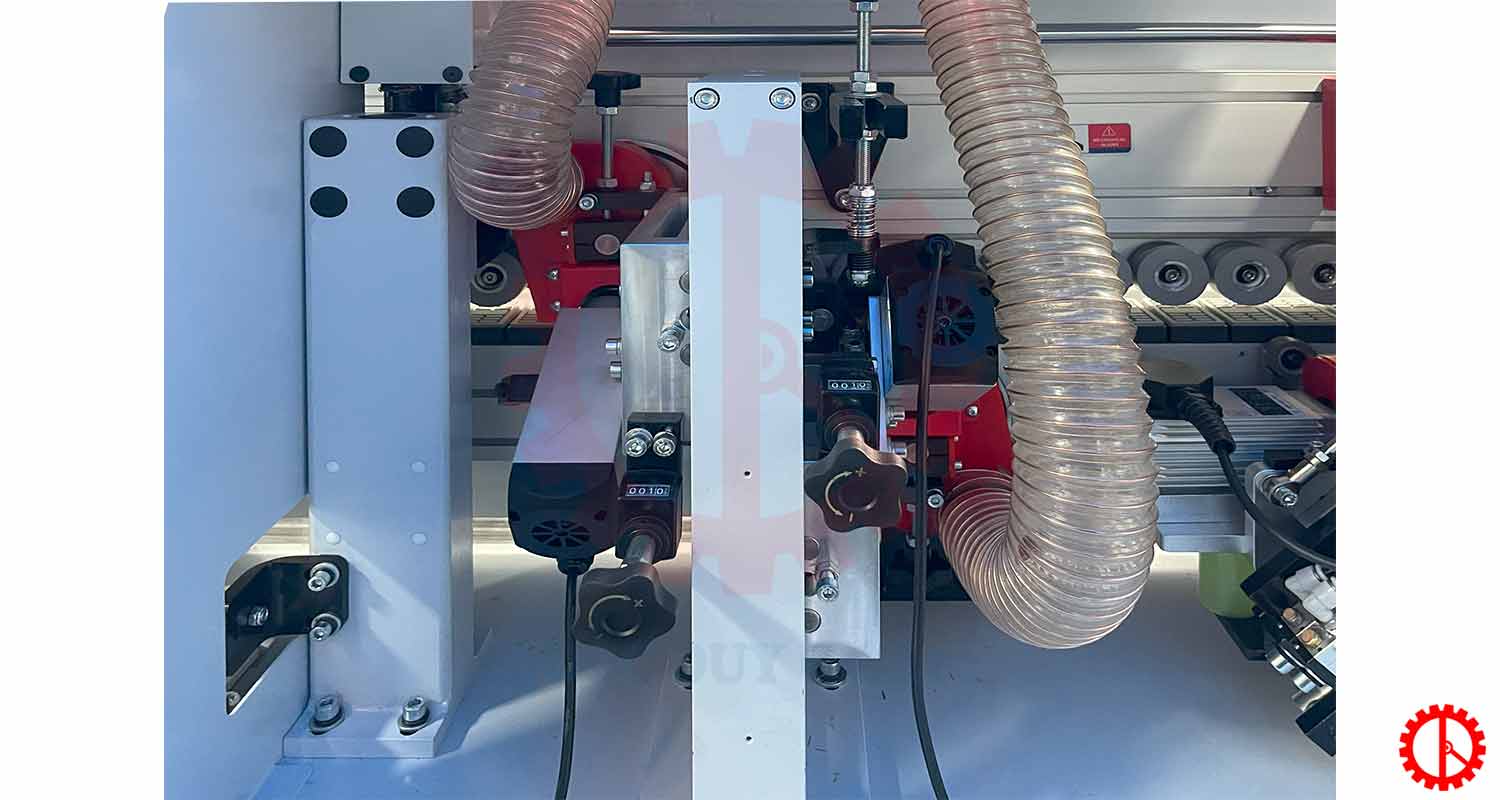

Automatic top and bottom trimming resolves differences in thickness between edge banding and board.

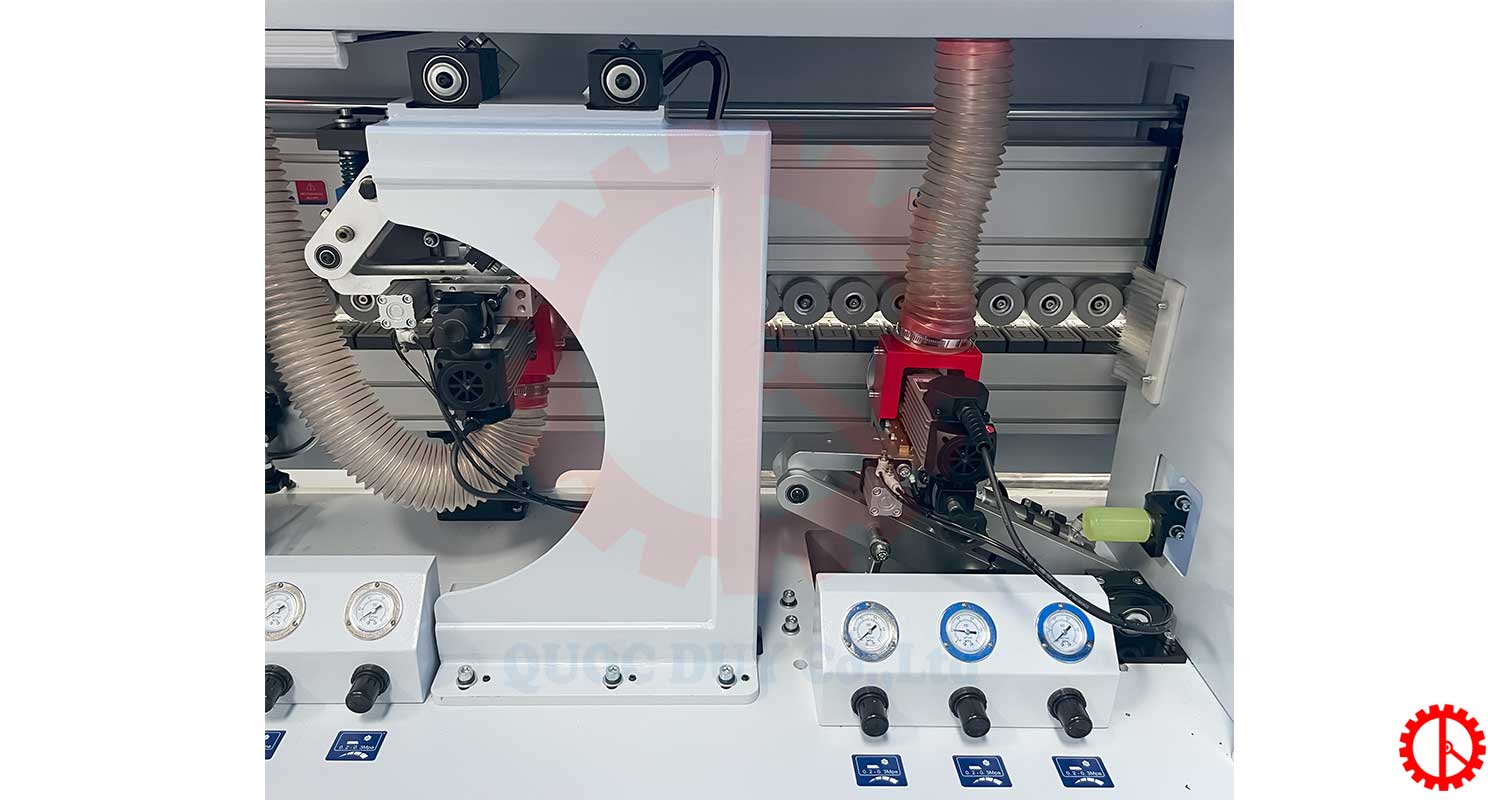

Equipped with R4 rounding unit for board edges, enhancing aesthetic appeal.

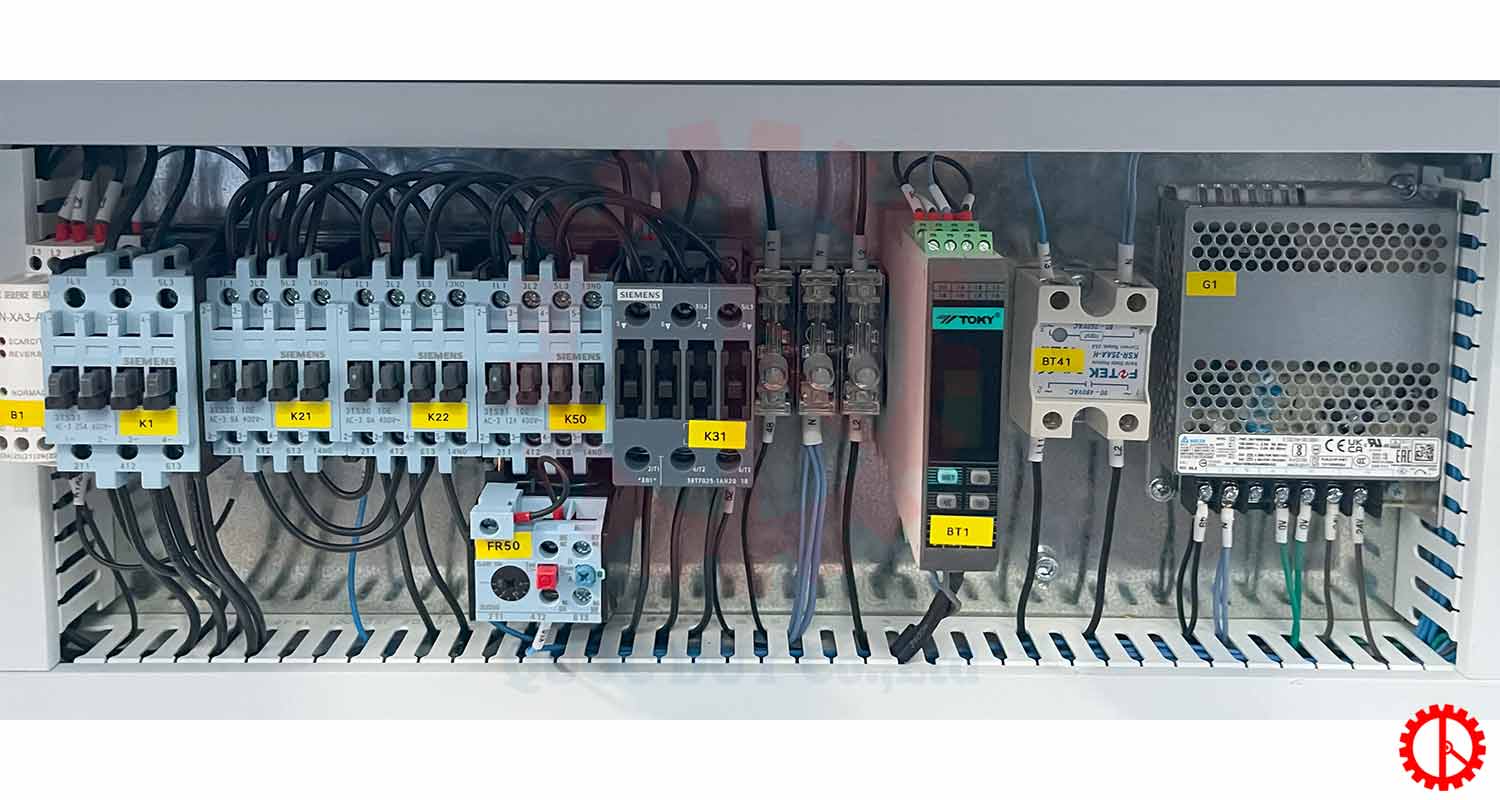

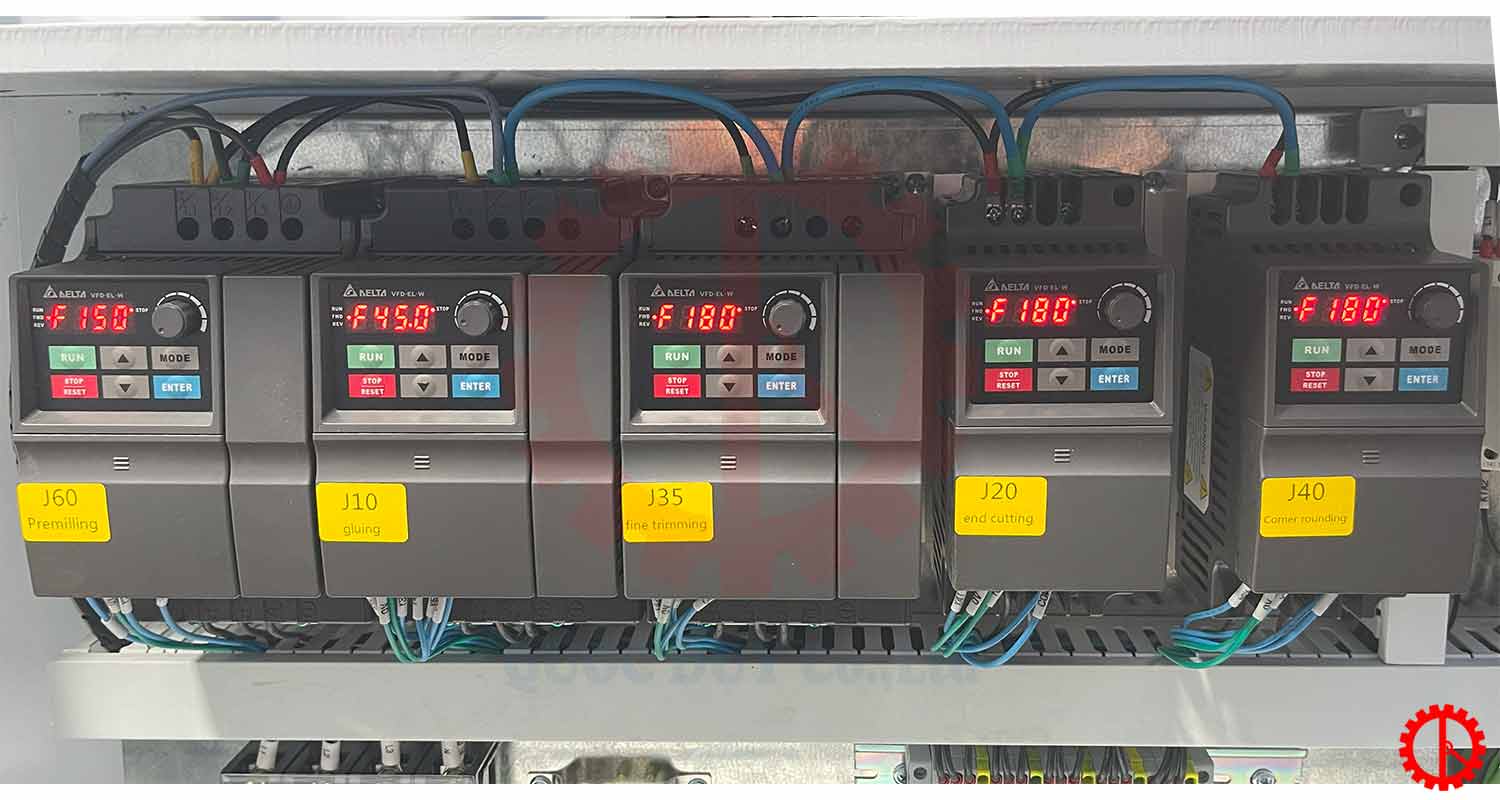

Utilizes high-quality components from reputable brands such as Siemens, Delta, etc.

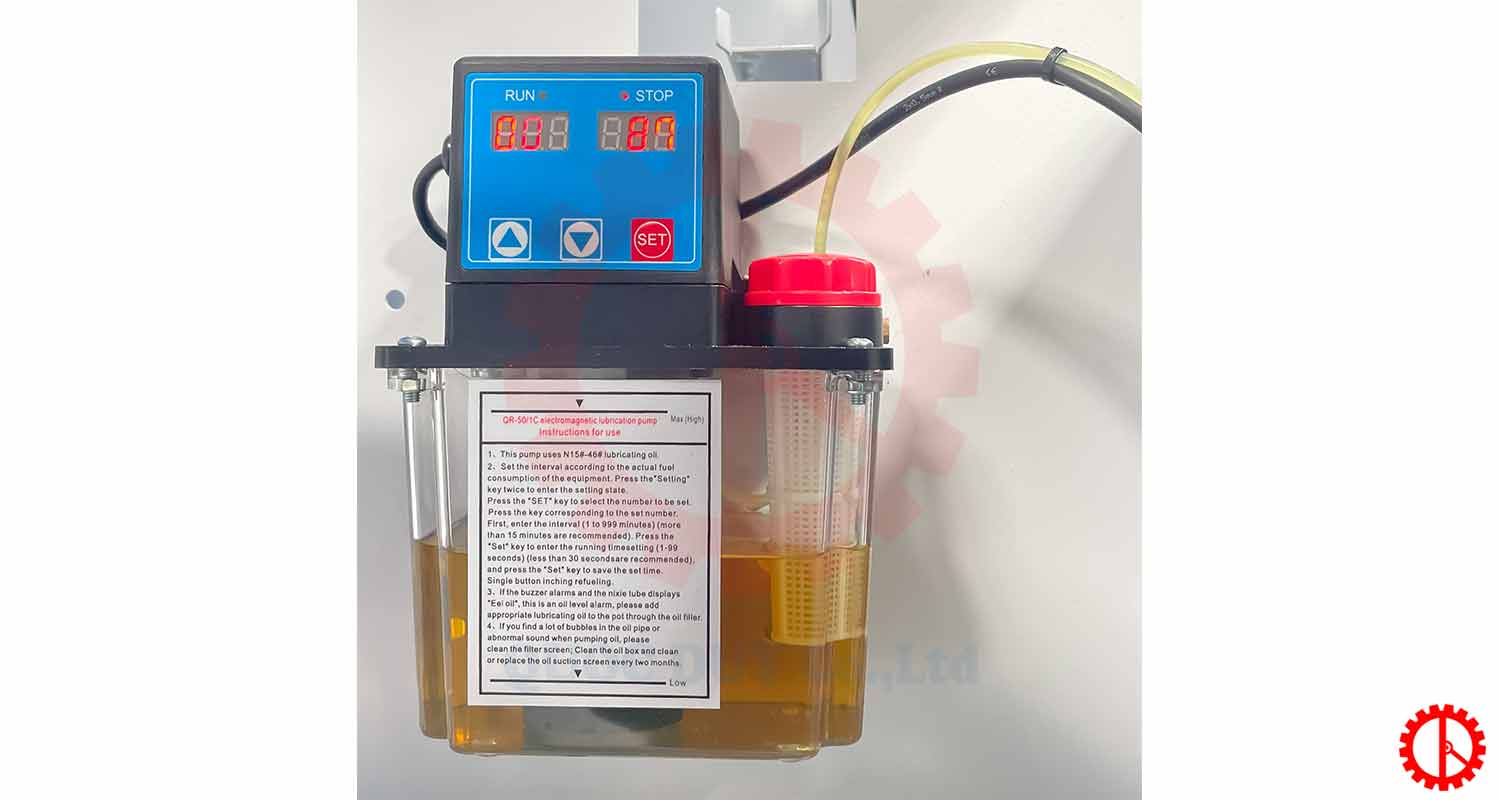

Integrated automatic oil pump system ensures optimal machine operation.
Option for a solution spraying system for cleaning edge banding.

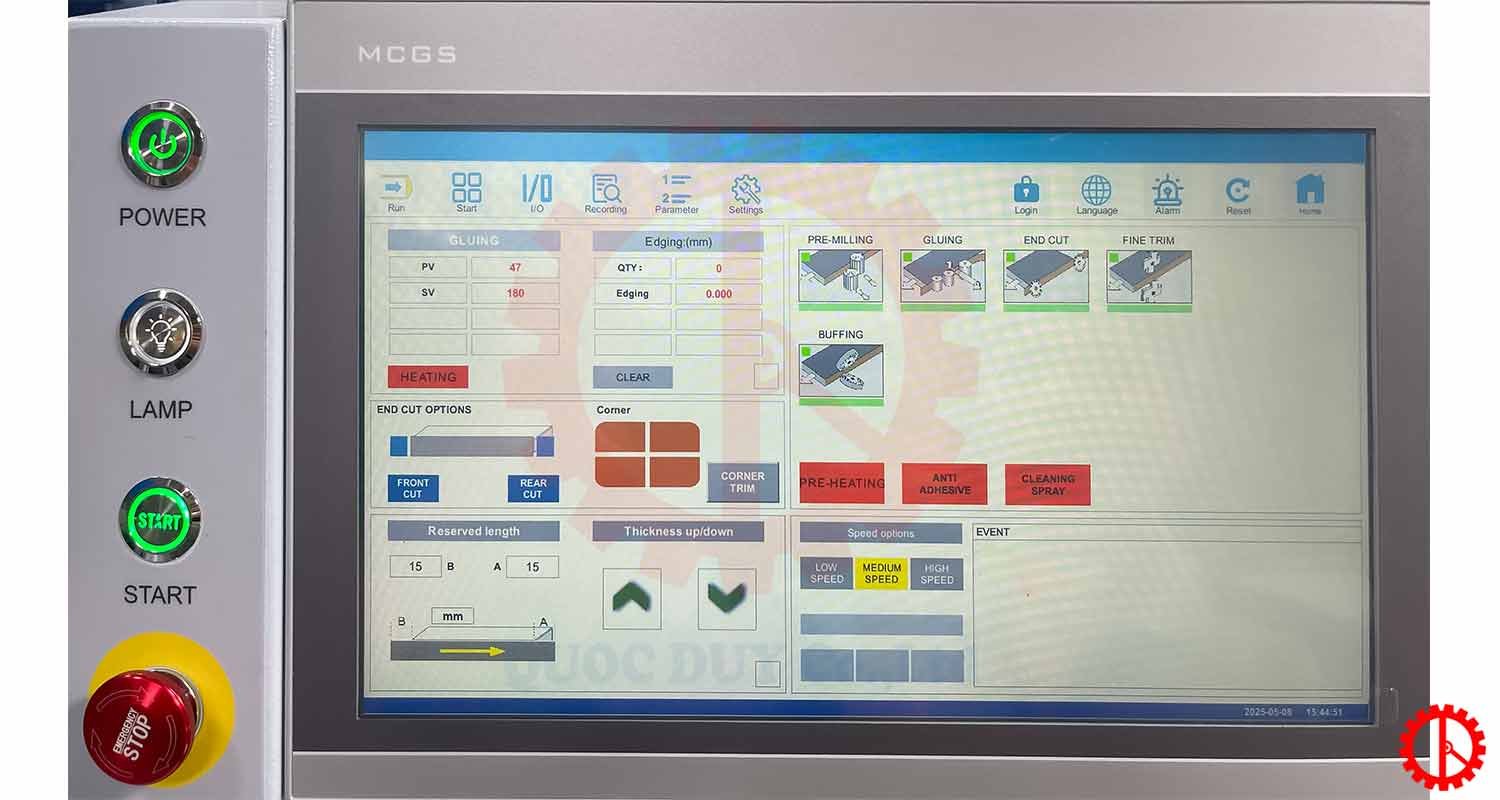

Equipped with user-friendly touch screen for smooth operation and quick parameter adjustments.

Specifications of Automatic Edge Banding System

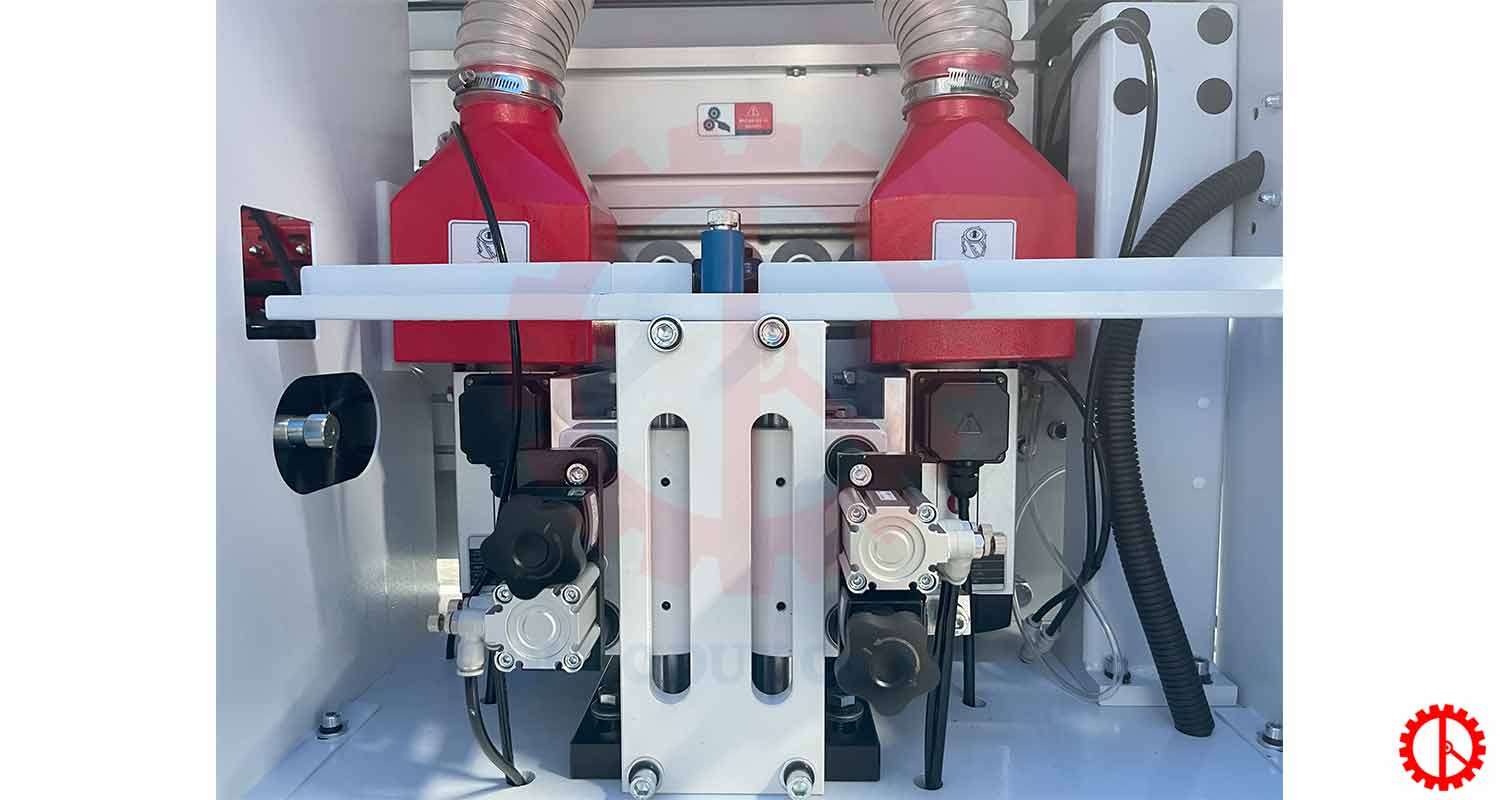

Pre-milling motor	: 1.8kw * 2

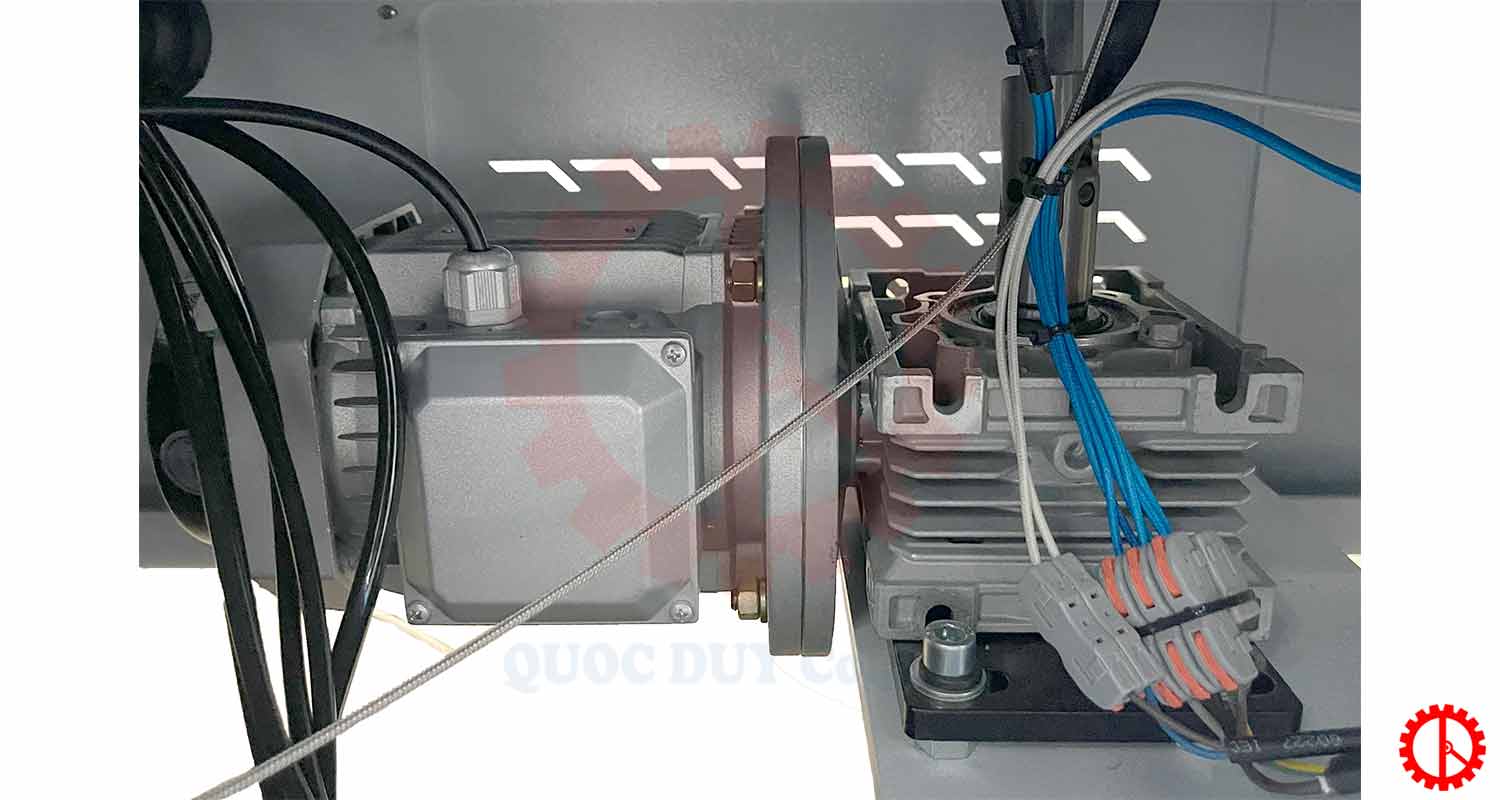

Gluing motor	: 0.75kw
Heating power	: 1.5kw

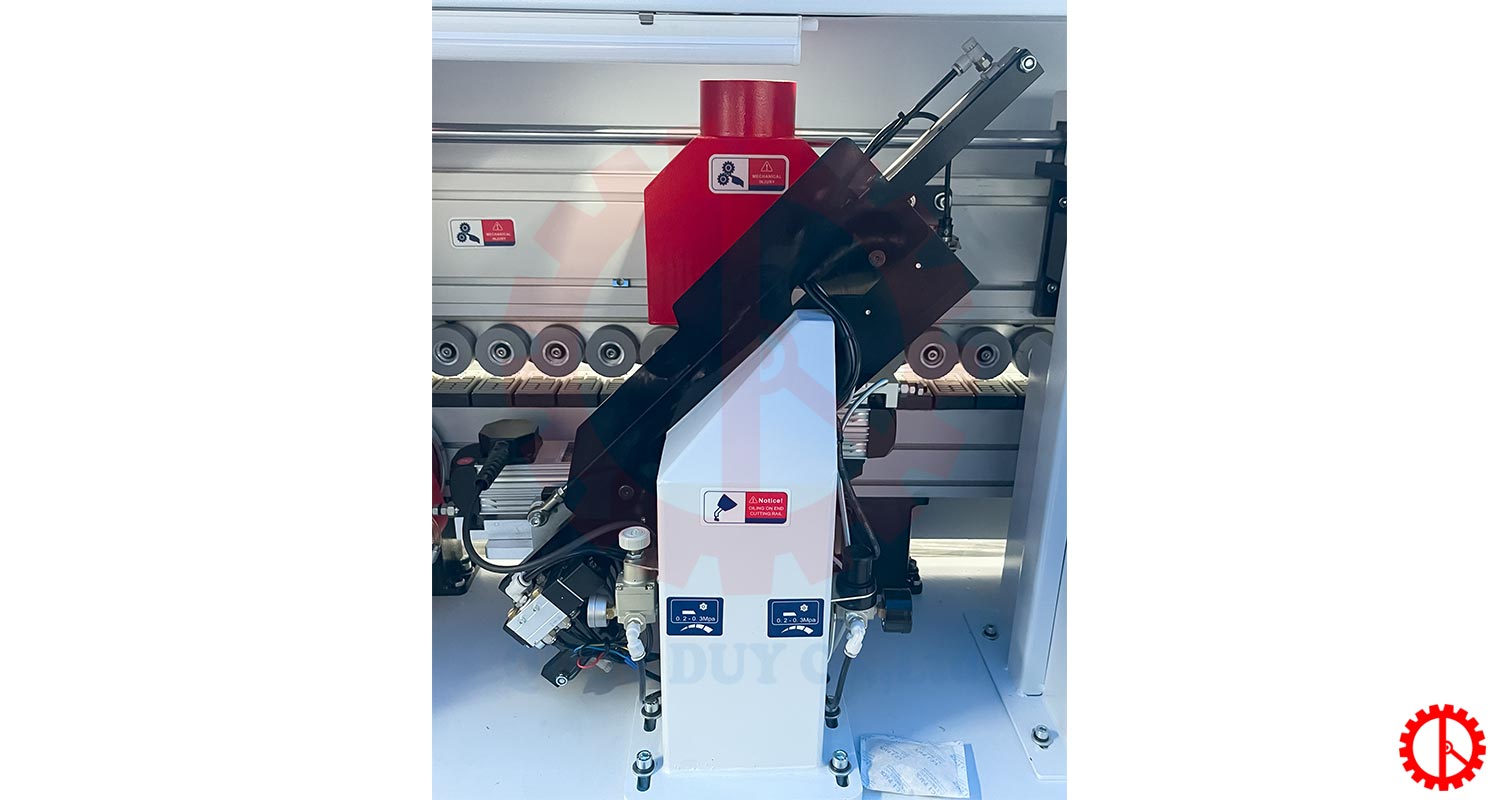

Ending trimming motor	: 0.37kw * 2
Fine trimming motor	: 0.75kw * 2
Corner rounding motor	: 0.37kw * 1

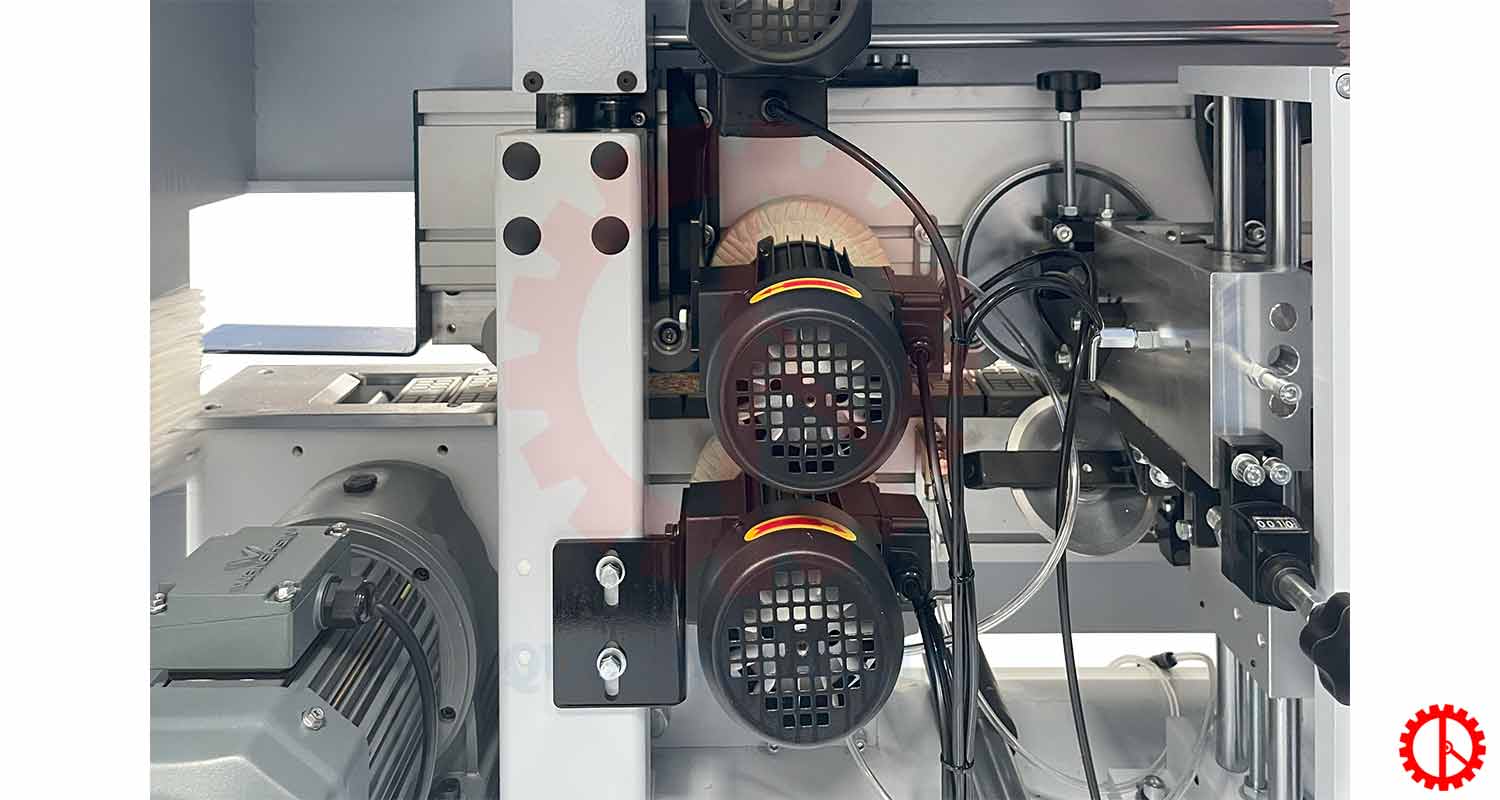

Buffing motor	: 0.37kw * 2

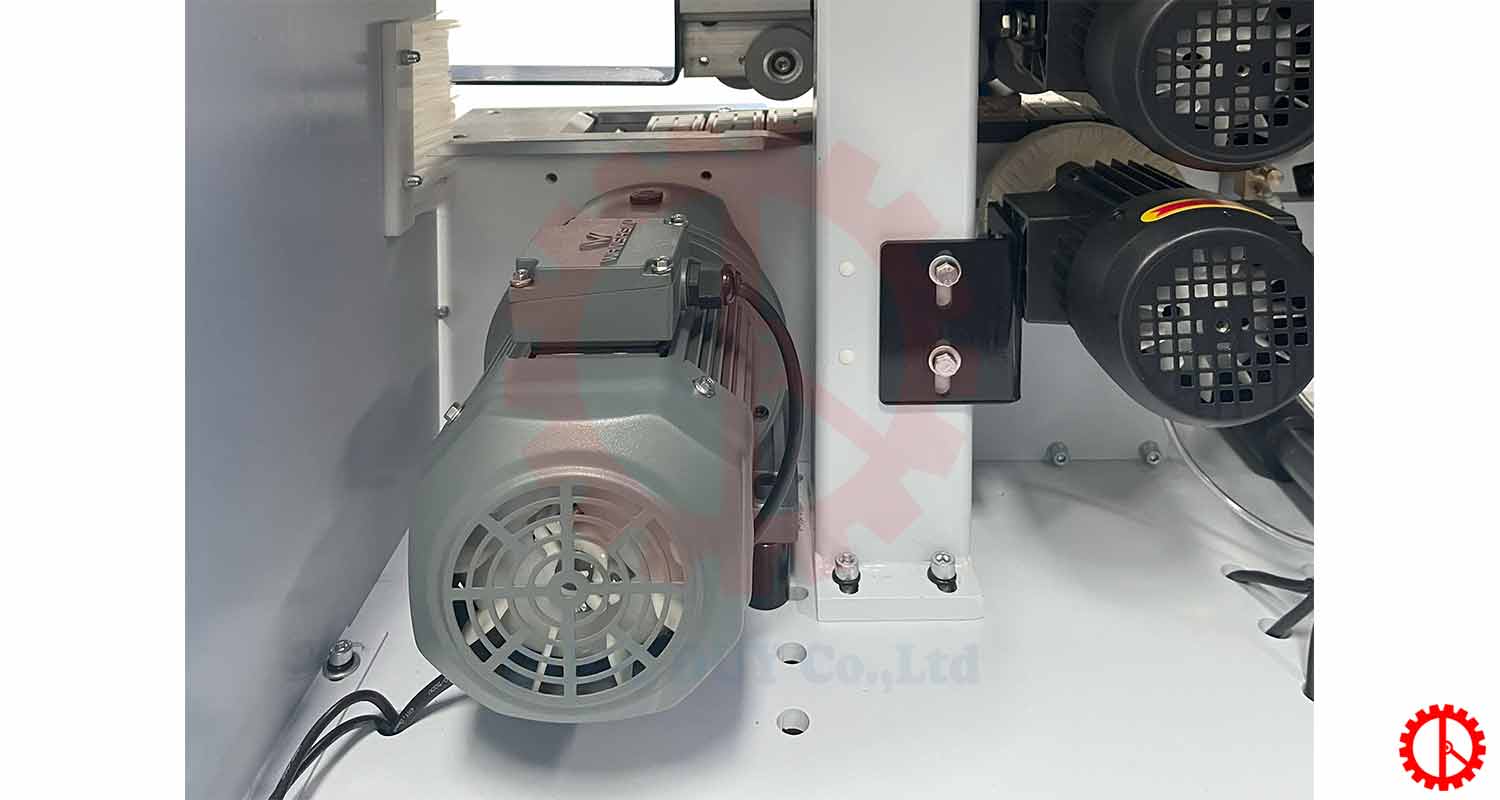

Belt motor	: 1.5kw
Working speed	: 12 m/min
Max edge height	: 45 mm
Panel thickness	: 10-45 mm
Edge banding tape thickness	: 0.4-3 mm
Panel width	: 80 mm
Working air pressure	: 0.6-0.8 Mpa
Packing size	: 49006501400 mm
Weight	: 1300 kg

Note: Technical specifications, design features, and machine colors are subject to change without prior notice. However, such changes will not affect the machine’s functionality, performance, or operating capabilities
