Auto straight inclined edge gluing machine is an affordable solution for processing units that require gluing for both slanted and straight products.
Introduce of auto straight inclined edge gluing machine
Feature of auto straight inclined edge gluing machine
- The edge banding machine is capable of pasting edges at two different angles – straight paste and 45-degree angle paste, you can easily adjust the mode from the touch screen.

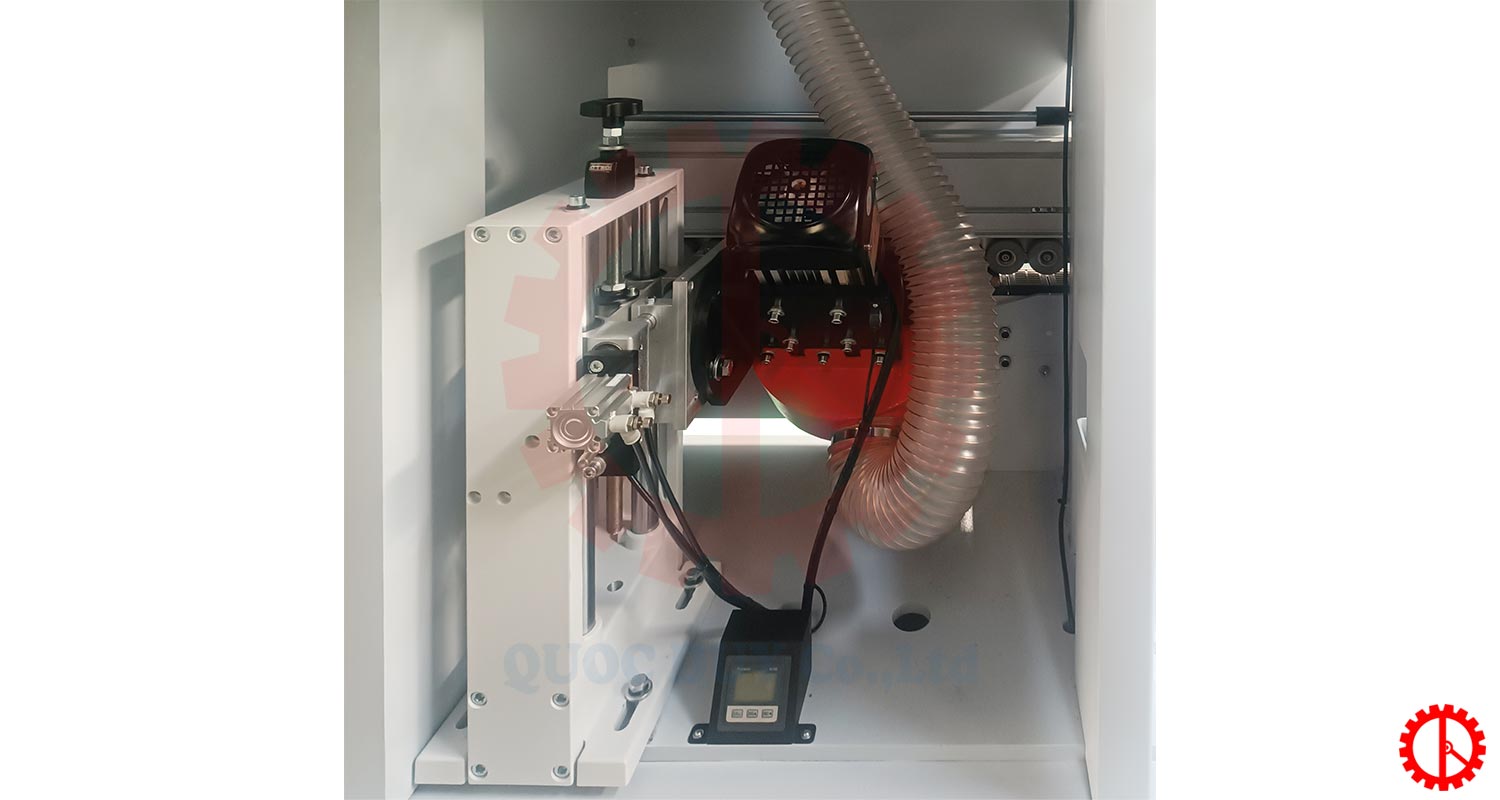

- The 45-degree beveled edge milling system comes with a digital display that allows precise alignment of the gluing angle.

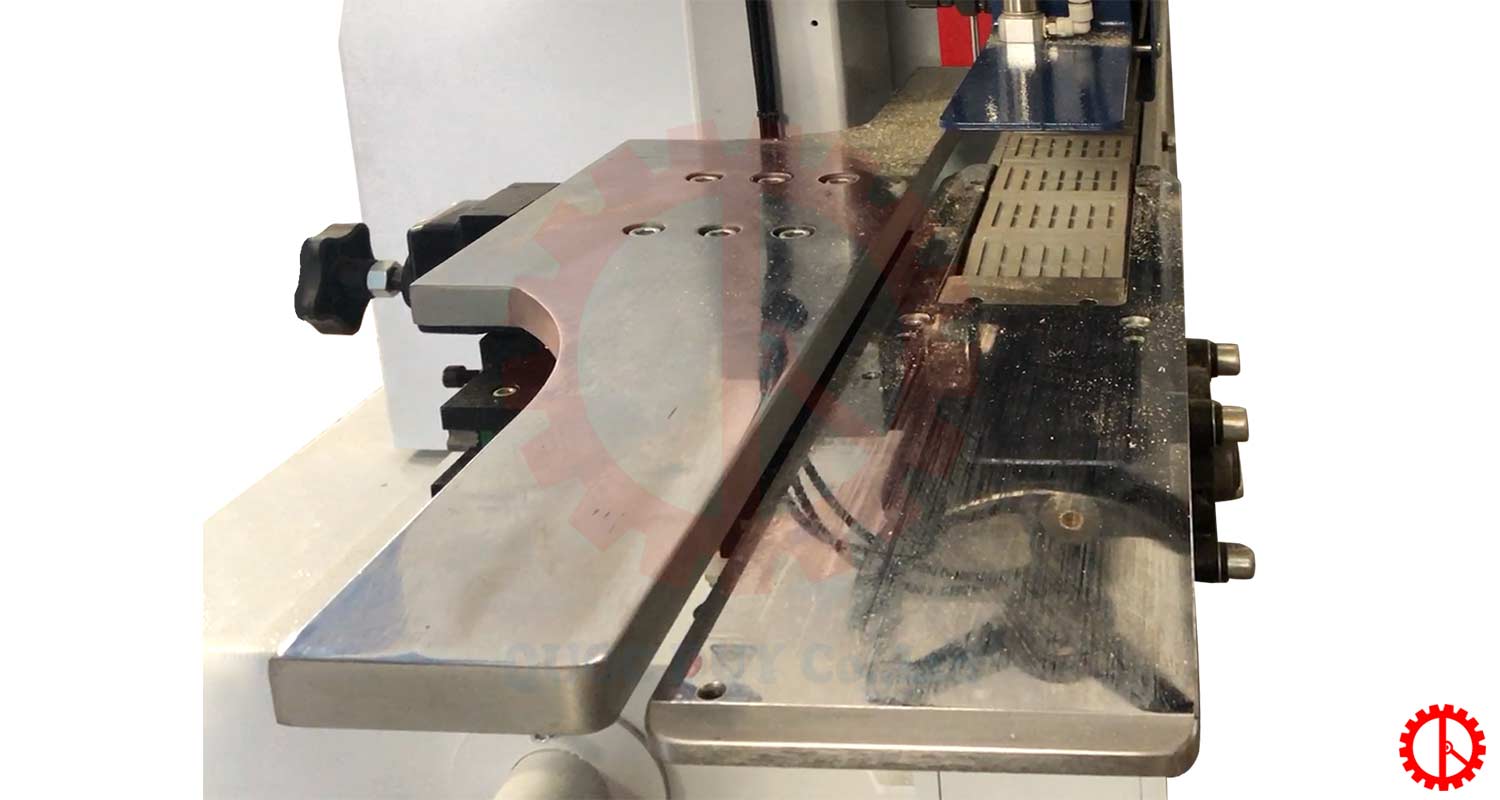

- The improved flexible opening and exit of workpieces ensures accurate placement of plywood between straight and inclined gluing.
- The machine is equipped with three glue pots – two inclined pots and one straight pot. Before gluing at a 45-degree angle, the thread groove is milled.

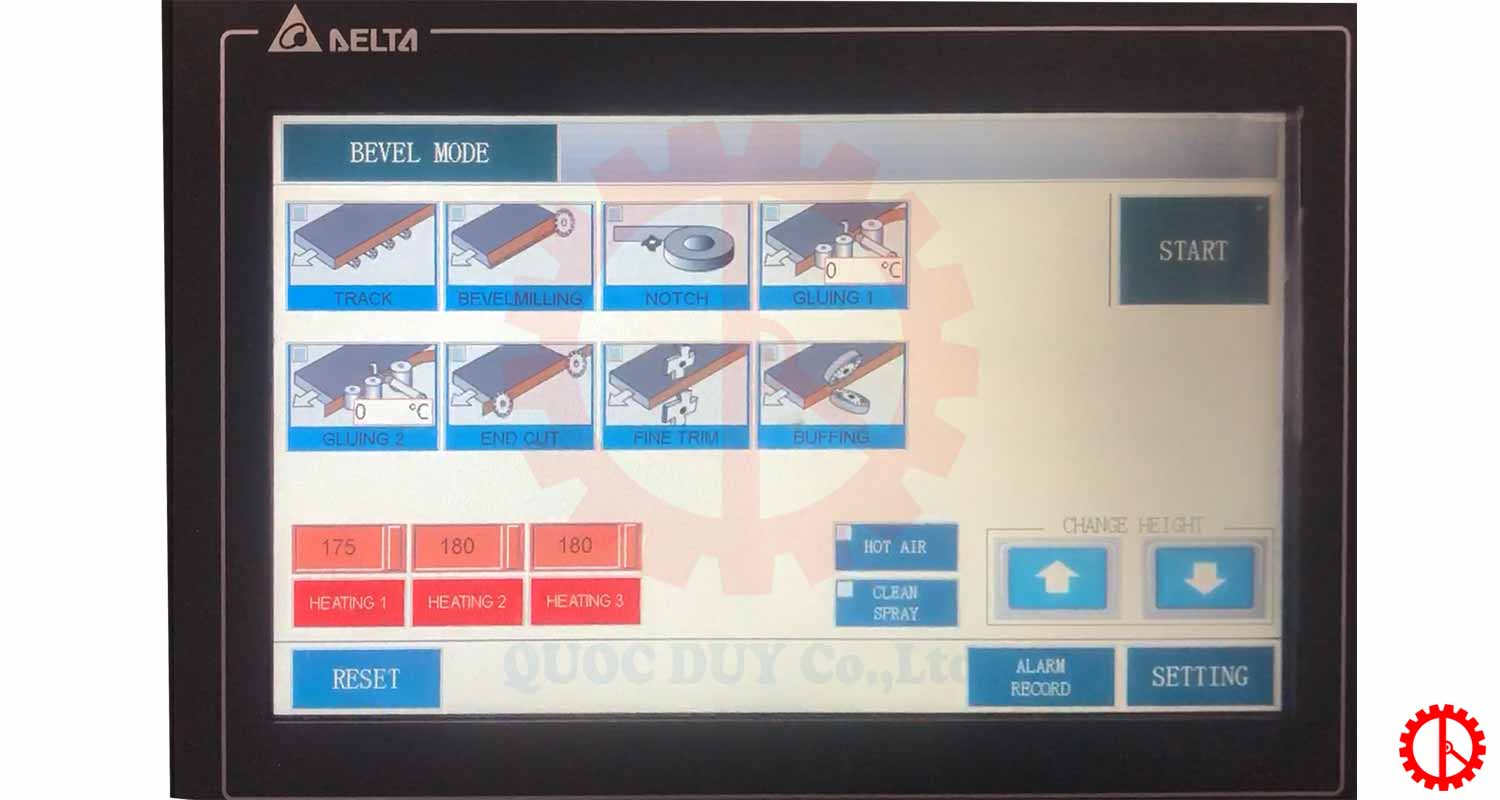

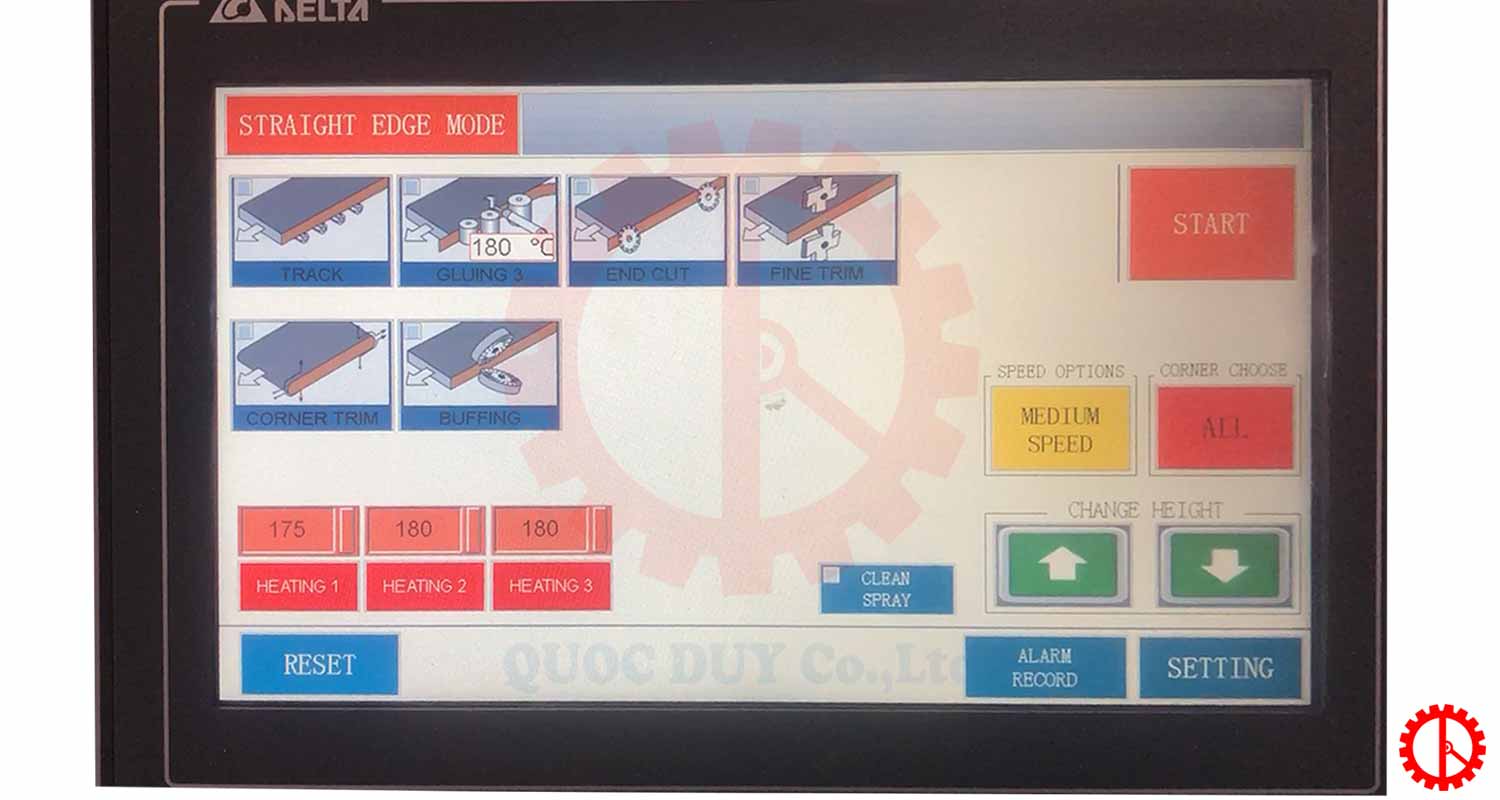

- The touch screen allows for easy customization of functions and supports changing the vertical-tilting mode directly on the screen with just one touch.
- Additionally, the machine comes with an automatic oil pump system that protects it during operation.
Functions of auto straight inclined edge gluing machine
- Pre-milling
- Grooving on tape

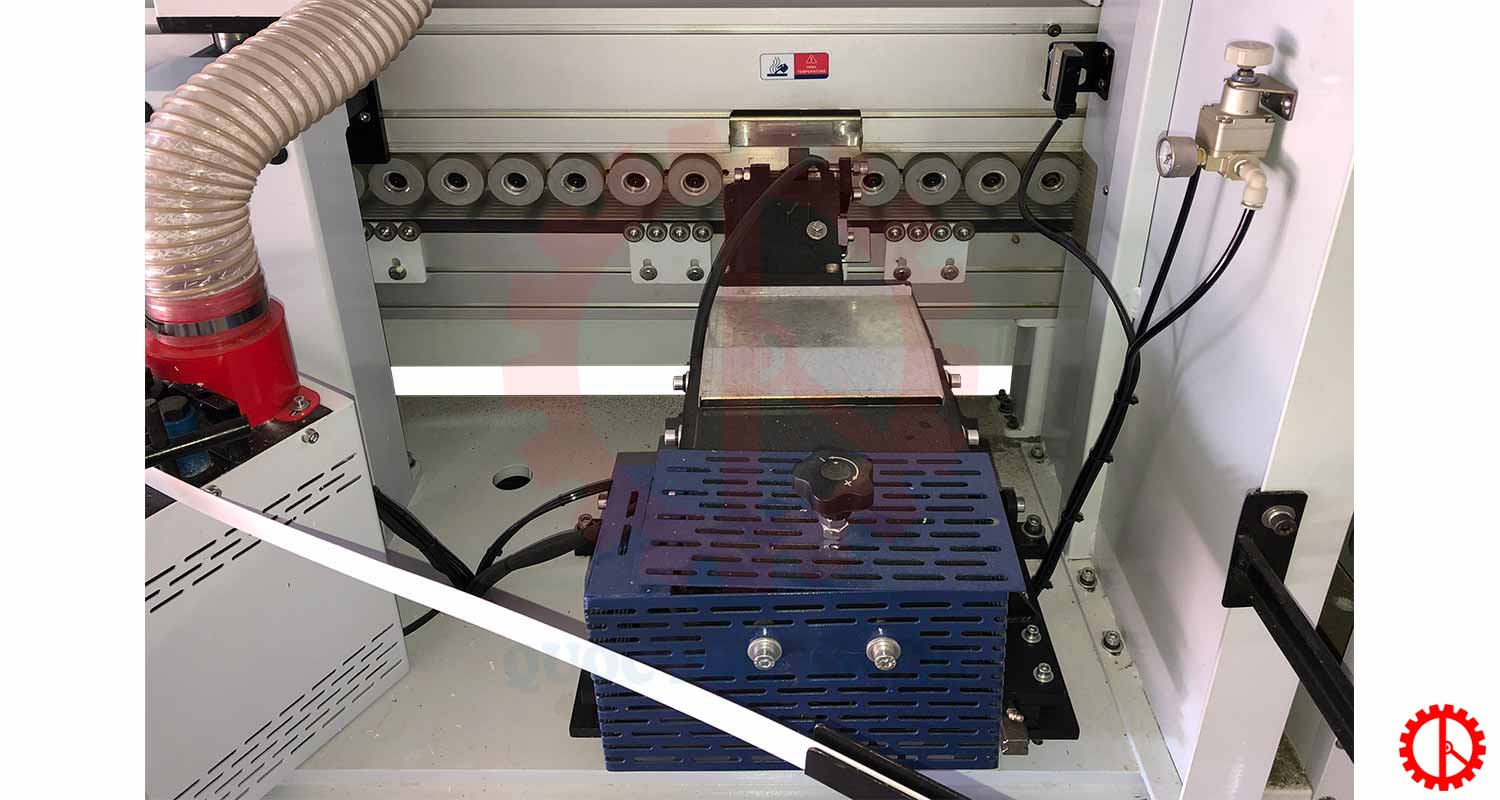

- Gluing at inclination surfac

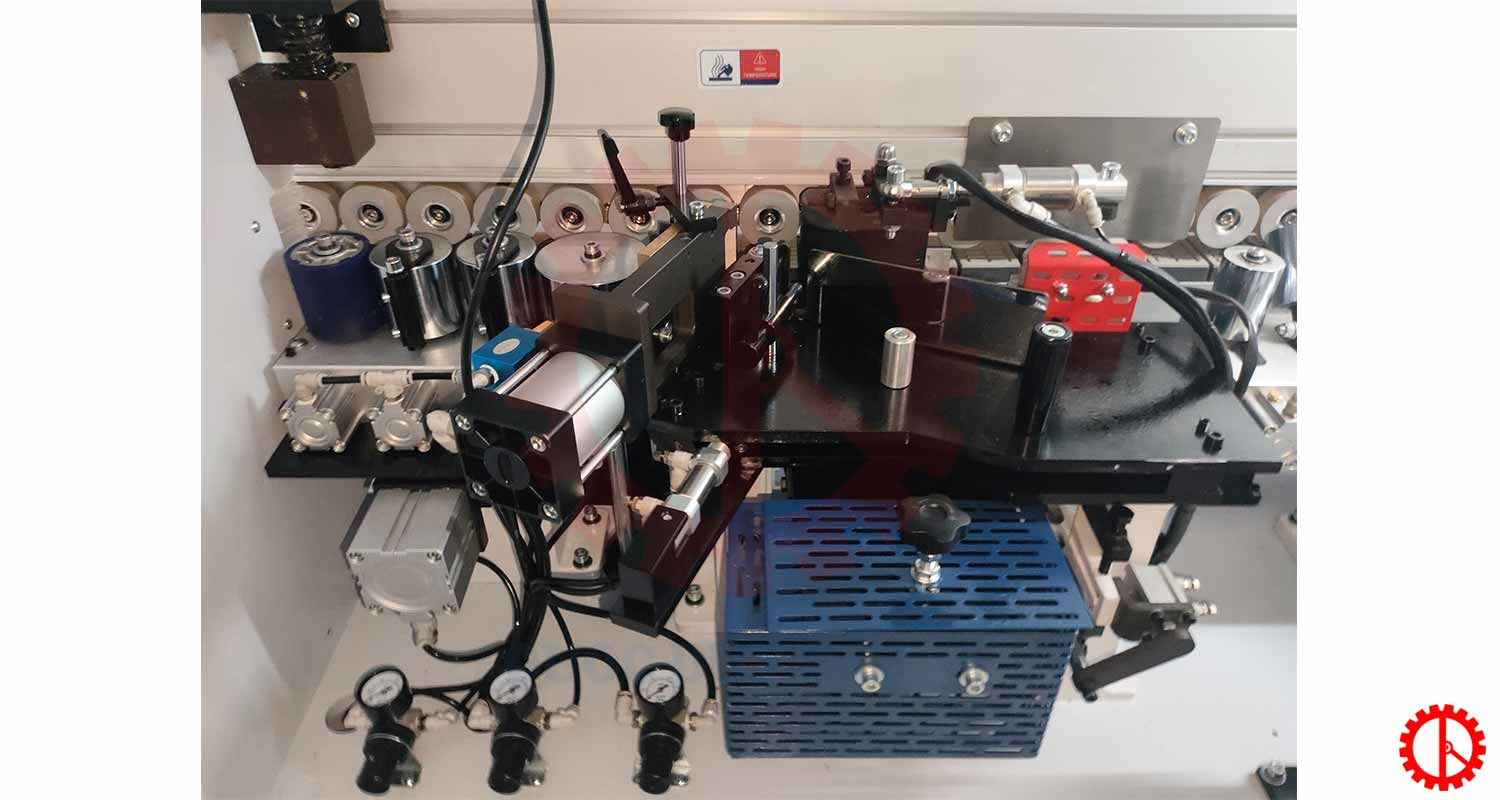

- Gluing ports at straight surface

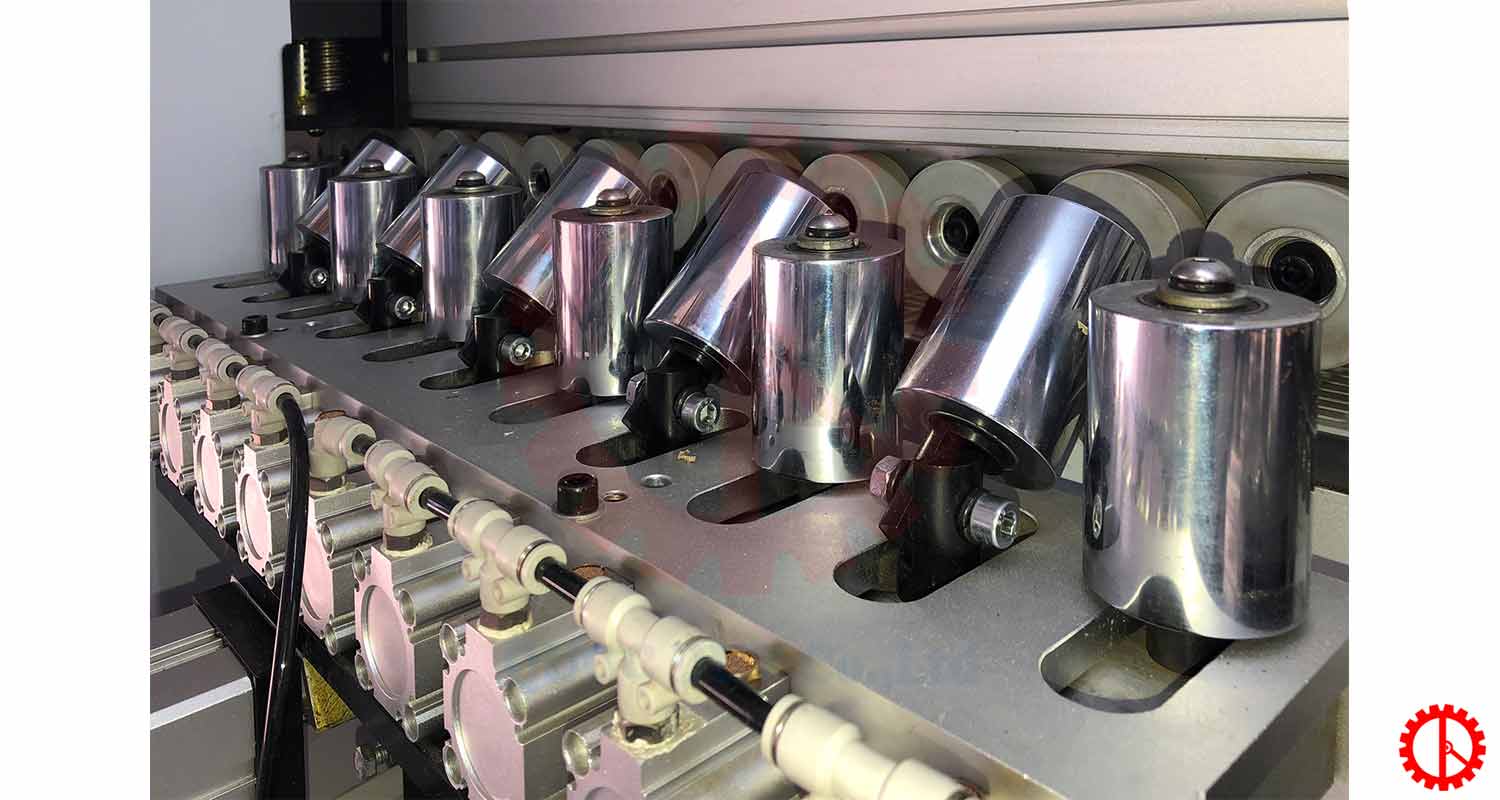

- Edge tapes pressing device

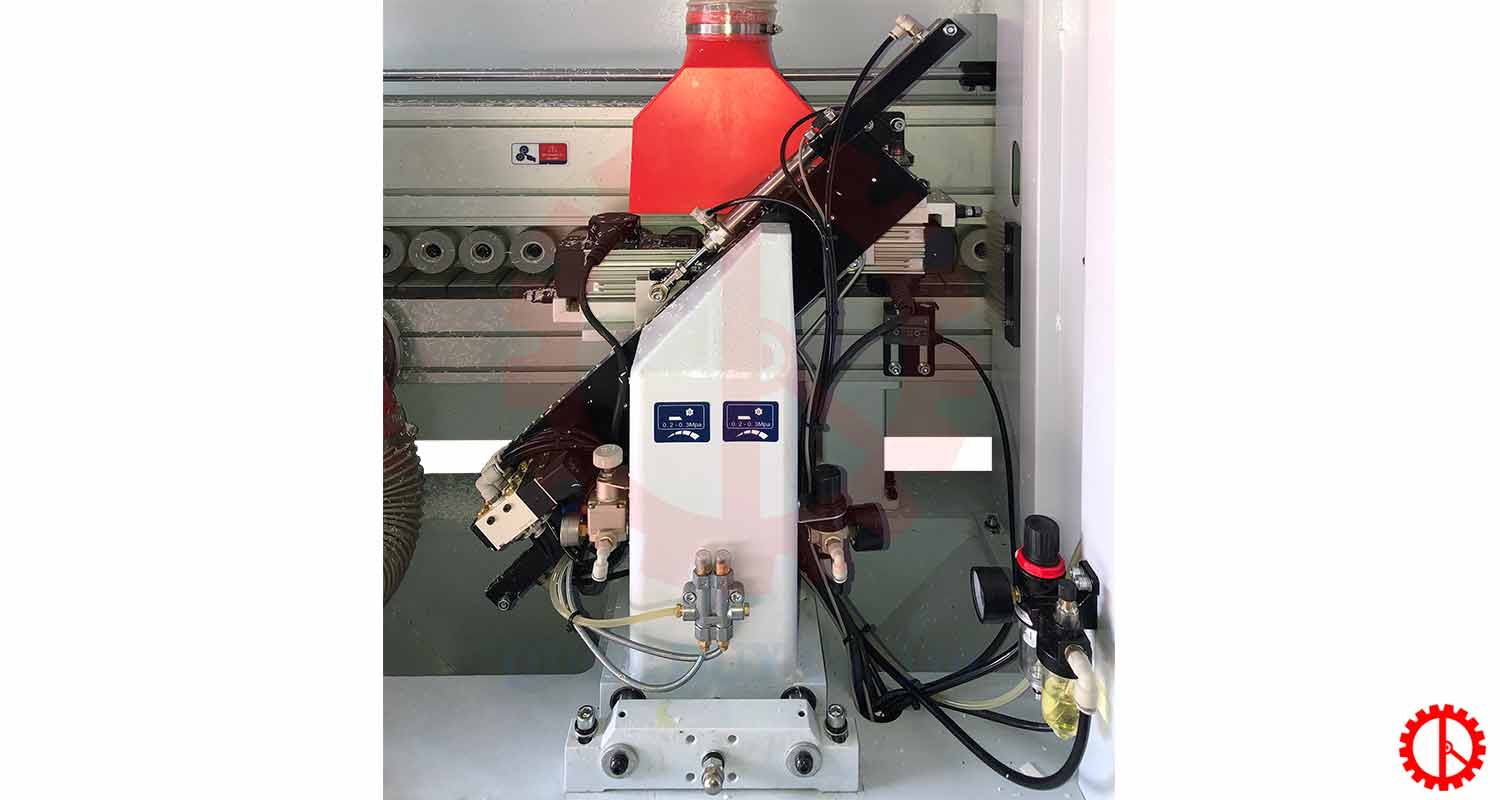

- End trimming

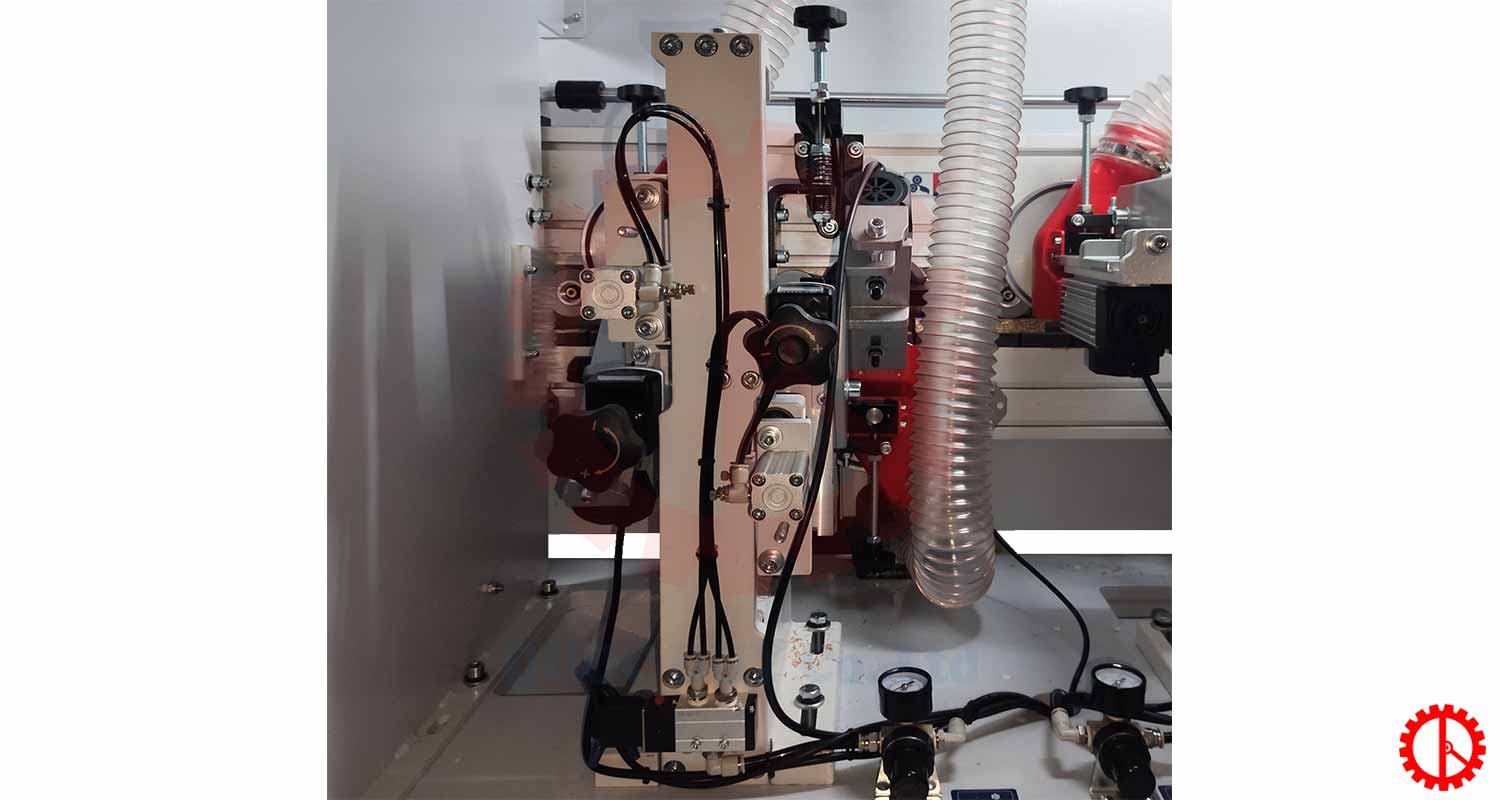

- Fine trimming 1
- Rough trimming 2
- Rough trimming 3

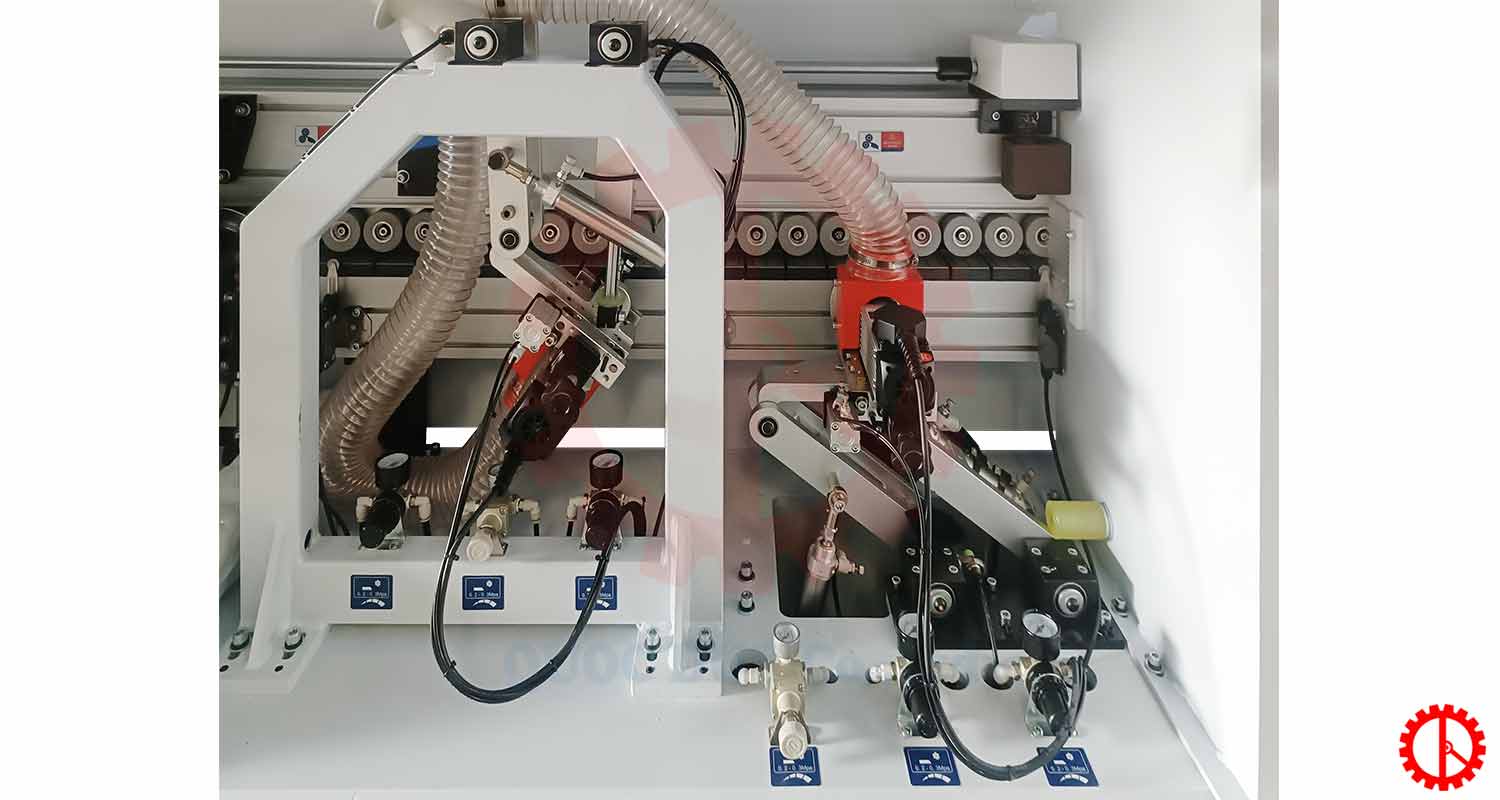

- Corner trimming

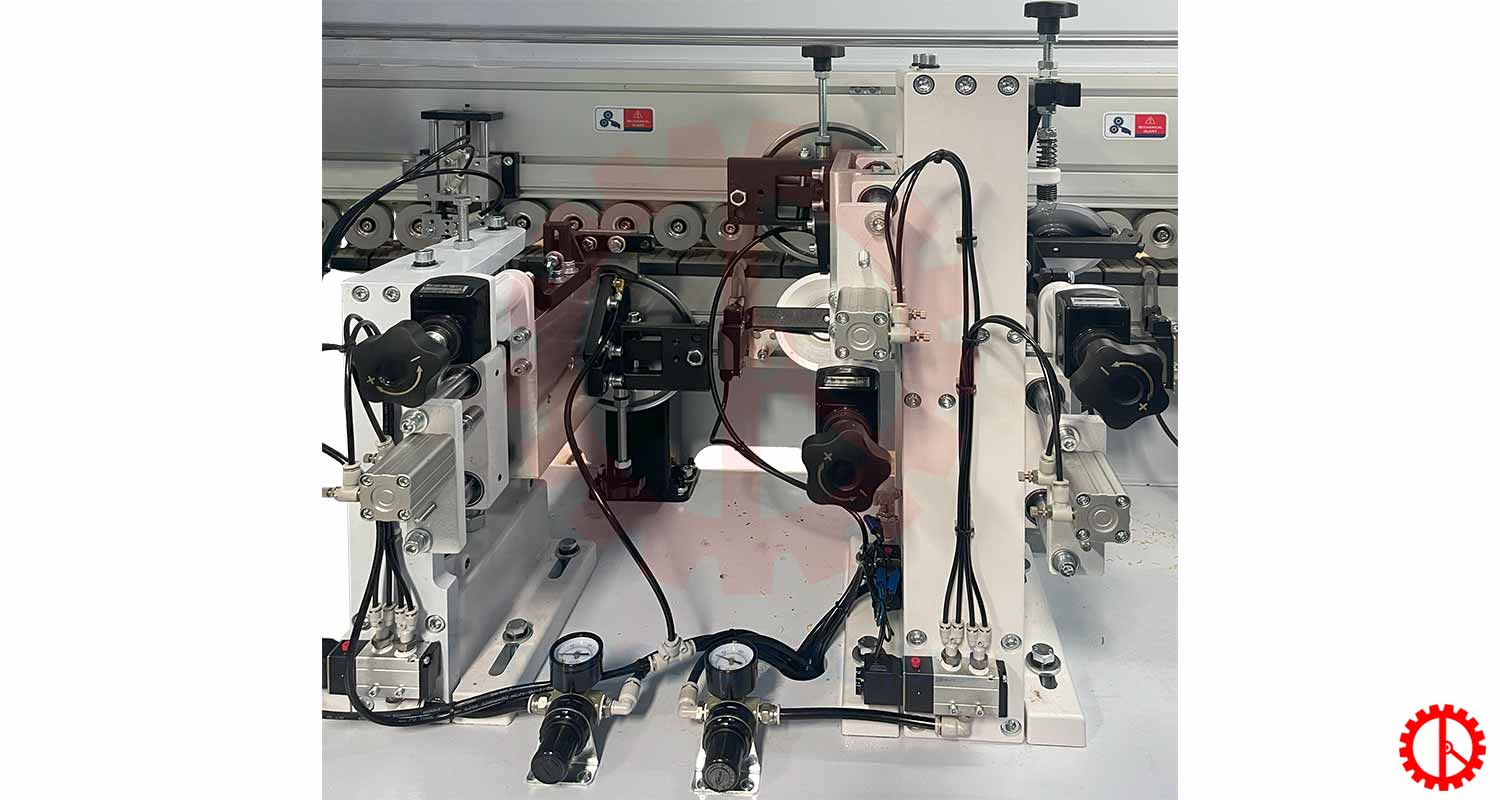

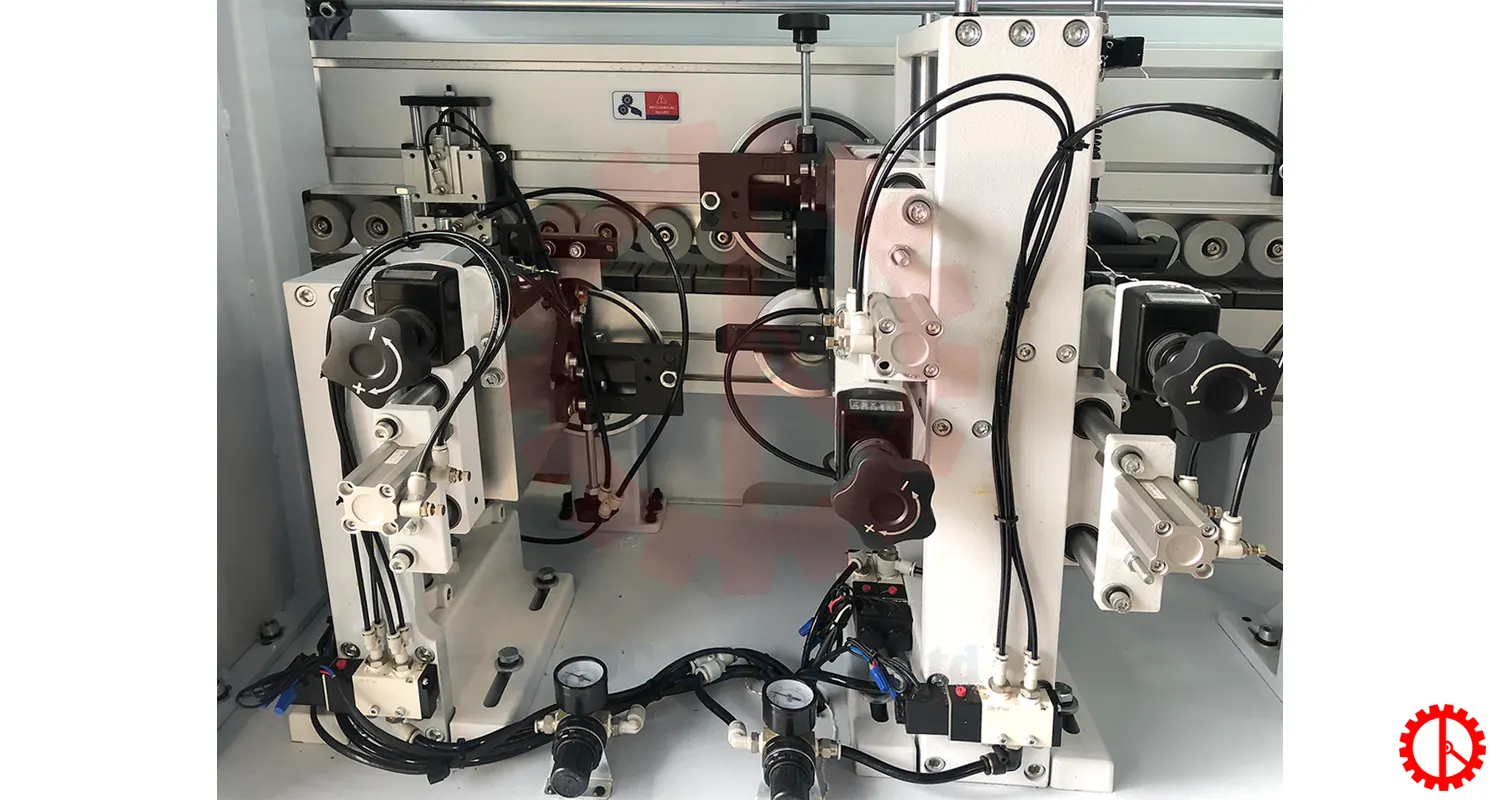

- Scraping

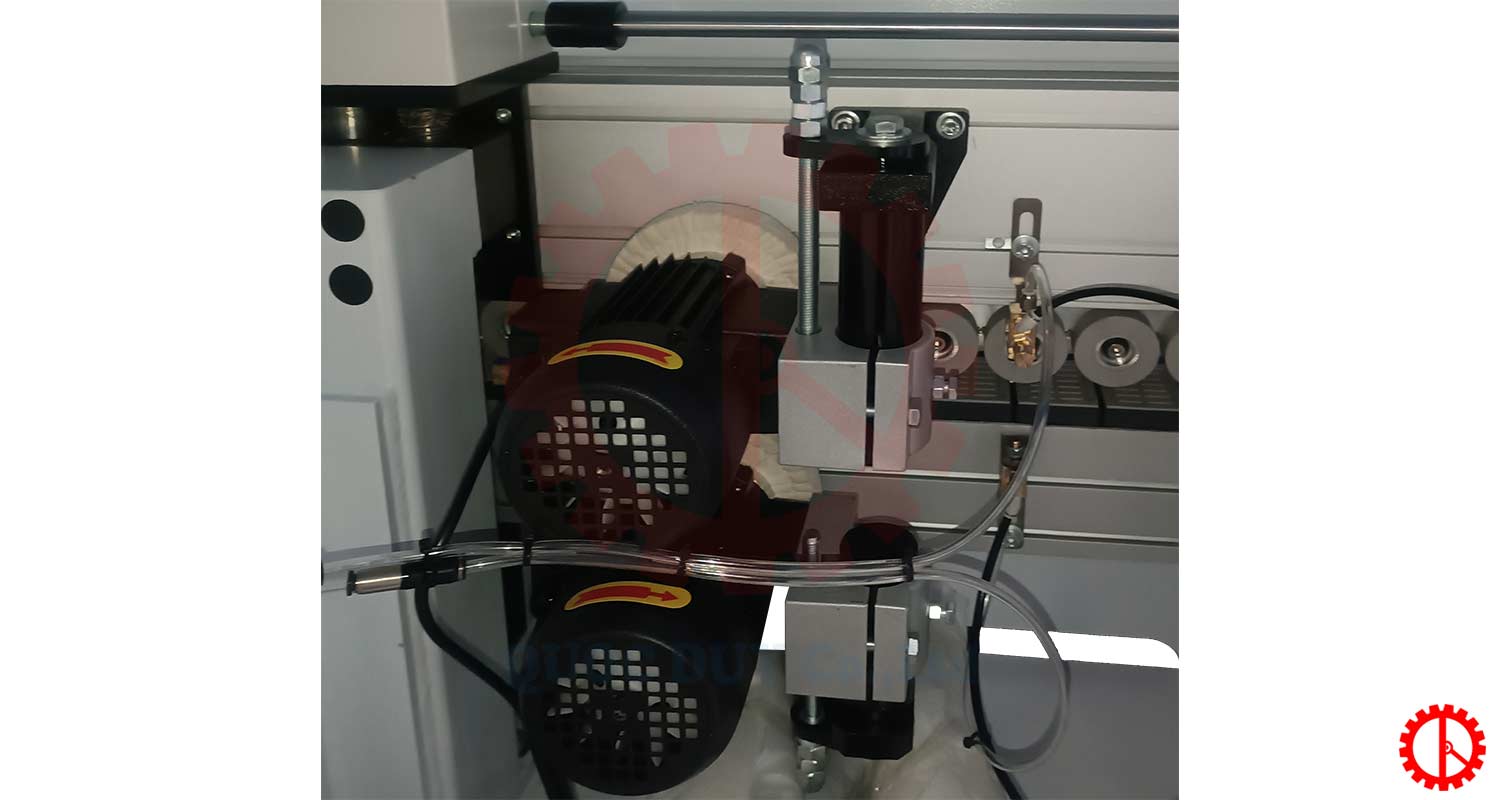

- Buffing
Specifications of cheap inclined straight edge banding machine
| Workpiece thickness of inclined | : 10 – 25 mm |
| Workpiece thickness of straight | : 10 – 55 mm |
| Edge banding tape thickness | : 0.6 ~ 2mm |
| Panel width | : ≥ 80 mm |
| Banding angle | : 45/90° |
| Inclined milling motor | : 4kW |
| Edge band groove milling motor | : 0.75kW |

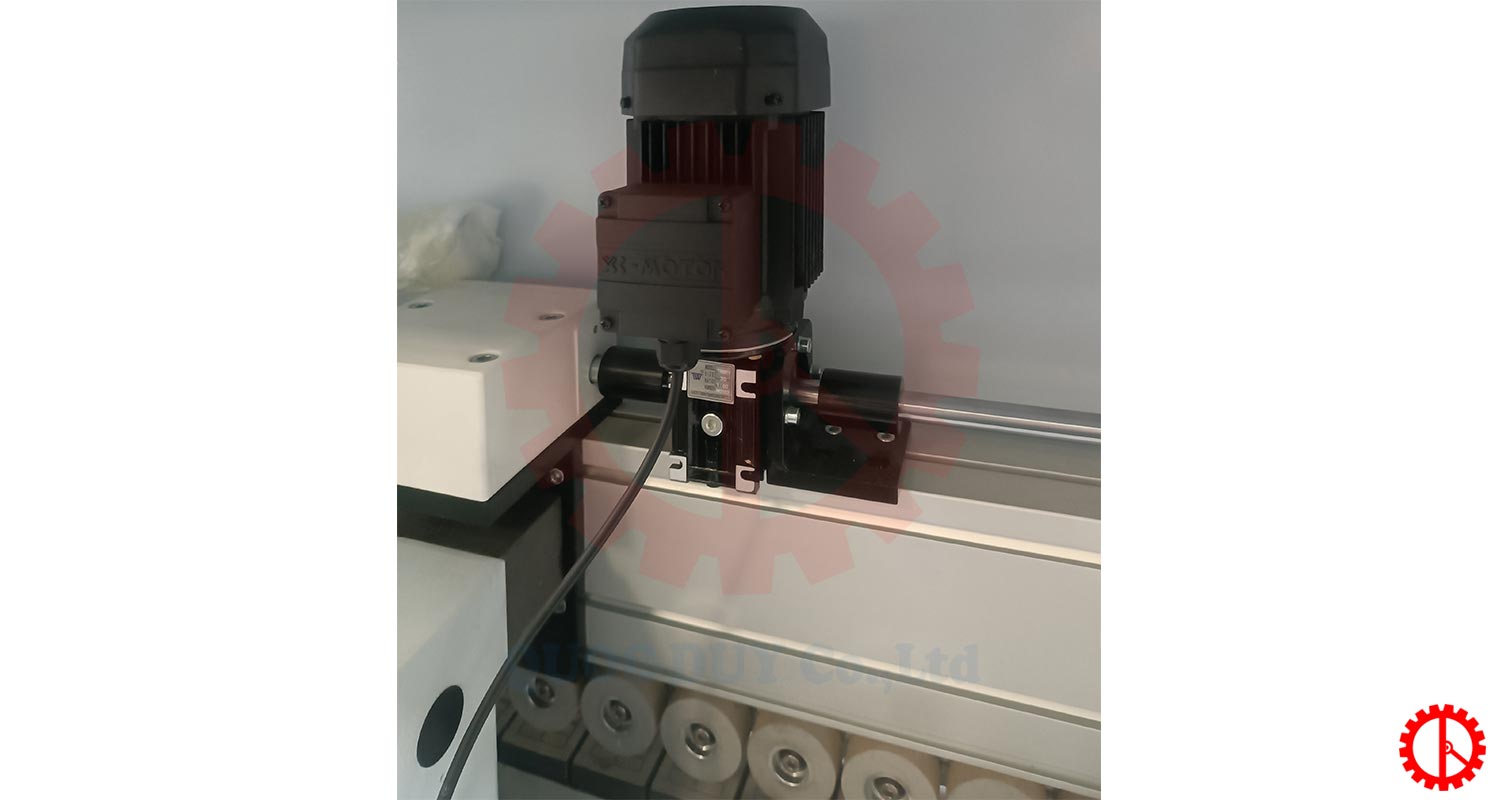

| Pressing roller lifting motor | : 0.37kW |
| End trimming motor | : 0.37kW x 2 |

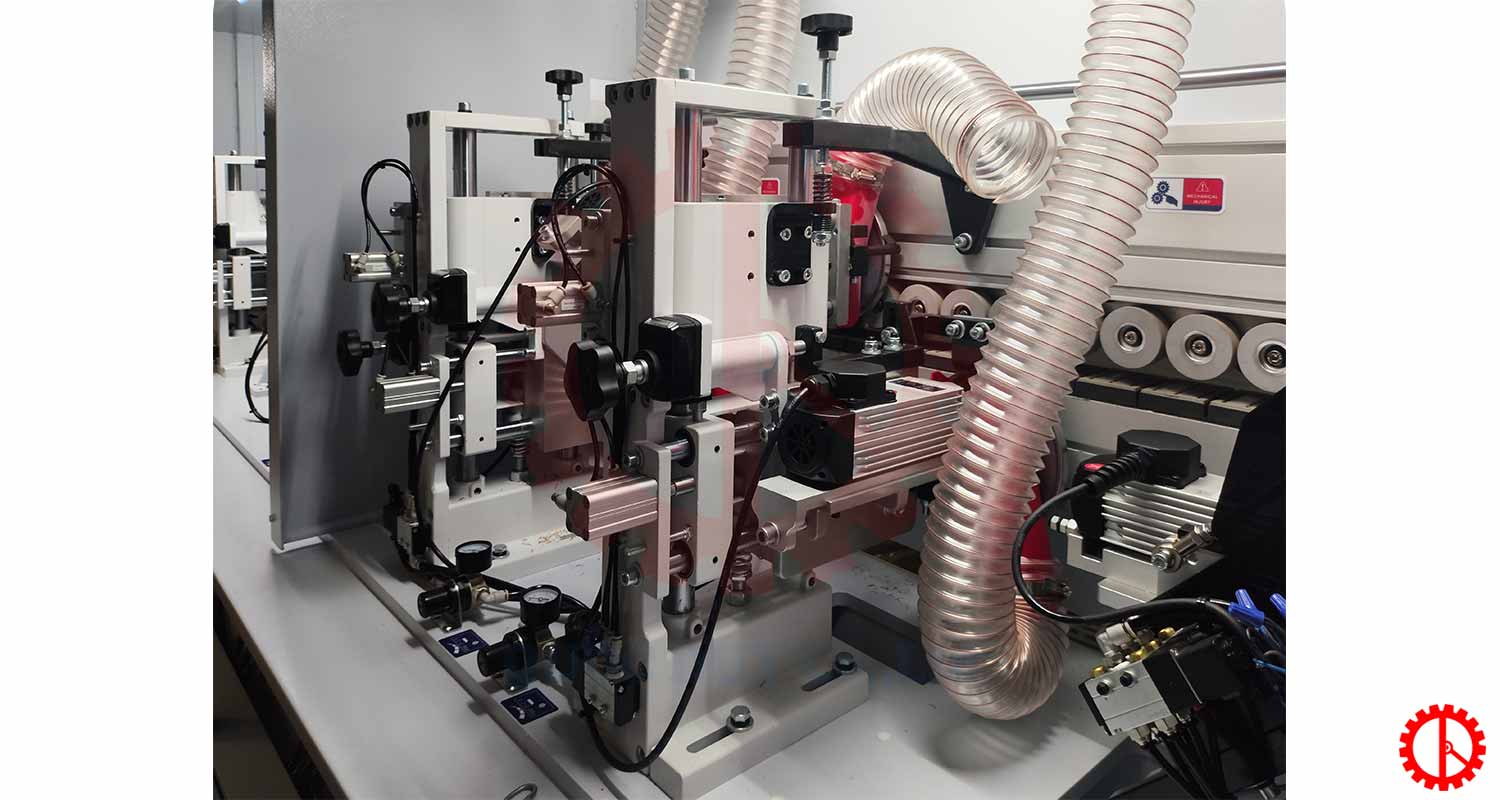

| Inclined fine trimming motor | : 0.75kW x 2 |
| Straight fine trimming motor | : 0.75kW x 2 |
| Conner rounding motor | : 0.3kW x 2 |
| Polishing motor | : 0.37kW x 2 |
| Conveyor motor | : 5.5kW |
| Gluing roller motor | : 0.75kW x 3 |
| Voltage | : 380V/50Hz |
| Dust outlet diameter | : Ø95mm x 5 |
| Air pressure | : 0.6 – 0.8 Mpa |
| Machine weight | : 2200 kg |
| Machine dimensions | : 9500 × 1100 × 1650 mm |
VIDEO OF AUTO STRAIGHT INCLINED EDGE GLUING MACHINE OPERATION
Application of cheap inclined straight edge banding machine
- Can stick all kinds of thread (splint): PVC, wooden splint, veneer, acrylic…
- Widely used in interior products without handles: handles next to kitchen cabinets, next to wardrobes, beside beds, tables, and chairs…
