The Horizontal Twin Blade Resaw is the perfect choice for woodworking shops looking to increase productivity, reduce material loss, and ensure product quality. The design features two parallel saw blades that cut wood quickly, precisely, and stably, while being easy to operate and safe for workers.
Features of The Horizontal Twin Blade Resaw
High-Speed Operation: Two stable saw blades allow for continuous wood processing with a feeding speed of up to $45 text{ m/min}$, meeting the needs of industrial production and large orders.
Ease of Use: Smart control system and simple operation do not require highly skilled workers. Anyone can operate it safely and effectively after a short period of familiarization.
Material Optimization: The optimized design of the horizontal twin-blade resaw results in a kerf width of only $1.5text{–}1.8 text{ mm}$, significantly reducing wood waste while ensuring smoothness and precision for every cut.
Durable and Clean: A robust machine frame, stable hydraulic system, and 6 powerful dust extraction ports help keep the working area clean, protect the operator’s health, and extend the machine’s lifespan.
Horizontal Twin Blade Resaw Technical Specifications
| Maximum processing size | : 300 × 220 mm |
| Distance from saw blade to worktable | : 15 ～ 220 mm |
| Distance from saw blade to worktable | : 3 ～ 170 mm (note: can be two different saw positions) |

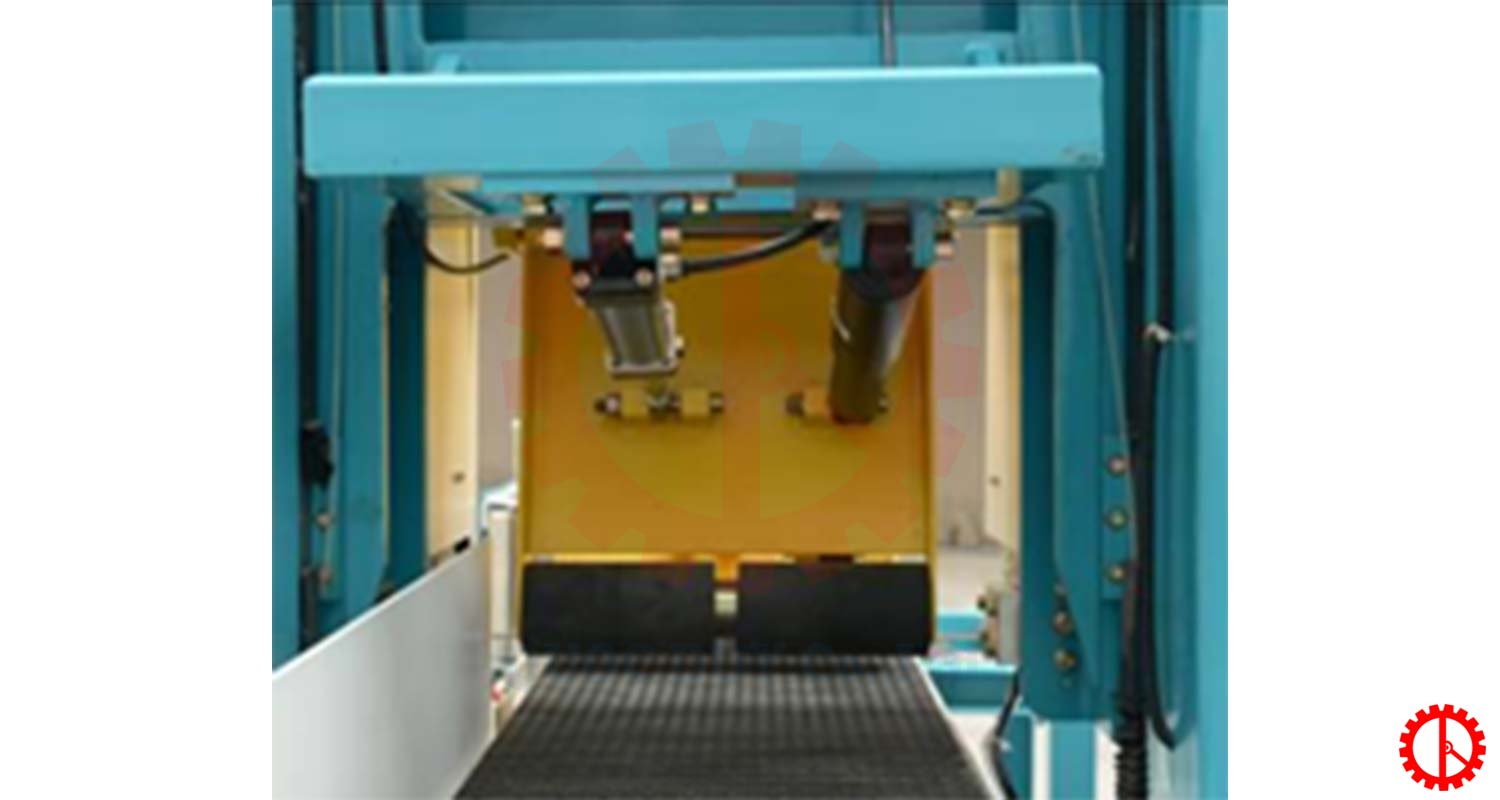

| Conveyor belt width | : 285 mm |

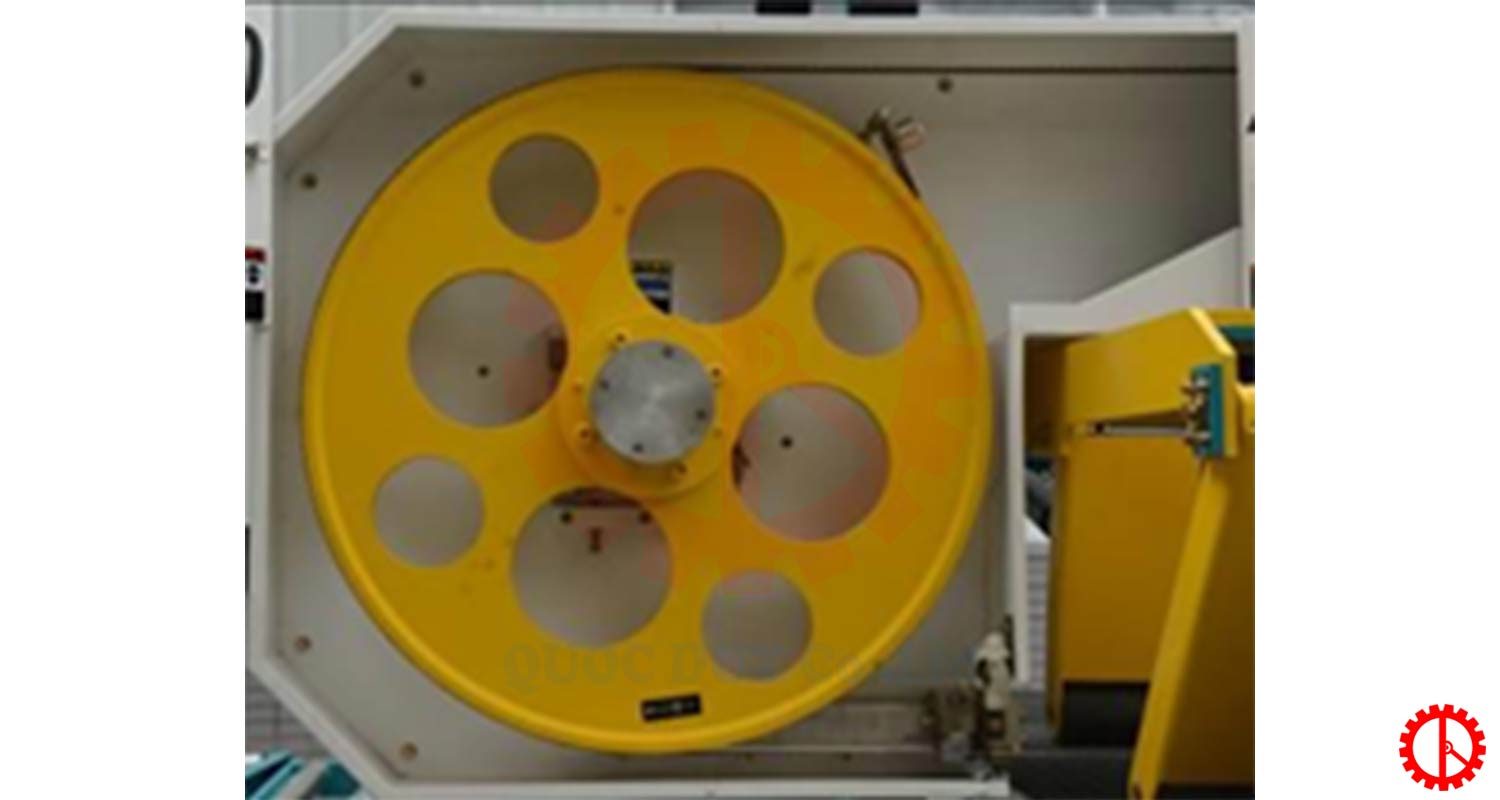

| Saw flywheel diameter | : 800 mm |
| Workpiece feeding speed | : 0 ～ 45 m/min |
| Saw flywheel lifting motor | : 0.25 kW × 2 |
| Saw flywheel motor | : 18.5 kW × 2 |

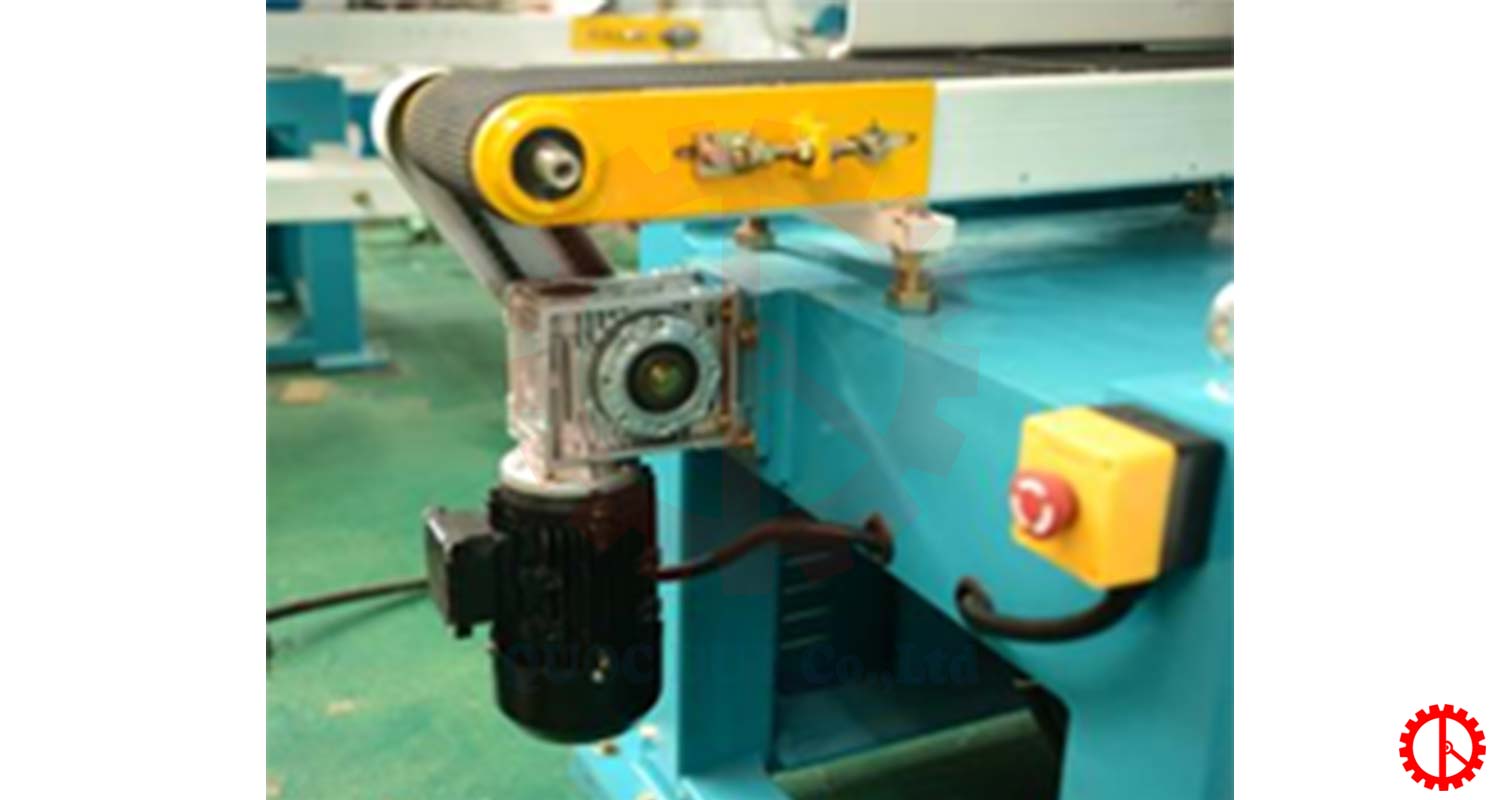

| Workpiece feeding motor power | : 3 kW |
| Hydraulic pressure | : 60 kg/cm² |
| Dust extraction pipe diameter | : 102 mm × 6 |
| Saw blade size (Length × Width × Thickness) | : 5000 × 50 × 0.9 mm |
| Cutting width | : 1.5 ～ 1.8 mm |
| Overall dimensions (Length × Width × Height) | : 3000 × 2250 × 2400 mm |
| Machine weight | : 3800 kg |
| Not including saw blade | |
Note: Technical specifications, design features, and machine color are subject to change without prior notice, but this will not affect the machine’s functionality and operating capabilities.”
Elevate Production with Quoc Duy’s Horizontal Twin Blade Resaw:
Precise cuts, stable operation, and material savings are what the Quoc Duy Horizontal Twin Blade Resaw commits to deliver. Our team of engineers carefully inspects and calibrates the machine before handover, ensuring it is ready to run smoothly, achieve maximum productivity, and reduce material waste from the very first operation.
