Frame saw taiwan FR 200
Introduction of frame saw taiwan
Features
– Frame saw taiwan FR 200 generation with the design with the machine frame for easy disassembling and convenient for saw blade replacement.
– The roller is driven by servo motor, saw blade runs uniformly with the process of putting the workpiece.
– The display shows the workpiece loading speed, allows to adjust the speed, start the machine and stop, the EMERGENCY BUTTON in case the machine has a problem.
– Equip system of saw blade cooling and vacuuming during the process of wood weeds.
– Embryo barrier system is changed to suit each type of wood.
– Convenient design for replacing, installing and adjusting saw blade gap.
Display screen
The process of wood weed

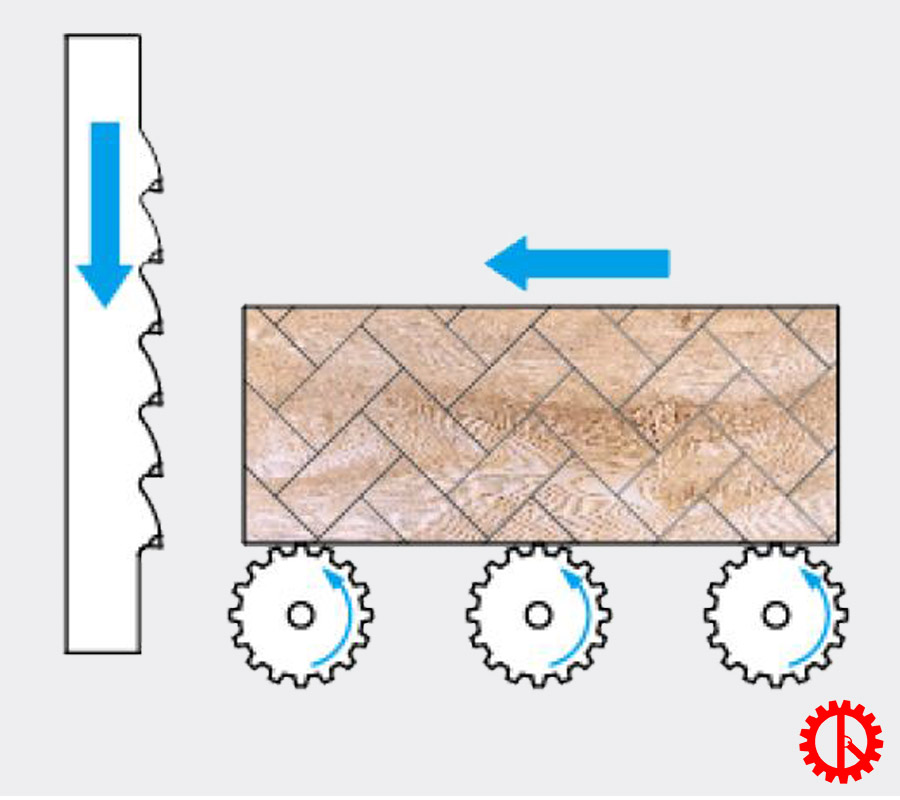

Embryo feeding speed
Roller adjustment system overrides the workpiece
Saw blade design changes quickly – safely
Safety saw blade adjustment device – accurate
Specifications
| Motor | : 20 HP+1/4HP + 5kw(kind servo) + 2 Hp |
| Maximum working thickness | : 200 mm |
| Work smallest thickness | : 60 mm |
| Maximum working width | : 150 mm |
| Minimal working length | : 150 mm |
| Spindle underside | : 7 pieces forward & 5 pieces behind |
| >Spindle on the front | : 7 pieces & 1 xilanh control by sensor |
| Spindle on the following | : 5 pieces & 1 xilanh control by sensor |
| Feed speed | : 0.5 -2 m/min |
| Speed saw blade | : 480 rpm , itinerary 210 mm |
| specification saw blade | : 500 x 40 x 0.8 m |
| Sawblade width | : 1.2 mm |
| Saw kerf | : 1.1 – 1.4 mm |
| Min prescision thickness | : 1.5 mm |
| Distance between 2 saw | : 1.2 – 1.6 mm |
| Net weight | : 3100 x 1000 x 1900 mm |
| Gross weight | : 3700 kg |
