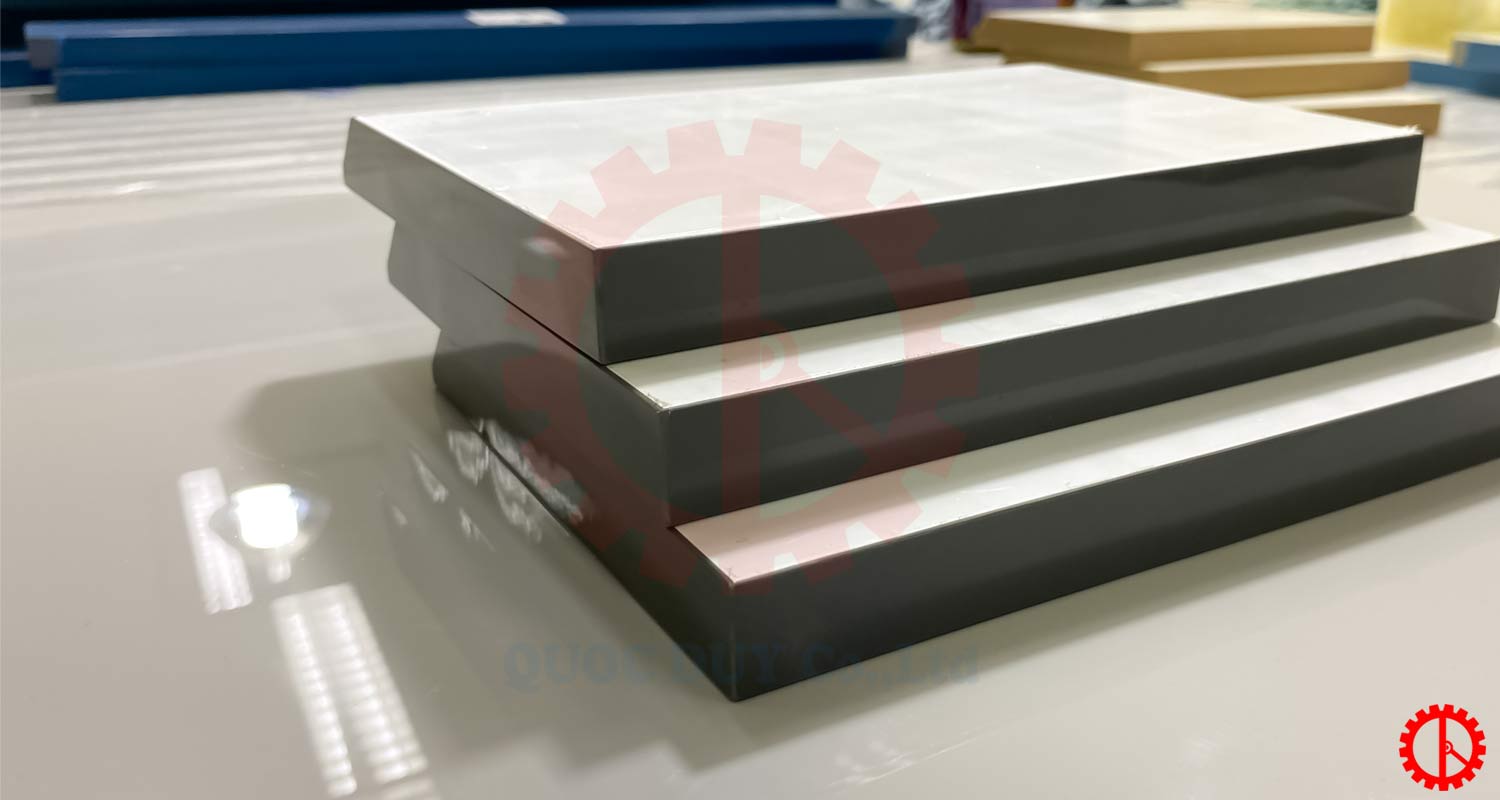

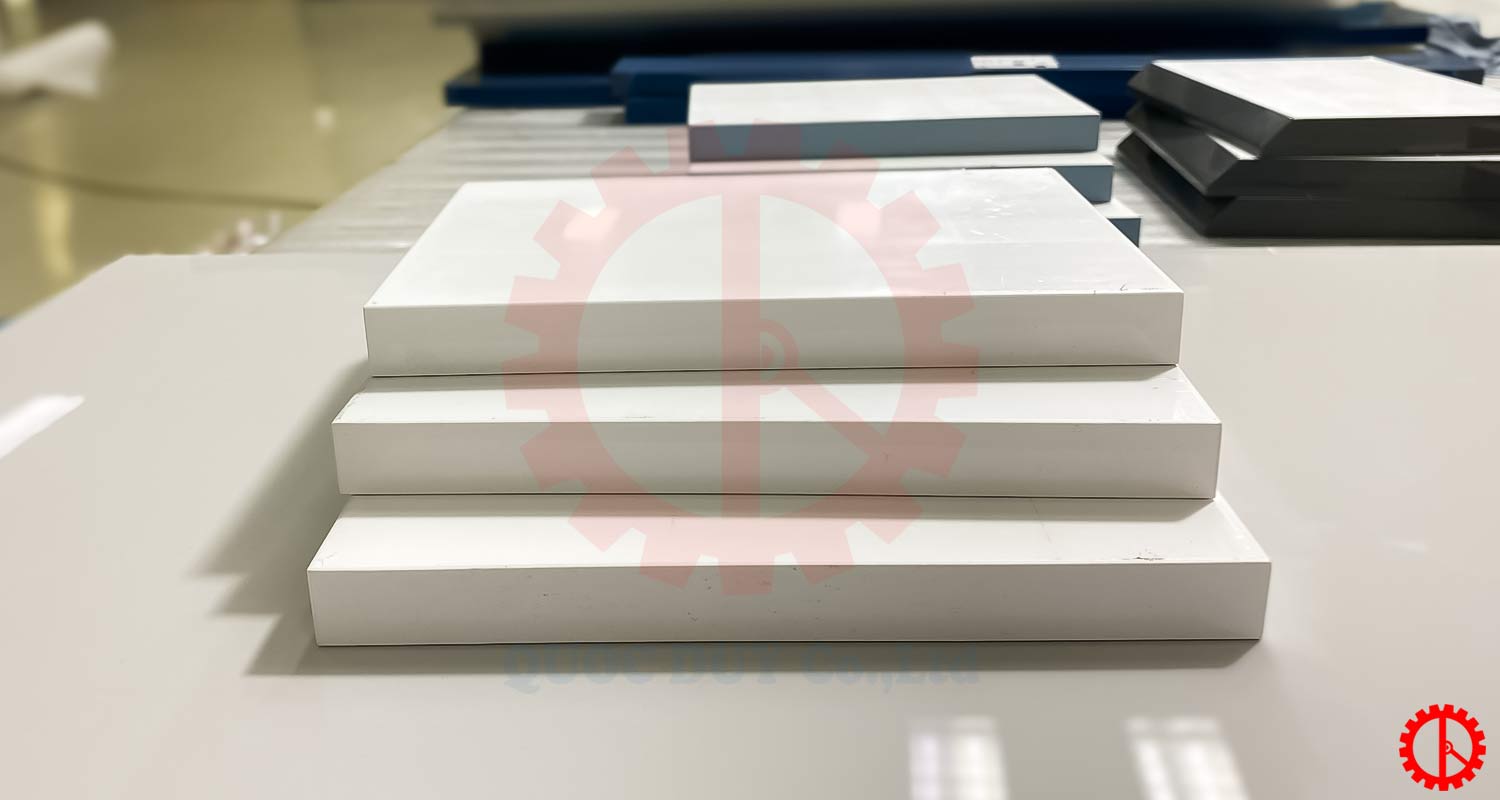

The LASER 668 combined laser and PUR automatic edgebanding machine is the ultimate high-end edgebanding solution for professional furniture workshops and industrial factories. Utilizing state-of-the-art zero-joint laser technology, the machine delivers flawless, seamless edges with invisible glue lines, significantly enhancing both the aesthetic appeal and overall durability of the finished products. Crucially, the integration of an advanced enclosed PUR glue melter unit provides exceptional production flexibility, allowing manufacturers to effortlessly switch between technologies to meet diverse market demands
Feature of the combined laser and pur automatic edgebanding machine

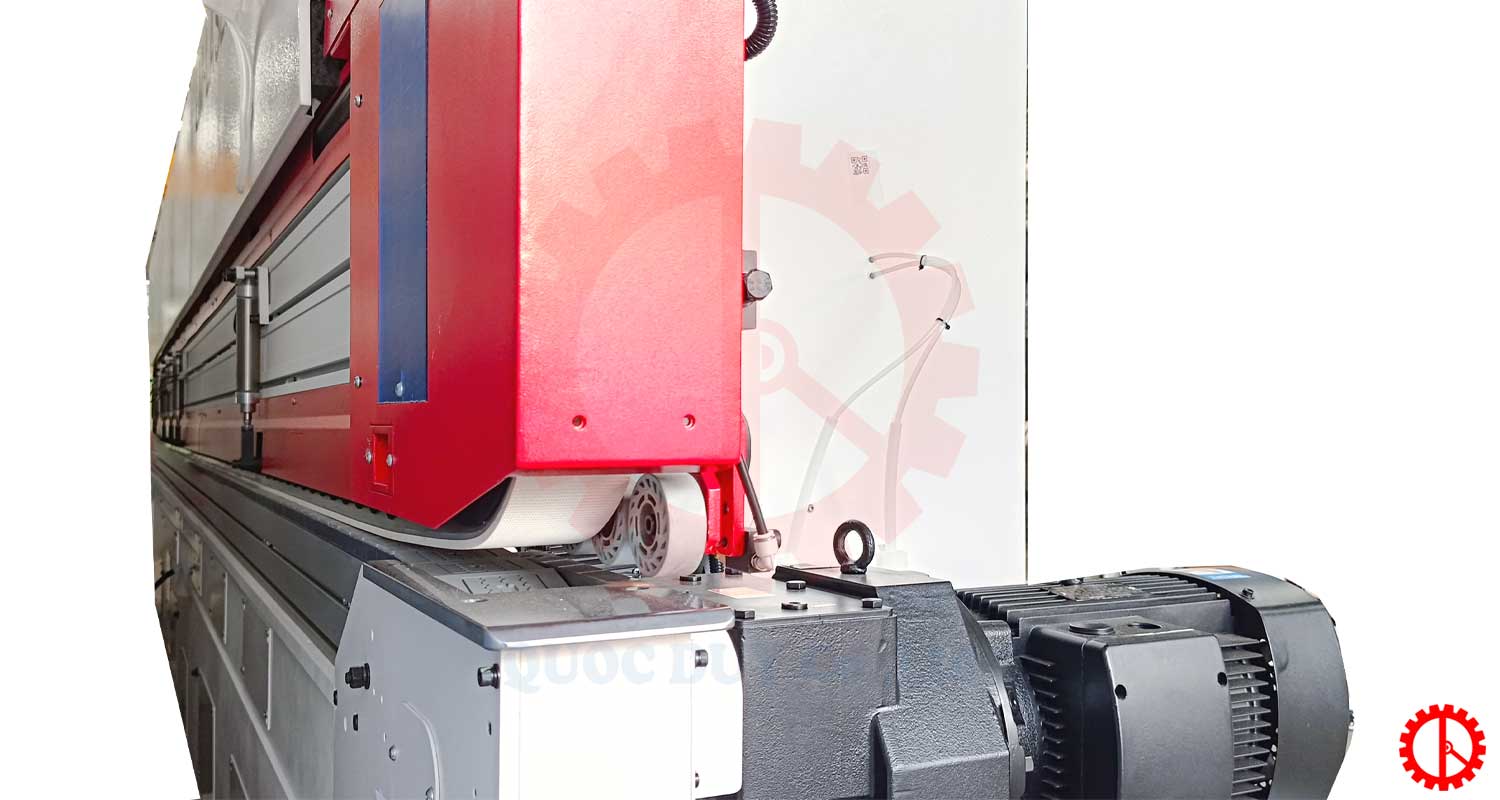

Heavy-Duty Conveyor System: Equipped with a robust top-pressure panel feeding system, the machine ensures stable and precise transport of large and heavy workpieces. The conveyor height adjustment system integrates a pulse-feedback encoder, guaranteeing perfect alignment with the exact thickness of the panel.

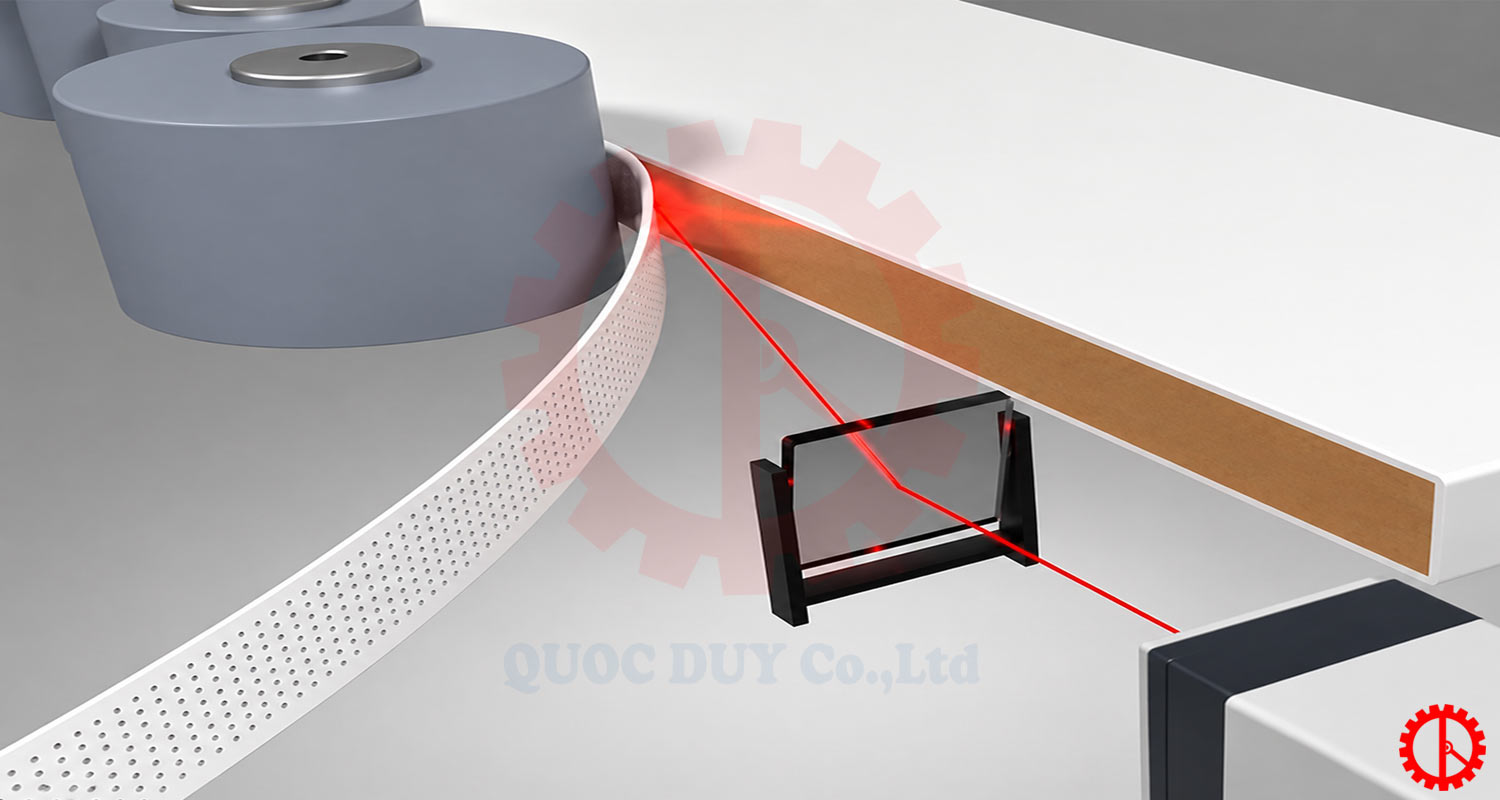

Zero-Joint Laser Technology: The laser edgebanding system utilizes a high-precision laser beam to instantly melt the pre-applied functional layer on the edgeband, maximizing bonding strength and delivering a flawless, ultra-smooth “no-line” finish.

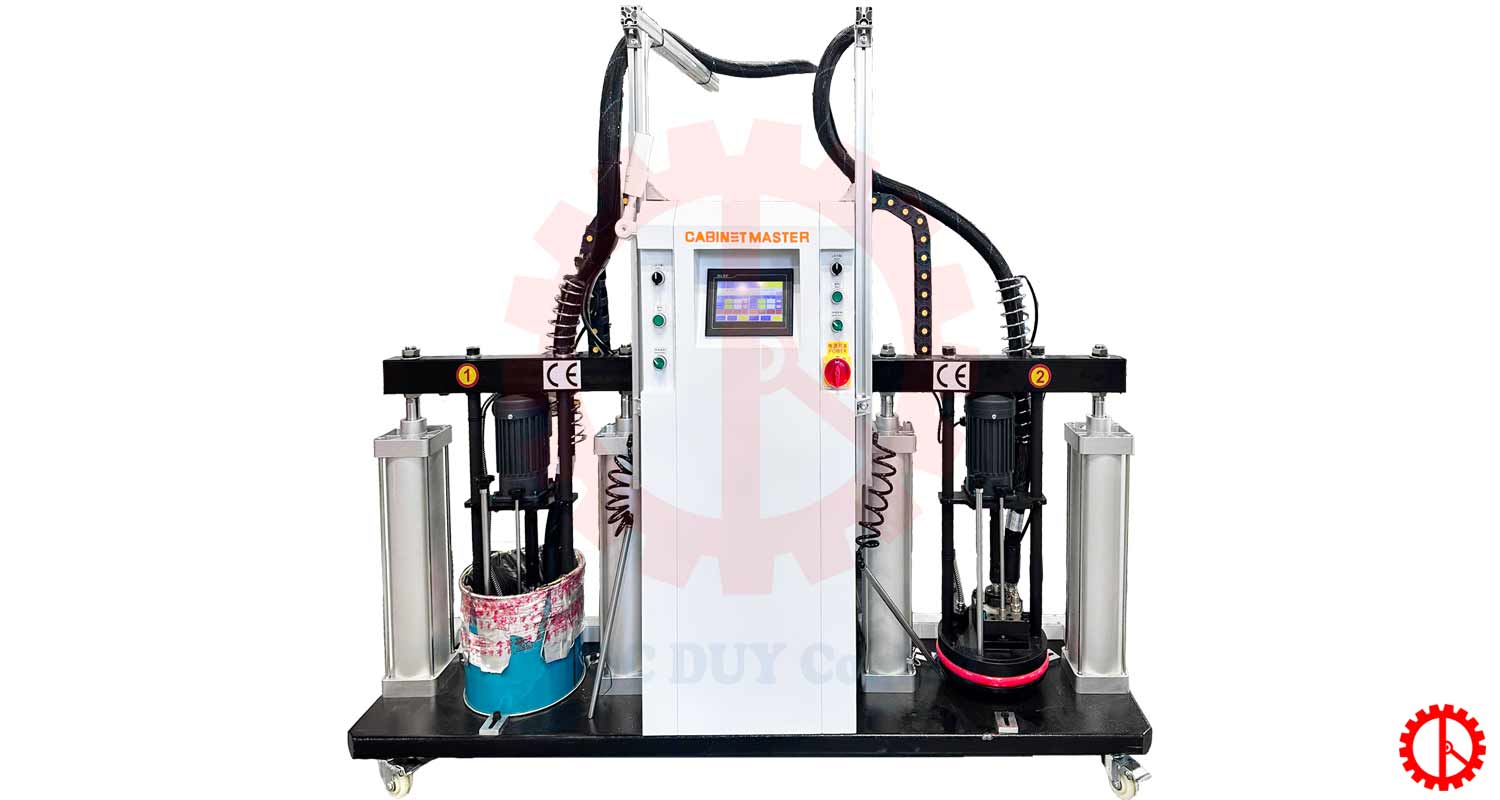

Dual Gluing Flexibility (PUR & EVA): Featuring an advanced PUR glue melter unit alongside an optional EVA glue pot, the system allows for seamless switching between adhesives, effortlessly satisfying a wide range of processing demands from standard to premium-grade applications.
Functions of the combined laser and pur automatic edgebanding machine

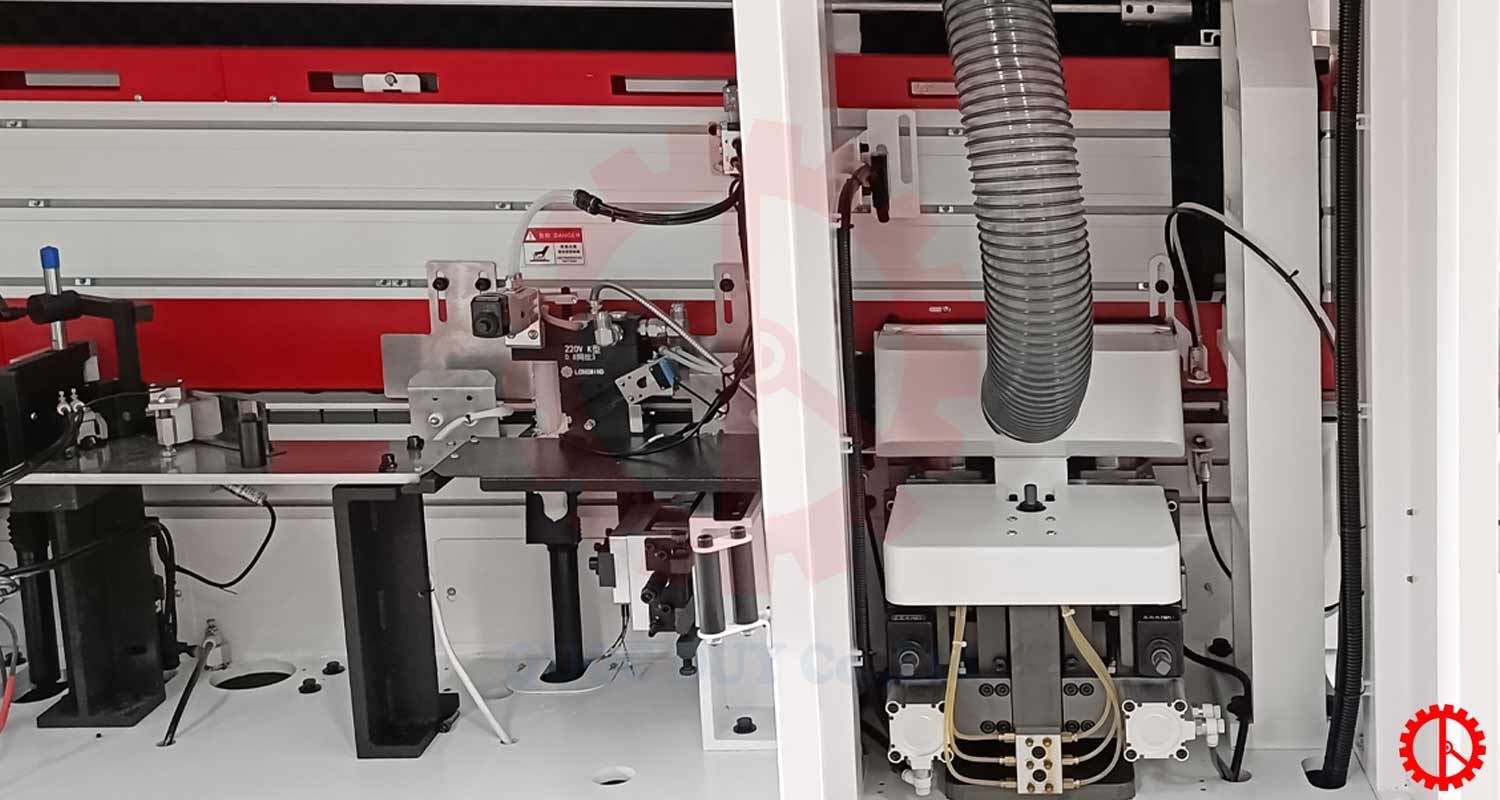

Pre-milling Unit

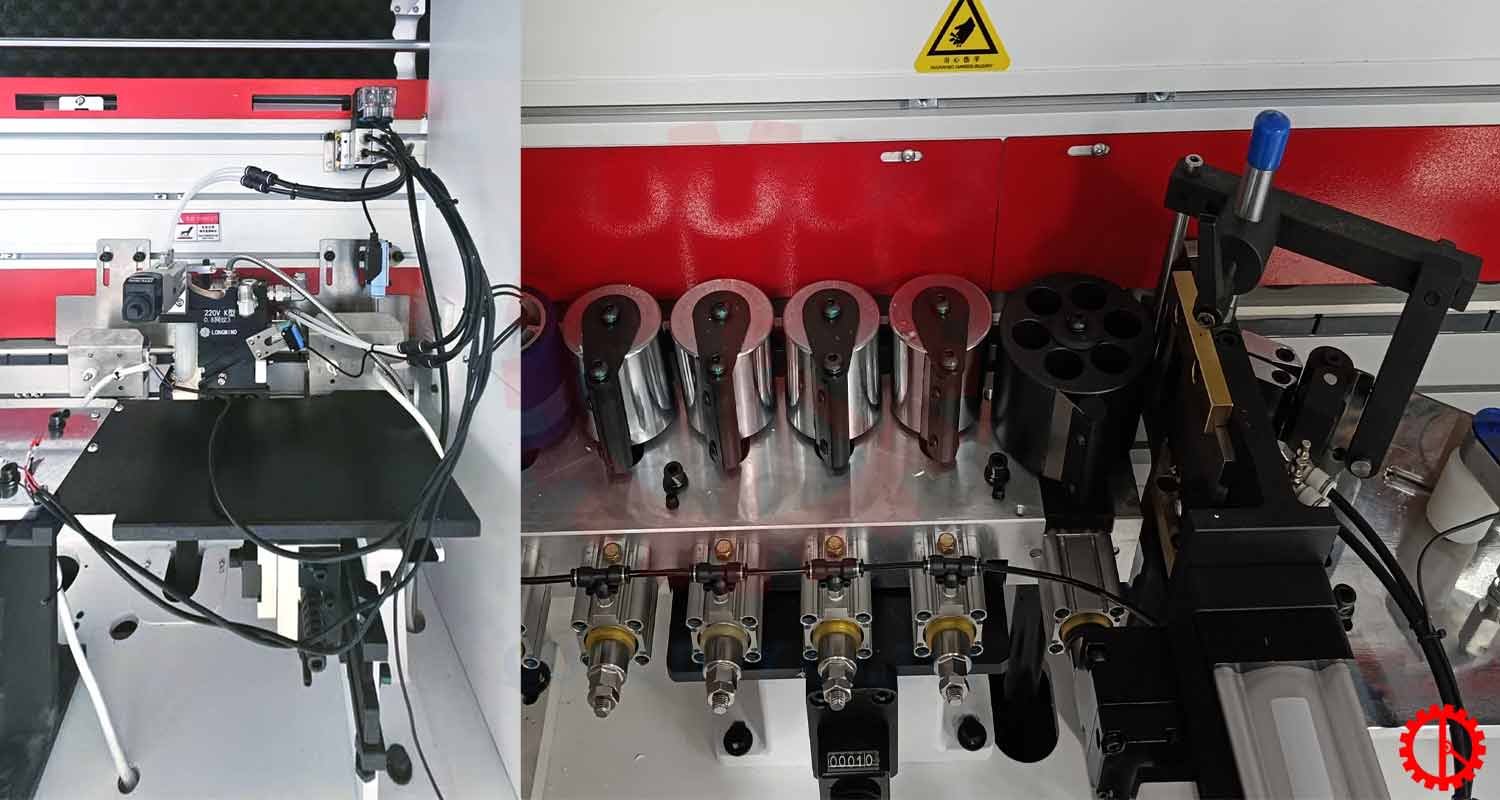

Dual Gluing System: Traditional Gluing & Laser Zero-Joint Activation
Heavy-Duty Pressure Roller Station

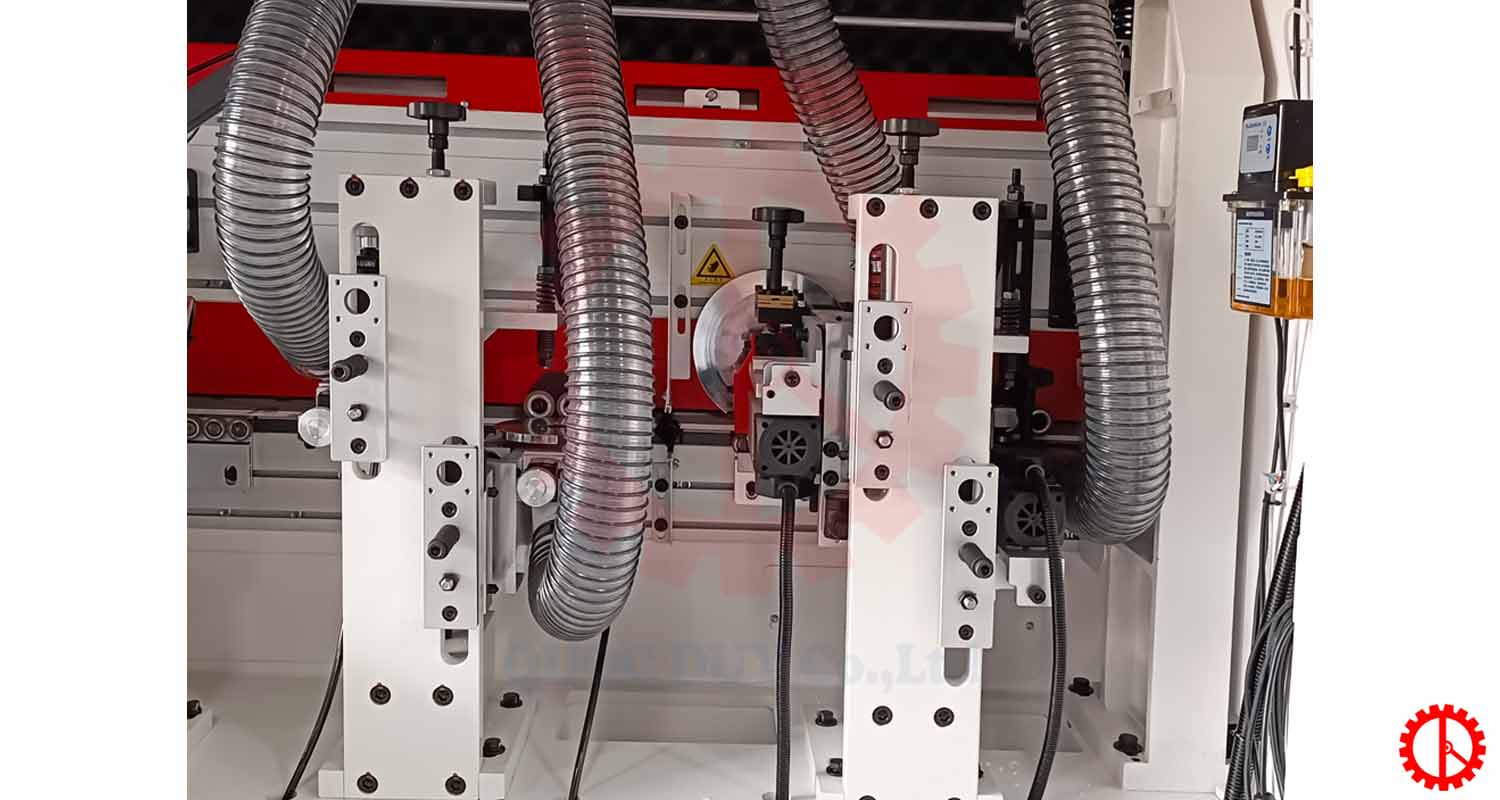

Top & Bottom Fine Trimming Unit
Edge Scraping Unit

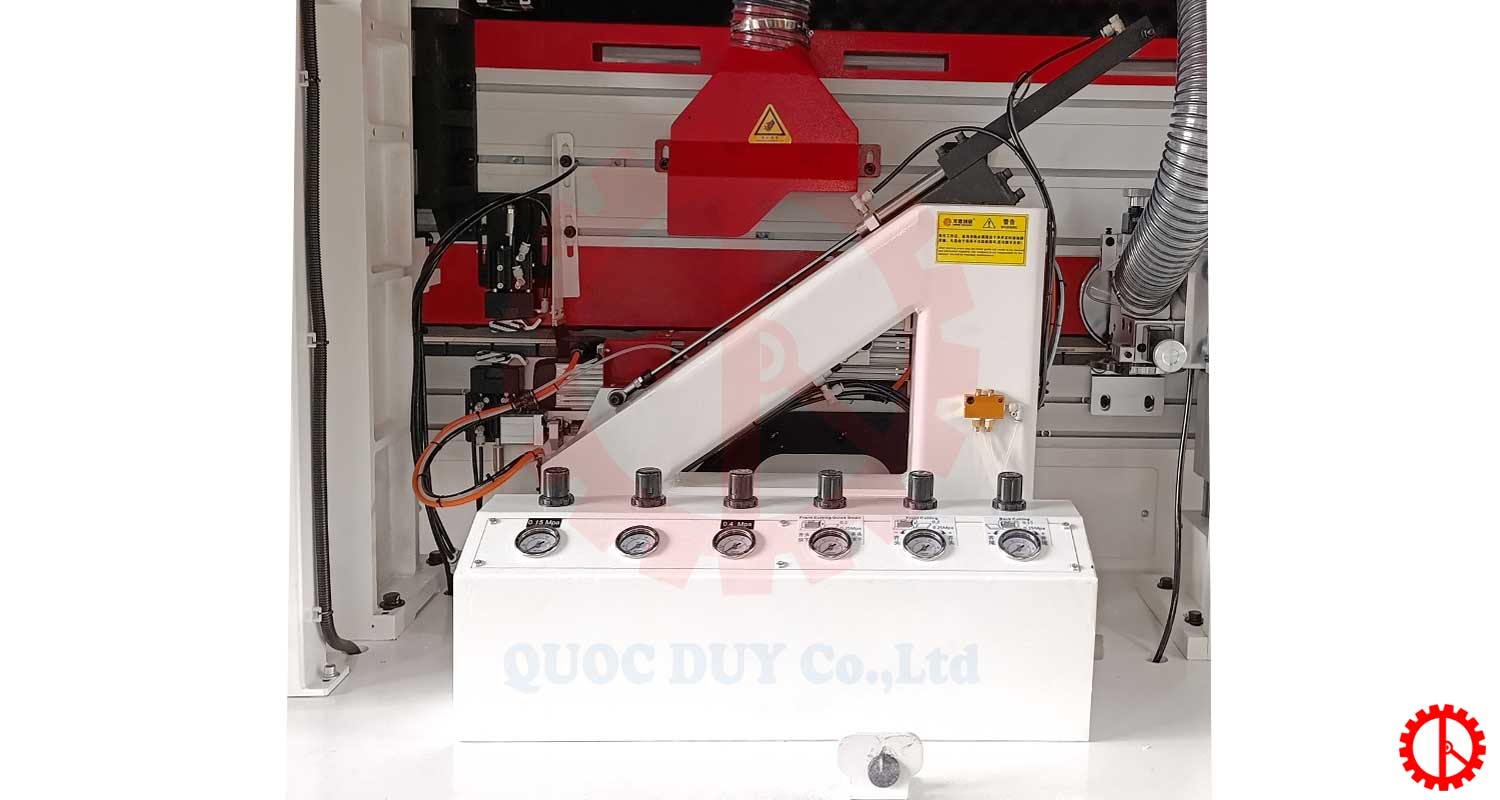

End Trimming Unit
- Glue Scraping Unit

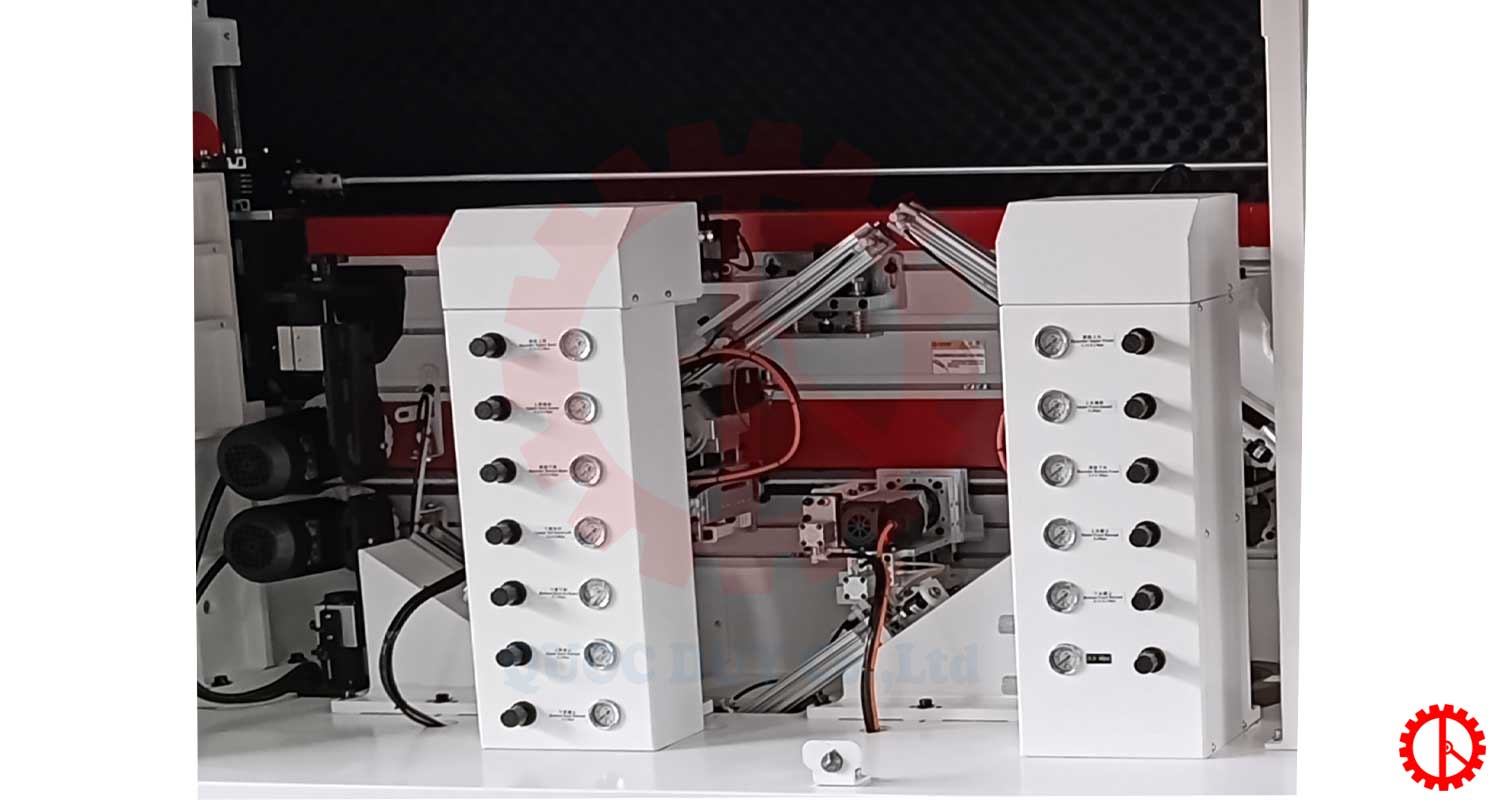

Corner Rounding Unit
Cleaning Agent Spraying System

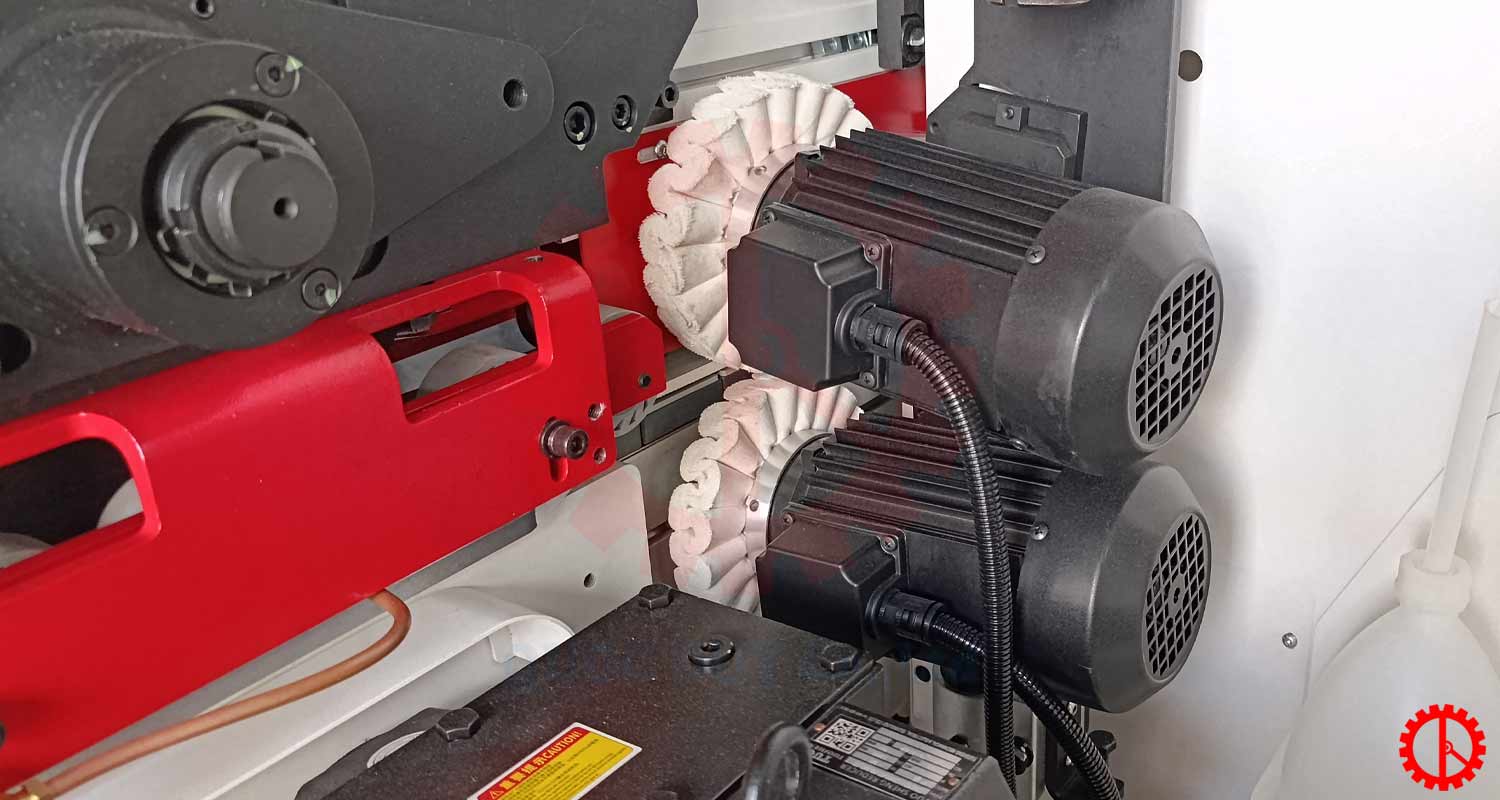

Buffing Unit
Specification of the combined laser and pur automatic edgebanding machine
| Edgebanding Thickness | :0.4 – 3mm |
| Edgebanding Width | :12 – 55mm |
| Panel Thickness | :9 – 50mm |
| Minimum Panel Width | :40mm |
| Minimum Panel Length | :150mm |
| Feeding Speed | :15 / 18 / 23 m/min |
| Pre-milling Motors | :2.2kW x 2 |
| Top & Bottom Trimming Motors | :1.1 kW x 2 |
| End Trimming Motors | :0.55kW x 2 |
| Corner Rounding Motors | :0.37kW x 4 |
| Buffing Motors | :0.37kW x 4 |
| Conveyor Feed Motor | :4kW |
| Top Pressure Beam Elevation Motor | :0.37kW |
| Required Air Pressure | :0.6 – 0.7 Mpa |
| Power Supply | :AC 380V / 50Hz |
| Total Installed Power | :22kW |
| Machine Dimensions (L x W x H) | :7500x1100x1930mm |
| NET Weight | :3950kg |
Note: Specifications, design features and colors of the machine are subject to change without prior notice, but will not affect the function and operation of the machine.
