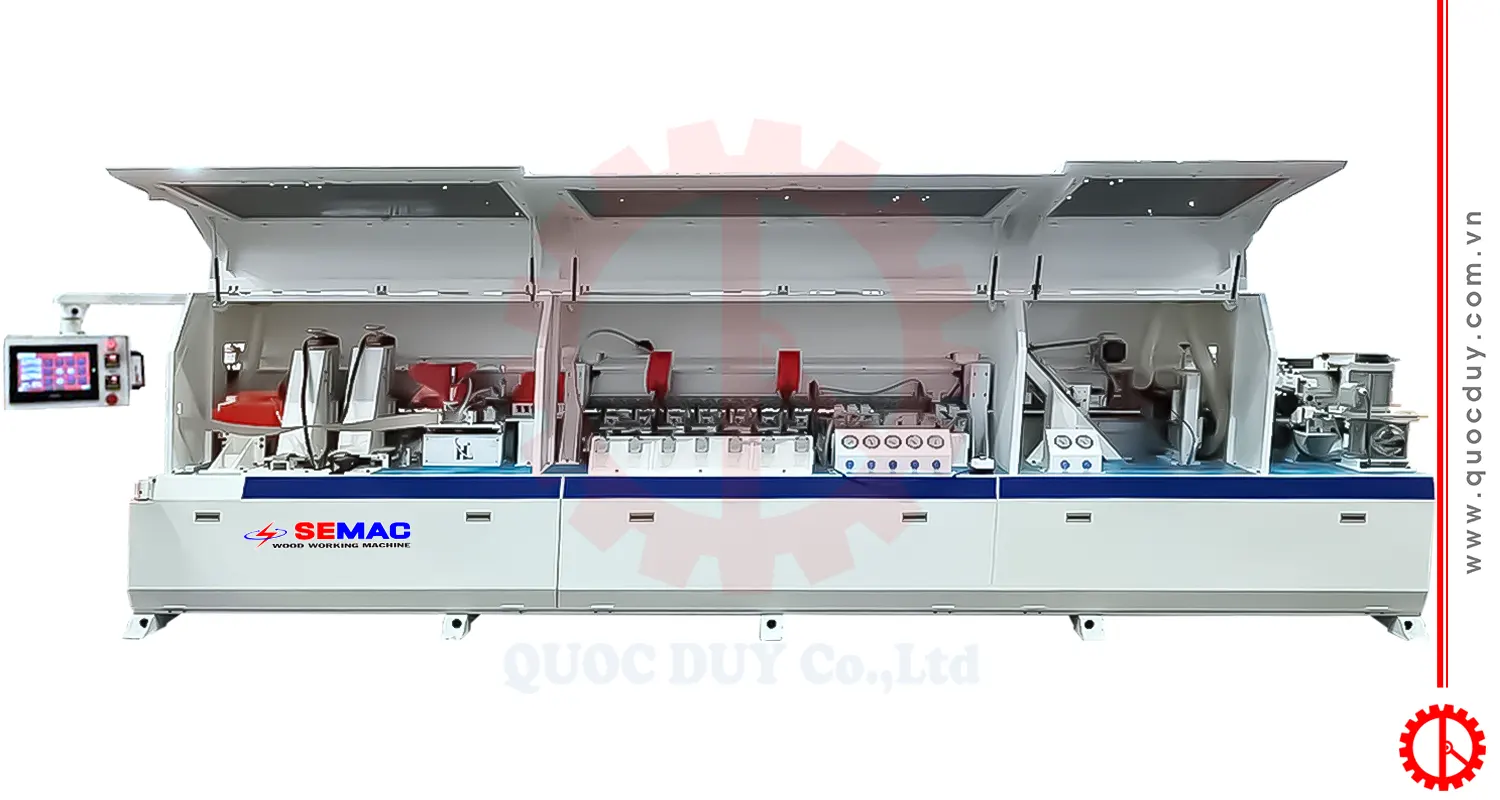

Automatic j c edge banding machine – SMHC 8200 SF is widely used in industrial wood furniture processing, handleless furniture trends such as kitchen cabinets, bedside cabinets, dressing tables, etc.
Features of automatic j c edge banding machine

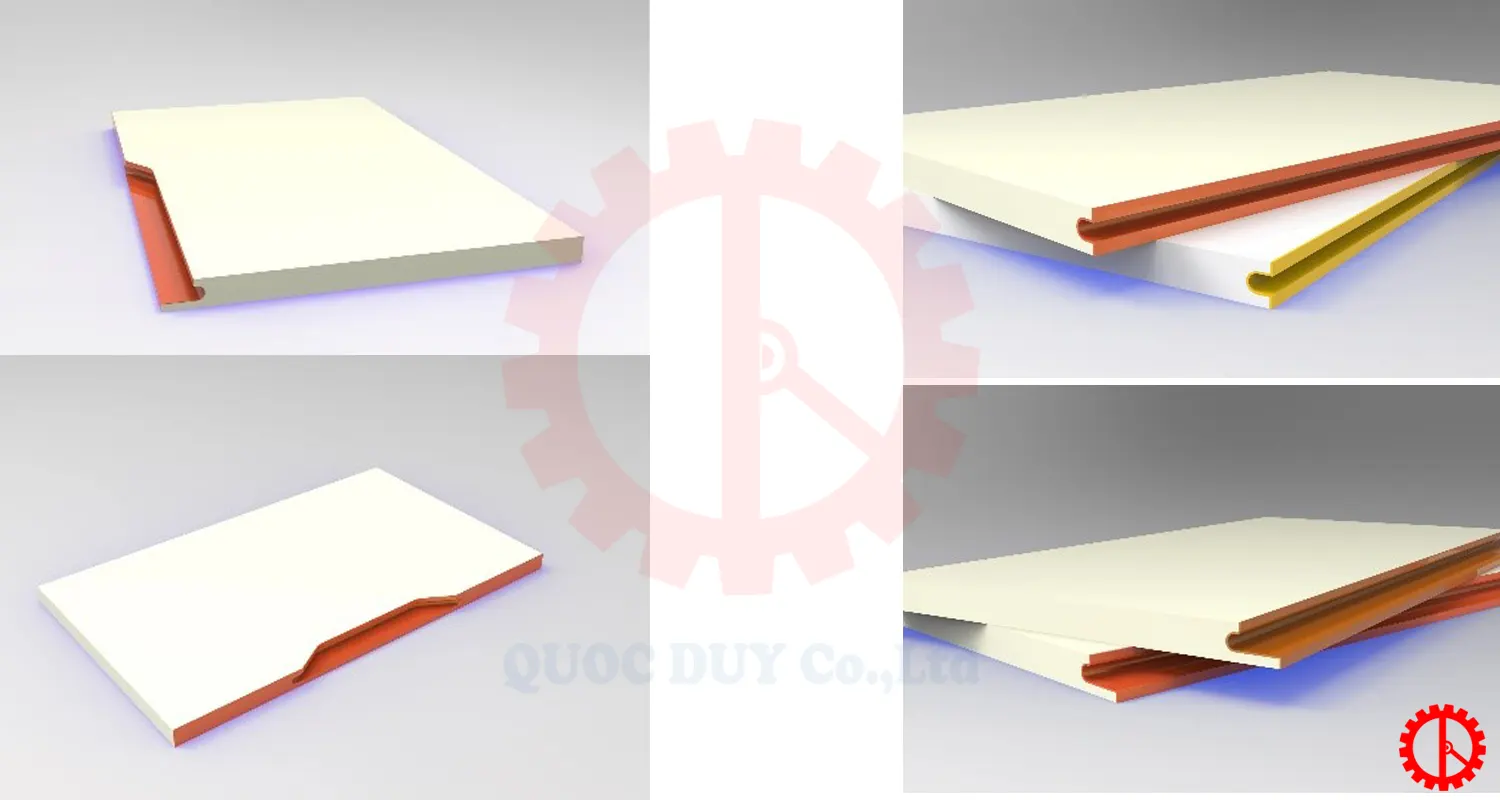

- The edge banding machine can be glued next to the letter J or C

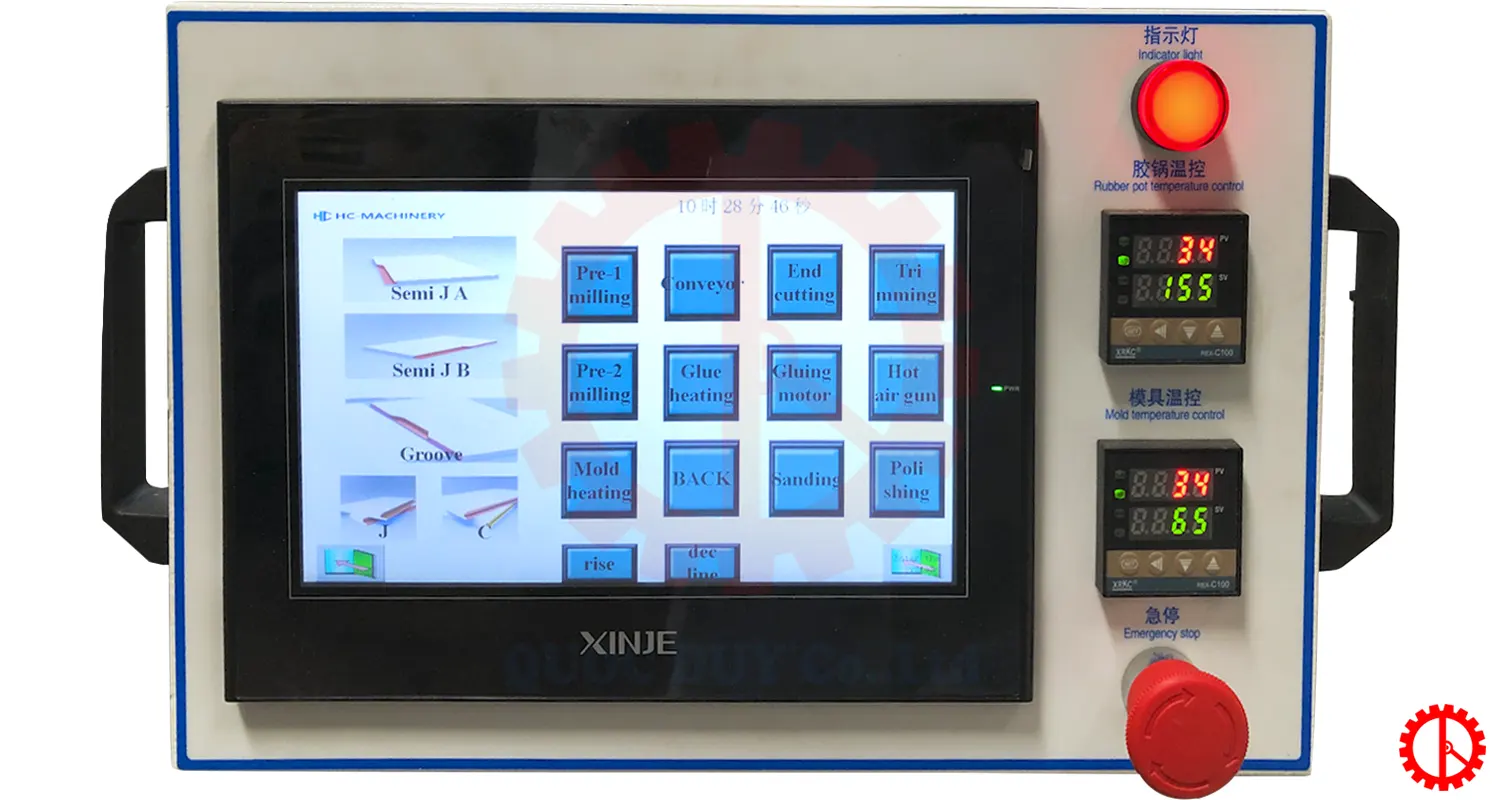

- Use the touch screen with an easy-to-use user-friendly design, making the operation and control of the function clusters simple and quick.
- Large capacity works quickly to increase productivity effectively.
- The products after processing is uniform in quality
Specifications of automatic j c edge banding machine

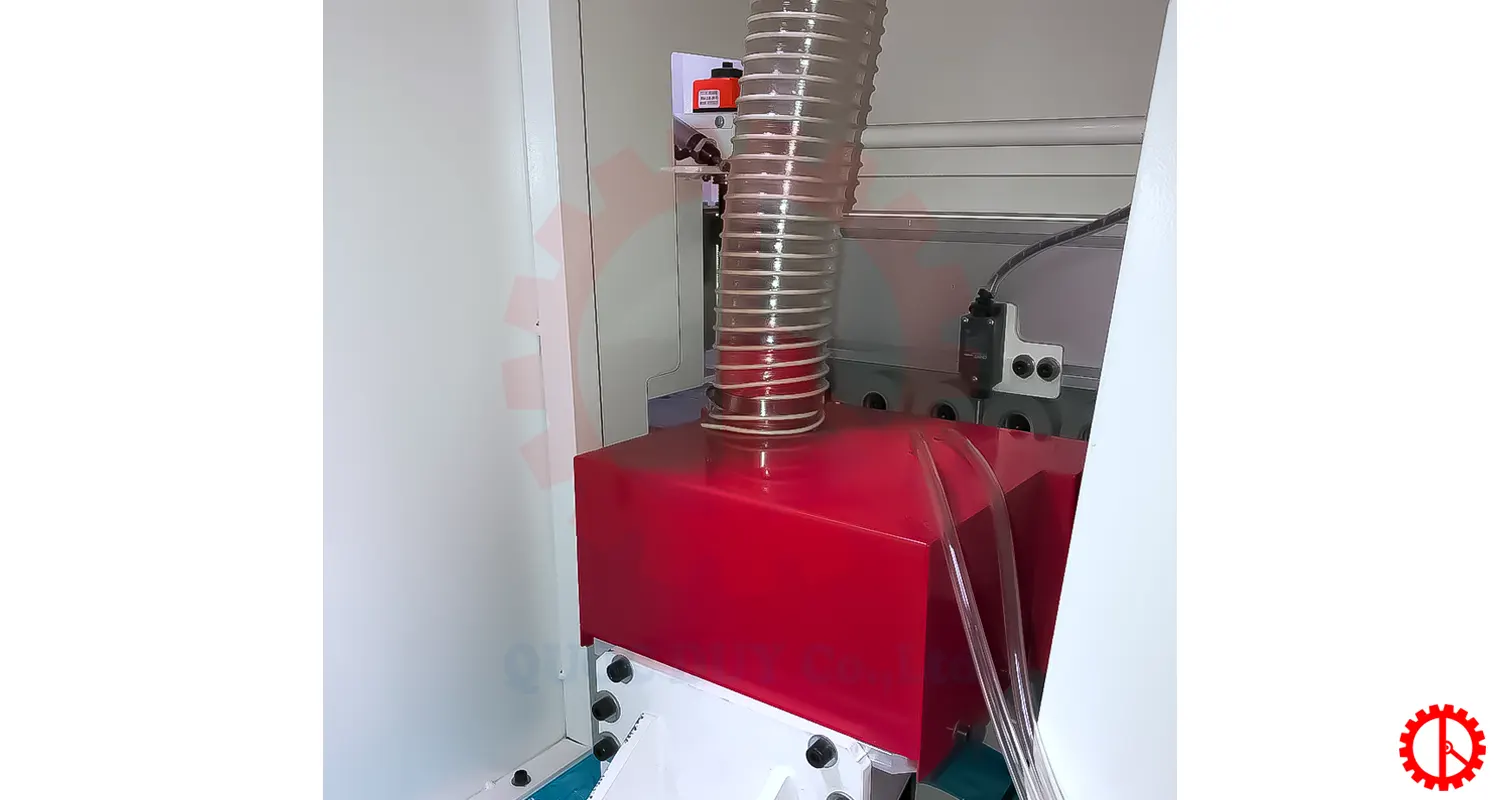

| Straight sanding Unit | : 1.5 Kw |
| Pre – milled partical chamfering | : 0.65 Kw |

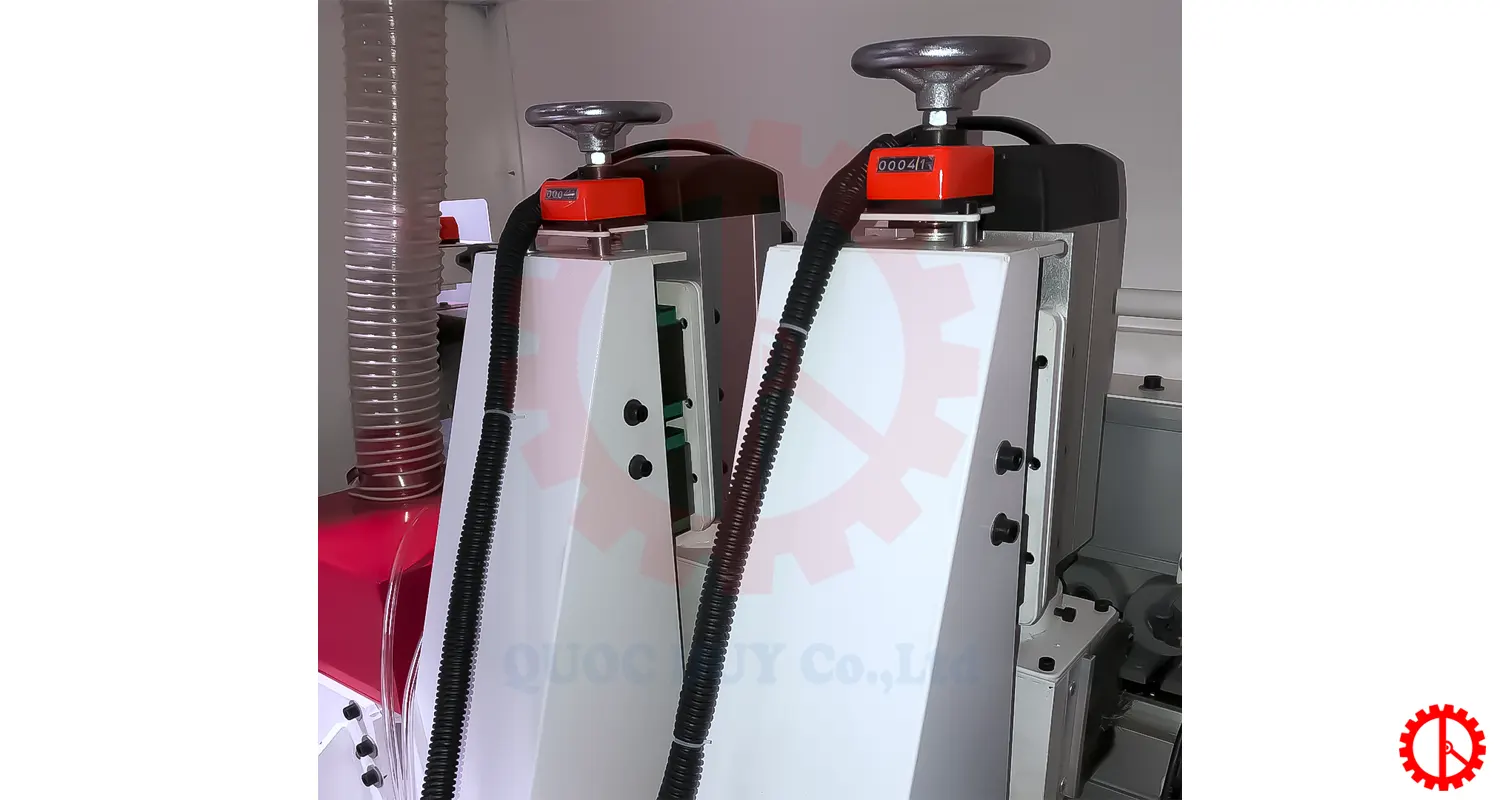

| Panel pre milling system | : 6 Kw x 2 |

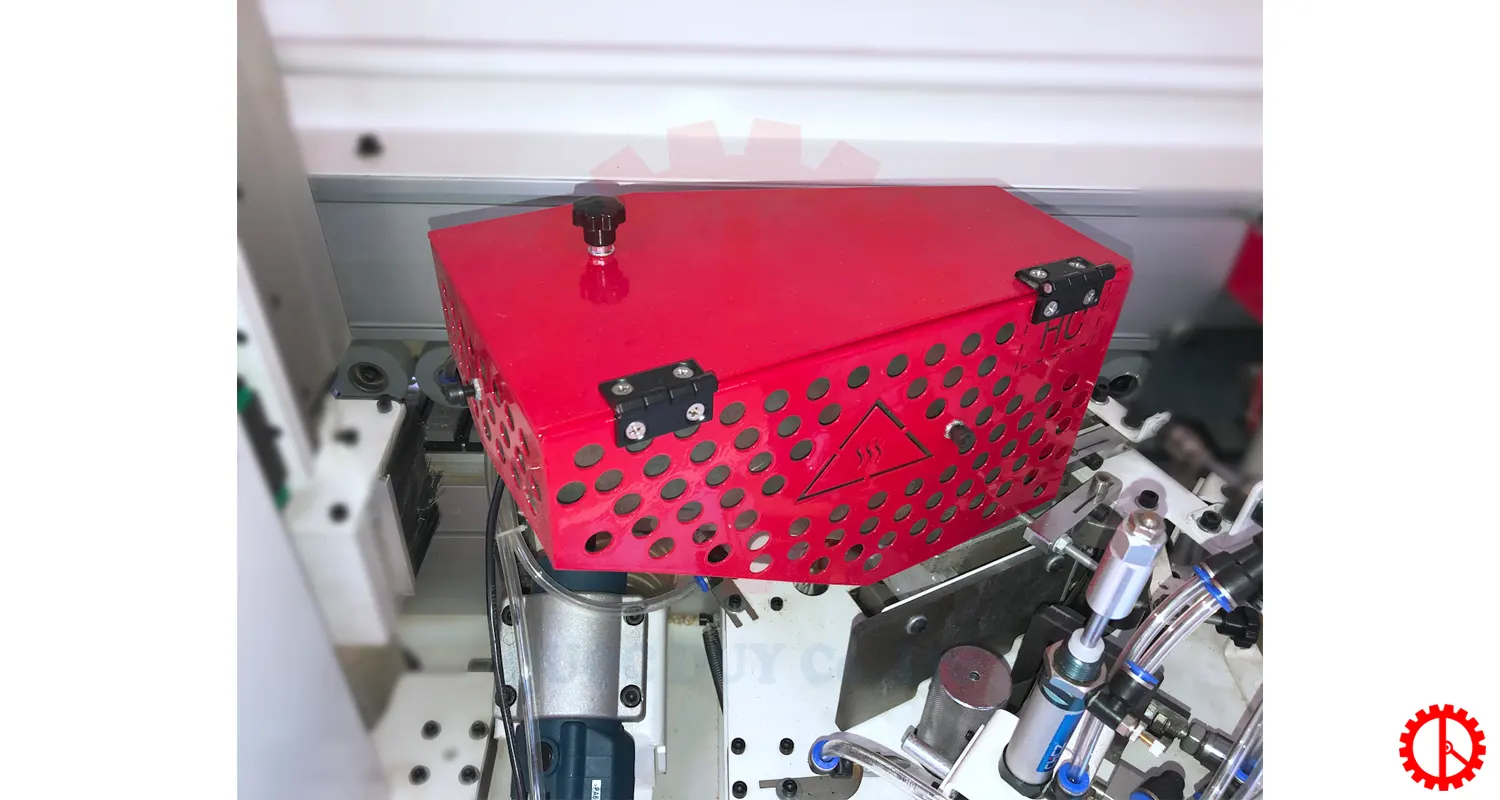

| Glue heating | : 2.7 Kw |

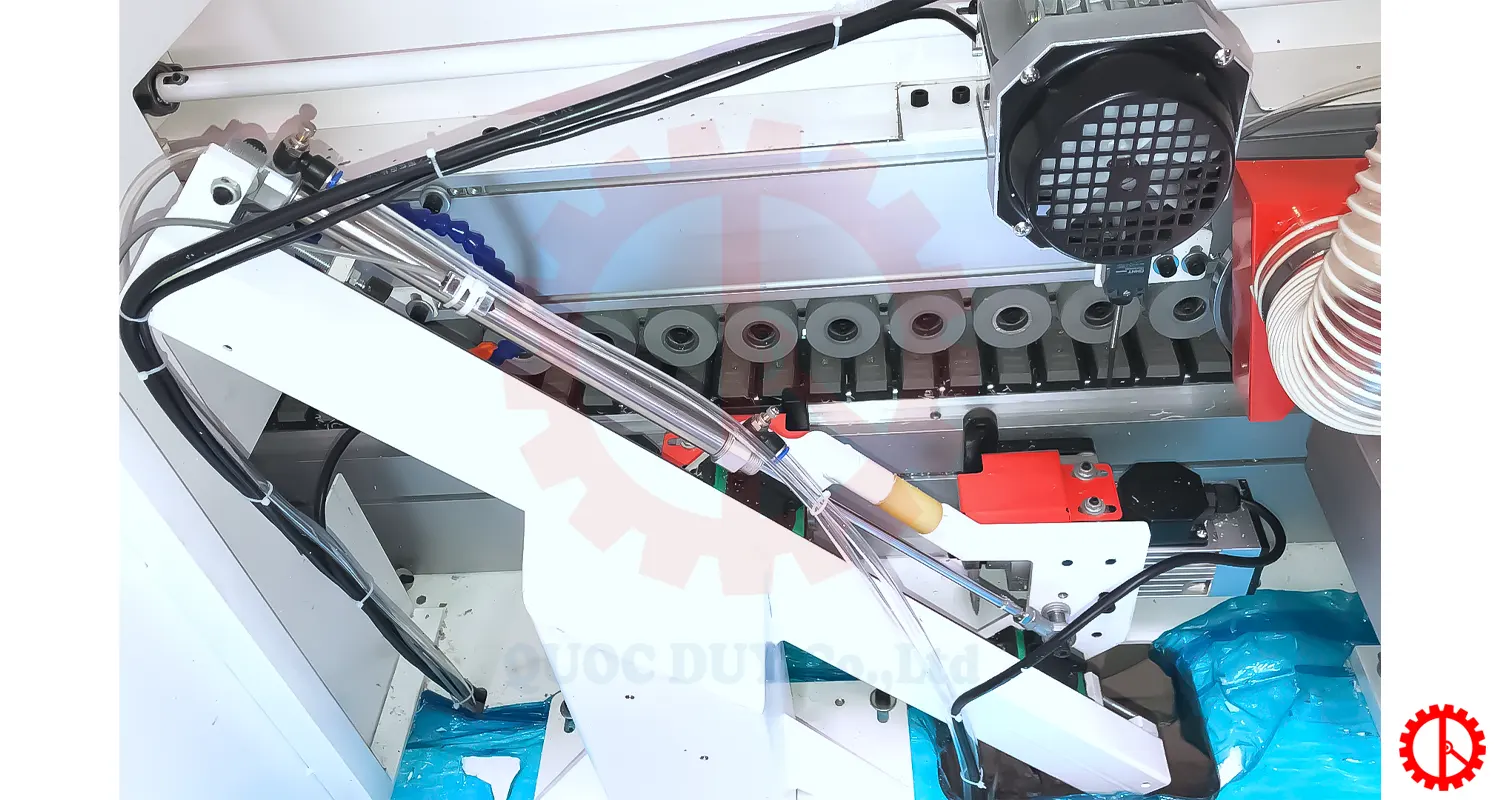

| End trimming | : 0.55 Kw x 2 |

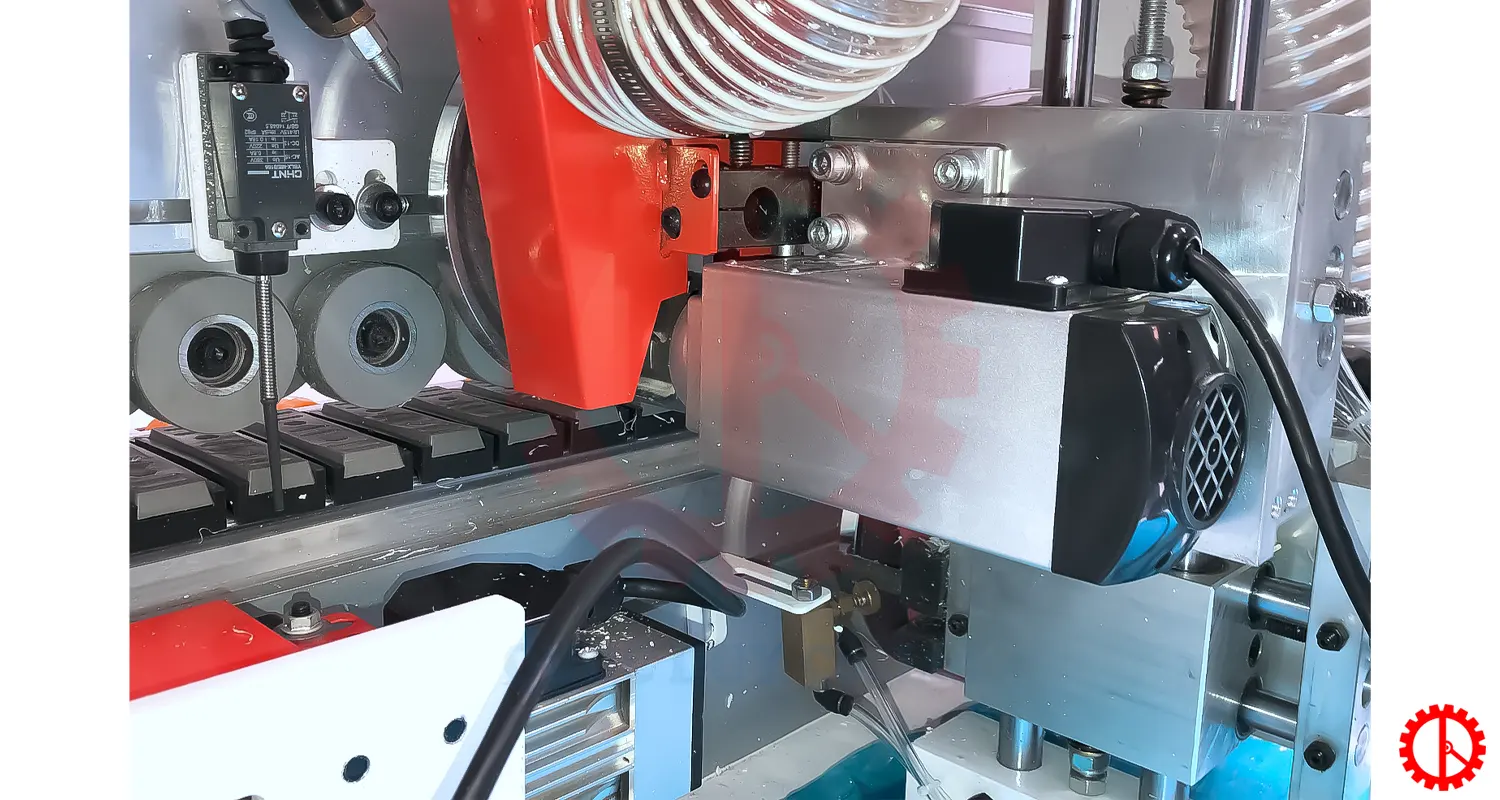

| Top and Bottom Trimming | : 0.55 Kw x 2 |

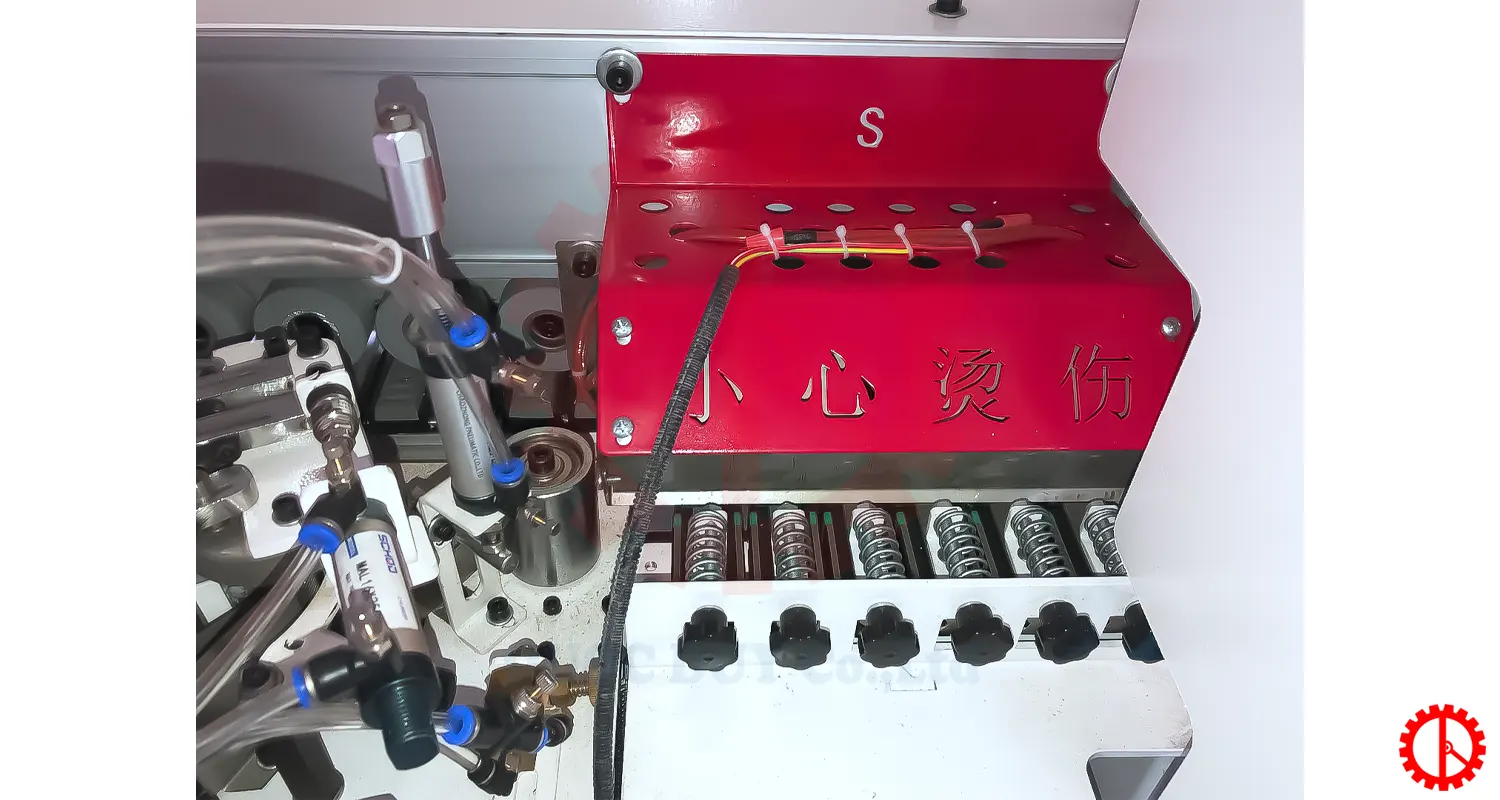

| Edge Contour Heating Connection | : 8 Kw (2 Grooving Blades: 2 Kw x 2 + 8 Resistors) |

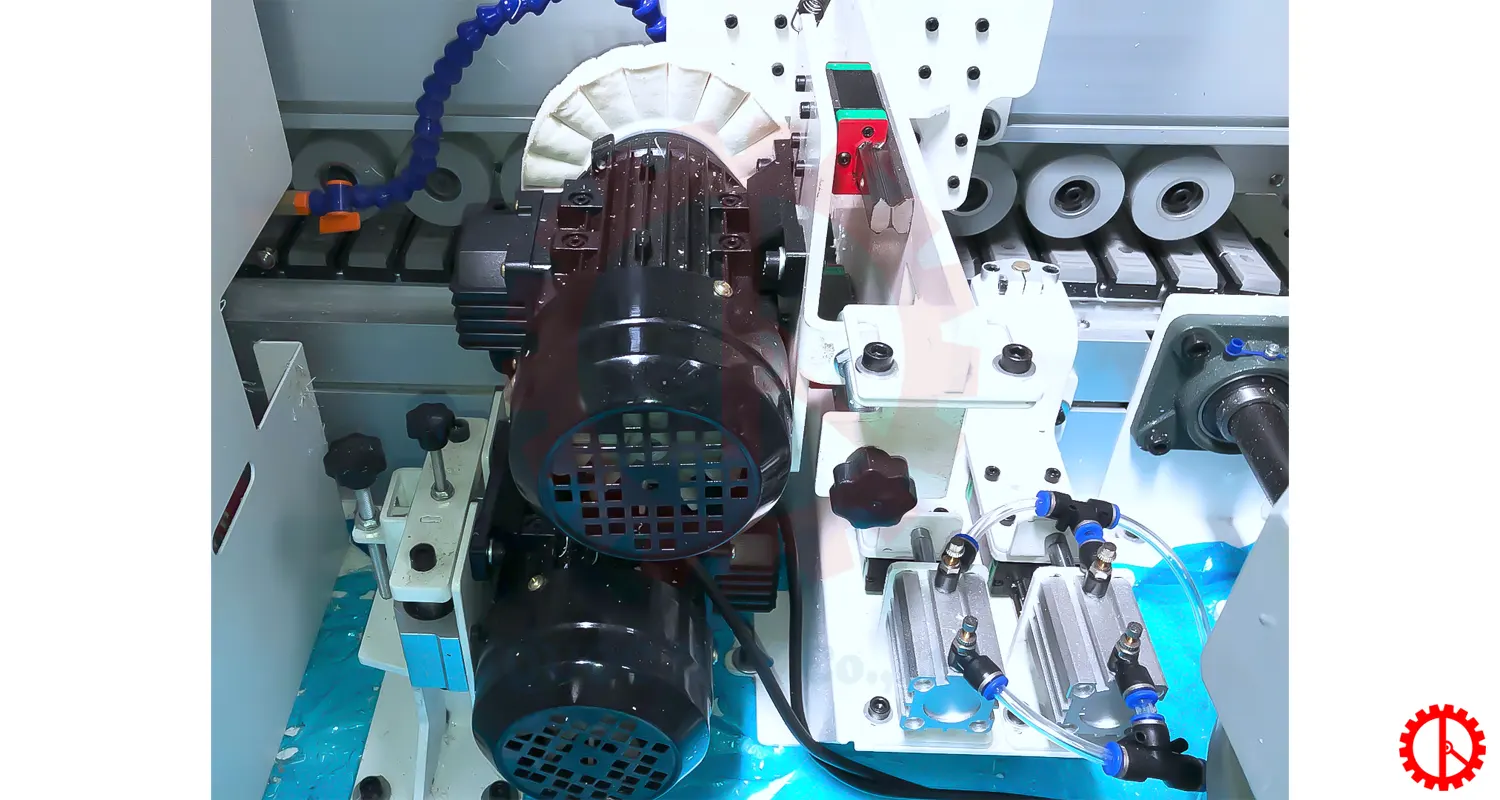

| Polishing Unit | : 0.18 Kw x 2 |
| Conveyor Belt | : 1.5 Kw |
| Lifting Mechanism | : 0.25 Kw |
| Conveyor Belt Speed | : 6 m/minute |
| Voltage | : 380V 50Hz |
| Edge Thickness | : 0.5 – 0.6 mm |
| Panel Thickness | : 18 mm – 22 mm |
| Edge Width | : J: 60-65mm / C:35-40 mm |
| Total Power Consumption | : 29 Kw |
| Machine Dimensions | : 6800 x 1200 x 1600 mm |
| Weight | : 1800 kg |
Note: Technical specifications, design features, and machine colors are subject to change without prior notice. However, such changes will not affect the machine’s functionality, performance, or operating capabilities
