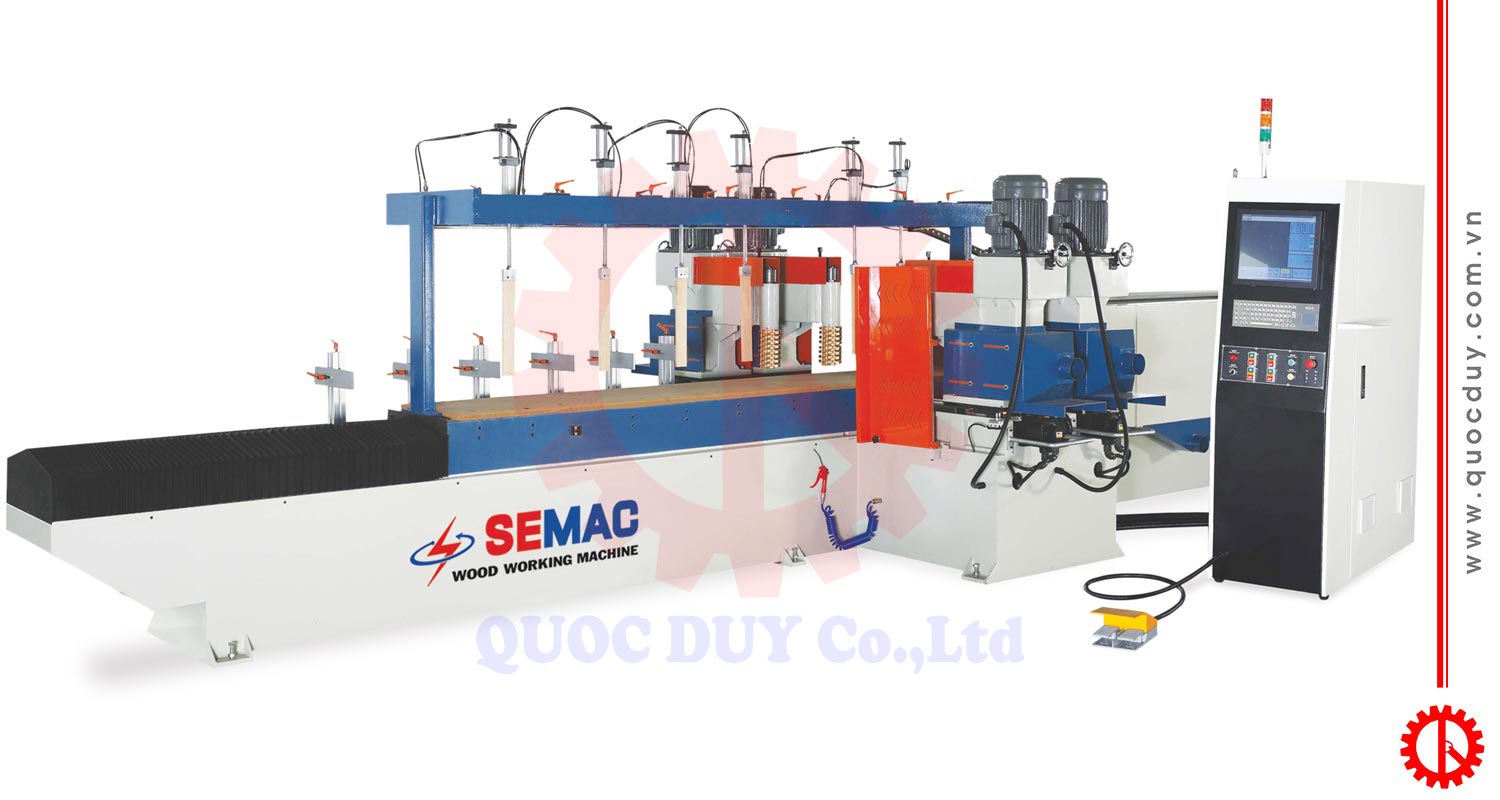

4 axis linear cnc profiling machine HH-CNC-85-4TC
Introduction of 4 axis linear cnc profiling machine
Features of 4 axis linear cnc profiling machine
- You can choose a working height of up to 600mm, which allows you to stack multiple workpieces on top of each other.
- The machine follows a two-step process: it moves in for profile milling and then backs out for sanding.
- An optional automatic bar feeding system is available to help increase productivity.
- The wood dust is effectively recovered without affecting the sanding quality.
Specifications of 4 axis linear cnc profiling machine
| Max. Working Height | 200 mm |
| Max. Working Length | 2000 mm (Opt.): 2500 mm |
| Max. Working Width | 350 mm |
| Controller & Software | 1. CAD / CAM file conversion software developed by Huan Hung’s R&D. 2. PC-BASED architecture, Delta axis motion control, designed for industrial computers. |
| Delta Servo Motor | 3 KW x 1 / 0.85 KW x 4 |
| Spindle Motor (Italian Motor) | Std.:10 HP x 2 (Opt.: 15 HP x 2) Std.:7.5 HP x 2 (Opt.: 10 HP x 2 |
| Milling Heads | 4 |
| Shaft Inner Diameter | 40 mm |
| Max. Working Speed | 1 – 15 mm |
| Spindle Speed | 9000 rpm |
| Max Return Speed | 80 m/min |
| Clamping System | 6 vertical pneumatic cylinders |
| Machinery NW | 7000 kg |
| Machinery NW | 7500 kg |
Video of operating the cnc 4-axis copy milling machine
> See more:
Latest 4 axis linear cnc profiling machine price
For more than two decades, Quoc Duy has been a reliable supplier of shaping machine. Our wealth of experience has enabled us to deliver top-quality products to our customers. If you have any questions or would like to make a purchase, please don’t hesitate to contact us.
You can get in touch with us through the following channels:
- Email : info@quocduy.com.vn
- Hotline : 0903 600 113
- Website : www.quocduy.com.vn – www.semac.com.vn
We also welcome you to visit our factory, which is located at 401 To Ngoc Van, Thanh Xuan Ward, District 12, Ho Chi Minh City. You can witness our cutting-edge machines in action and examine the quality of our products up close. Feel free to drop by anytime.
