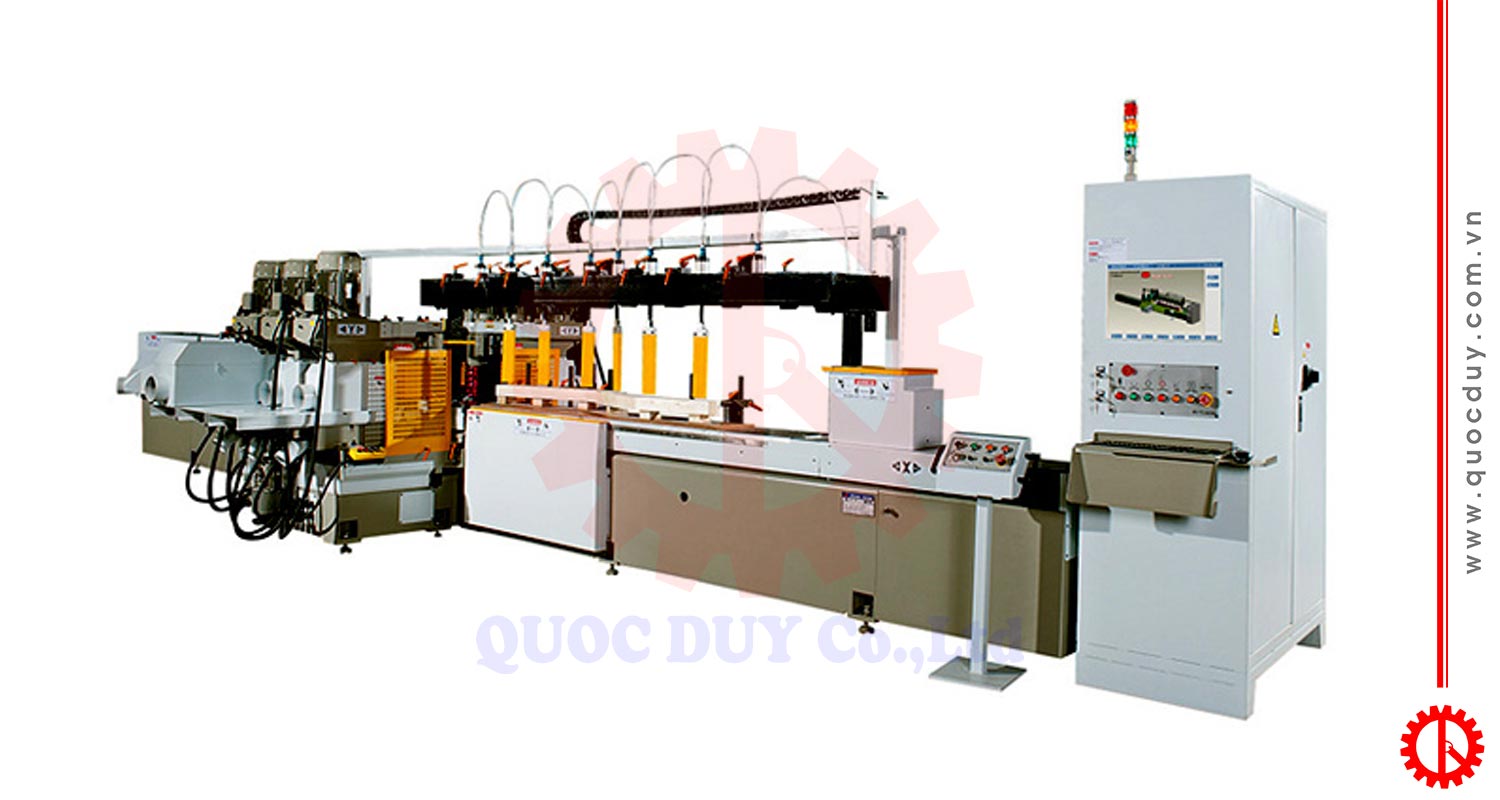

6 axis linear cnc profiling machine HH-CNC-85-6TC
Introduction of 6 axis linear cnc profiling machine
Features of 6 axis linear cnc profiling machine
- The working height is extendable to 600 mm for workpiece stacking (Opt.).
- An automatic feeding system is available for greater productivity (Opt.)
- The wood dust is effectively collected without affecting the sanding quality.
- The machine follows a two-step process: forward for milling & backward for sanding.
Specifications of 6 axis linear cnc profiling machine
| Max. Working Height | 200 mm |
| Max. Working Length | 2000 mm (Opt.): 2500 mm |
| Max. Working Width | 350 mm |
| Controller & Software | 1. CAD / CAM file conversion software developed by Huan Hung’s R&D. 2. PC-BASED architecture, Delta axis motion control, designed for industrial computers. |
| Delta Servo Motor | 3 KW*1 / 0.85 KW*6 |
| Spindle Motor (Italian Motor) | 15 HP*2 / 10 HP*2 7.5 HP*2 |
| Milling Heads | 4 |
| Shaft Inner Diameter | 40 mm |
| Max. Working Speed | 1 – 15 mm |
| Spindle Speed | 9000 rpm |
| Max Return Speed> | 100 m/min |
| Clamping System | 8 vertical pneumatic cylinders |
| Machinery NW | 7800 kg |
| Machinery NW | 8300 kg |
Video of operating a 6-axis CNC linear copying machine
> See more:
Latest 6 axis linear cnc profiling machine price
For more than twenty years, Quoc Duy has been a reliable supplier of shaping machine. With our extensive experience, we are dedicated to providing the highest quality products to our customers. If you have any inquiries or would like to make a purchase, please don’t hesitate to contact us.
You can reach us through the following channels:
- Email : info@quocduy.com.vn
- Hotline : 0903 600 113
- Website : www.quocduy.com.vn – www.semac.com.vn
We also welcome you to visit our factory, located at 401 To Ngoc Van, Thanh Xuan Ward, District 12, Ho Chi Minh City. You can observe our state-of-the-art machines in action and inspect the quality of our products up close. Feel free to drop by anytime.
