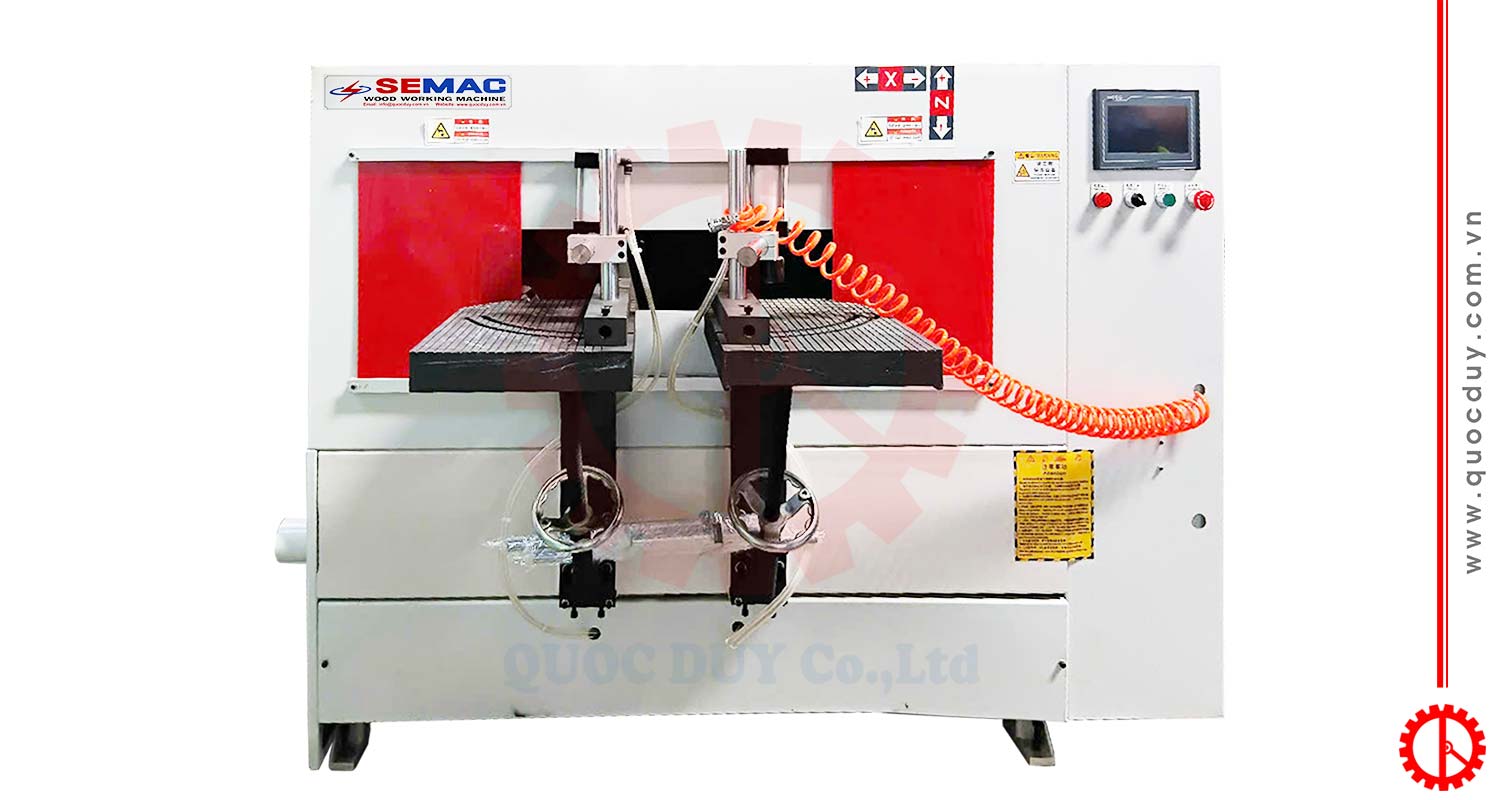

The single head CNC tenoner – SMXB 140 is optimally designed for furniture workshops that demand high-precision and stable processing. Featuring the ability to create sharp, consistent, and high-speed tenons, this machine efficiently handles a wide variety of standard joint profiles. Powered by a modern CNC control system combined with a robust milling mechanism, the SMXB 140 ensures intuitive and simple operation. It is the ideal choice for enhancing product quality and optimizing efficiency in mass production.
Features of the single head cnc tenoner
Versatile Tenon Machining: Easily processes various tenon profiles, including oval, round, and mitered (angled) tenons, meeting diverse production requirements.
Dual Independent Worktables: Equipped with two independent worktables, allowing simultaneous processing of different tenon types to maximize productivity and minimize downtime.

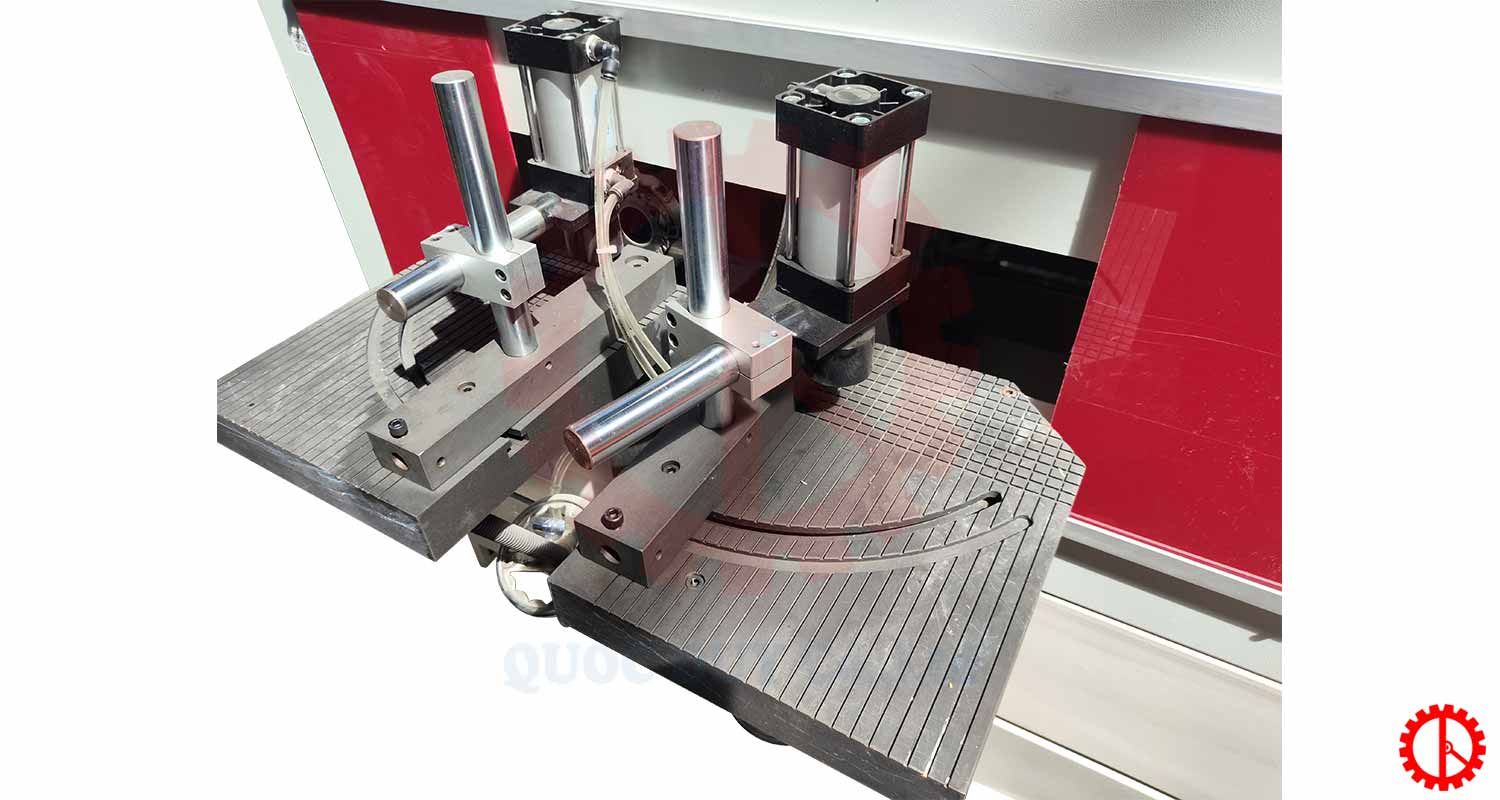

Secure Pneumatic Clamping System: Robust clamping system ensures absolute workpiece stability throughout the machining process, guaranteeing precision for every cut.
High-Power Motor Performance: Features high-torque motors that deliver high-speed processing, perfect for heavy-duty production schedules.

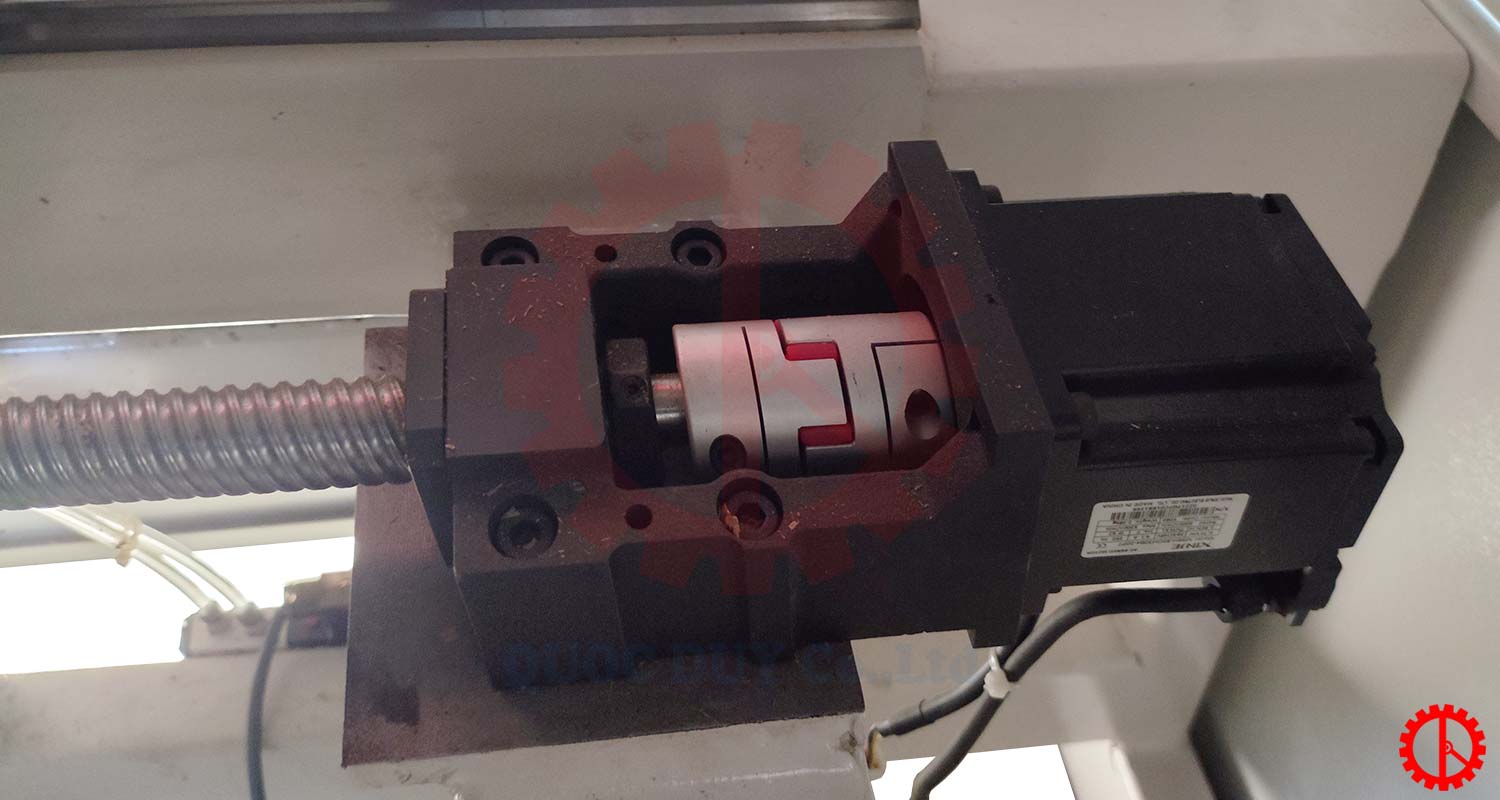

Precision Servo Control: All axes are driven by high-performance servo motors, ensuring exceptional accuracy and consistent repeatability in tenon manufacturing.

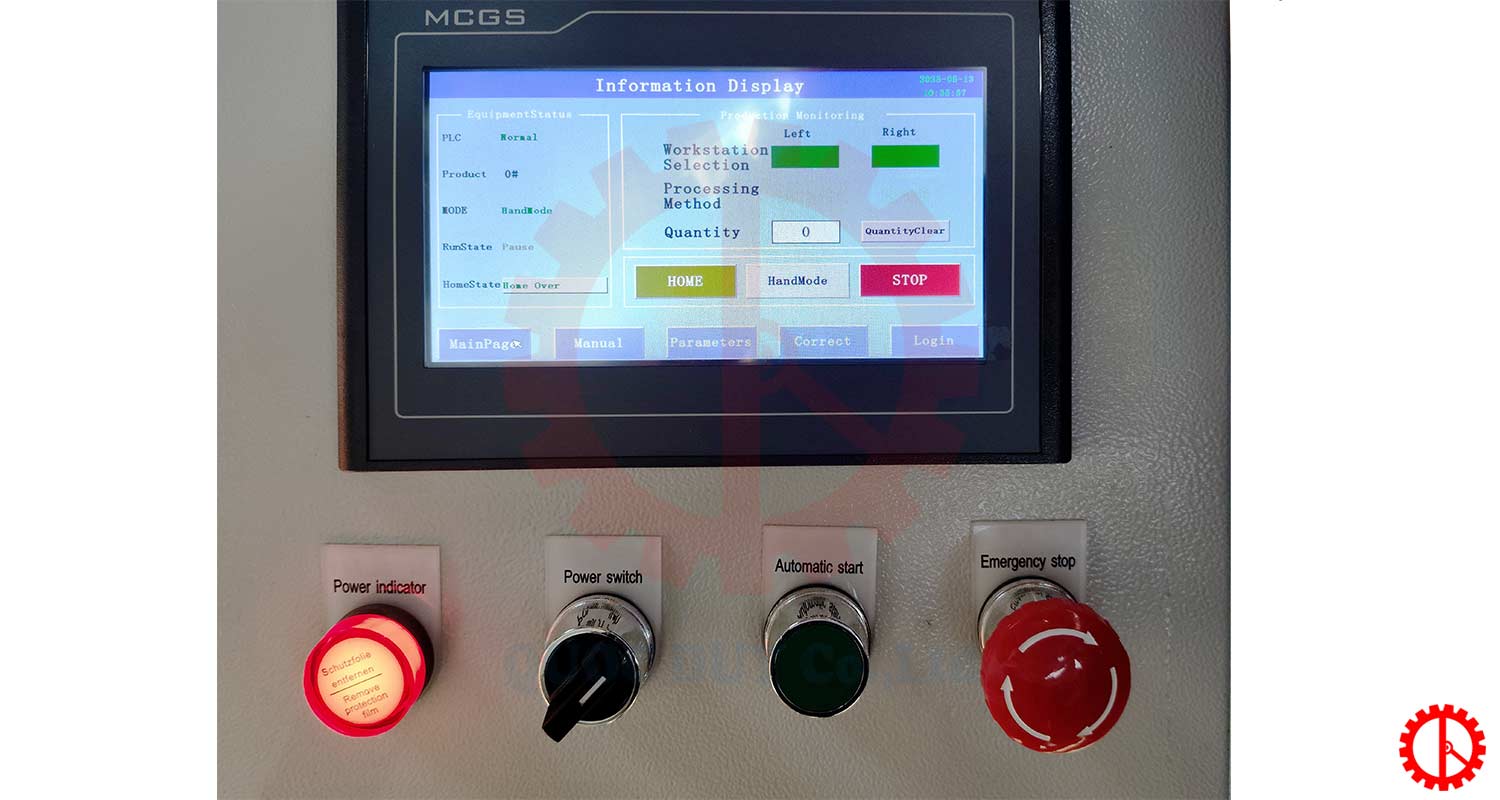

User-Friendly CNC Interface: Simple and intuitive operation—operators just need to input dimensions and select the tenon type, and the machine automatically executes the cutting cycle.
Technical specifications of the single head cnc tenoner
| Max. Tenon size | : 140 x 80 mm |

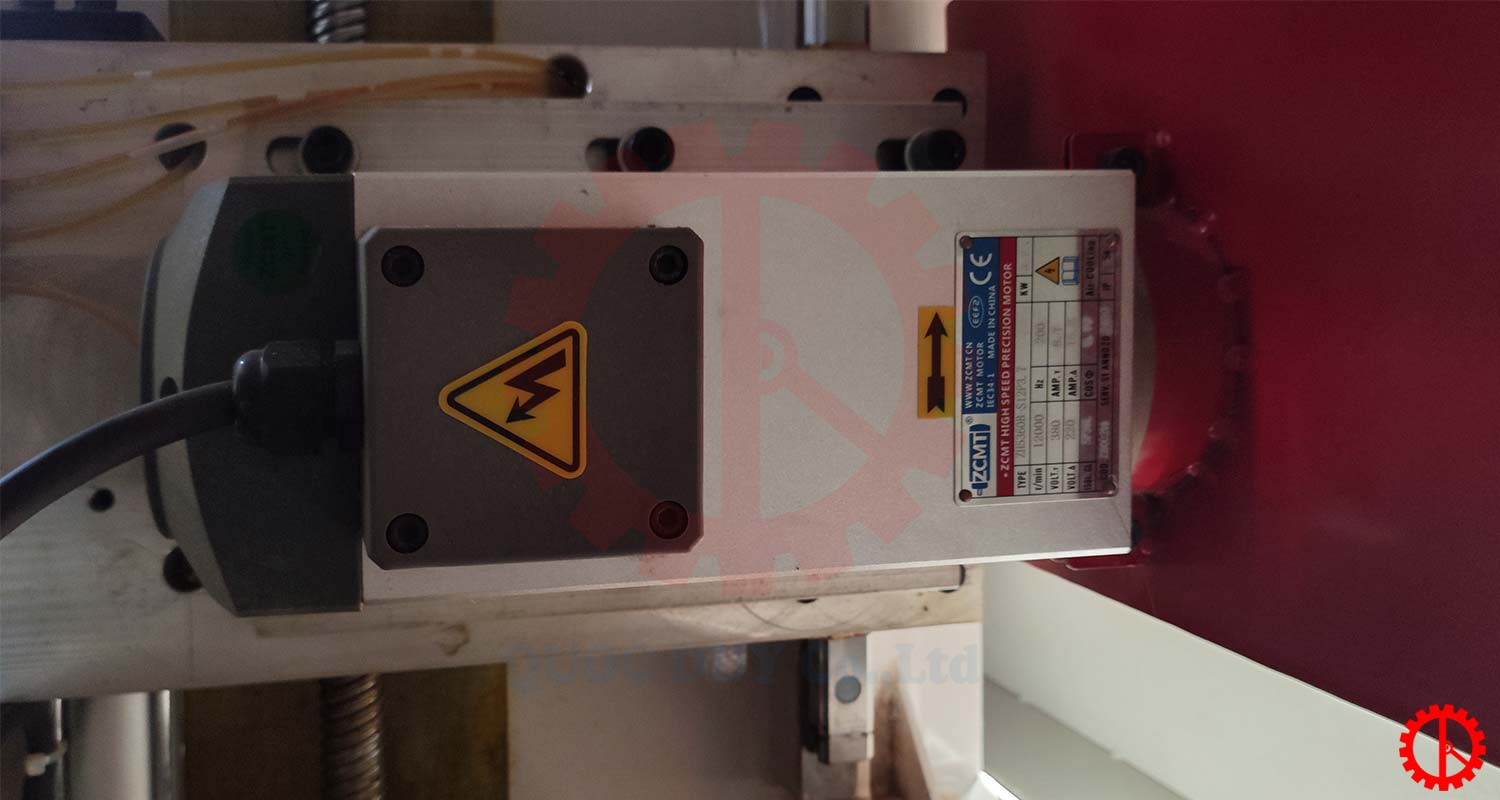

| Spindle motor | : 3.7kW |
| Spindle speed | : 12000 rpm |
| X axis servo motor | : 0.75kW |
| Z axis servo motor | : 0.75kW |
| Clamping cylinders | : 2 cái |
| Air pressure | : 0.6 – 0.8 MPa |
| Voltage | : 3 phase 380V |
| Dust hood outlet diameter | : Ø75 mm |
| Machine dimensions | : 1800 x 1150 x 1350 mm |
Note: Technical specifications, design features, and machine color are subject to change without prior notice, but this will not affect the machine’s functions and operational capabilities.
Contact Quoc Duy to own your state of the single head cnc tenoner
Quoc Duy – a leading provider with over 20 years of experience in the woodworking machinery industry – is committed to delivering the most suitable solutions tailored to each workshop’s needs. We offer comprehensive support, including expert consultation, professional installation, and full technology transfer, ensuring businesses can invest with long-term peace of mind.
For expert consultation and the best quotes on the SMXB 140, please contact us:
Email: info@quocduy.com.vn
Hotline: (+84) 903 600 113
Address: 401 To Ngoc Van St., Thoi An Ward, Dist. 12, Ho Chi Minh City, Vietnam.
