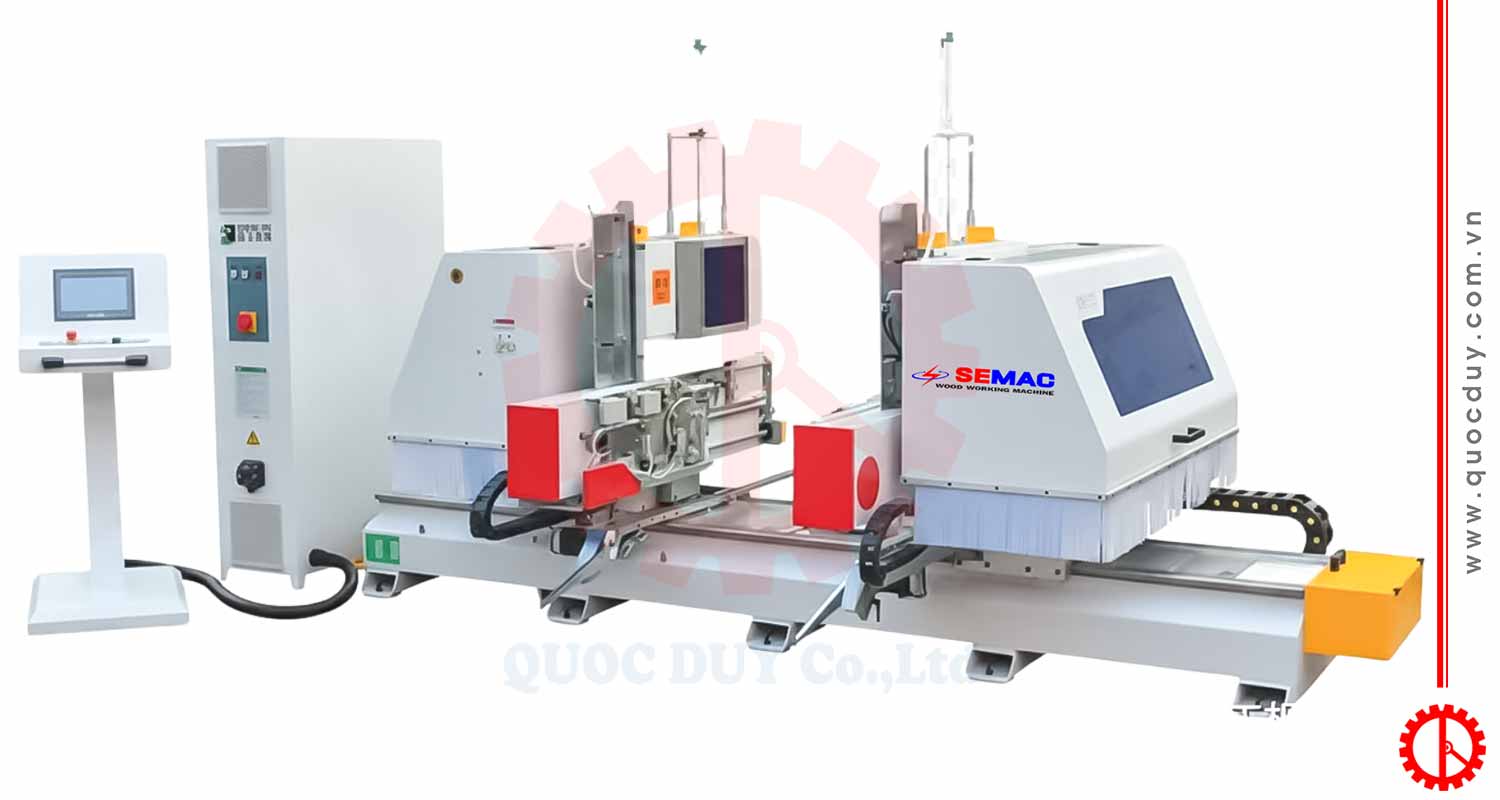

The Double End Tenoning Machine – SM ST2214 is an ideal solution for woodworking factories that need to accelerate production speed while ensuring the precision and aesthetics of each detail. With the ability to process two workpieces simultaneously, the machine optimizes time, reduces repetitive stages, and delivers outstanding working efficiency. Its robust design, stable operation, and beautiful tenon finish make this machinery line a worthy investment for any professional furniture manufacturing enterprise.
Features of the Double End Tenoning Machine
The ultimate strength of the machine is milling 2 products simultaneously with high precision, helping workshops easily double their productivity.
Combined with a speed of 12,000 RPM, it ensures tenon cuts are clean, free of chipping or wood burning, and significantly reduces post-milling processing time.
Multiple servo units are distributed according to key movements, helping the machine run smoothly, stably, and maintain precise tenon shapes even during continuous hours of operation.
The high machine weight provides excellent stability, reduces vibration, increases durability, and maintains uniform quality even when cutting large or hard workpieces.
Thanks to high-speed rotating cutters, a stable cutting path, and a premium guide system, the processed tenon surface is flat, dimensionally accurate, and perfectly shaped, allowing products to fit tightly into molds and saving finishing time.
Technical Specifications
| Max. workpiece length | 2000 mm |
| Max. workpiece thickness | 80 mm |
| Max. workpiece width | 140 mm |
| Min. workpiece length | 220 mm |
| Max. tenon thickness | 50 mm |
| Max. tenon width | 140 mm |
| Max. tenon length | 40 mm |
| Spindle motor power | 3.7 kW x 4 – air-cooled |
| Speed | 12,000 RPM |
| Servo motor power | 1.5 kW x 4, 0.4 kW x 2, 0.75 kW |
| Working air pressure | 0.6 Mpa |
| Controller | Yida |
| Guide rail | ROUST WORLD |
| Ball screw | TBI Taiwan |
| Voltage | 380V / 50Hz |
| Machine weight | 2500 kg |
| Machine dimensions | 4600 x 2350 x 2000 mm |
Note: Specifications, design features, and machine colors are subject to change without prior notice, provided that such changes do not alter the primary functions and operational performance of the machine.
Where to Buy an Affordable Double End Tenoning Machine
With over 22 years of experience in the woodworking machinery industry, Quoc Duy is proud to bring customers a wide range of diverse machinery products, including the Double End Tenoning Machine, to meet all production requirements. We constantly update and apply the latest technologies to enhance efficiency, optimize production processes, and minimize costs as well as labor effort.
To receive detailed consultation and a quick quote for this machinery line, please contact us via the information below:
Email: info@quocduy.com.vn
Hotline: 0903 600 113
Website: quocduy.com.vn
You are also welcome to visit our manufacturing facility directly at: 401 To Ngoc Van, Thoi An Ward, Ho Chi Minh City to observe the operation of today’s most modern machinery lines.
