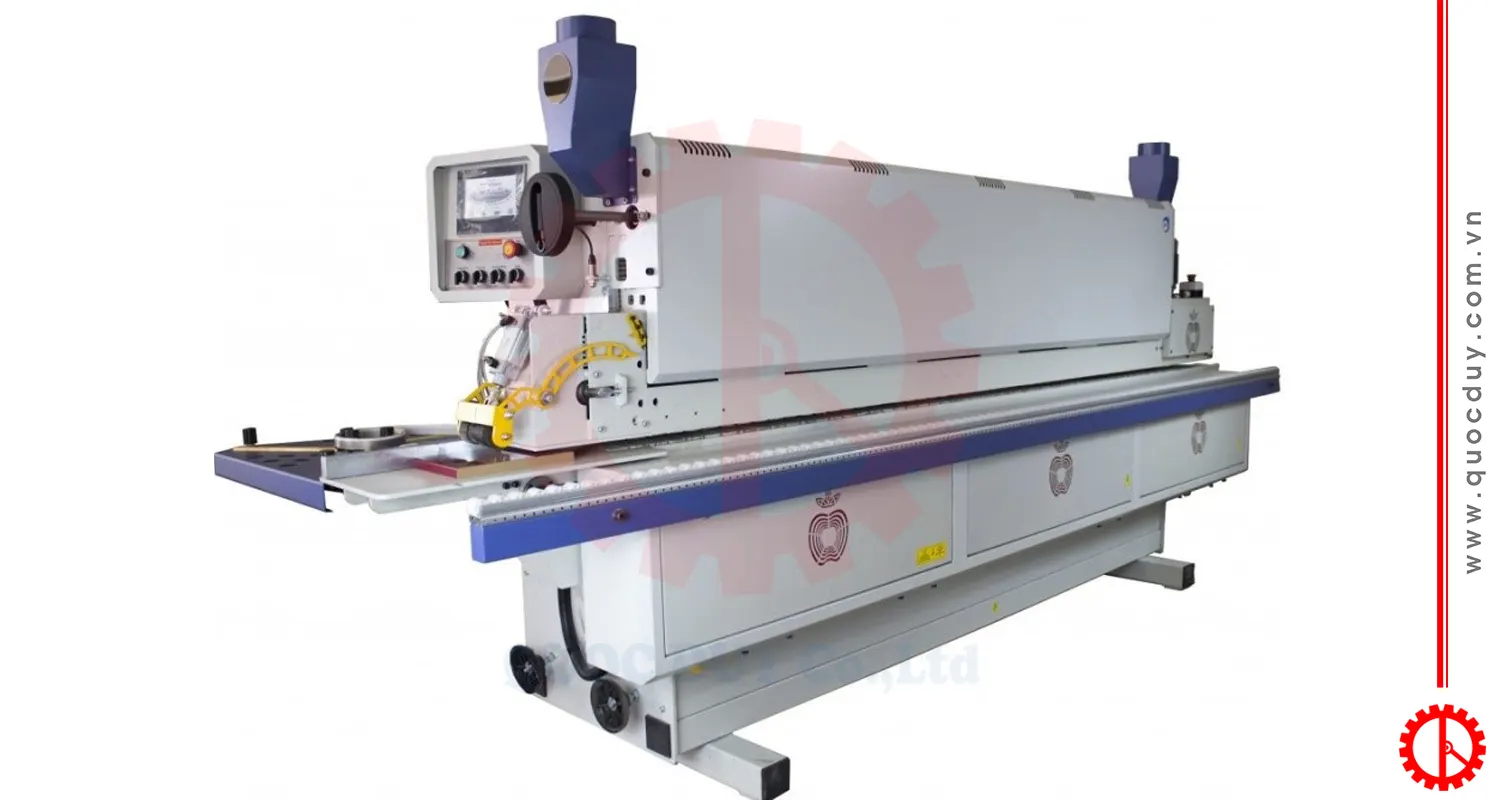

Introductions of multi function automatic edge banding machine
Features of multi function automatic edge banding machine
- EXPERT 3600 automatic edge banding machine with many outstanding features such as gluing, trimming, bo…
- Edge banding machine with compact design suitable for small-medium-sized workshops
- Modern PLC touch screen, easy parameter setting
- Edge milling cluster design, automatic cornering, improving aesthetics.
- Edge milling, slotting, milling of various profiles (including obtuse angles), scraping and polishing of the finished product are possible.
- Smart glue supply system: with a top-down design that makes the glue even and does not overflow, it saves more glue, minimizing the wear and tear of the glue shaft.
Specifications of multi function automatic edge banding machine
| Electrical level | : 380-220 / 50hz |
| Nominal current | : 20A |
| Edge merterial thickness | : 0.4-3mm |
| Board thickness | : 10-50mm |
| Speed | : 15 m/min |
| Total electrical power | : 11kw |
| Total air pressure | : 6 bar |
| Total air usage | : 180 lt/min |
| Front milling | : 1×2.2 kw / 12000 Rpm (1×1.5 kw / 12000 Rpm) |
| Trimming | : 2×0.75 kw / 18000 Rpm |
| Buffing motor | : 2×0.18 kw / 1310 Rpm |
| Glue boiler engine | : 0.18w / Rpm |
| Pvc step engine | : 0.4 kw |
| Pallet motors | : – |
| Double pallet system | : 2 x 0.75 Rpm / 1404 Rpm |
| Machine length | : 3600mm |
| Machine width | : 800mm |
| Machine height | : 1500mm |
| Machine weight | : 1020kg |
