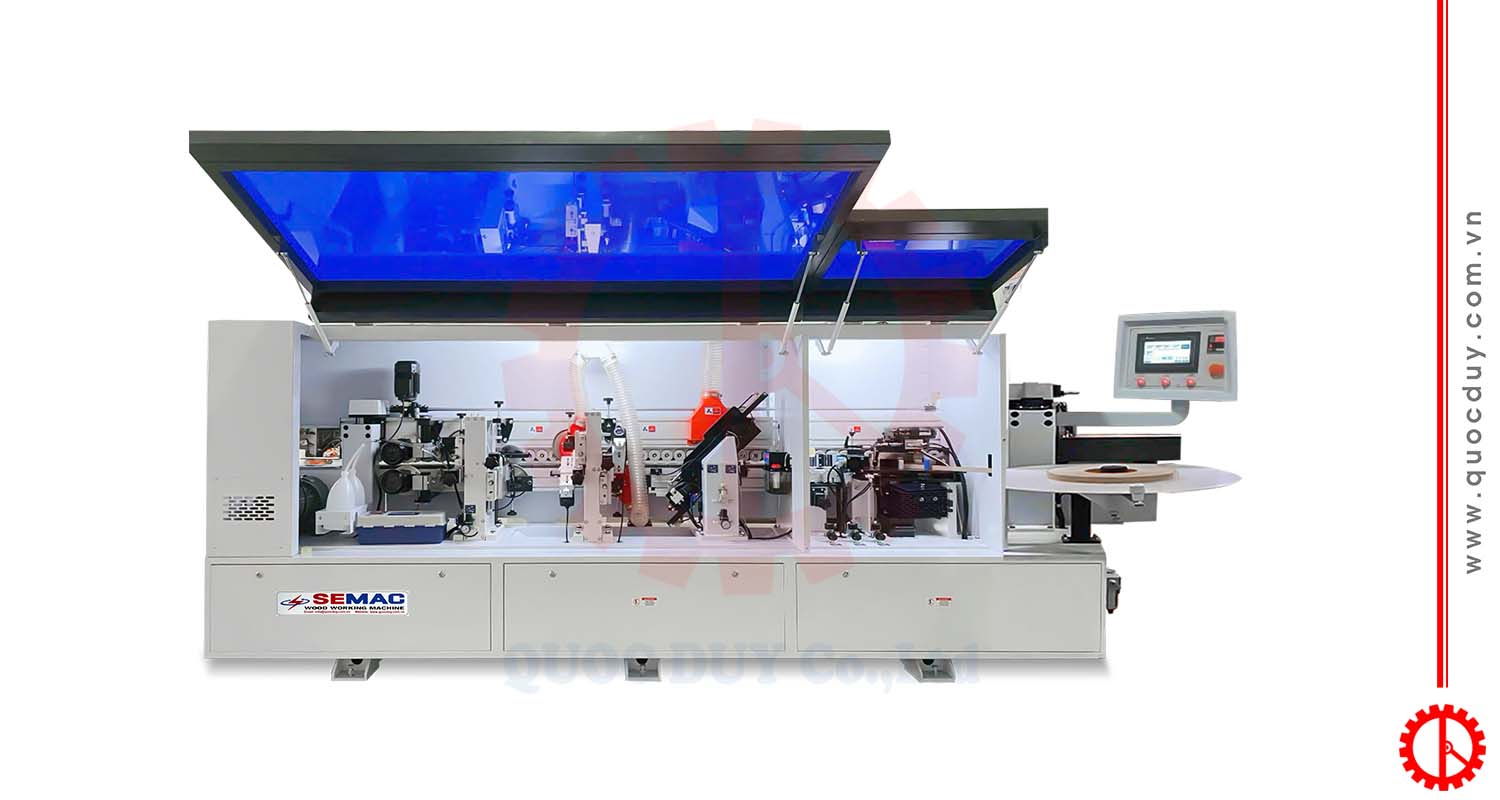

Automatic edge banding machine SM 360
Introduction about automatic edge banding machine
Features
– Automatic edge banding machine MFC 5 SM 360 is designed with a solid frame and stable motor.
– The machine performs 5 functions: glue roller – stick thread, cut head – tail, trim the top – bottom edge, scrape off excess glue, polish.
– Glue-roller part is adopted by a special structure. Adhesive is evenly applied to the splint and ensures that the adhesive is highly bonded.
– The cutting head with high precision, creating beautiful cut lines.
– Automatic top and bottom trimmers help smooth the paste surface.
– Glue clusters help scrape off the excess glue after gluing to ensure a high aesthetic for the product.
– Polishing broom helps to clean the surface of the product after pasting.
– Touch screen displays machine parameters to help workers easily operate, monitor machine parameters during operation.
– The lubrication system continuously works to help the machine operate smoothly and efficiently.
Specifications
Total power | 9.2 kw |
Feed speed | 12～20 m/min |
Panel thickness | 10～60 mm |
Edge banding tape thickness | 0.4～3 mm |
Panel width | ≥ 4 0 mm |
Working air pressure | 0.8 MPa |
Net weight | 1900 kgs |
Machine size | 4150 × 1100 × 1600 mm |
