Double-end tenon machine specializes in processing round, oval, rectangular tenons, etc. The machine processes both ends of the workpiece simultaneously, saving time and providing outstanding productivity.

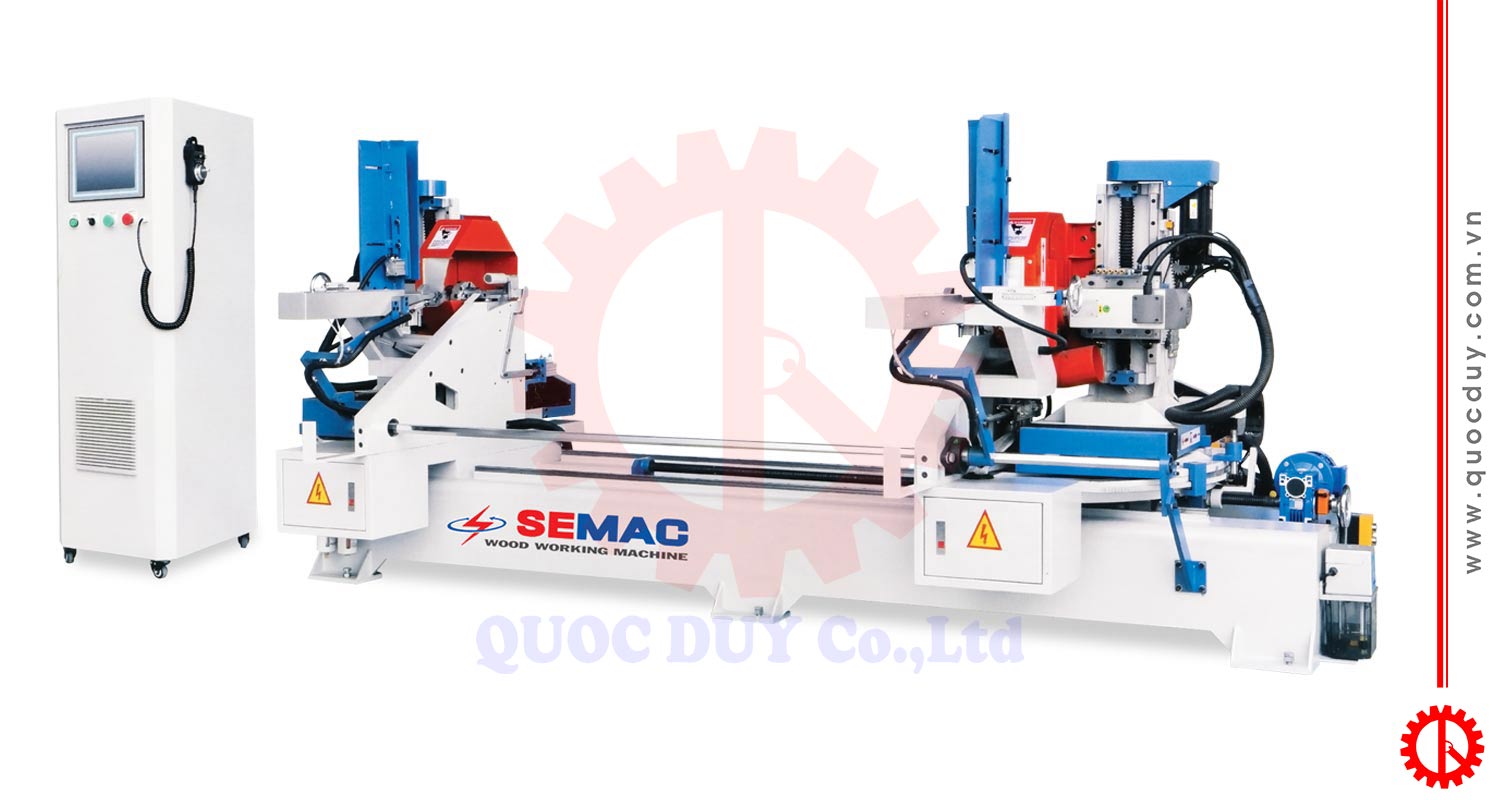

Introduction of double-end tenon machine
Features of double-end tenon machine
- High efficiency: Adopts the structure of the workpiece container with continuous workpiece feeding mode to reduce workpiece delivery time during operation. Using servo motors with high responsiveness, almost absolute accuracy, and higher speed can process about 300 – 500 products/hour.
- Convenience: Use the touch screen for operation with a simple & clear interface and digital input of product programming mode. Use the blade to adjust the angle and eliminate complicated and cumbersome processes, making machine adjustment convenient and quick.
- Stability: The machine body adopts a hollow tubular structure with high stability, eliminating the pressure acting on the machine, ensuring the durability of the machine body and not causing the body to deform. The Y axis is lightweight to reduce inertia and improve the durability of moving parts. The automatic lubrication system is used to reduce the influence of wood chips on the machine and ensure smooth and stable operation of the machine.
- Economical: Servo system with good stability and control system. Every moving part of the machine is imported to ensure efficiency, stability, and improved machine operation.
Application of double-end tenon machine
- The 2-head tenoner machine, is used in most wooden furniture production lines: industrial wood production lines, chair making lines,…
- Create joints between product details with high aesthetic requirements.
Helical cutter
Helical cutter works continuously, increasing productivity.
The length of walk peas
The length of walk peas can be set up by servo motor.
Product
The machine can make several type of tenon
Specifications of double-end tenon machine
| Length of processing material | : 220-2000 mm |
| Width of processing material | : 20-150 mm |
| Thickness of processing material | : 12-50 mm |
| Machining maximum tenon | : 8-50 mm |
| Horizontal adjustable angle | : +50, -200 |
| Vertical adjustable angle | : +350, -50 |
| Spindle motor | : 5.5 Kw x 2 |
| Length regulating motor | : 400 W |
| Total power | : 16,5 Kw |
| Spindle speed | : 9000 rpm |
| Working pressure | : 0.4-0.6 Mpa |
| Machine size ( L x W x H ) | : 3800 x 1400 x 1600 mm |
| Machine weight | : 1680 Kg |
Video of operating the double-end tenon machine
Latest double-end tenon machine price
If you want to improve – optimize production efficiency, come to Quoc Duy. The place specializes in providing all types of modern woodworking machine with high productivity. With many mechanical systems, we are confident that we can fully serve the needs of our customers.
In addition to the BY 813 2-head positive tenon-making machine, we also provide many other tenon-making machines. With a diverse system of tenon machines: 1-head positive tenon machine, 10-head yin-yang tenon machine, cnc double end tenoner… Especially here we own an extremely high productivity CNC 200/4 double end tenoner robot. With this line of robots, it is possible to process up to more than 700 products/hour
To receive the fastest quote consultation updates, please contact us immediately via the information below. The sales and technical team will provide immediate support for the machine model you desire.
