Features of Auto wood copy shaper
Equipped with a high-speed PC control system, offering performance comparable to CNC machinery at a significantly lower cost.
Automatic feeding system saves workpiece loading time and labor, effectively minimizing production costs.
Adjustable high-speed processing allows flexible speed control based on product dimensions and material properties.
Dual-spindle and dual-cutter design delivers smooth shaping, making subsequent sanding effortless.
Hydraulic & pneumatic clamping system securely holds workpieces during processing.
High-capacity performance enables rapid processing.
Meticulously selected components and a heavy-duty frame ensure long machine service life.

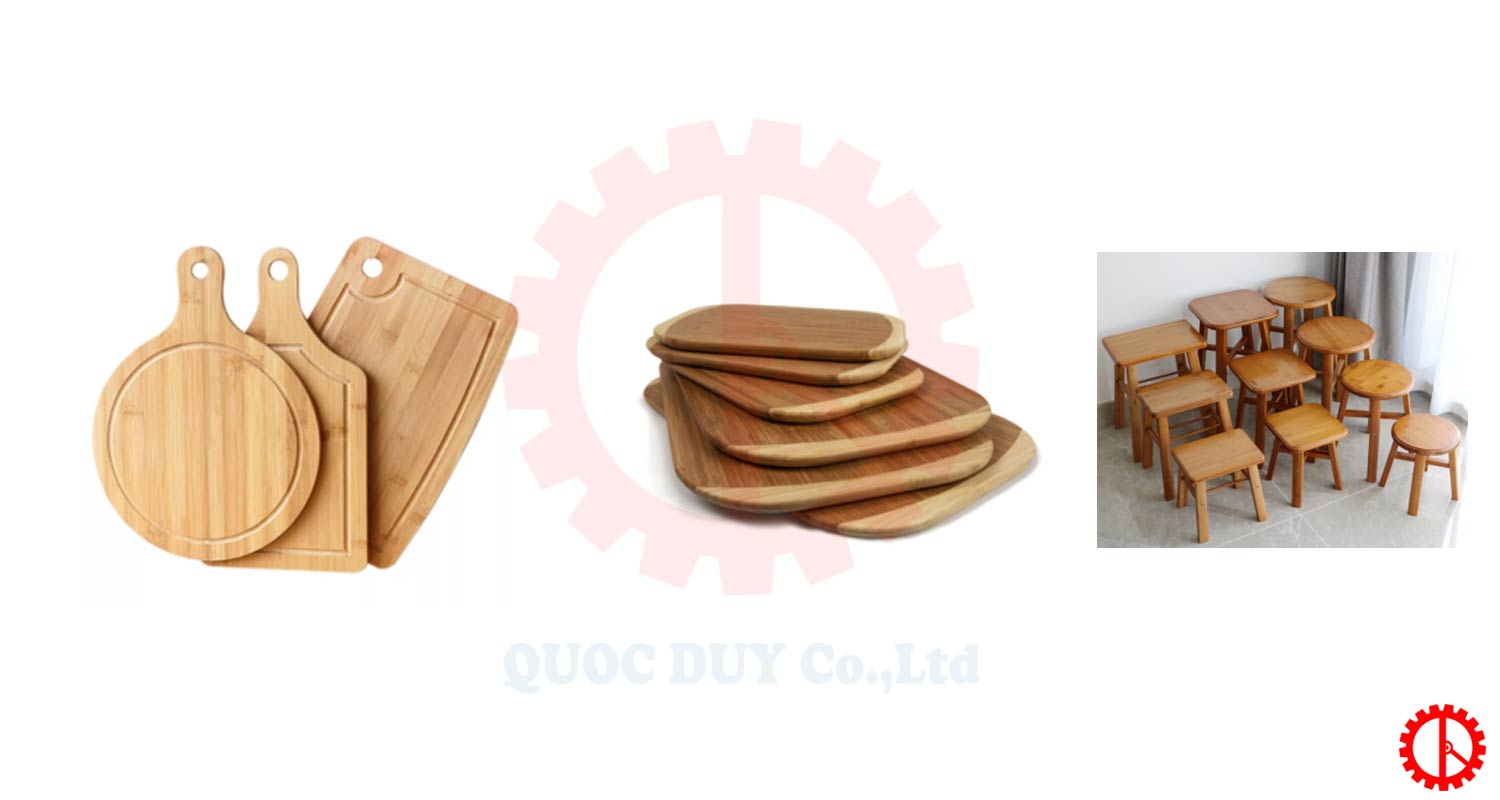

Wide applications: Processing diverse items such as furniture handles, coasters, cutting boards, wooden trays, seat panels, coffee tables, and more.
Specifications of Auto wood copy shaper
| Cutting Diameter | 110 – 1150 mm |
| Maximum Rectangular Cutting Ratio | 2:01 |
| Maximum Cutting Thickness | 130 mm |
| Working Table Size | Ø700 mm |
| Cutting Spindle Diameter | Ø30 mm |
| Guide Roller Diameter | Ø100 mm |
| Spindle Speed | 9000 rpm |
| Working Table Speed | 1.5 – 6 rpm |
| Main Spindle Motor Power | 5.5 kW |
| Table Drive Motor Power | 1.5 kW |
| Working Air Pressure | 0.6 – 0.8 MPa |
| Dust Collection Ports | Ø100 mm × 4 |
| Dimensions | 1630 × 1450 × 2400 mm |
| Weight | 1200 kg |
Note: Technical specifications, design features, and machine colors are subject to change without prior notice. However, such changes will not affect the machine’s functionality, performance, or operating capabilities
