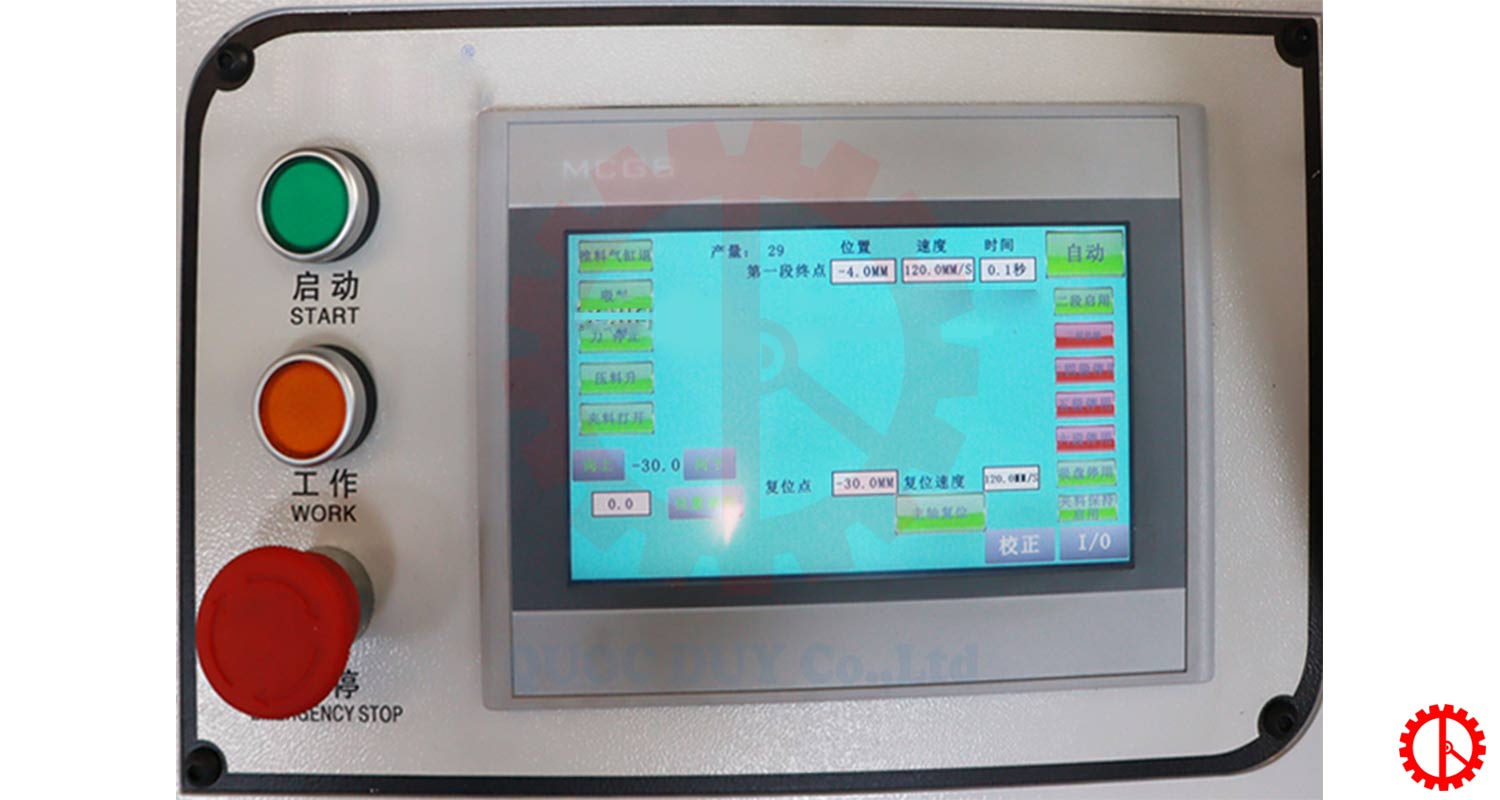

CNC wooden cup lid round hole drilling machine – SMJK 2312 is designed for high-efficiency, smooth hole processing at a drilling speed of approximately 12,000 RPM. The machine features easy operation and intuitive monitoring via its control screen.
Features of CNC wooden cup lid round hole drilling machine
- Easy machine adjustment—operators can quickly set parameters to match workpiece dimensions in just a few minutes.
- Equipped with a touch screen and push-button start for simple operation. Operators only need to place the workpieces into the tray, allowing a single person to operate multiple machines simultaneously.
- Operating multiple machines at once significantly boosts efficiency by 3 to 5 times compared to conventional methods.
- Driven by a high-speed drilling motor reaching 12,000 RPM, it produces ultra-smooth hole surfaces and greatly enhances machining quality.
- Ensures user safety by preventing common hazards associated with manual drilling, such as flying chips, debris, or dust particles entering the eyes.
Specifications of CNC wooden cup lid round hole drilling machine
| Workpiece Diameter | 30 – 140 mm |
| Workpiece Thickness | 5 – 100 mm |
| Maximum Drilling Diameter | < 40 mm |
| Maximum Spindle Speed | 12,000 rpm |
| Spindle Motor Power | 7.5 kW |
| Servo Motor | 1 kW |
| Machining Speed | 3 sec/piece |
| Working Air Pressure | 0.55 MPa |
| Power Supply | 380V/50Hz |
| Total Power | 9 kW |
| Weight | 360 kg |
| Dimensions | 1400 × 900 × 1700 mm |
Note: Technical specifications, design features, and machine colors are subject to change without prior notice. However, such changes will not affect the machine’s functionality, performance, or operating capabilities.
Operation video CNC WOODEN CUP LID ROUND HOLE DRILLING MACHINE
Recommended Top-Selling CNC wooden cup lid round hole drilling machine
In addition to internal face milling and drilling machines, Quoc Duy also supplies a wide range of specialized woodworking machinery for wooden toy production, including: 400mm Short workpiece wide belt sander with vacuum conveyor – MM 2043, Automatic feed edge rounding sanding machine – MO 23,…
