The 4 Spindle CNC Machine with Automatic Tool Changer – SMHW 5ATC4 is one of the most advanced machine lines, featuring an integrated rotary workpiece table that enables fast and easy machining of small, detailed parts, offering high versatility for a wide range of different products.
Key Features of the 4 Spindle CNC Machine with Automatic Tool Changer

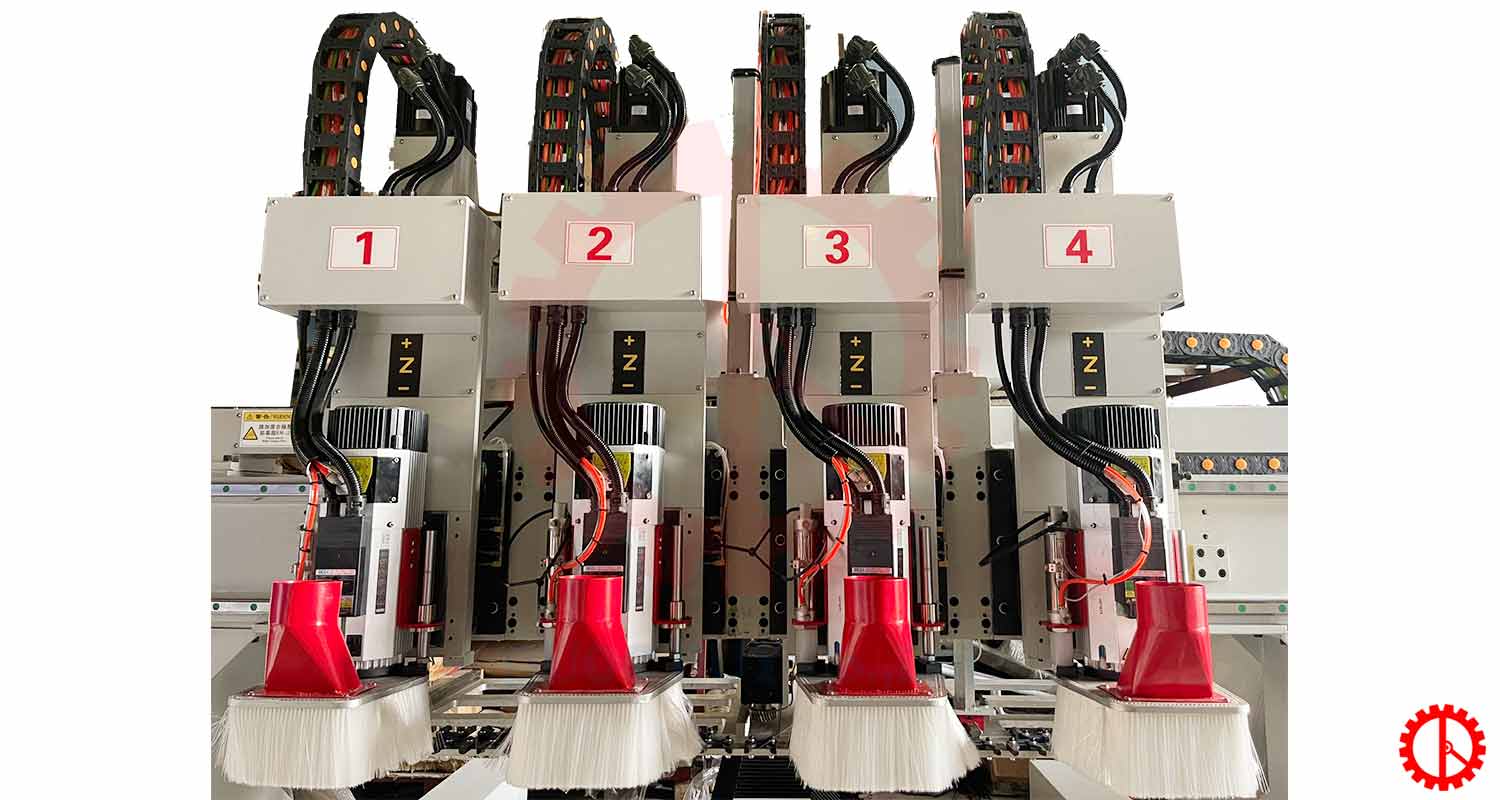

Engineered with 4 independently operating spindles and an automatic tool changer function, allowing flexible machining and simultaneous processing of 4 workpieces to significantly boost production output.

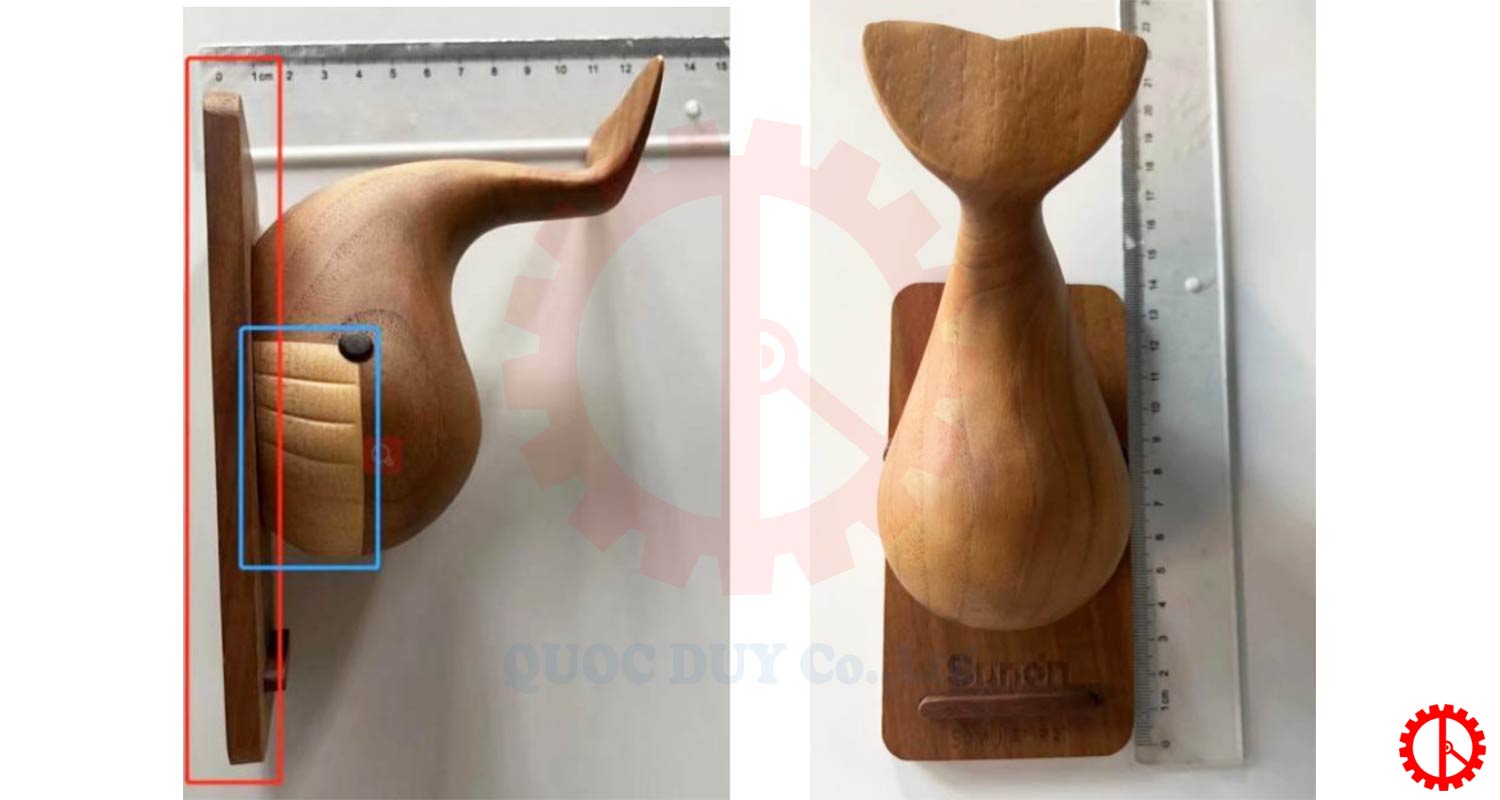

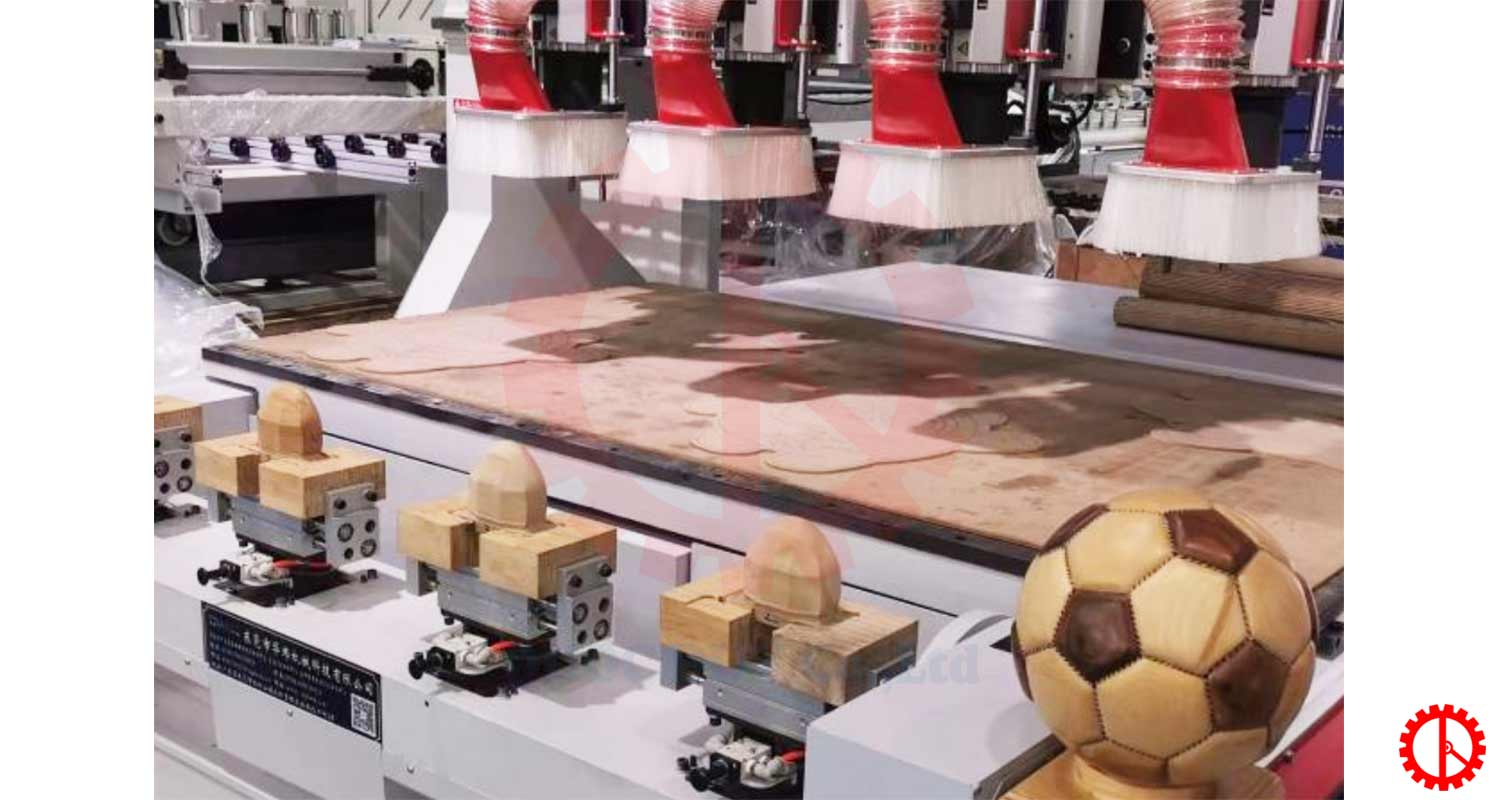

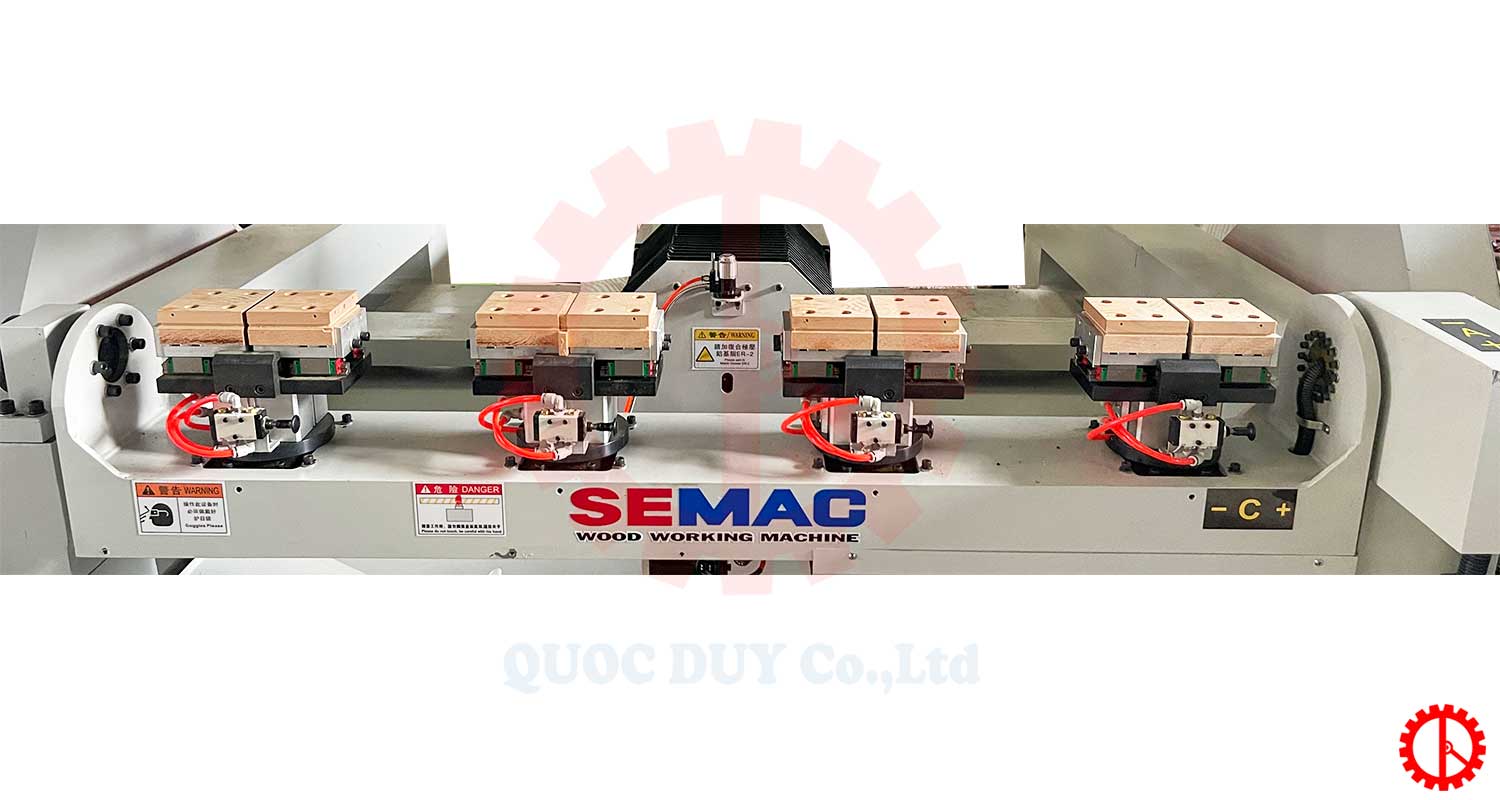

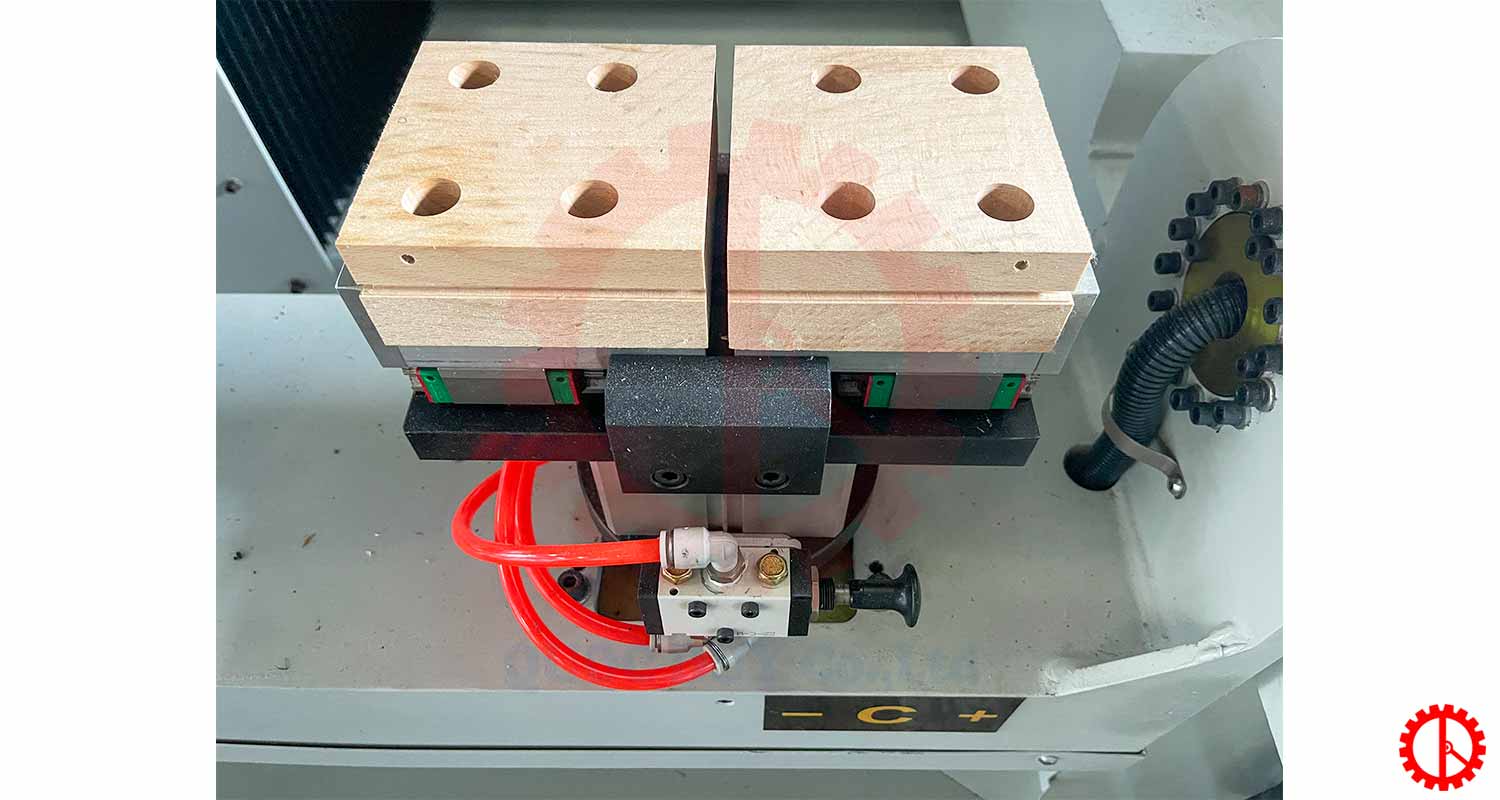

Specially equipped with a turning/flipping table, making it highly efficient for machining small and intricate components, such as wooden toys, crafts, etc.
Driven by high-performance machining spindles with a capacity of up to 9 kW each.

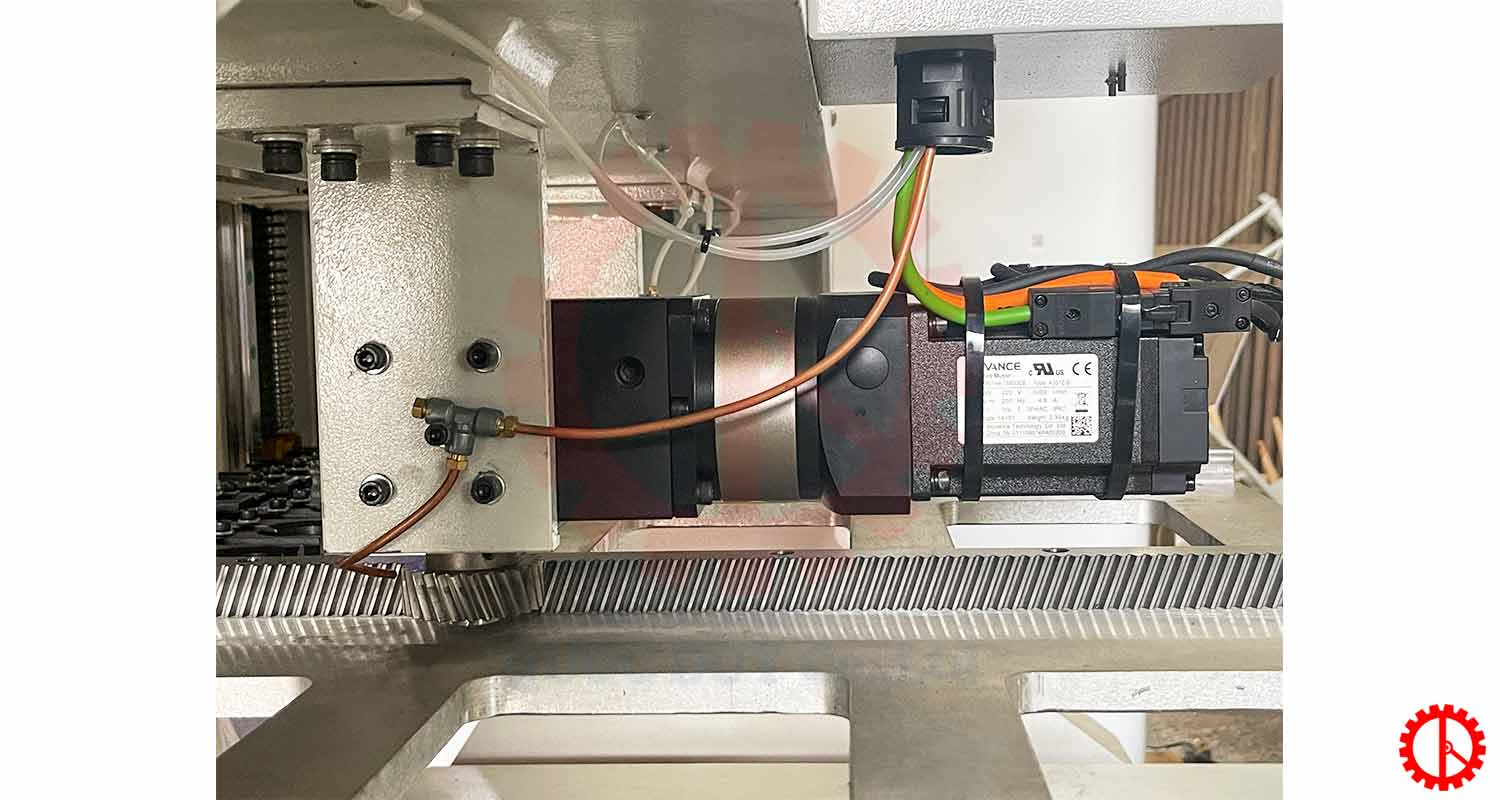

Utilizes premium servo motors for all axes, ensuring highly stable operation and superior precision.
Premium output quality, guarantees that finished products achieve outstanding structural quality and high aesthetic appeal.
SYNTEC control system, features a highly reliable and user friendly SYNTEC control system for efficient workflow management.
Technical Specifications
| Rotary table machining size | Ø280 mm |
| Working table dimensions | 2100 × 1300 mm (Optional) |
| Distance between two main spindles | 425 mm |
| Y-axis travel | 2400 mm |
| Z-axis travel | 335 mm |
| Maximum X-axis travel speed | 50 m/min |
| Maximum Y-axis travel speed | 50 m/min |
| Maximum Z-axis travel speed | 20 m/min |
| Total installed power | 58 kW |
| X-axis servo motor | 1.8 kW |
| Y-axis servo motor | 1.8 kW |
| Z-axis servo motor | 1.3 kW x 4 units |
| A-axis servo motor | 1.8 kW |
| C-axis servo motor | 1.5 kW |
| Voltage | 380V / 50Hz |
| Spindles | 9 kW x 4 units (Automatic Tool Changer) |
| Tool magazine capacity | 8 slots x 4 |
| Tool holder standard | ISO 30 |
| Collet type | ER 32 |
| Inverter | Simphoenix |
| Machine weight | 3500 kg |
Note: The above technical specifications are subject to modification within allowable limits for optimization without affecting the machine’s primary functions and structural integrity.
video about 4 spindle cnc machine with automatic tool changer
Quotation and Consultation for 4 Spindle CNC Machine
With over 21 years of experience in the woodworking machinery industry, Quoc Duy provides a diverse range of machine lines to fully satisfy your production requirements. We continuously update and integrate innovative technologies into our products to optimize production workflows, increase working efficiency, and minimize costs.
For any inquiries regarding the 4-spindle CNC machining center with an automatic tool changer, please contact us via the following details for the fastest consultation and quotation:
