Two-head wide belt sander – SM 700RP/1000RP/1300RP is a widely favored sanding solution among manufacturers today. Featuring high-capacity sanding performance, it achieves a smooth, flawless surface finish in just a single pass.
Features of Two-head wide belt sander
Maximum working width: Up to 1,300 mm.
Specialized for sanding flat-surface products and workpieces.
Equipped with a touchscreen control panel for real-time monitoring and precise adjustment of operating parameters during the sanding process.
Key Feature: Integrated anti-kickback system ensures maximum operator safety.
Heavy-duty frame construction guarantees smooth, stable, and low-noise operation.

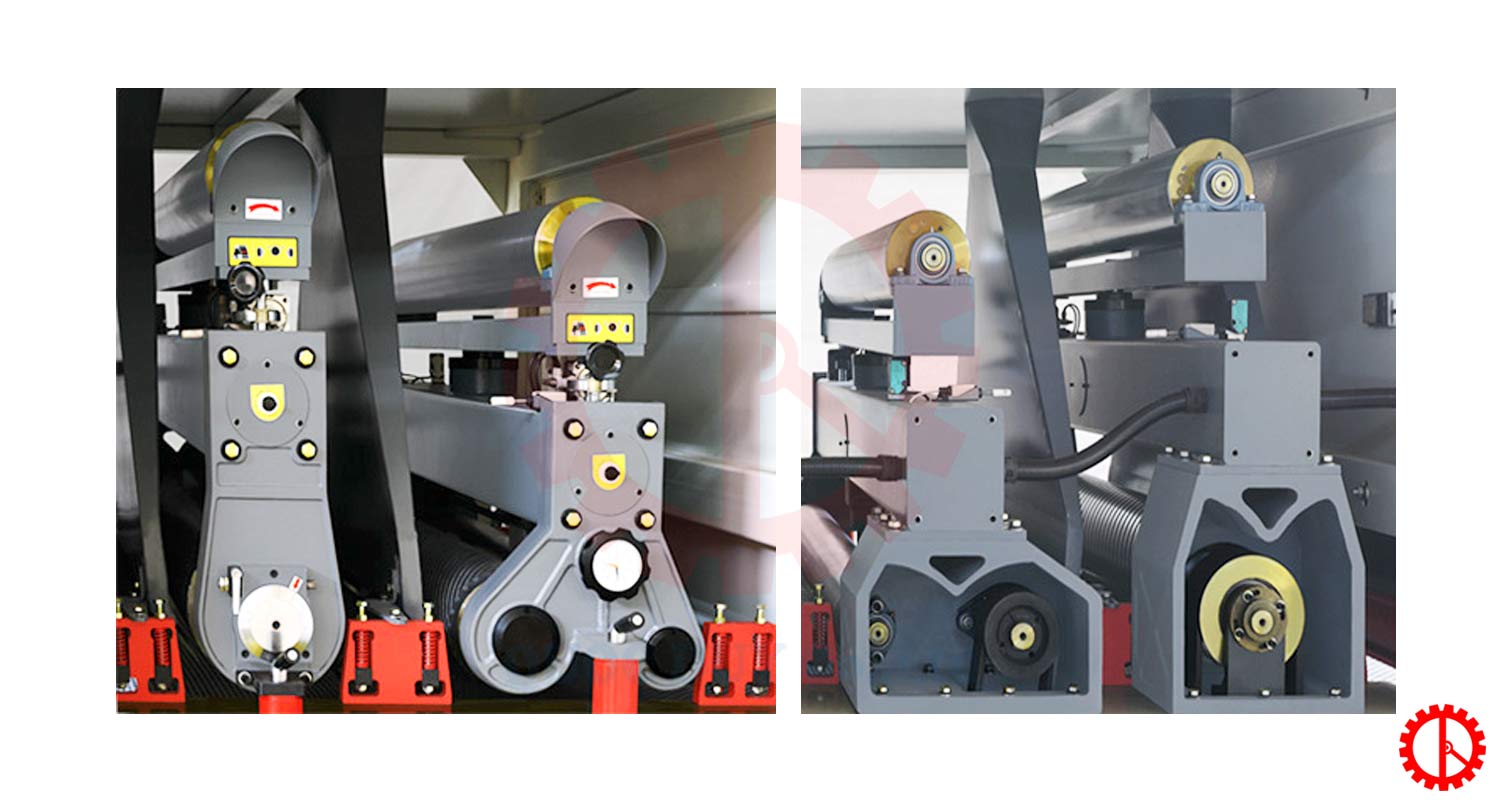

Configured with 1 large-diameter sanding roller and 1 combination platen/pad sanding unit, delivering a highly refined and smooth surface finish.
Structure of 1.3m Wide Belt Sander

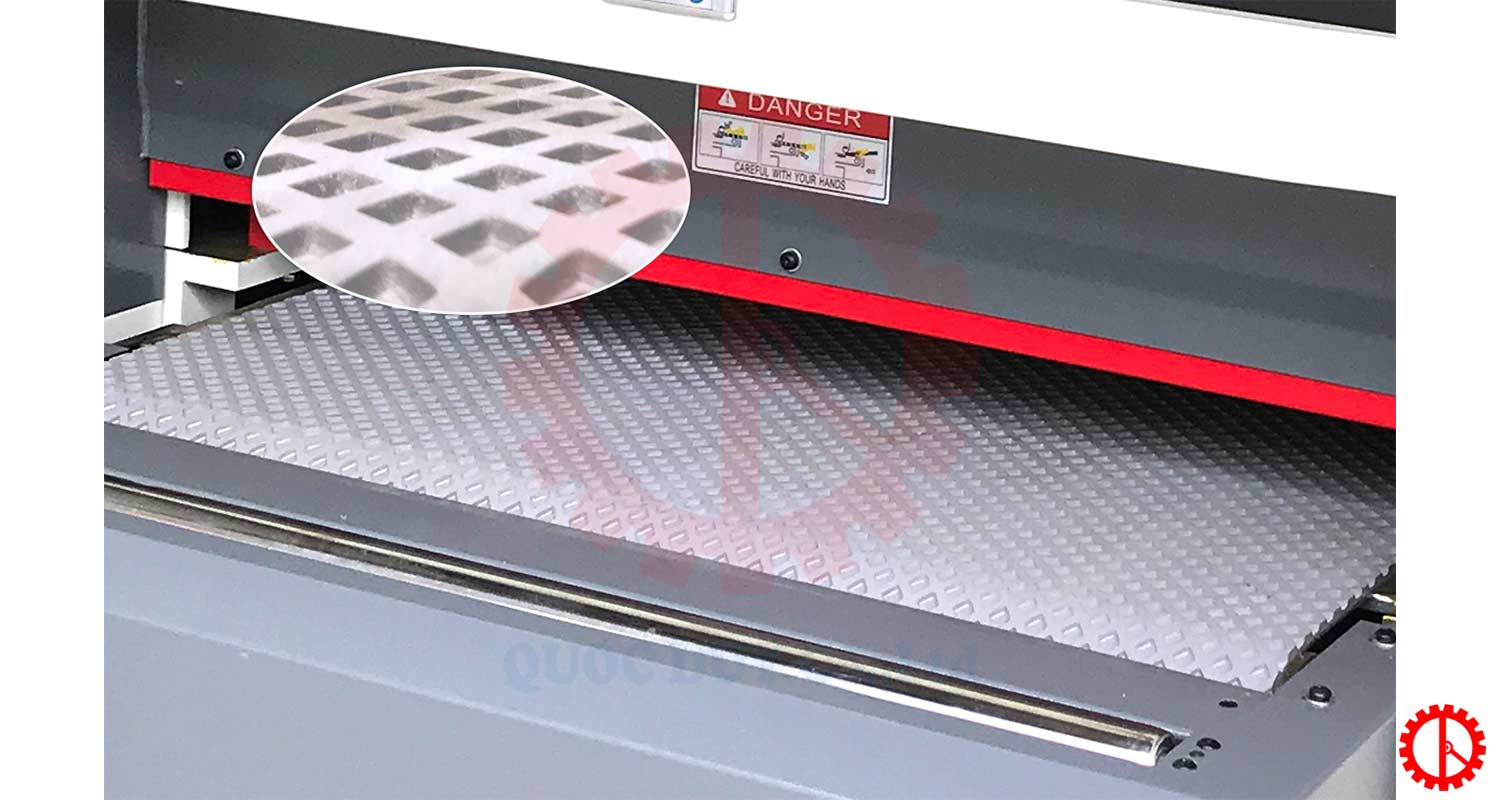

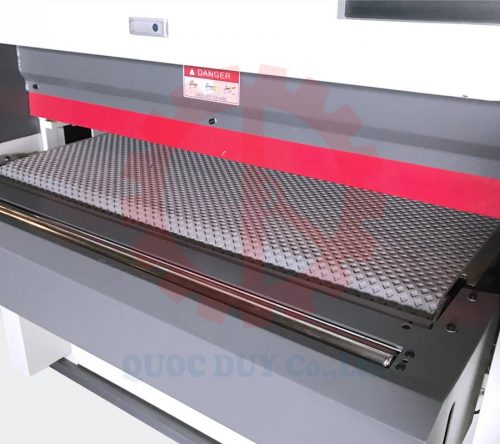

Conveyor Belt

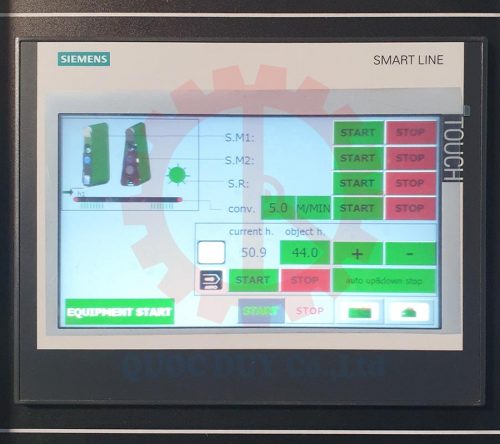

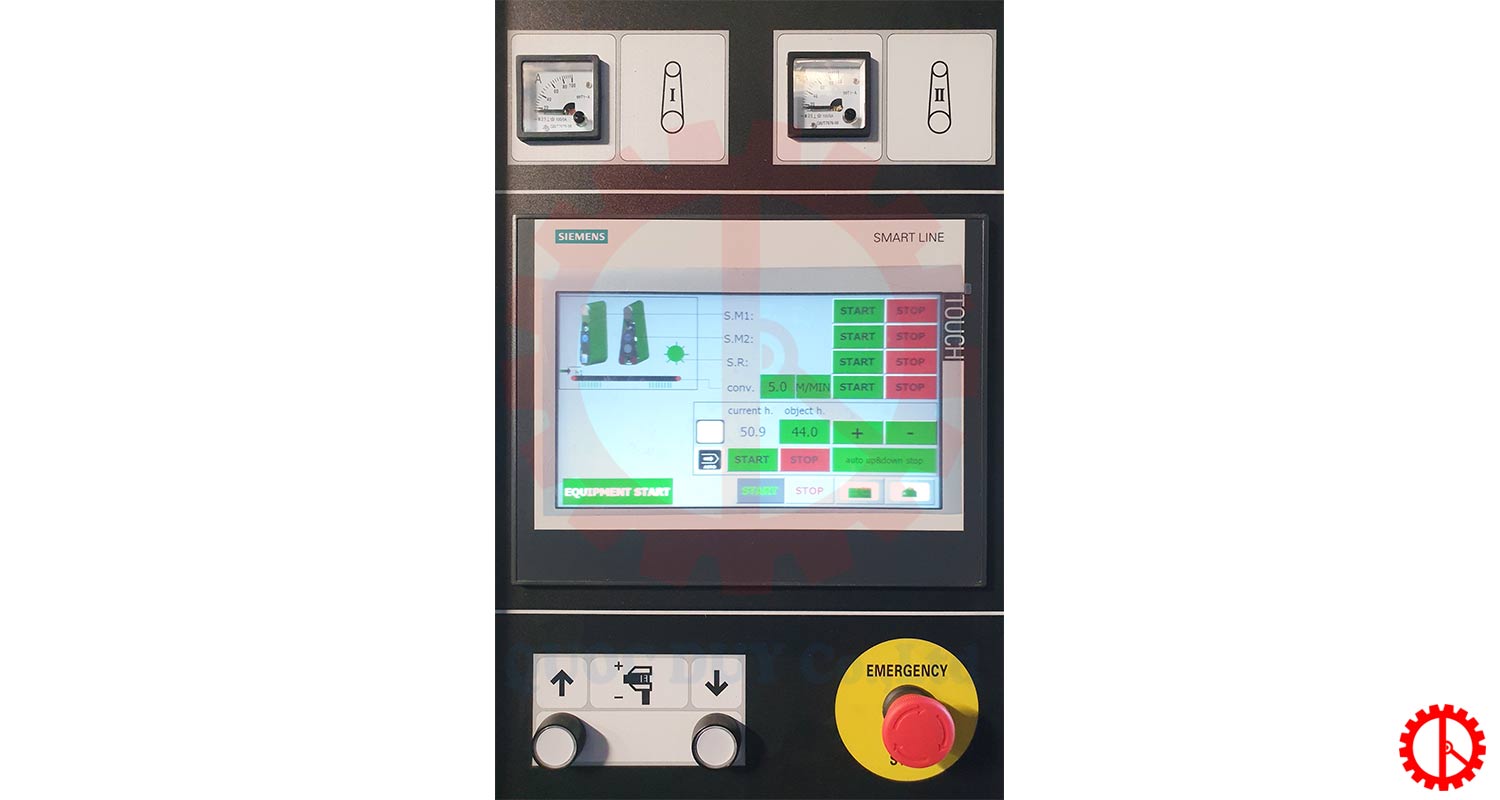

Touchscreen

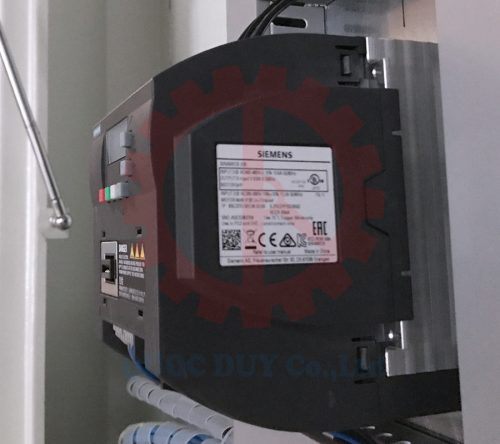

Variable Frequency Drive (VFD)

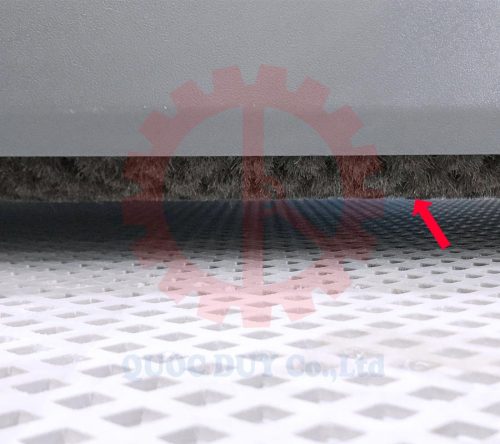

Sanding Brush Roller
1300mm Wide Belt Sander Operation Video
Specifications of Two-head wide belt sander
| MODEL | SM 700RP | SM 1000RP | SM 1300RP |
| Max. Working Width | : 700 mm | : 1000 mm | : 1300 mm |
| Working Thickness | : 5 – 110 mm | : 5 – 110 mm | : 5 – 110 mm |
| Min. Working Length | : 470 mm | : 490 mm | : 530 mm |
| Sanding Belt Size | : 1900×730 | : 1030 x 2000 mm | : 1330 x 2200 mm |
| Feed Speed | : 5 – 30 m/min | : 5 – 30 m/min | : 5 – 30 m/min |
| Spindle 1 Motor Power | : 18.5 kW | : 22 kW | : 30 kW |
| Spindle 2 Motor Power | : 15 kW | : 15 kW | : 22 kW |
| Conveyor Motor Power | : 1.5 kW | : 2.2 kW | : 4 kW |

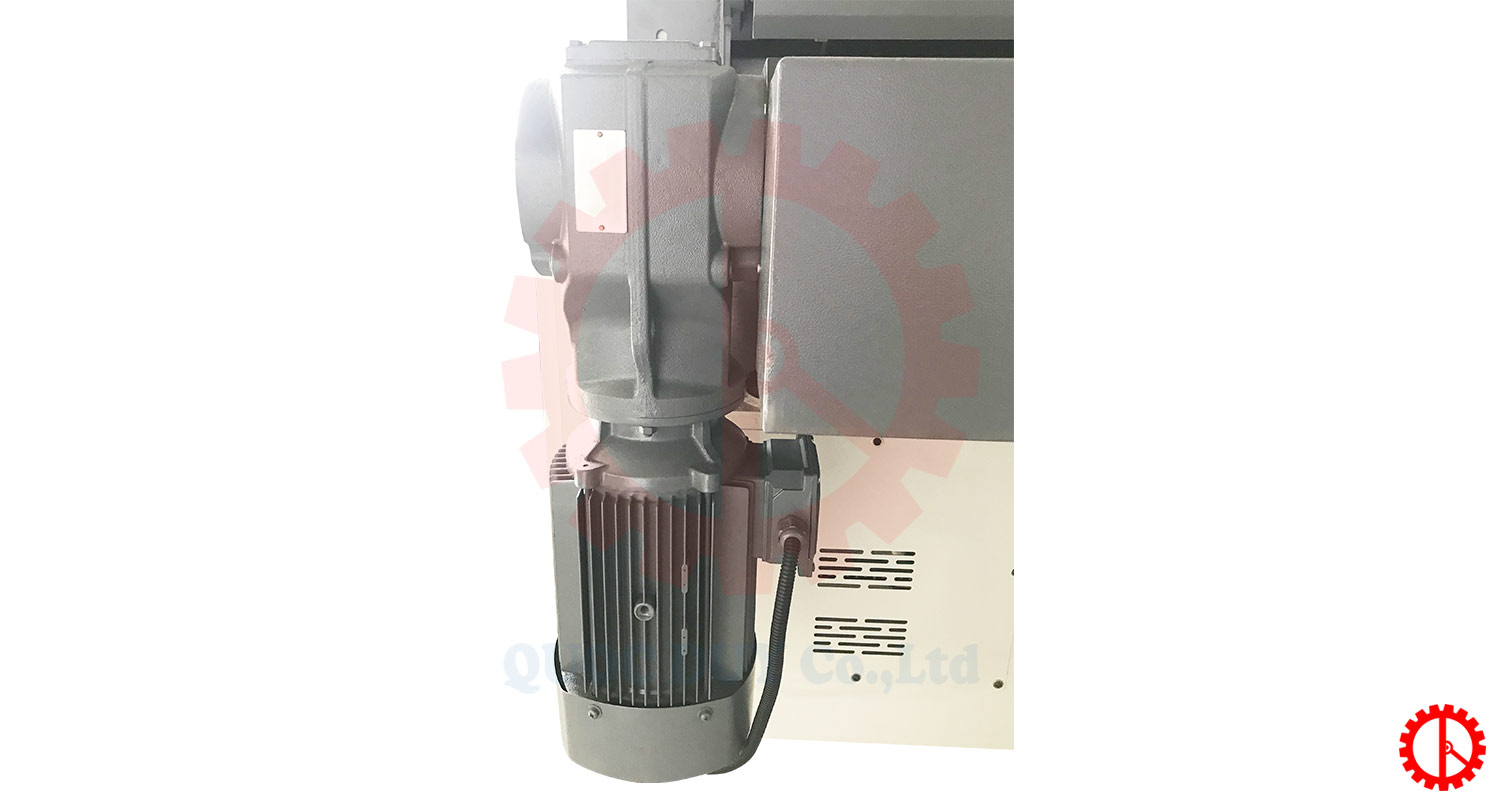

| Table Lifting Motor Power | : 0.37 kW | : 0.37 kW | : 0.55 kW |
| Cleaning Brush Spindle Motor Power | : 0.37 kW | : 0.37 kW | : 0.37 kW |
| Air Pressure | : 0.6 Mpa | : 0.6 Mpa | : 0.6 Mpa |
| Dust Extraction Airflow | : 5500 m3/h | : – | : 11200 m3/h |
| Total Power | : 35.74 kW | : 39.94 kW | : 56.92 kW |
| Machine Dimensions | : 1363 x 2164 x 1980 mm | : 1655 x 2164 x 1980 mm | : 2036 x 2383 x 2159 mm |
| Machine Weight | : 2200 kg | : 2600 Kg | : 3850 kg |
Note: Technical specifications, design features, and machine colors are subject to change without prior notice. However, such changes will not affect the machine’s functionality, performance, or operating capabilities
Two-head wide belt sander – operating guide
Step 1: Preparation
Power Supply: 3-Phase – 380V
Working Air Pressure: 0.5 – 0.6 MPa
Step 2: Startup Sequence: Sequentially press the start buttons for each sanding unit, then turn on the feed conveyor.
Step 3: Parameter Setting: Measure the workpiece thickness and input the value into the designated field on the touchscreen display.
Step 4: Sanding Operation: Place the workpiece onto the feed conveyor belt to begin the sanding process.
Heavy-Duty Wide Belt Sander – Operation & Troubleshooting Guide
Explore our wide belt sander lineup
- 2-Head wood wide belt sander – SM 1300RR
- Wide belt sander
- Sanding machinery systems || Quoc Duy…
In addition, Quoc Duy offers a wide variety of wide belt sanders, such as: 3-head wide belt sanders, 900mm wide belt sanders, Taiwan-made wide belt sanders,…

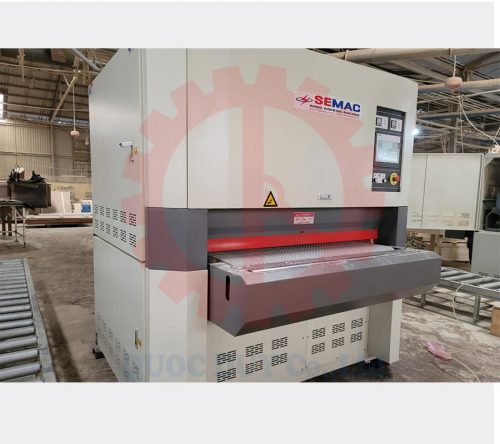

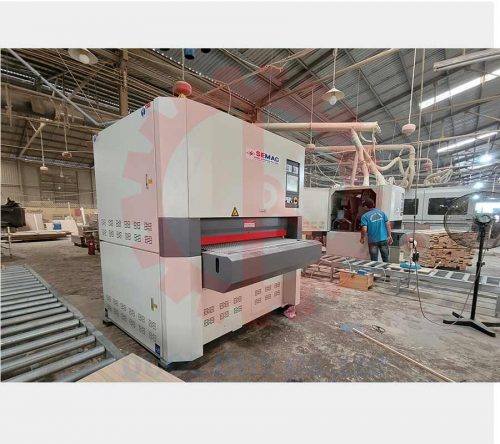

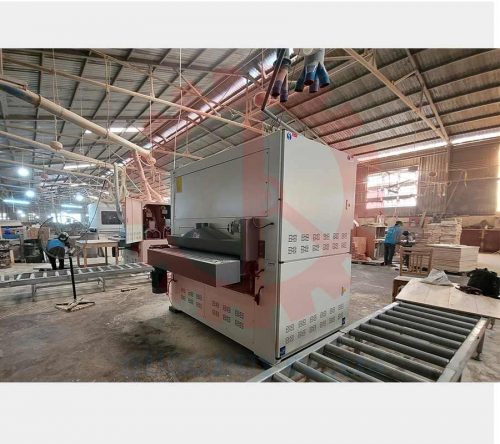

Machine delivered directly to the customer's factory
