Two-head wide belt sander with push button control panel – SM 700ERP/1000ERP/1300ERP is an efficient processing solution with a working width of up to 1300mm. Featuring high working efficiency and advanced control capabilities, it ensures high quality and superior aesthetic
Features of the 1300mm wide belt sander
- High-quality post-processing results, high-power motors, and fast processing speeds.
- Sturdy frame design ensures stable operation and eliminates vibration during processing.
- Built with high-quality components from renowned brands, enabling easy operation with minimal training required.
Images of the Two-head wide belt sander with push button control panel

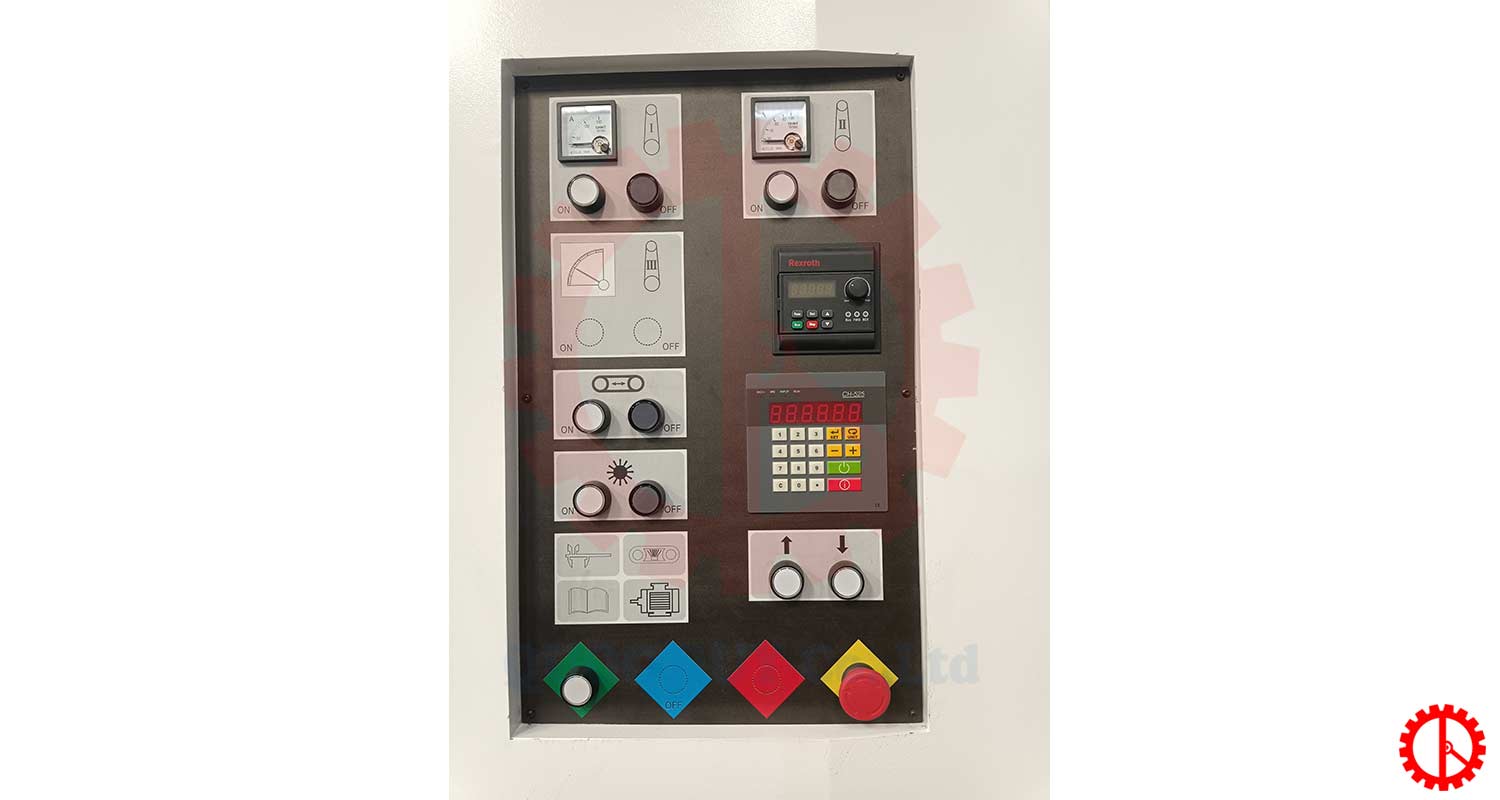

Control panel

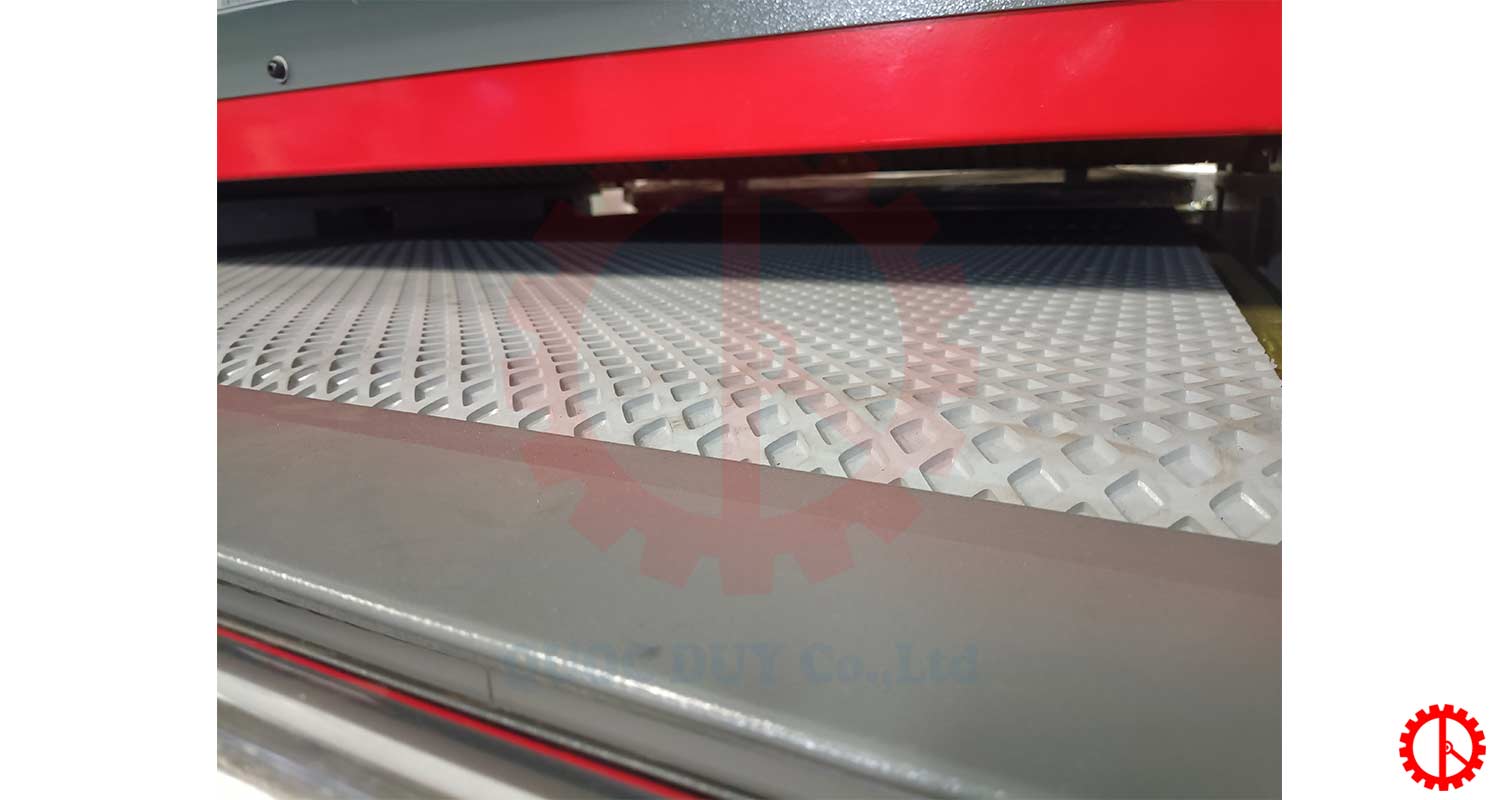

Conveyor belt

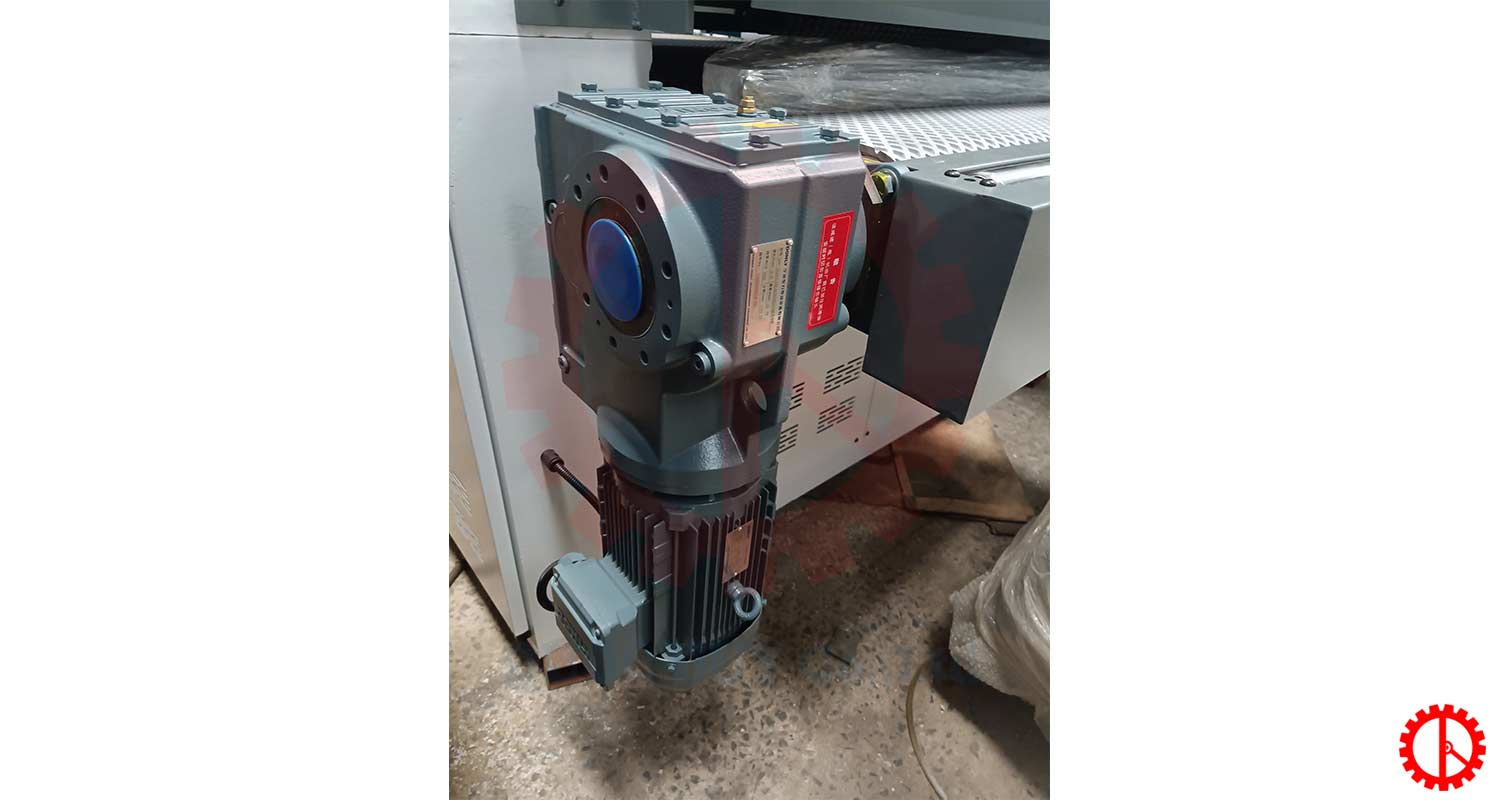

Conveyor motor

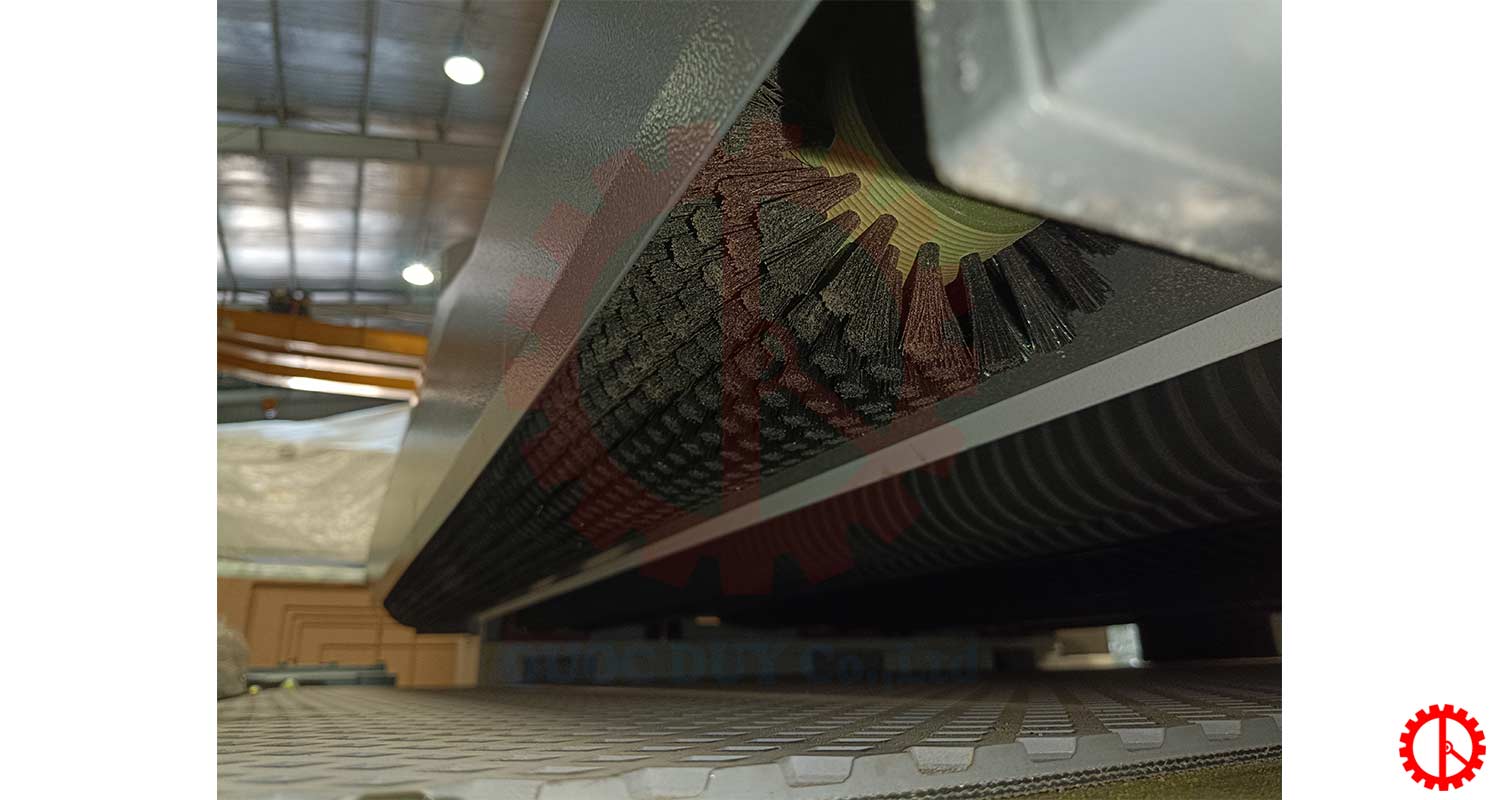

Brush roller

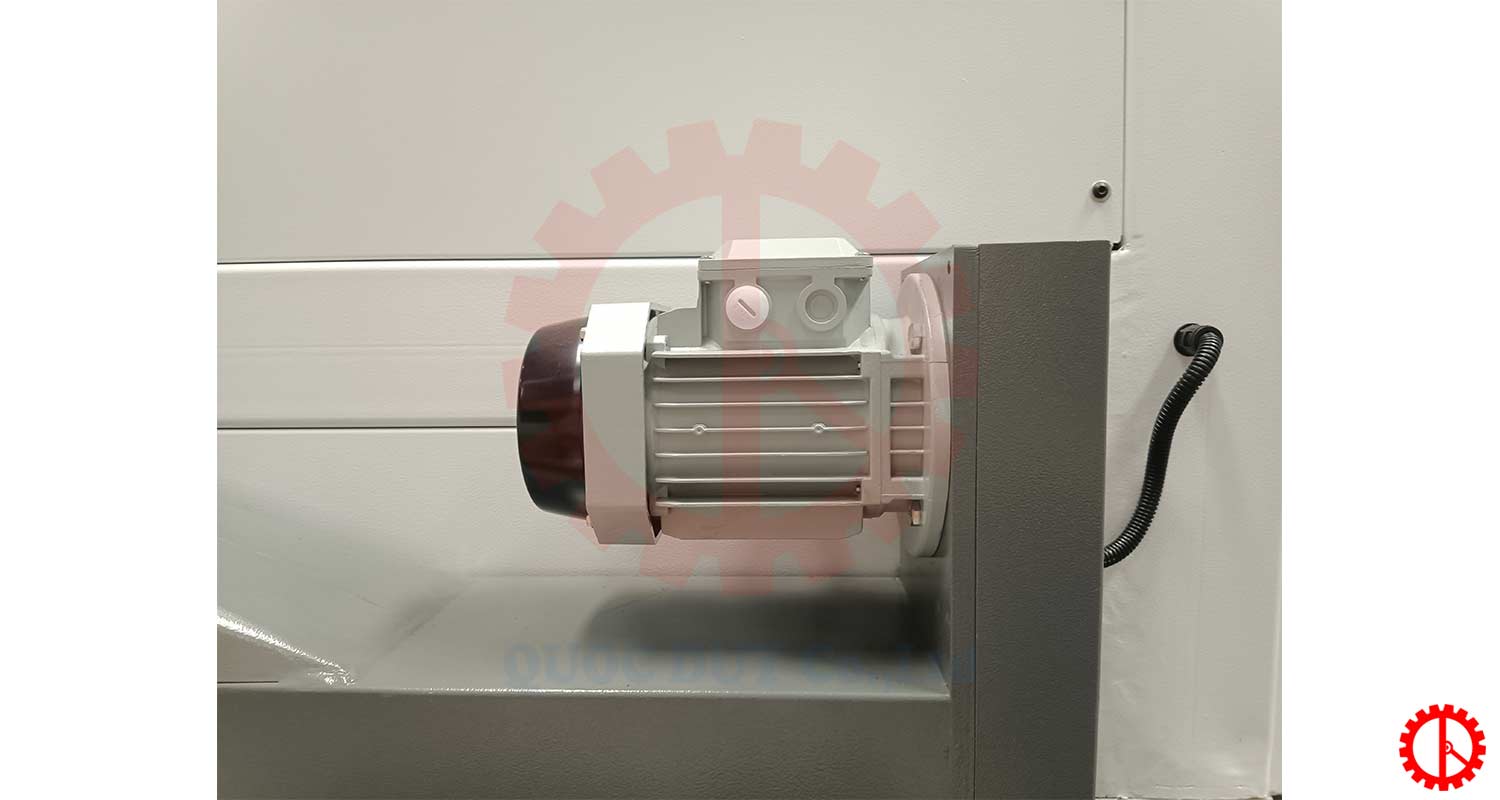

Brush roller motor

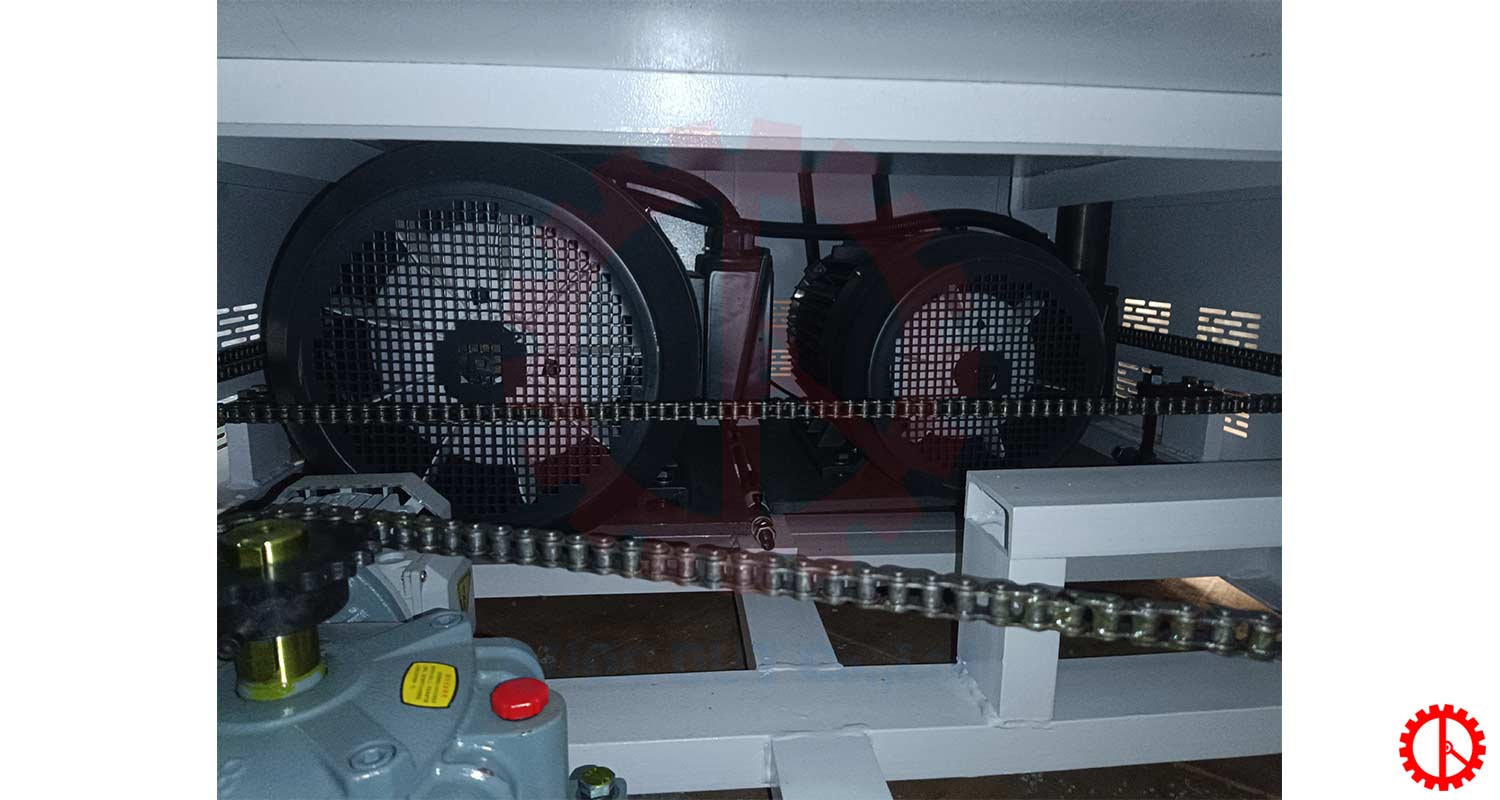

Sanding roller motor
Specifications of Two-head wide belt sander with push button control panel
| MODEL | SM 700ERP | SM 1000ERP | SM 13000ERP |
| Max. Working Width | : 700mm | : 1000 mm | : 1300mm |
| Min. Working Length | : 450 mm | : 470 mm | : 510 mm |
| Working Thickness | : 5 – 150 mm | : 5 – 160 mm | : 5 – 160 mm |
| Feed Speed | : 0 – 30 m/min | : 0 – 30 m/min | : 0 – 30 m/min |
| Sanding Belt Size | : 730 x 1900 mm | : – | : – |
| Conveyor Motor | : 1.5kW | :2.2 kW | : 4 kW |
| Sanding Spindle 1 Motor | : 15kW | : 15kW | : 30 kW |
| Sanding Spindle 2 Motor | : 11 kW | : 11 kW | : 22 kW |
| Brush Spindle Motor | : 0.37kW | : 0.37 kW | : 0.37 kW |
| Conveyor Table Lifting Motor | : 0.37kW | : 0.37 kW | : 0.55 kW |
| Working Air Pressure | : 0.6 MPa | : 0.6 MPa | : 0.6 MPa |
| Machine Dimensions | : 2200 x 1450 x 2100 mm | : 1663 x 2164 x 1980 mm | : 2390 x 2020 x 2100 mm |
| Machine Weight | : 2300 kg | : 2600 Kg | : 3800 kg |
Note: Technical specifications, design features, and machine colors are subject to change without prior notice. However, such changes will not affect the machine’s functionality, performance, or operating capabilities
OPERATION VIDEO
Explore other wide belt sander lines
Selecting the right sanding machine is essential to meeting specific business requirements. Quoc Duy supplies a wide range of woodworking machinery, including wide belt sanders tailored to various processing conditions. Discover more products at Quoc Duy: 1300mm 3-head bottom wide belt sander – SU 1300NRP, 2-head wide belt sander – SM 700RR, 700mm 2-head wide belt sander – SM 700RP, etc.
