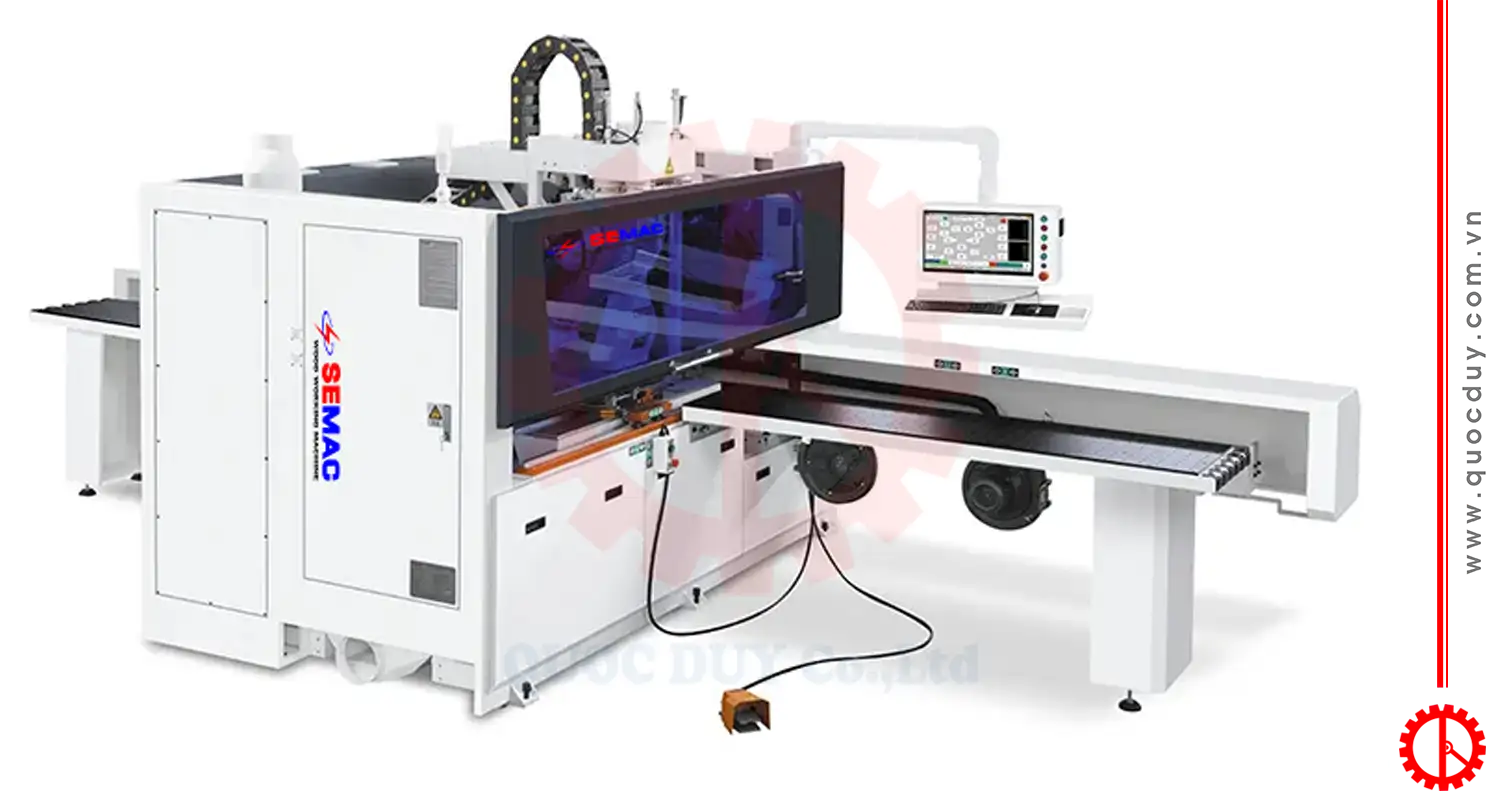

Introductions of six cnc boring machine
Features
- The machine is designed with a solid frame, the engine is stable, and the noise is minimized.
- Processing on most types of industrial wood boards today: MDF board, MFC board, Okal board, ..
- Includes upper drill, lower drill and side drill assembly for flexible machining.
- CNC control, computer-operated, compatible with many design software, makes working and controlling process faster and simpler.
- Fast machining speed and high precision.
- The 6-sided CNC drilling machine has a system that automatically pushes the workpiece (feeds the workpiece) into the working area. As a result, the machining operation takes place continuously, achieving high productivity.
- Equipped with automatic plank alignment system (vertical – horizontal) and barcode scanner system with high working efficiency.
Specifications
| Processing size range | |
| Min. Width of work-piece | : 50 mm |
| Max. Width of work-piece | : 1150 mm |
| Max. Length of work-piece | : 5000 mm |
| Min. Length of work-piece | : 250 mm |
| Max. Thickness of work-piece | : 48 mm |
| Min. Thickness of work-piece | : 10 mm |
| Working Stoke & Max. Position speed: | |
| X axis | : 5410 mm – 130 m/min |
| Y axis | : 1790 mm – 80 m/min |
| Z axis | : 130 mm – 30 m/min |
| U axis | : 5410 mm -130 m/min |
| V axis | : 1340 mm – 80 m/phút |
| W axis | : 110 mm -30 m/ |
| A axis | : 1190 mm – 30 m/min |
| Top Drilling Unit | |
| Vertical spindles | : 12 |
| Horizontal | : 8 |
| Drilling box motor speed | : 2800 rpm |
| Router motor power | : 6 kw (use automatic tool changer motor) |
| Bottom drilling unit | |
| Vertical spindles | : 9 |
| Drilling box motor speed | : 2800 rpm |
| Router motor power | : 3.5 kw |
| Other data | |
| Working table heightc | : 960 mm |
| Total power | : 22.4 kw |
| Weight | : 3700 kg |
| Voltage | : 380V/50Hz |
| Air pressurec | : 0.7-0.8Mpa |
| Machine size | : 2840x6480x2200mm |
