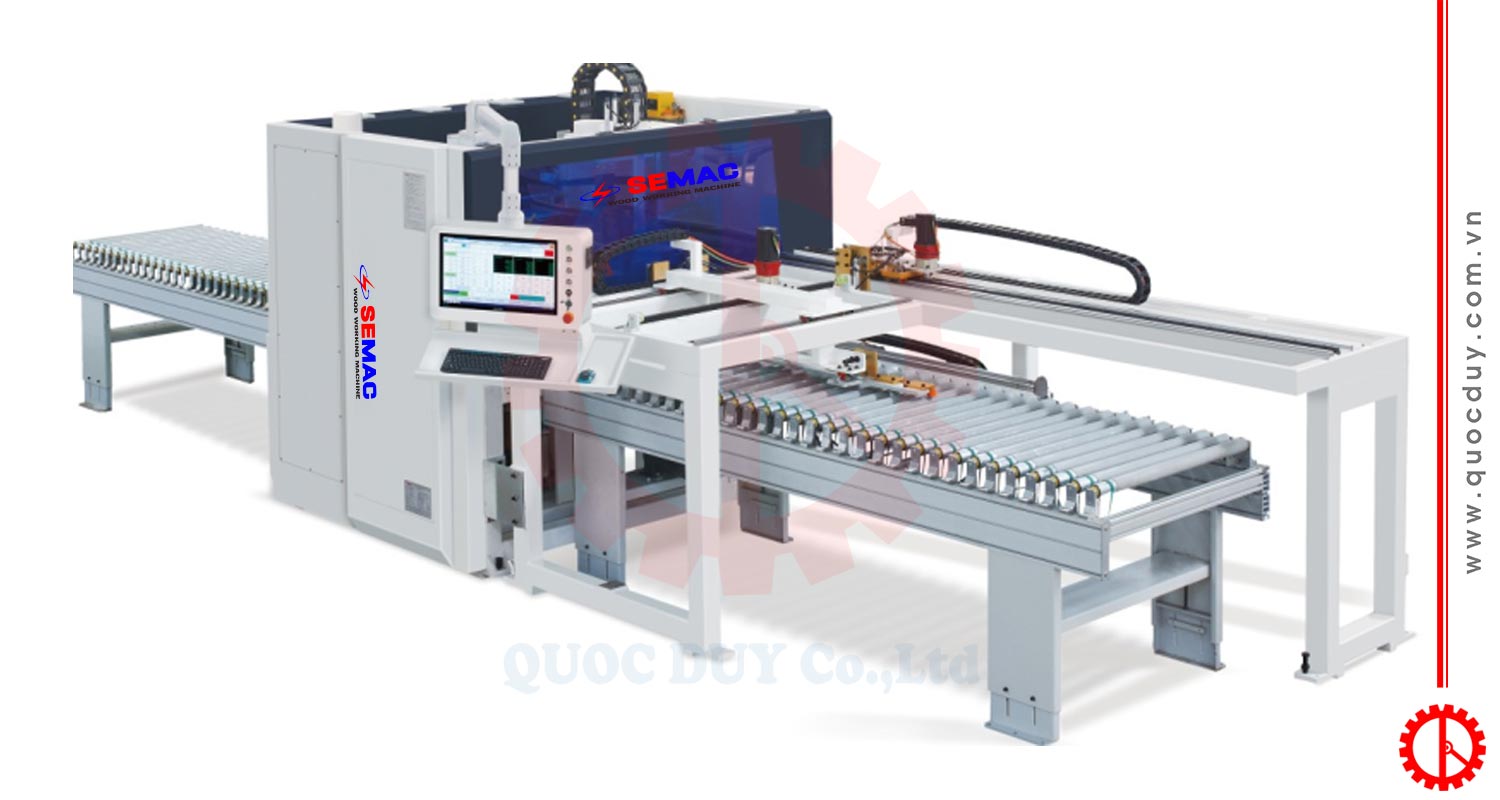

AUTOMATIC SIX CNC BORING MACHINE
Feature
– Drill all 6 boards with high speed
Multi-function: drilling holes, milling grooves, drilling locks, door hinges, …
– Equipped with automatic billet feeding conveyor, minimizing labor costs
– Workpiece feeding system – automatic workpiece clamping. The clamp holds the workpiece firmly during the machining process.
– Perform milling – drilling on most types of industrial boards: MDF, HDF, Okal, MFC, …
– The control screen displays intuitive parameters, easy operation
Specification
| Processing size range | |
| Min. Width of work-piece | : 50 mm |
| Max. Width of work-piece | : 1200 mm |
| Max. Length of work-piece | : 5000 mm |
| Min. Length of work-piece | : 300 mm |
| Max. Thickness of work-piece | : 48 mm |
| Min. Thickness of work-piece | : 10 mm |
| Working Stoke & Max. Position speed | |
| X axis | : 5410 mm , 130m/min |
| Y axis | : 1700 mm , 80m/min |
| Z axis | : 140 mm , 30m/min |
| U axis | : 5410 mm , 130m/min |
| V axis | : 1395mm , 80m/min |
| W axis | : 110 mm , 30m/min |
| A axis | : 1235 mm , 30m/min |
| Top Drilling unit | |
| Vertical spindles | : 12 |
| Horizontal | : 4 ( X axis) + 4 ( Y axis) |
| Drilling box motor speed | : 2800 rpm |
| Router motor power | : 3.5kw , 18000 rpm |
| Bottom drilling unit | |
| Vertical spindles | : 9 |
| Drilling box motor speed | : 2800 rpm |
| Router motor power | : 3.5kw , 18000 rpm |
| Other data | |
| Working table height | : 960 mm |
| Total power | : 20.45 kw |
| Weight | : 4000 kg |
| Operation eare size | : 7800 x 2840 x 2200 mm |
