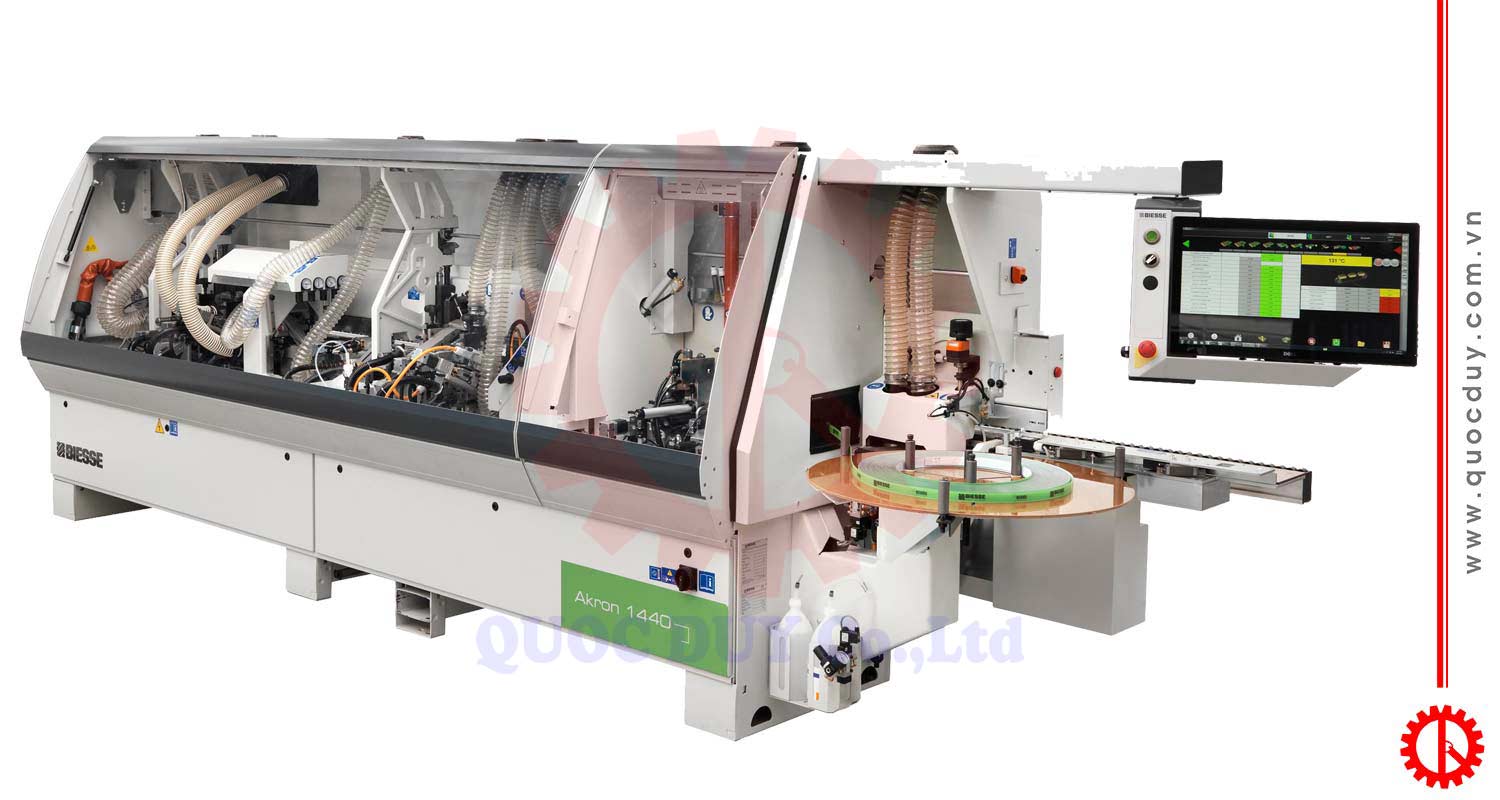

Single sided edge banding machines AKRON 1440-A
Introduction of single sided edge banding machines
Features
Graphic 10” TFT display touch screen, 1024×600 pixels. High-resolution screen for defined and intuitive images and text.
Windows operating system.
Integrated 4GB hard disk for filing media files and the programs back up.
USB port for managing in a simple and efficient way multimedia files, programs and updates.
Ethernet port for connecting the machine to the net.
Sintra HD software, simple and intuitive touch interface for all operators’ quick learning. It supports the multi-language function.
Some of the included functions:
Automatic start-up of the motors as defined in the program.
Direct buttons for the choice of the first and second passage, for fast working changeover.
Managing of the numerical axis and automatic working changes.
Lists of programs with manual and/or automatic start.
Error diagnostic with codes and comments.
Production statistic data.
The software assisted maintenance.
The control is mounted to enable the easy adjustment of the working position.
Specifications
| Panel height | : 10 60 mm |
| Height of edge-banding material | : 14 64 mm |
| Thickness of edge-banding material in rolls | : 0.4 3 mm |
| Thickness of edge-banding in strips | : 0.4 12 mm |
| Panel protrusion from track | : 25 mm |
| Min panel length | : 140 mm |
| Min panel width (with length 140 mm) | : 85 mm |
| Min panel width (with length 250 mm) | : 50 mm |
| Track feed speed | : 12 m/min |
| Panels gap | : 650 mm |
| Dust extraction system for each operating unit | : 1 hood Ø 100 mm |
| Pneumatic connection | : 7 bar |
| Working voltage | : 400 V / 50 Hz threephase+neutral |
| Control voltage | : 24 V – CC |
| Static frequency inverter | : 200 Hz |
| Glue pot capacity | : 2 (approx) Kg |
| Glue pot heating time at ½ load | : 10 (approx) minutes |
