Automatic single sided edgebanding machine STREAM A
Introduction of automatic single sided edgebanding machine

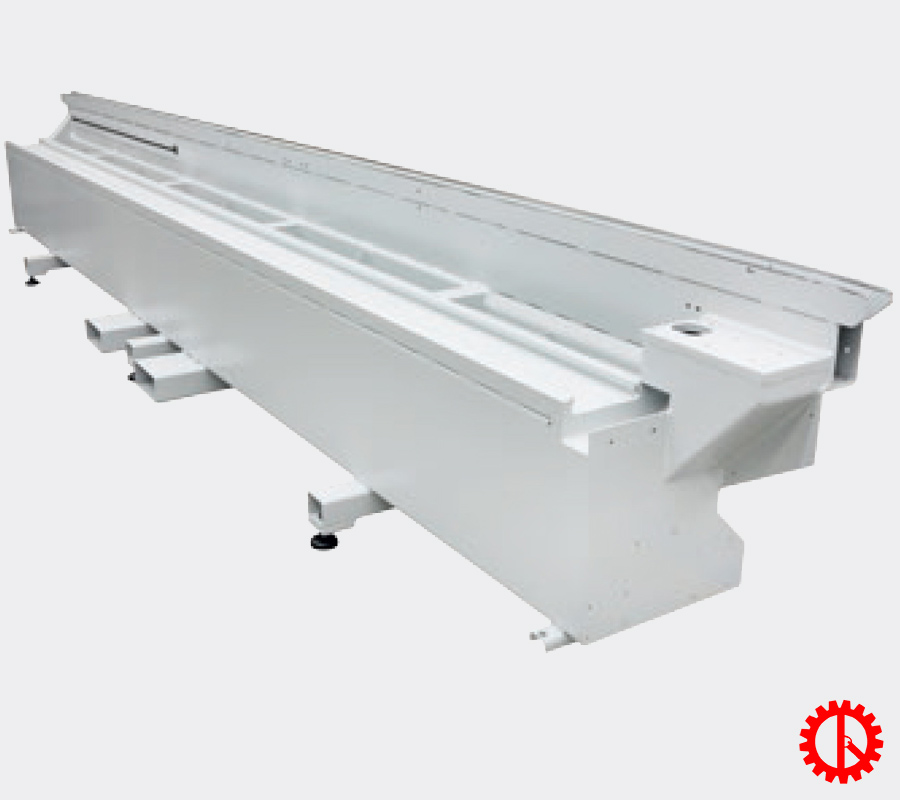

The monolithic base provides high stability and allows the machine to operate also over several work shifts whilst continuing to deliver high quality standards.

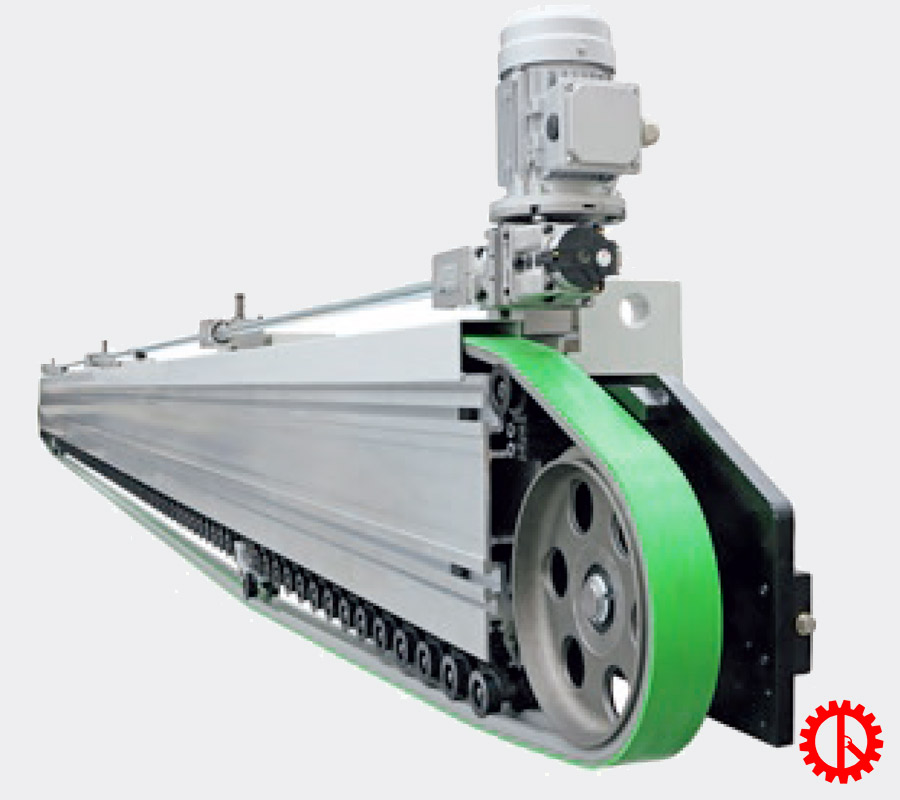

The Belt Presser, which is standard in the Stream A, allows the panel to run on the belt guaranteeing uniform pressure which is ideal even for more delicate coverings

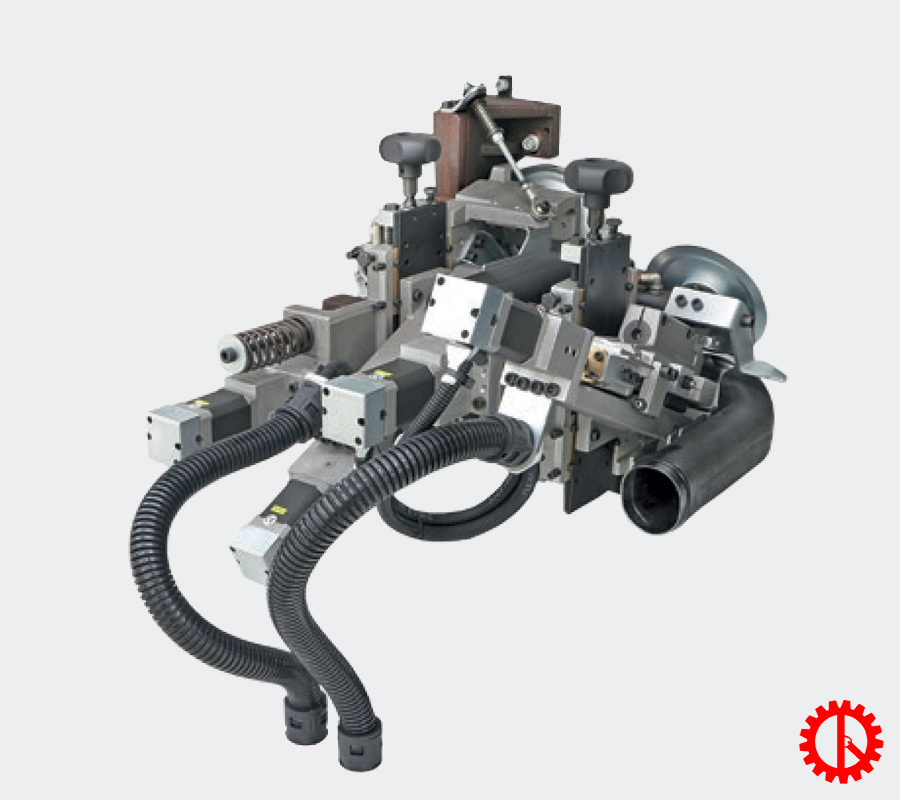

The Edge scraper eliminates the imperfections resulting from previous machining operations on the top and bottom of the edge.
Compact working with the management of 2 controlled-axis profiles for infinite settings.

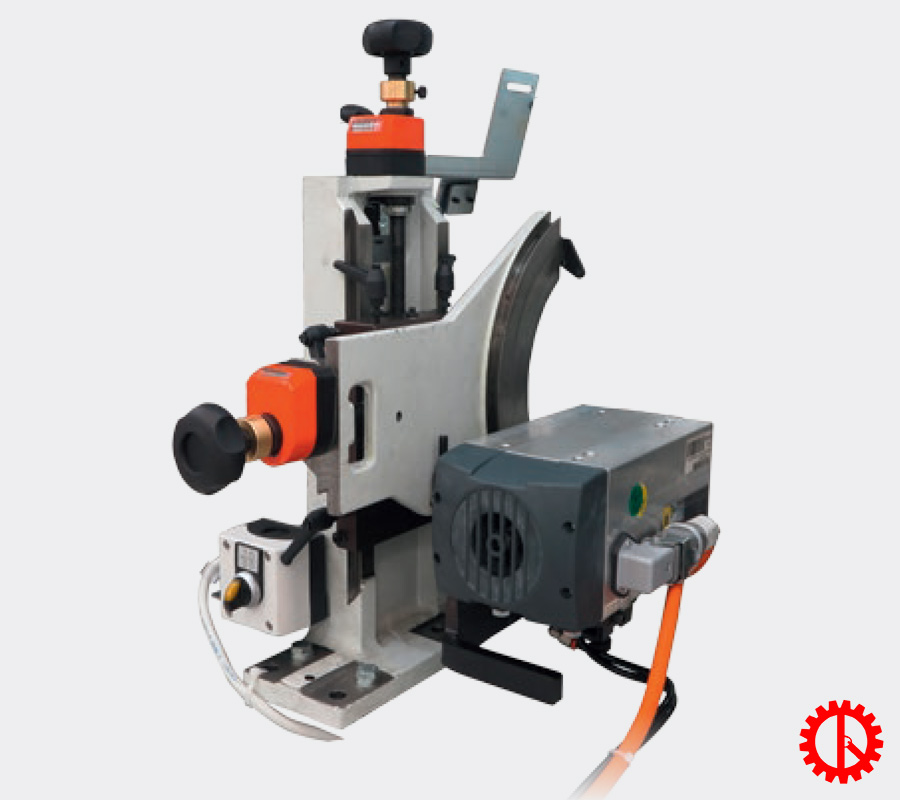

The Grooving unit can be tilted from 0 to 90°. It produces grooves and milling on the underside on the edge of the panel.

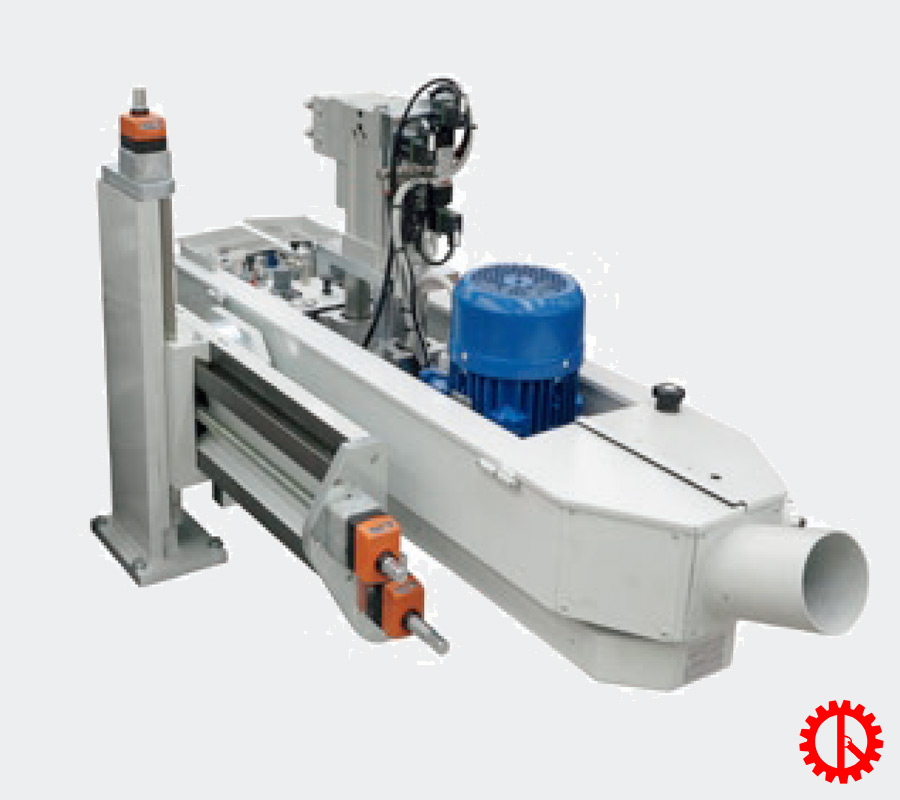

The sanding unit to sand wood edges can be tilted from 0 to 45°.

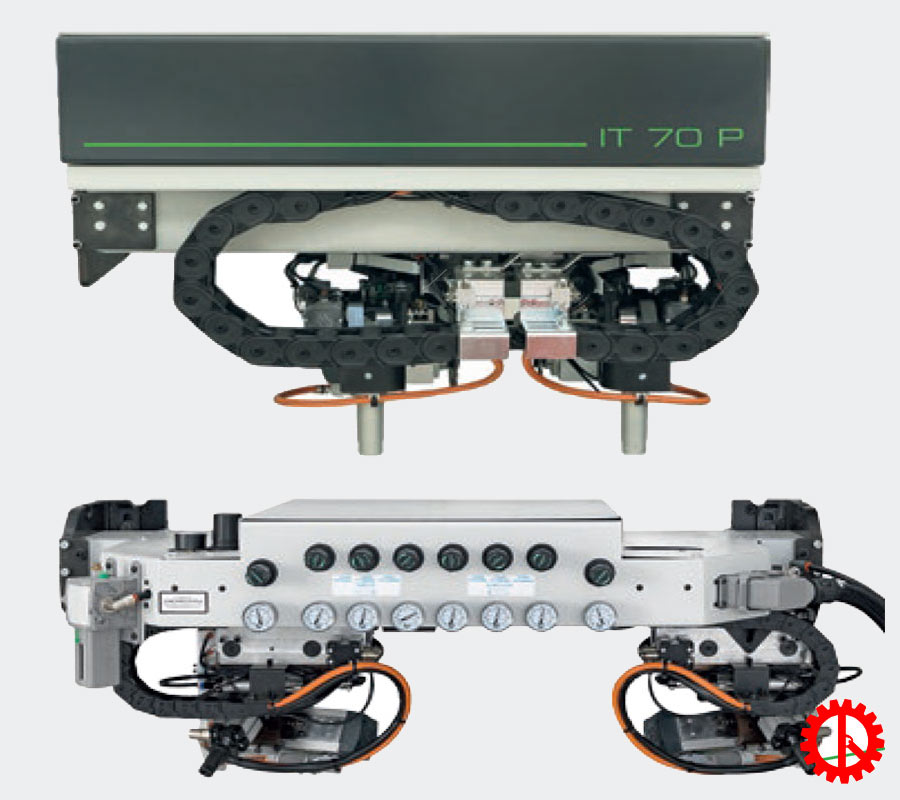

The edge trimming unit, on its THK double guide rail, guarantees optimal vibration absorption.
Linear edge trimming unit with stepper movement. Solid wood machining up to 12 mm, speed up to 25 m/min.

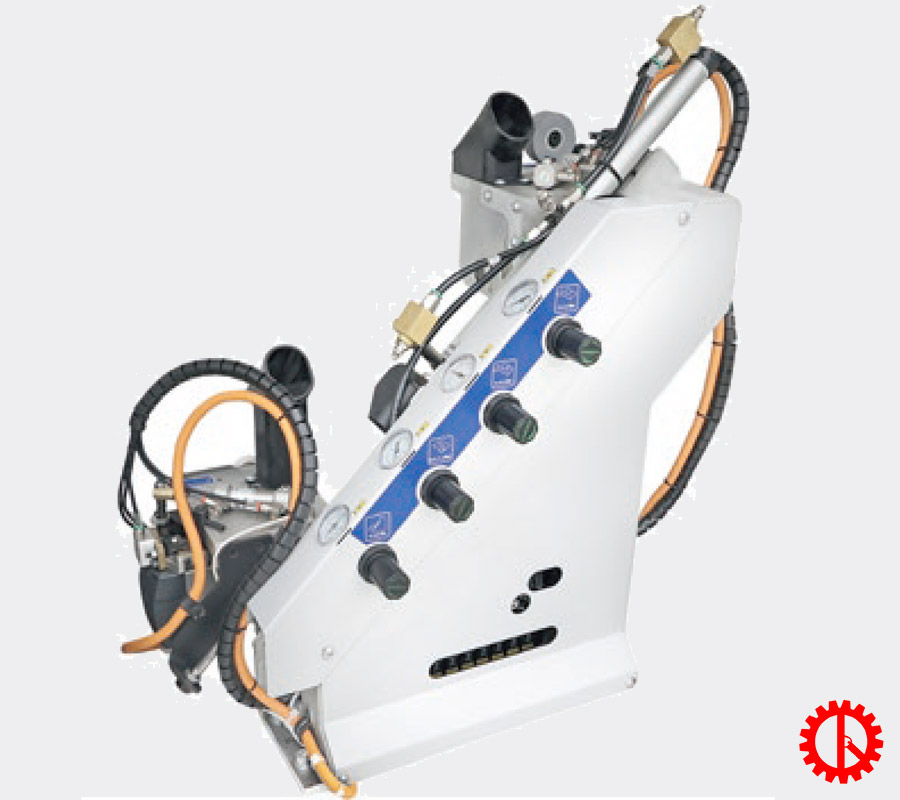

The Rough Trimmer reduces the excess edge on the top and bottom of the panel. It guarantees a perfect finish for solid wood, in one single movement.
Specifications
| Panel height | 10-60 mm |
| Edgebanding thickness | 0,4-22 mm |
| Speed up to | 25 m/min |
| Stream A/5.0 | 6450 mm |
| Stream A/6.0 | 7450 mm |
| Stream A/6.5 | 7950 mm |

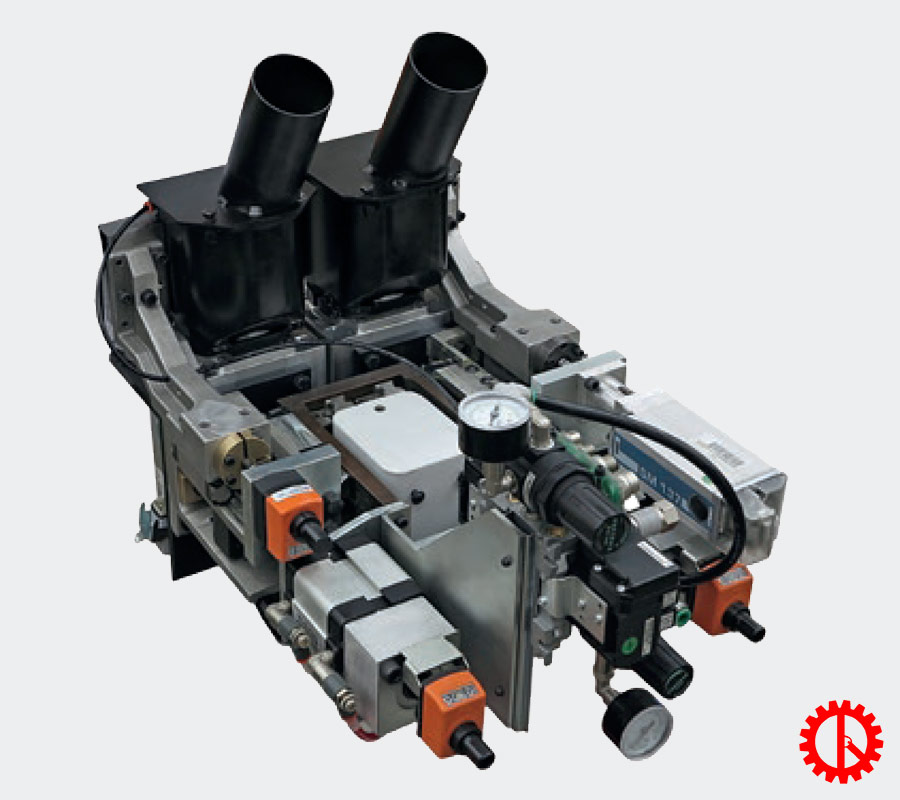

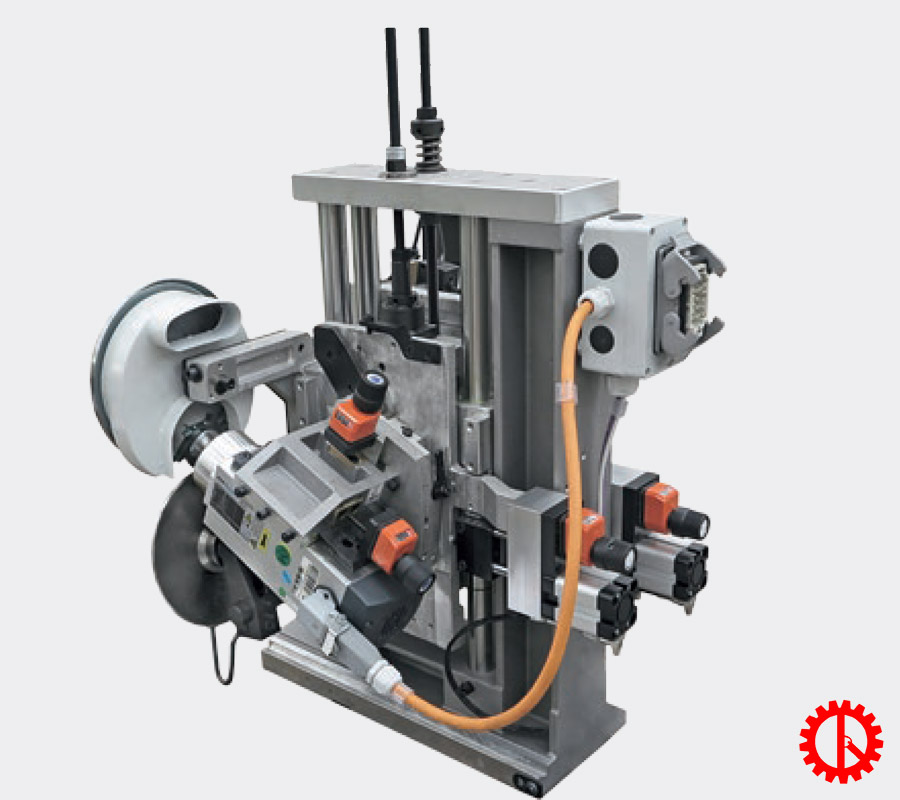

The Fine trimmer, for fine trimming of the top and bottom edges. Complete with 2 high-frequency motors and vertical / horizontal copiers with rotating disc.
RF100 The ideal unit for standardised production that enables maximum machining quality

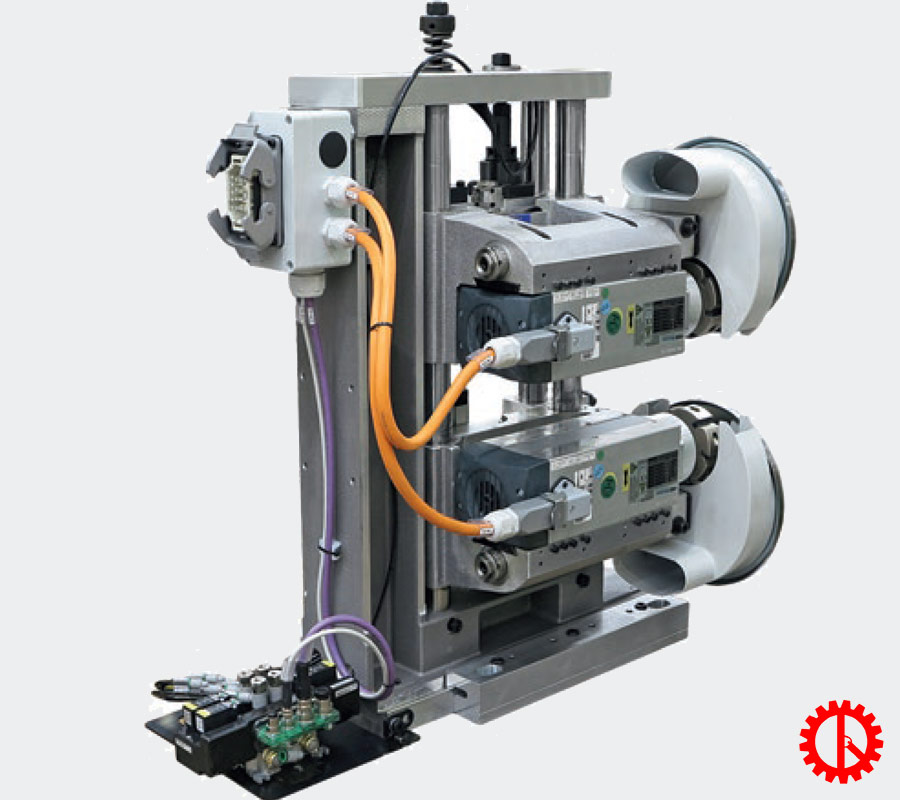

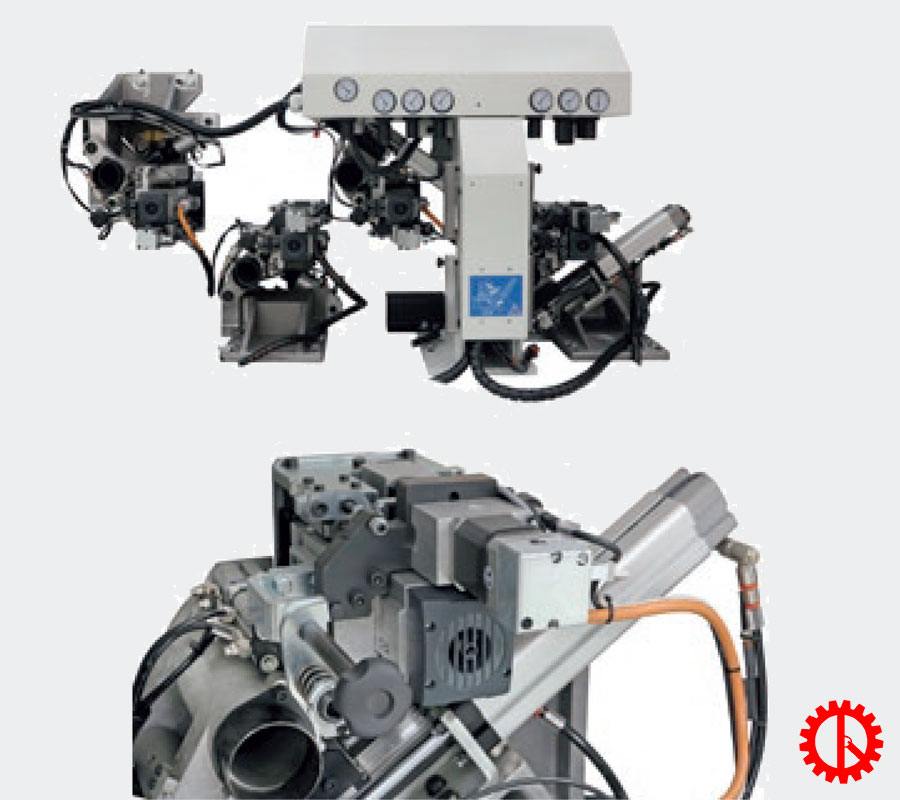

The multi-function Corner Rounding Unit forms a radius on both the front/ rear and top/bottom edges.
Equipped with two engines for standard machining operations.
The Edge scraper eliminates the imperfections resulting from previous machining operations on the top and bottom of the edge.
Compact working with the management of 2 controlled-axis profiles for infinite settings
The Grooving unit can be tilted from 0 to 90°. It produces grooves and milling on the underside on the edge of the panel.
The sanding unit to sand wood edges can be tilted from 0 to 45°.

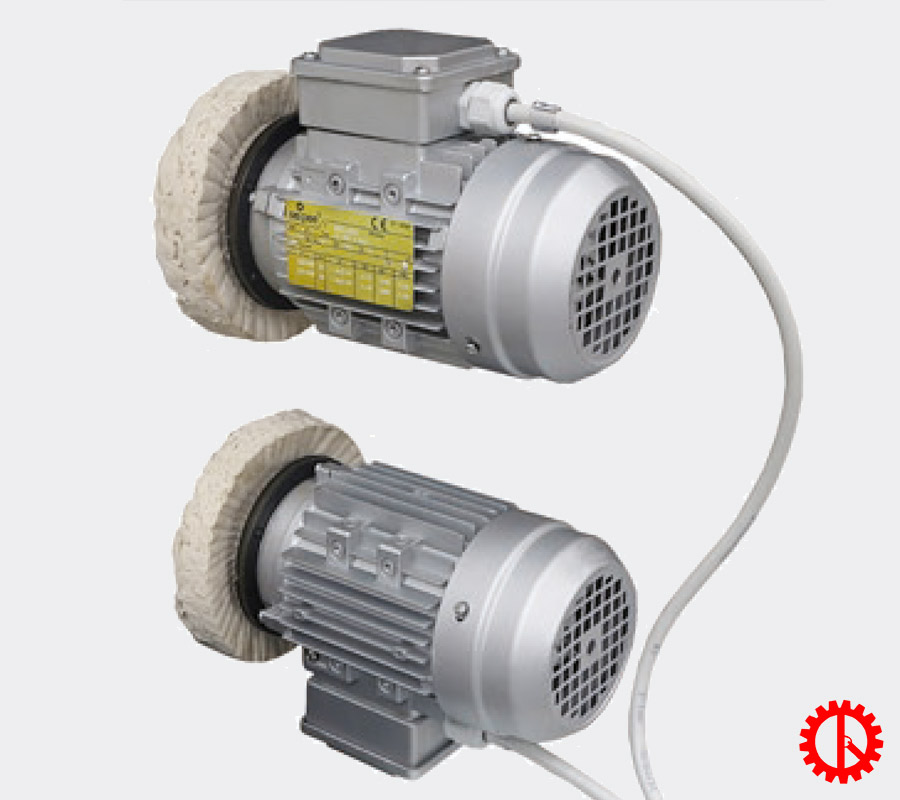

Buffing unit to clean and polish the edge and the panel

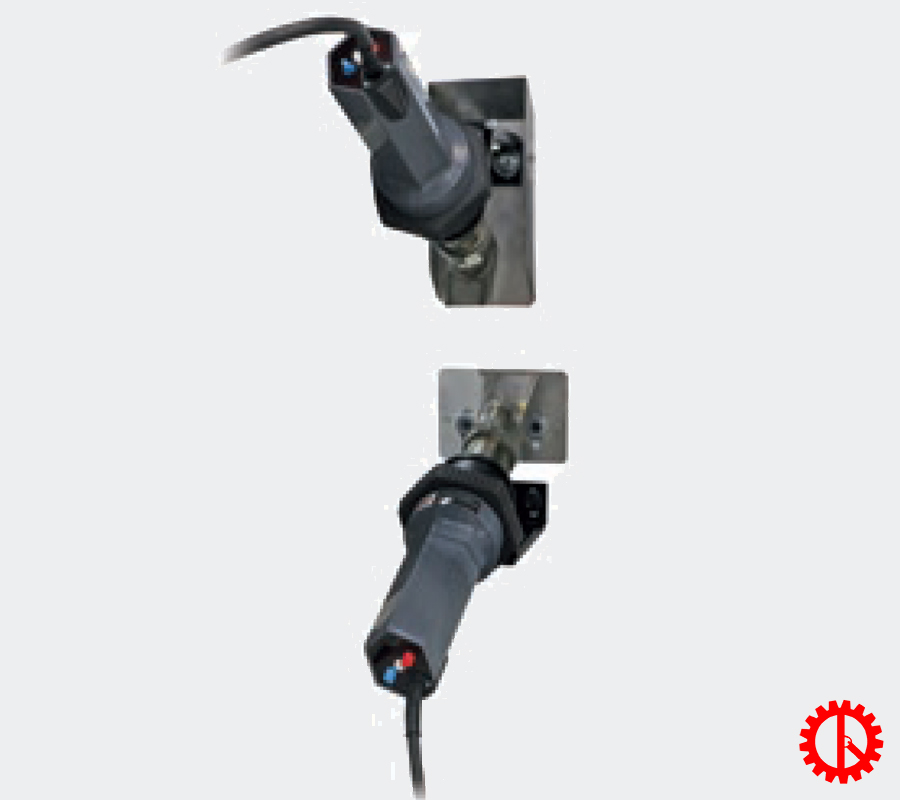

Hot air blower for reactivating the colour of the edges (opz.)

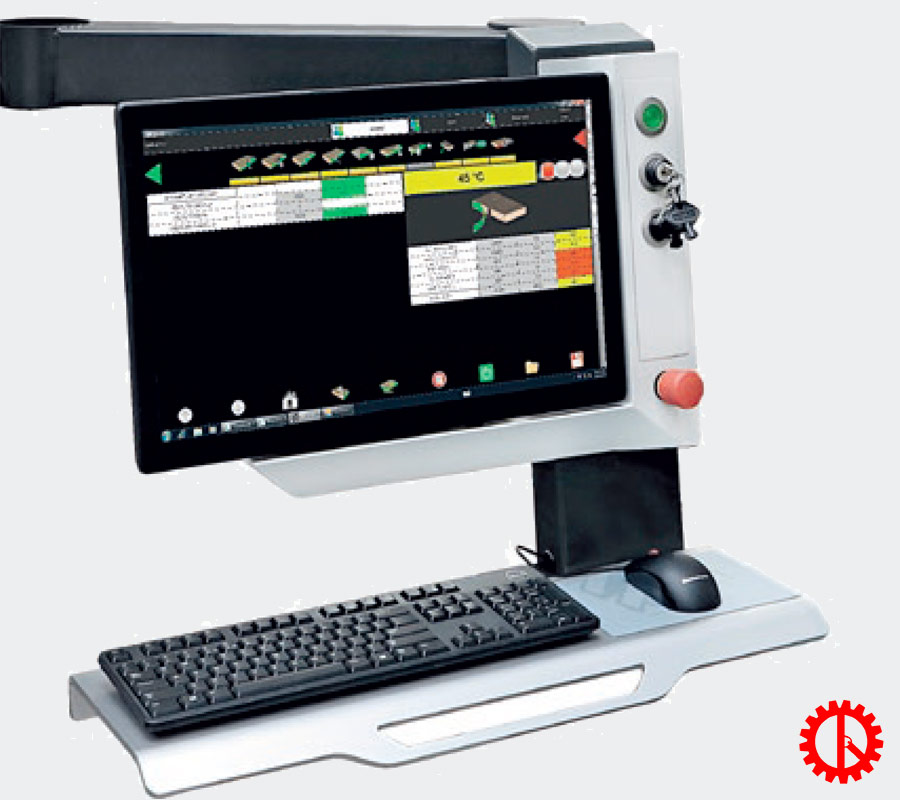

New SMART TOUCH control. Easy program management and usability.
Rapid transition from one machining operation to the next. Modern, intuitive graphic interface.
