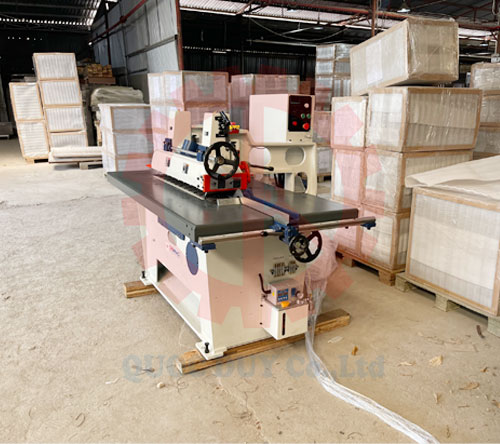

The Rip saw machine – SM 16I performs precise straight-line ripping to standard dimensions. It ensures mass production and delivers consistent quality across all outputs.
Features of Rip saw machine
- High Rigidity and Stability: Supported by double-end bearings for superior rigidity, while the wear-resistant conveyor chain tracks guarantee long-term feeding accuracy and operational stability.
- Low Noise and High Precision: The main motor and saw arbor feature a flexible flange coupling that allows for easy maintenance, eliminates power loss, keeps operating noise exceptionally low, and ensures high processing precision.

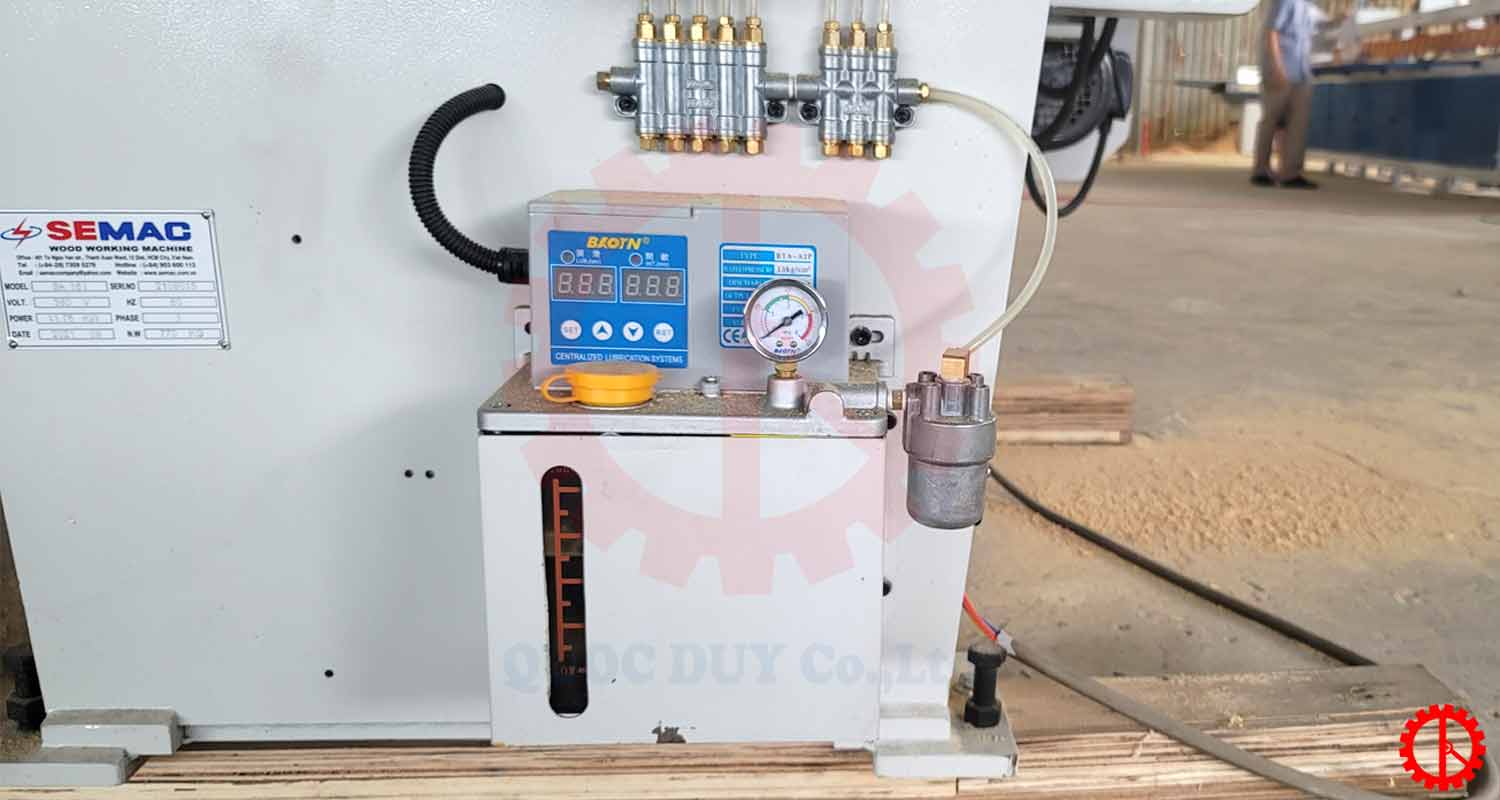

- Efficient Lubrication: An automatic lubrication system effectively coats moving parts, ensuring the workpiece feeding process remains smooth, fluid, and precise.

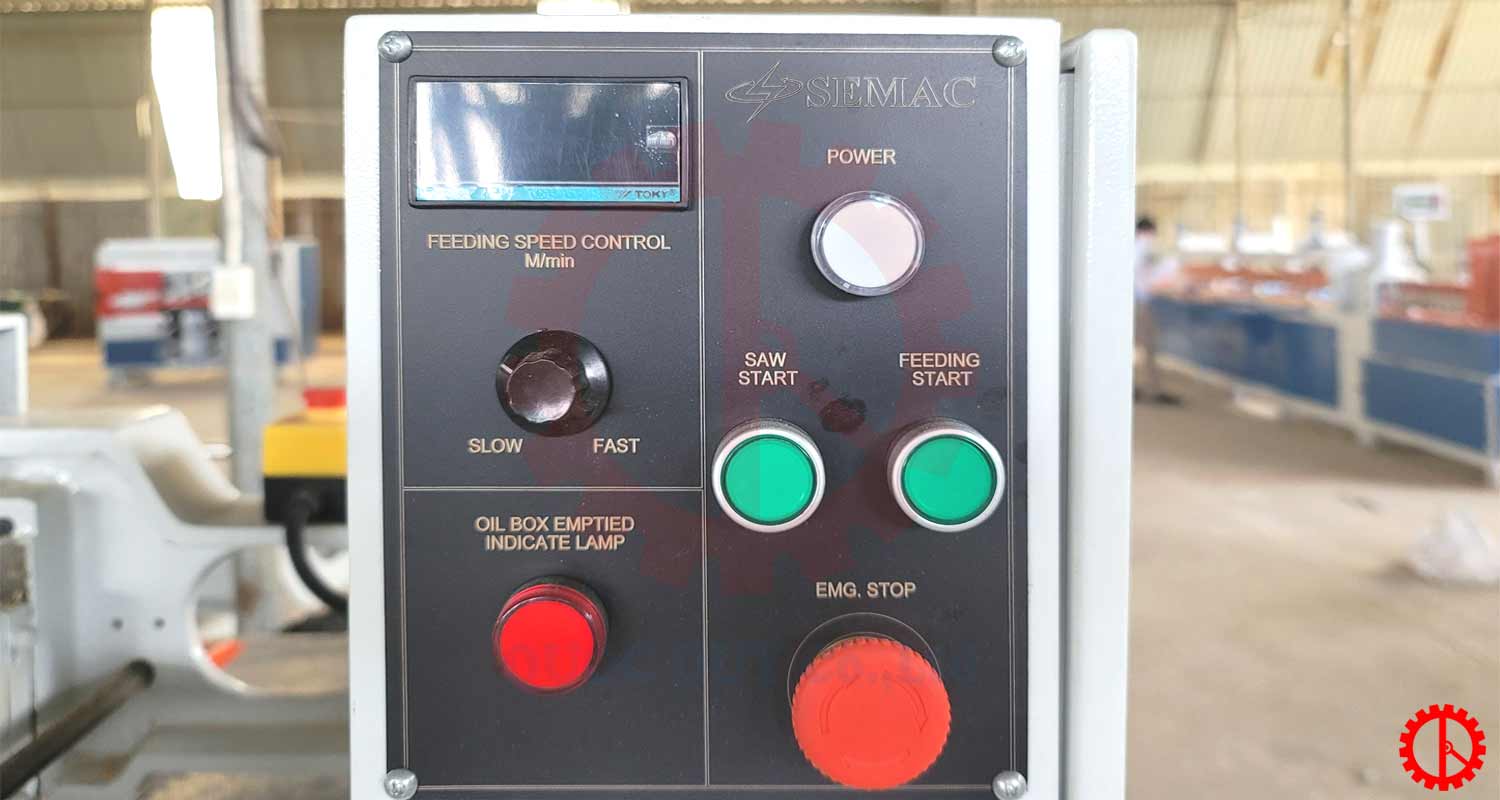

- Inverter-Controlled Cutting: The machine utilizes a frequency inverter to deliver ultra-smooth, clean cuts. It provides steady cutting speeds even when processing hardwoods, ensuring the finished workpieces possess highly accurate dimensions.
- Advanced Frame Construction: The heavy-duty machine body is fabricated using snap-fit laser welding technology, creating a structure that is both significantly more rigid and aesthetically refined.
Specifications of Rip saw machine

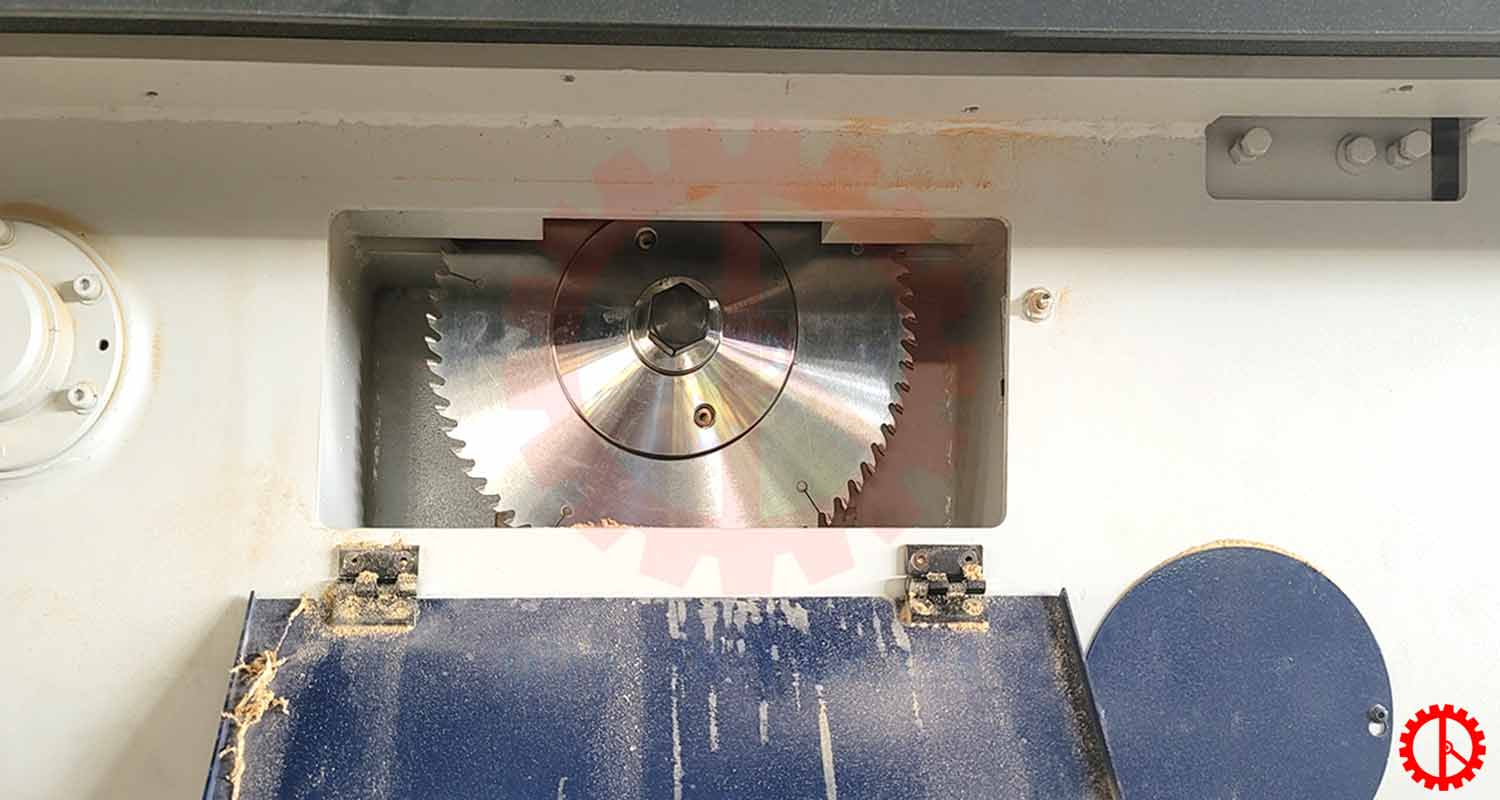

| Saw blade diameter | 355 mm |
| Max. working thickness | 80 mm |
| Min. working length | 250 mm |
| Spindle speed | 2900 rpm |
| Spindle diameter | Ø50.8 mm |
| Feeding speed | 3 – 26 m/min |
| Main motor power | 9 kW / 11 kW |
| Feeding motor power | 0.75 kW |
| Total power | 9.75 kW / 11.75 kW |
| Saw blade thickness | 3.2 – 5.0 mm |
| Worktable dimensions | 1750 x 900 mm |
| Machine dimensions | 1950 x 1380 x 1350 mm |
| Machine weight | 970 kg |
| Origin | Semac – Quoc Duy |
Note: Technical specifications, design features, and machine colors are subject to change without prior notice; however, these changes will not affect the machine’s core functions or operational performance.
View more: Straight line rip saw JRS 12TK
Which type of rip saw machine should you invest in?
Currently, there is a wide variety of rip saws available on the market, such as straight-line glue-joint rip saws, multi-blade rip saws, heavy-duty board splitting saws, and top-blade rip saws. This extensive range can make it difficult for buyers to determine which product best aligns with their manufacturing requirements.
Understanding this challenge, Quoc Duy’s expert consulting team always evaluates your factory’s specific product types and production capacities to recommend the most efficient solution. Every machine delivered to our clients is guaranteed to satisfy their exact operational demands.
Price list for the rip saw machine
To receive detailed product documentation and the latest updated price list, please contact us:
Woodworking Saw Systems | Quoc Duy
- Email : info@quocduy.com.vn
- Hotline : +84 903 600 113
You are also welcome to visit our showroom and experience the machine in operation at: 401 To Ngoc Van Street, Thoi An Ward, Ho Chi Minh City, Vietnam.

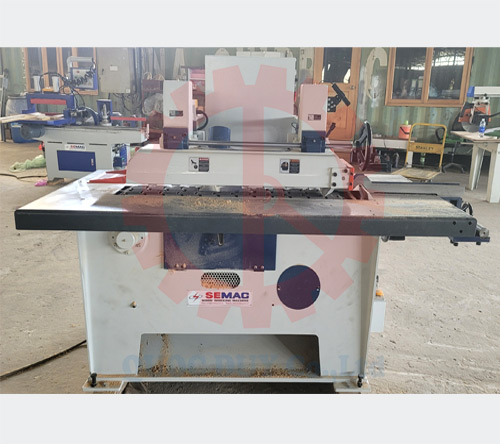

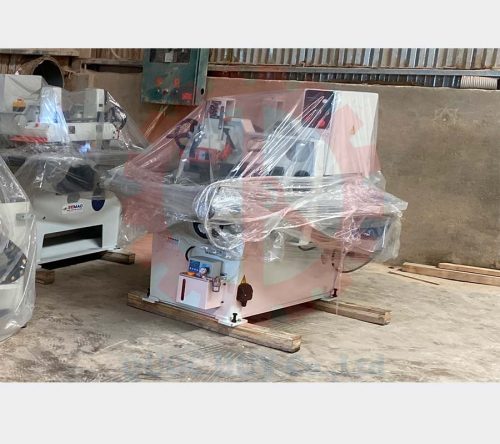

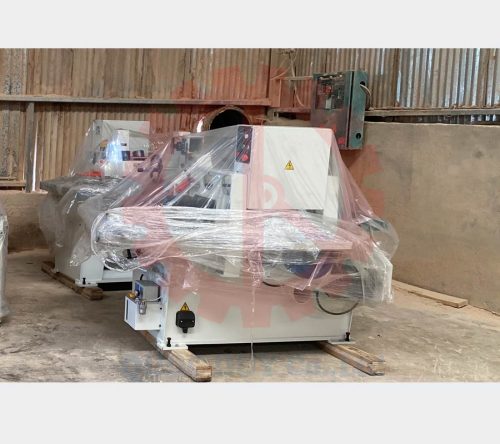

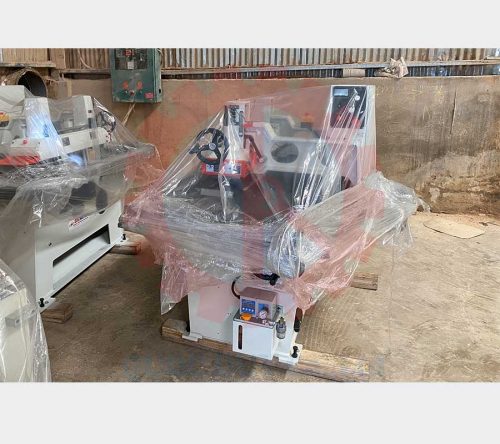

Delivering ripsaw for customer
