The multi blade rip saw – SMBL 600D simultaneously rips large panels into multiple narrow strips, delivering high productivity.
Features of Multi Blade Rip Saw

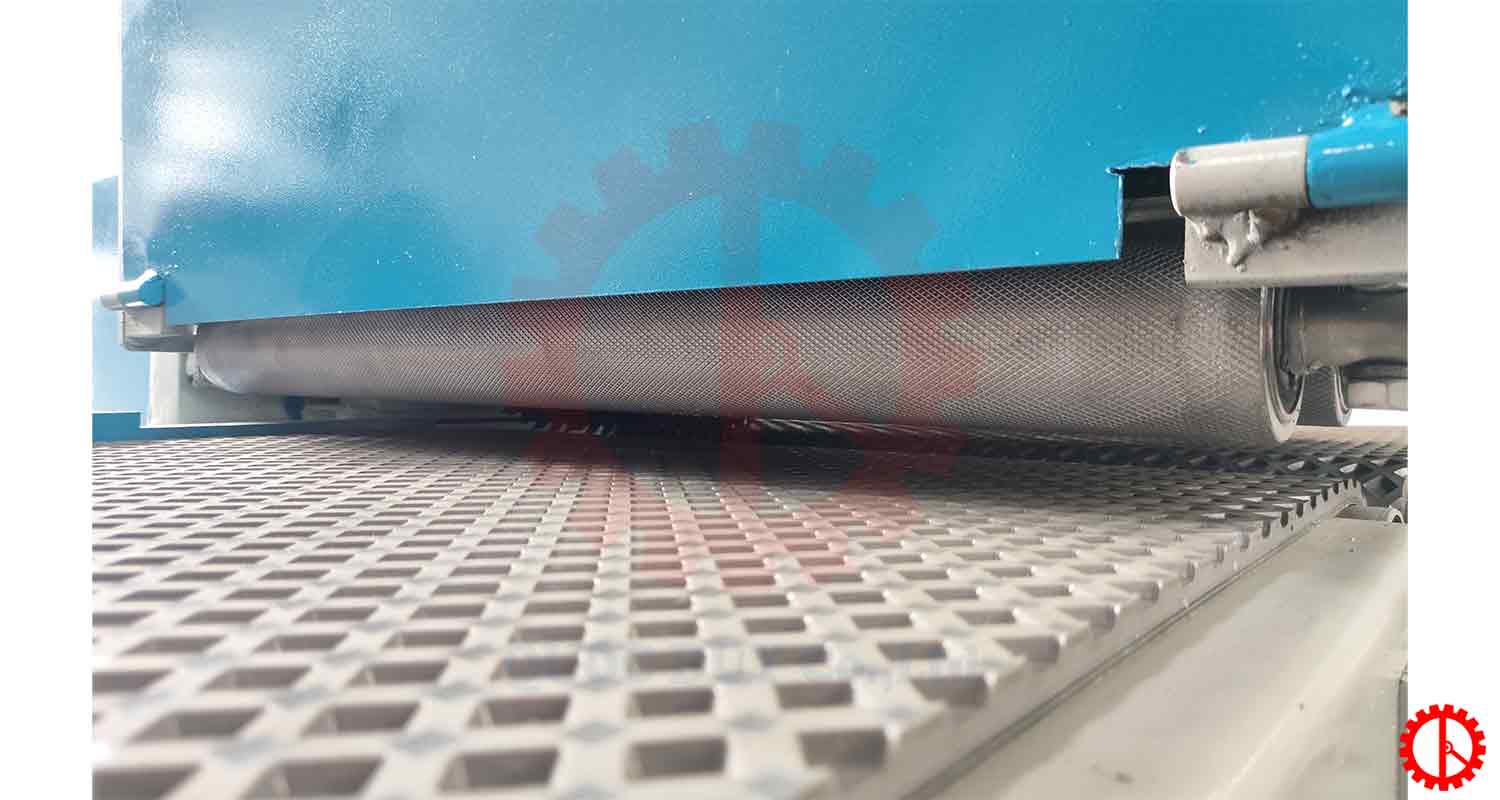

- Superior Stability and Finish: The high-power main spindle motor, combined with heavy-duty pressure rollers, ensures the workpiece is held firmly for straight, smooth, and high-precision cuts.
- High Processing Speed: Engineered for rapid operation, significantly increasing production output.

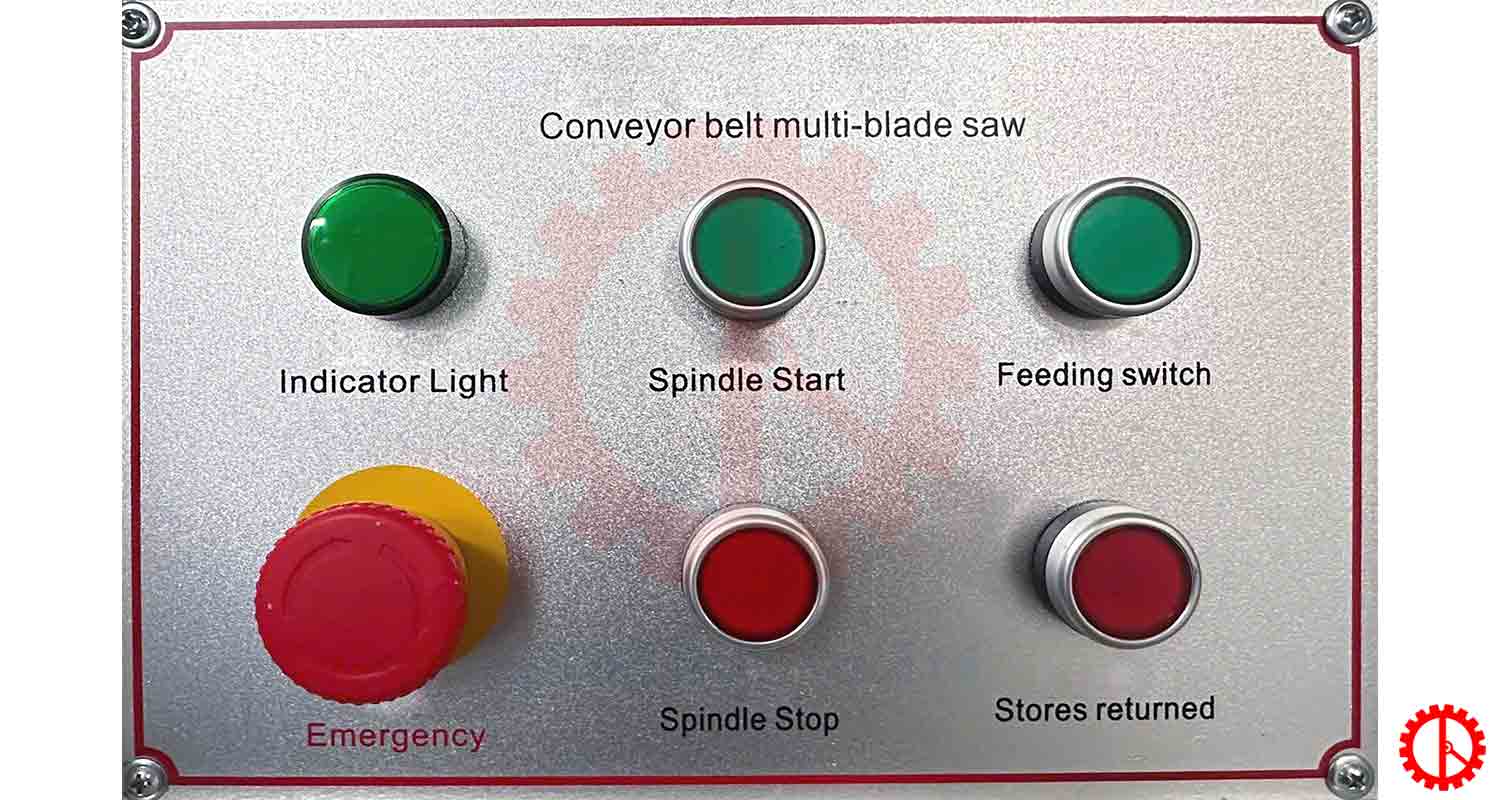

- User-Friendly Operation: The control panel features a simplified design, allowing operators to master the machine quickly and efficiently.
Specifications of Multi Blade Rip Saw
| Max. working width | 600 mm |
| Min. working length | 350 mm |
| Max. working thickness | 50 mm |

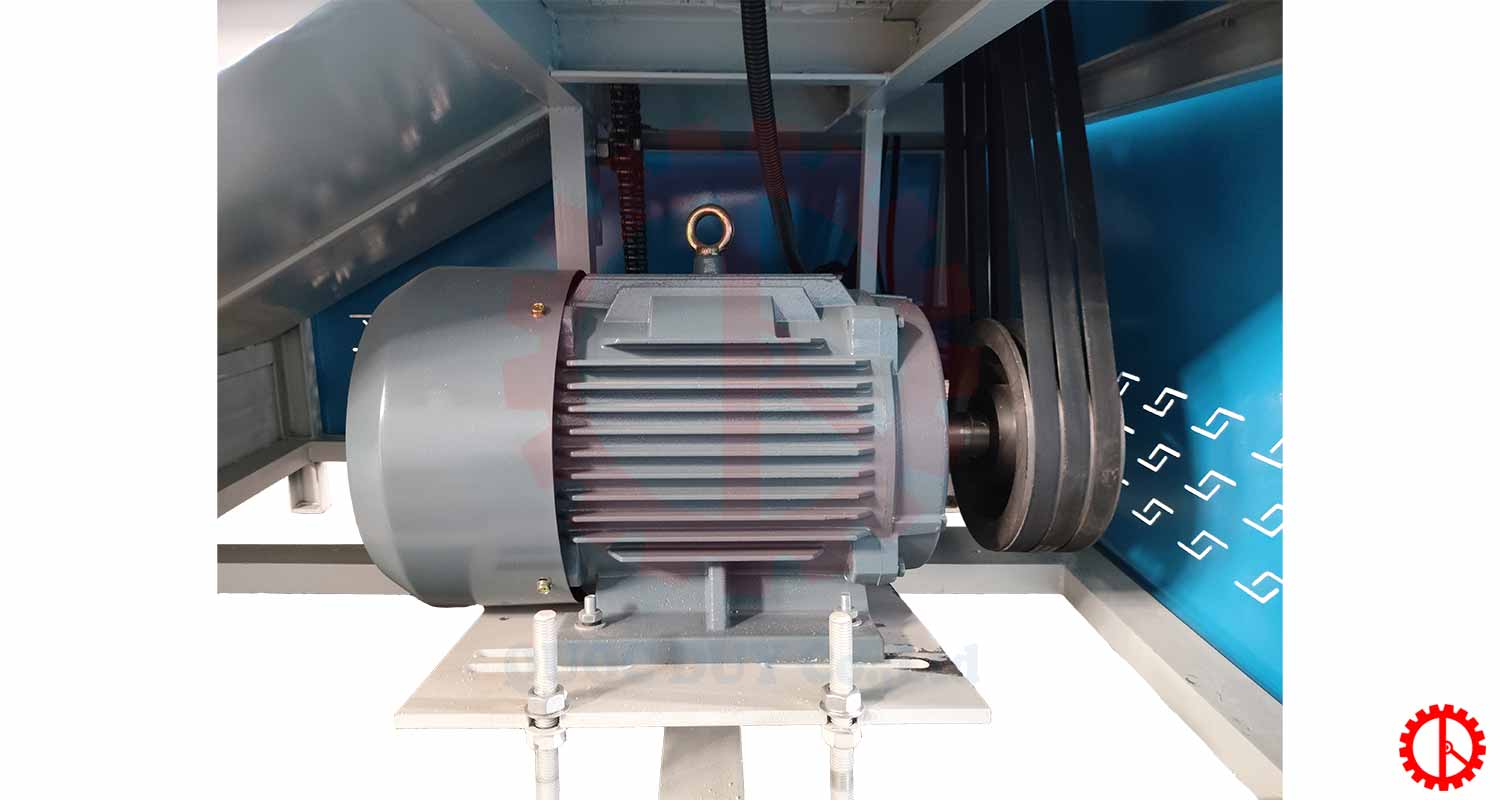

| Main spindle motor | 11 kW |

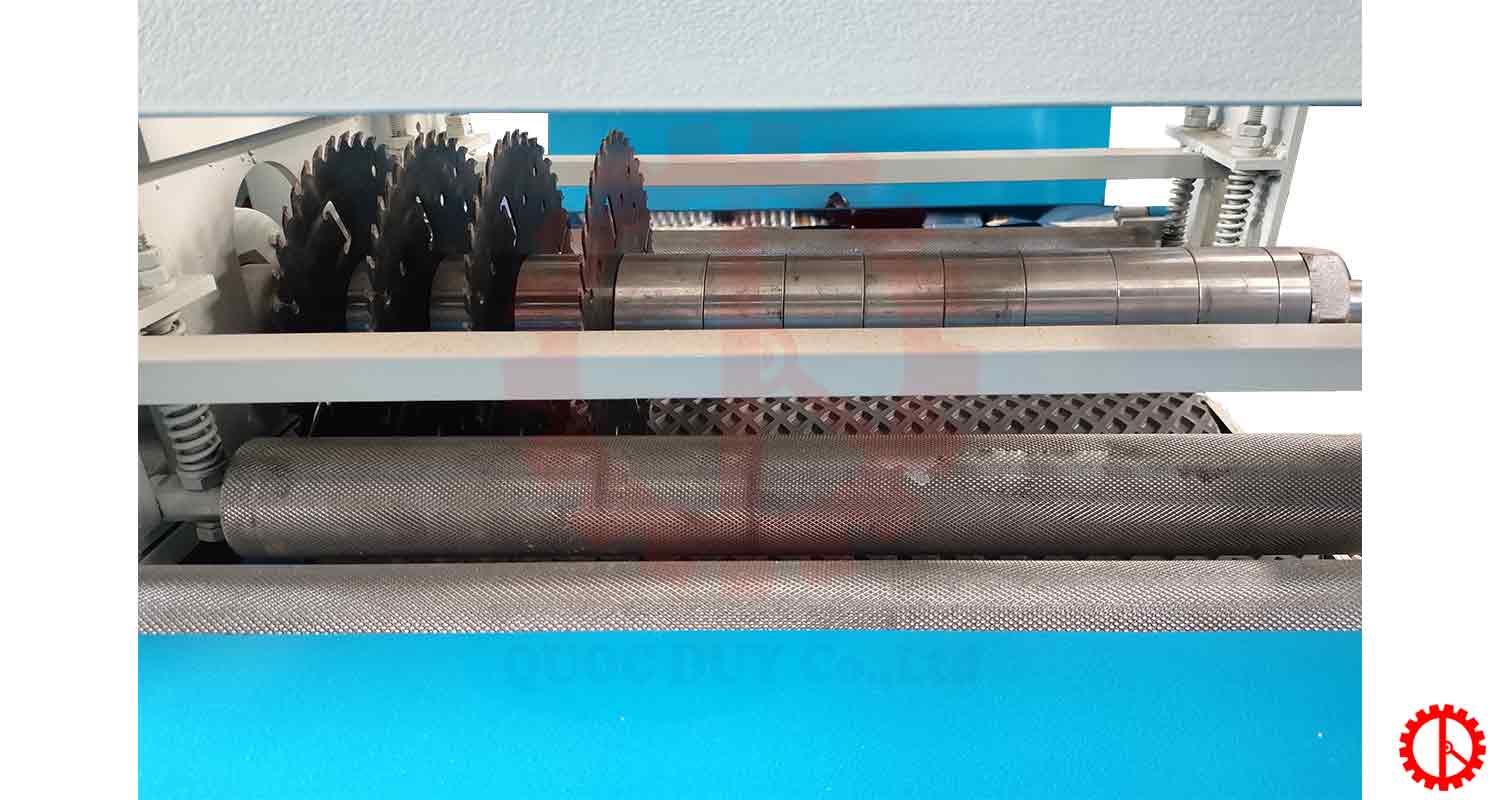

| Saw arbor diameter | Ø60 mm |

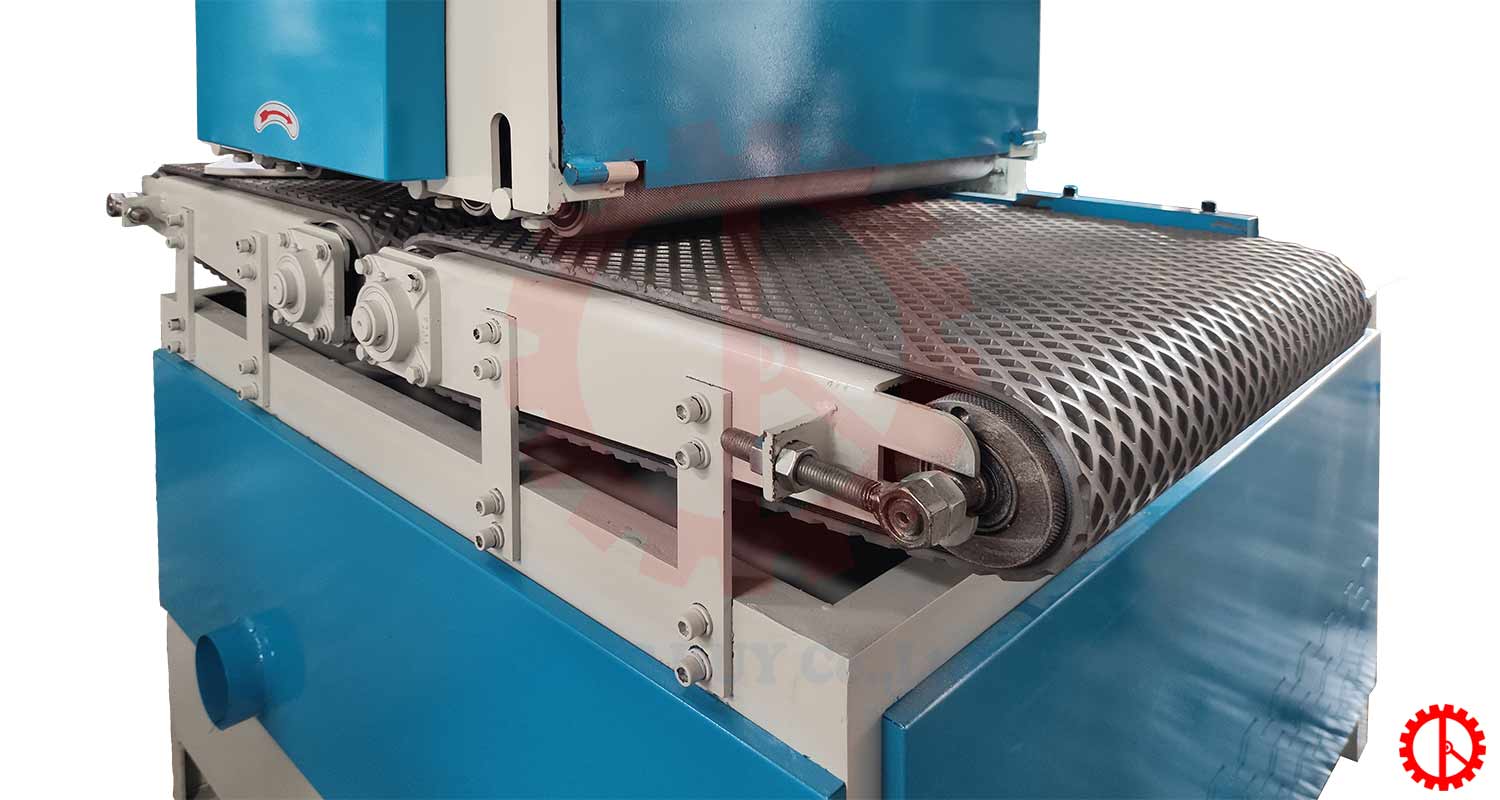

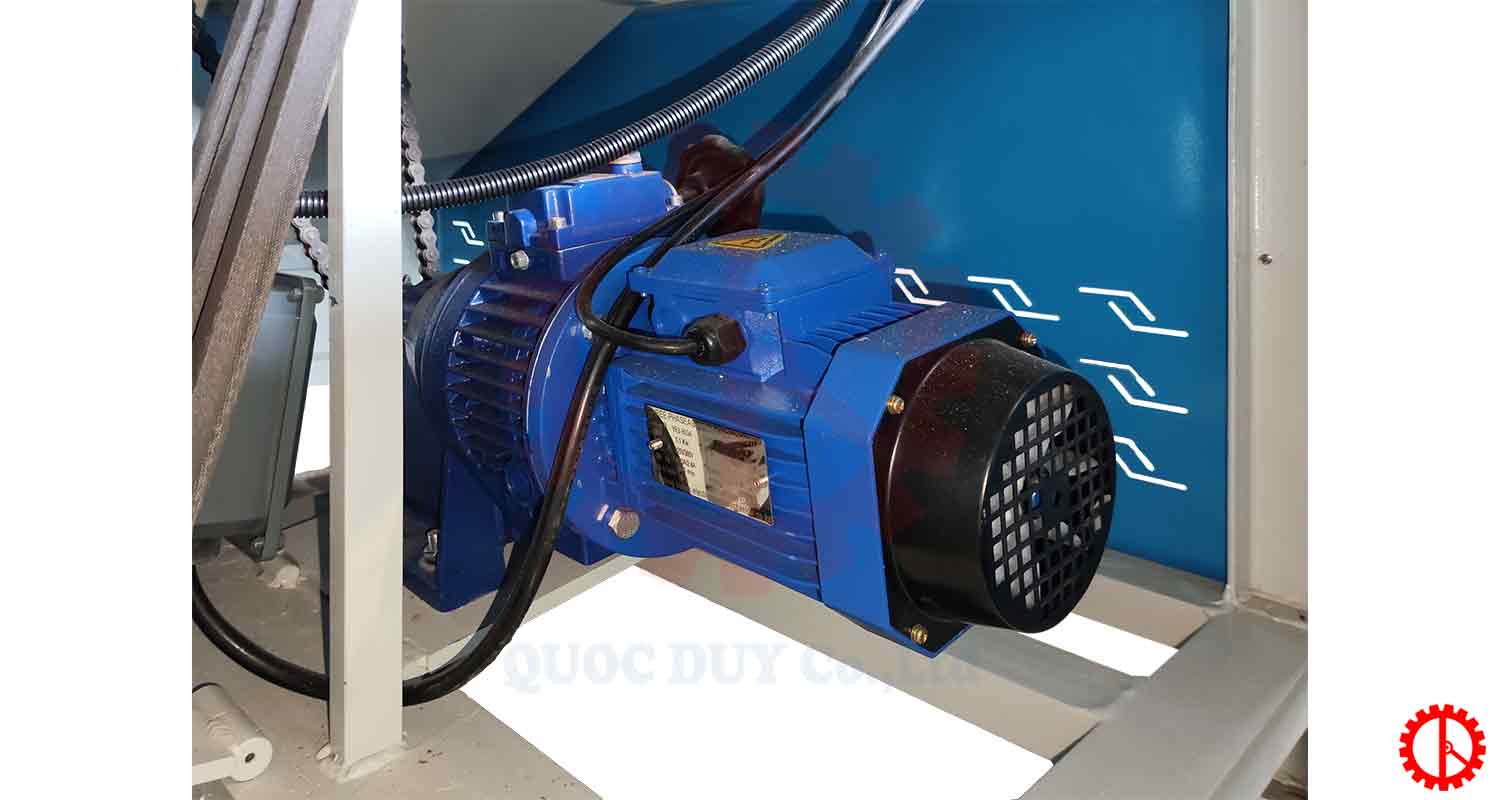

| Feeding motor | 1.1 kW |

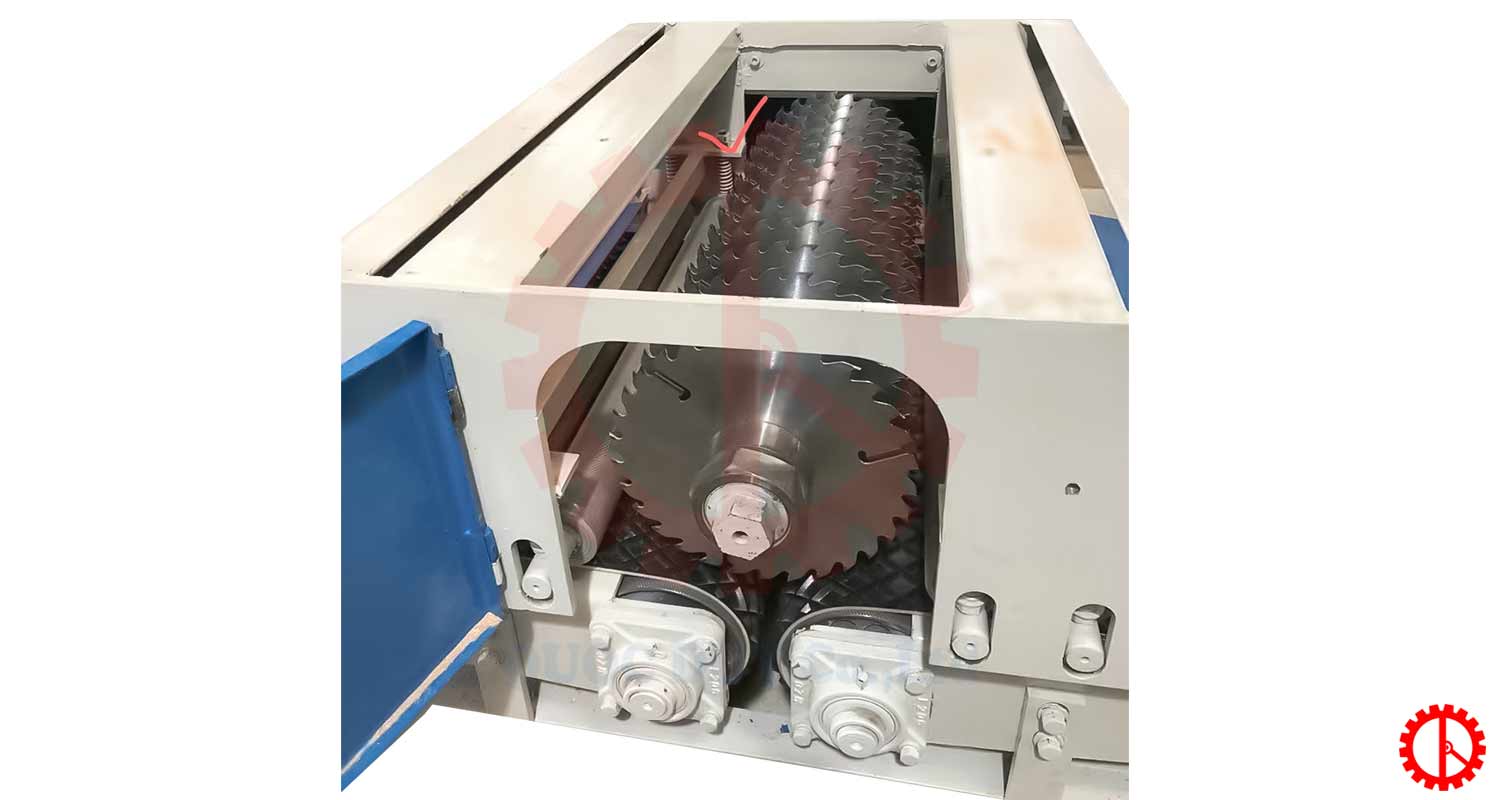

| Saw blade specifications | 230 x 2.2/1.7 x 35 x 40T + 4 |
| Voltage | 380V / 50Hz |

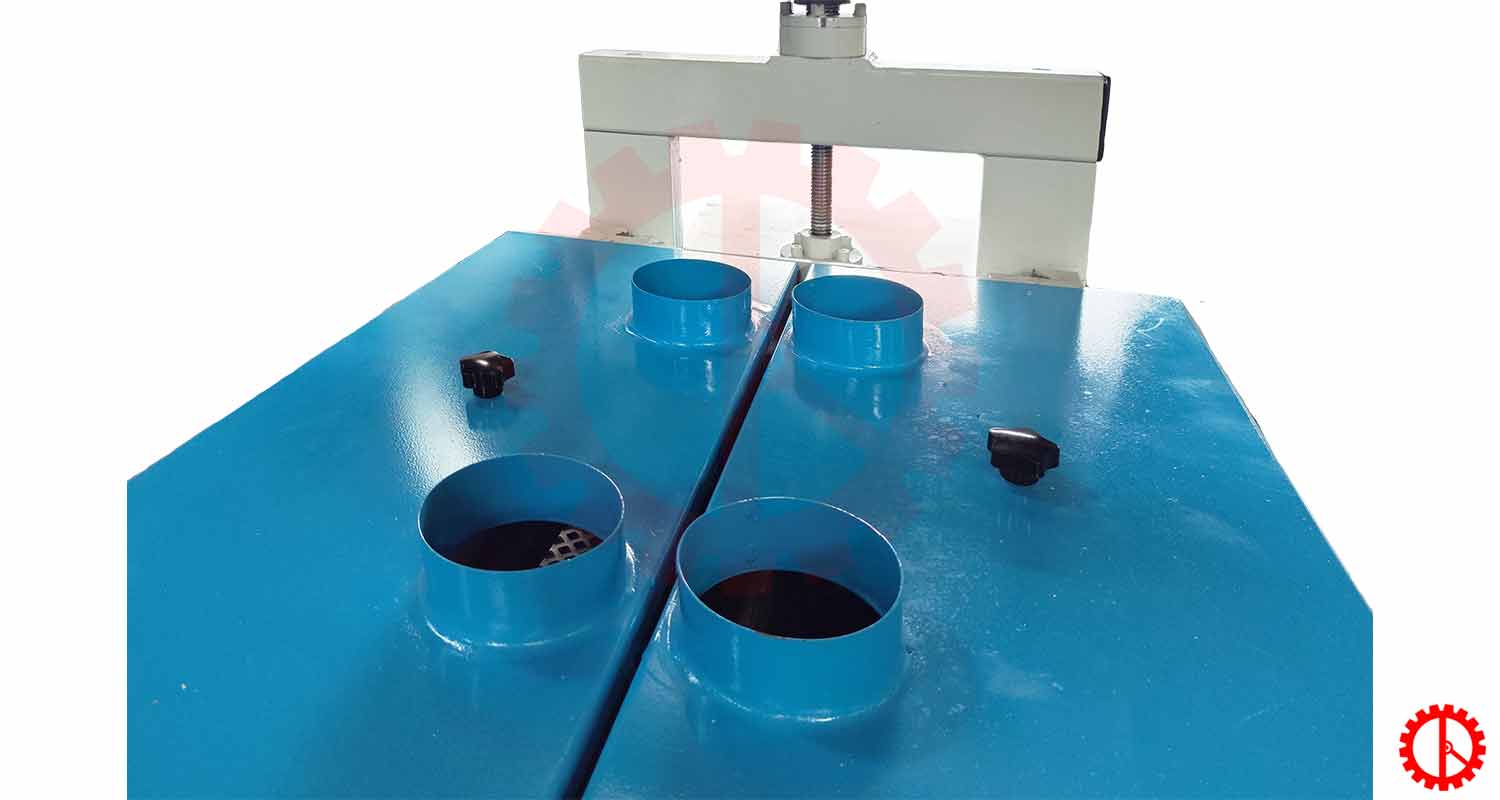

| Dust collection port diameter | Ø100 mm x 6 |
| weight | Approx. 600 kg |
| Overall dimensions | 1400 x 1450 x 1650 mm |
Note: Technical specifications, design features, and machine colors are subject to change without prior notice; however, these changes will not affect the machine’s core functions or operational performance.
View more: 650mm multi blade rip saw – SM 650D
Trusted Supplier for Multi Blade Rip Saws
Quoc Duy provides a comprehensive range of woodworking machinery, including saws, planers, sanders, edge banders, and 5-axis CNC machines—all delivered with high quality and competitive pricing. With over 23 years of expertise, we are committed to helping you find the right rip saw or any specialized woodworking solution.
Contact us immediately for expert consultation and quotes:
- Email : info@quocduy.com.vn
- Hotline : +84 903 600 113
You are also welcome to visit our showroom and experience the machine in operation at: 401 To Ngoc Van Street, Thoi An Ward, Ho Chi Minh City, Vietnam.
