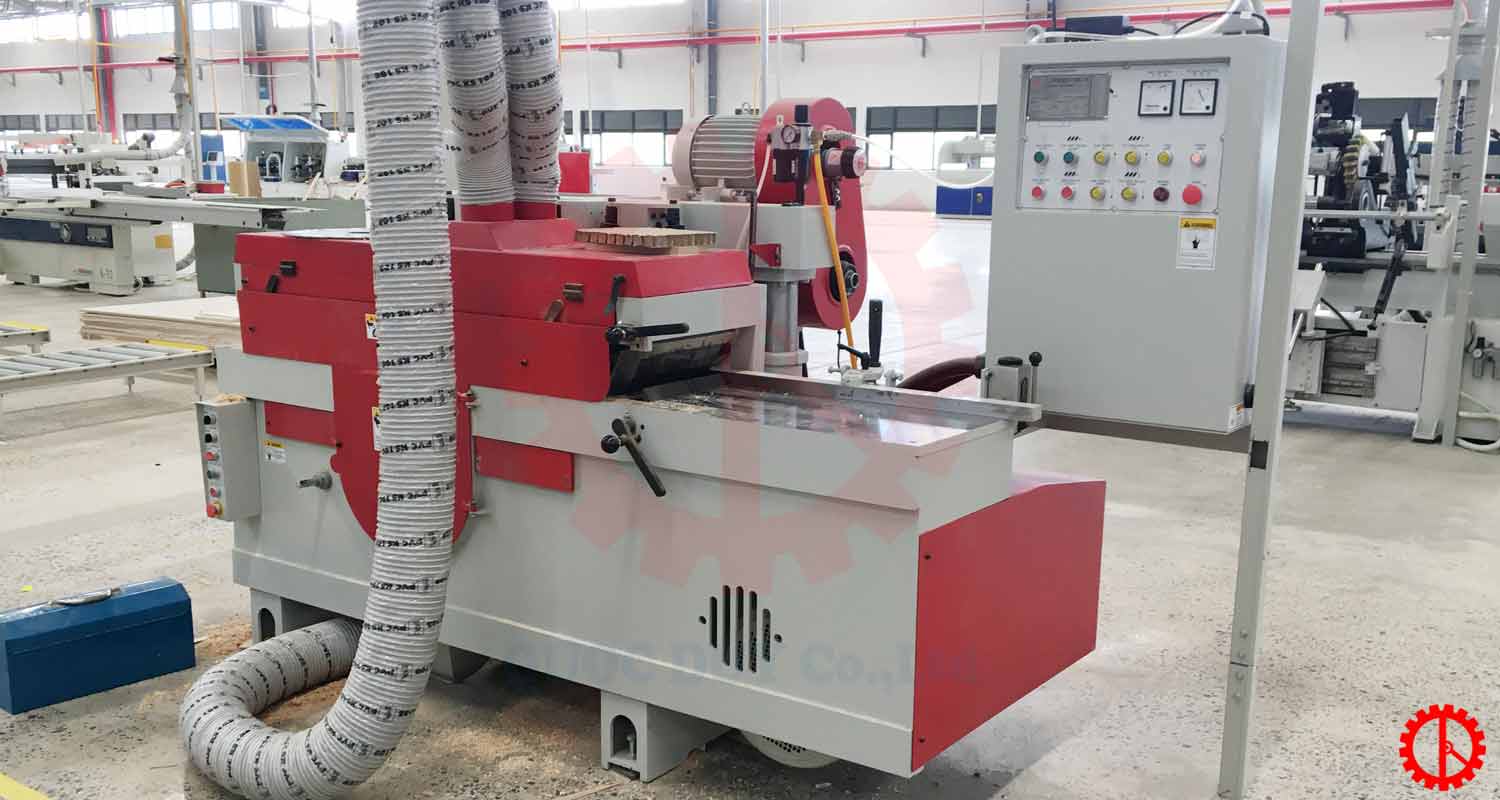

Multiple rip saw SHK 3200 is used to cut wooden panels into many small bars. The machine can easily adjust to many different sizes of wooden bars.
Introduction of multiple rip saw
Features of multi-blade wood panel sawing machine
- The straight line ripsaw has high cutting speed, and cuts a lot of wood at once, saving time
- The sturdy machine frame operates without vibration and is easy to use
Characteristics of multiple rip saw
- Specialized machine for sawing wood panels into many small product bars, which can be adjusted to many different sizes.
- The straight line rip saw is specially designed for quick operation and high accuracy.
- The machine is equipped with a workpiece conveying roller system, creating optimal cutting lines, and reducing waste to the lowest level.
- The working screen is equipped with a multiplier button for easy operation and use of the machine.
Specifications of multiple rip saw
| Max. thickness of cut | : 125 mm |
| Max. width of cut | : 300 mm |
| Saw blade diameter | : Ф 403 mm |
| Saw spindle speed | : 2900 – 3000 rpm |
| Saw spindle diameter | : ɸ 70 mm |
| Feed speed | : 5– 20 m/min |
| Number of feed rollers | : 6 |
| Number of table rollers | : 4 |
| Table surface area (wide) | : 355 mm |
| Table surface area (length) | : 2240 mm |
| Saw spindle motor | : 50 HP |
| Feed drive motor | : 5 HP |
| Saw spindle elevation motor | : 1 HP |
| Feed roller elevation motor | : 1 HP |
| Net weight | : 2000 kg |
| Gross weight | : 2400 kg |
| Machine size | : 2721 x 1324 x 1549 mm |
| Packing size | : 2921 x 1524 x 1803 mm |
VIDEO OF OPERATION OF STRAIGHT ROVER MACHINE
LATEST MULTIPLE RIP SAW PRICE
To get the fastest price quote for sawing machine, please contact
- Email: info@quocduy.com.vn
- Hotline: 0903 600 113
- Website: www.quocduy.com.vn – www.semac.com.vn.
If you’d like to see our latest machines in action, you can visit us at our factory located at 401 To Ngoc Van, Thanh Xuan Ward, District 12, Ho Chi Minh City. We are always available to assist you and look forward to hearing from you soon!
