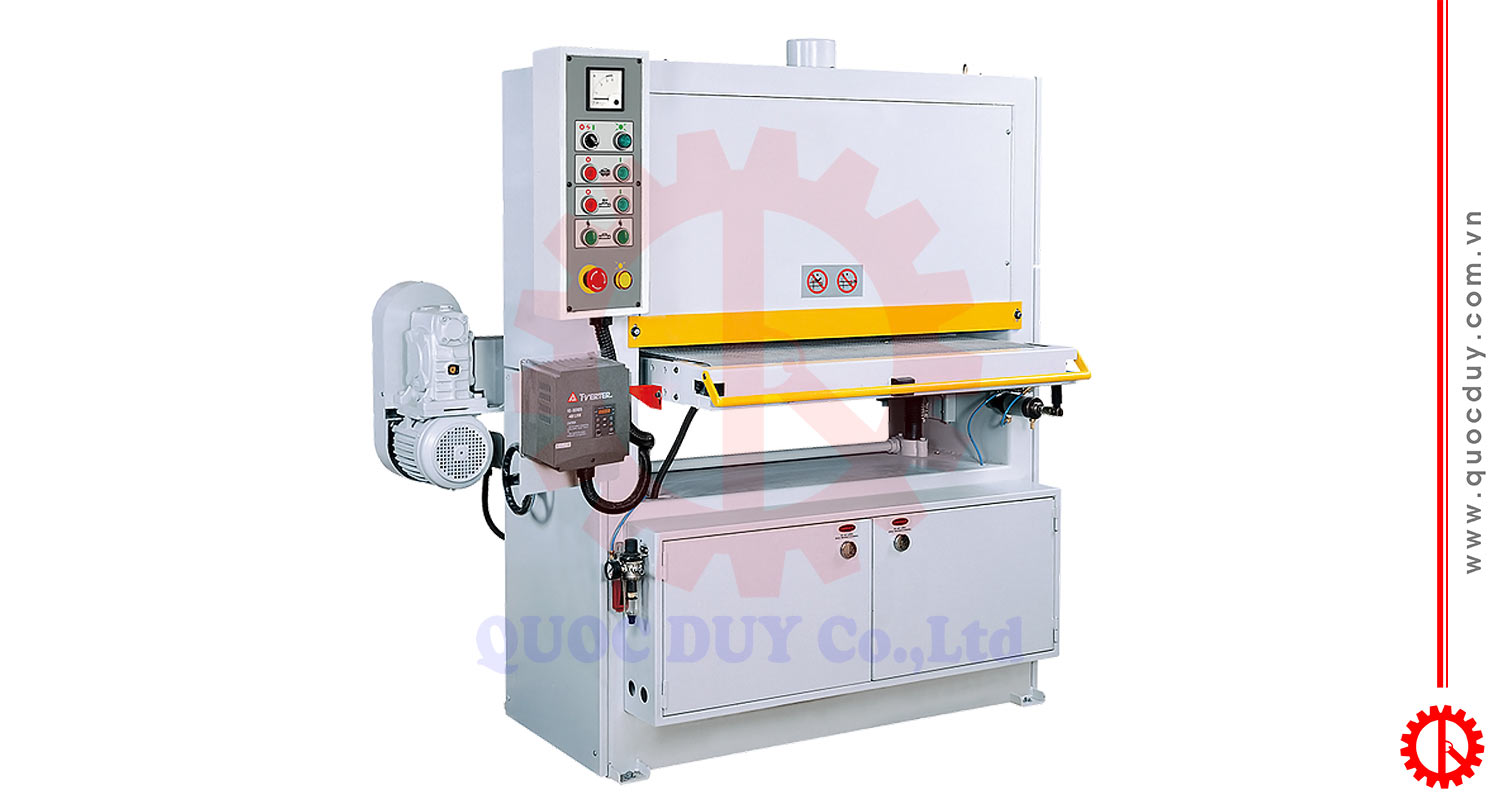

Lacquered panel sander taiwan PR 37B
Introduction of lacquered panel sander taiwan
Features
– Built at outfeed end of the machine, this panel cleaning brush roller clean powder on the sanded panel
– It can easily control sanding belt speed, providing wide range of belt speed to match the variety of different paints.
– The top dust hood sucks all dust removed by the air jet cleaner. This prevents ust accumulating on the photocell sensor.
– The conveyor belt speed is controlled by a variable speed unit. Feed speed can be vried as desired to suit all types of workpiece material, assuring superior sanding quality.
Specifications
Working width | 910 mm |
Working height | 125 mm |
Main motor standard | 7.5 HP |
Feed motor | 1 HP |
Table motor | ½ HP |
Feed speeds | 6 – 23 m/phút |
Sanding belt size | 940 x 1524 mm |
Compressed air required | 5 kg/cm2 |
Exhaust volume requirement | 3090 m3/h |
Net weight | 940 kg |
Gross weight | 1150 kg |
Dimensions (L x W x H) | 1473 x 1422 x 1727 mm |
Packing size | 1524 x 1473 x 1956 mm |
