3-Axis sanding machine- paint & veneer – MT 1300THH S9
Features of 3-Axis sanding machine- paint & veneer

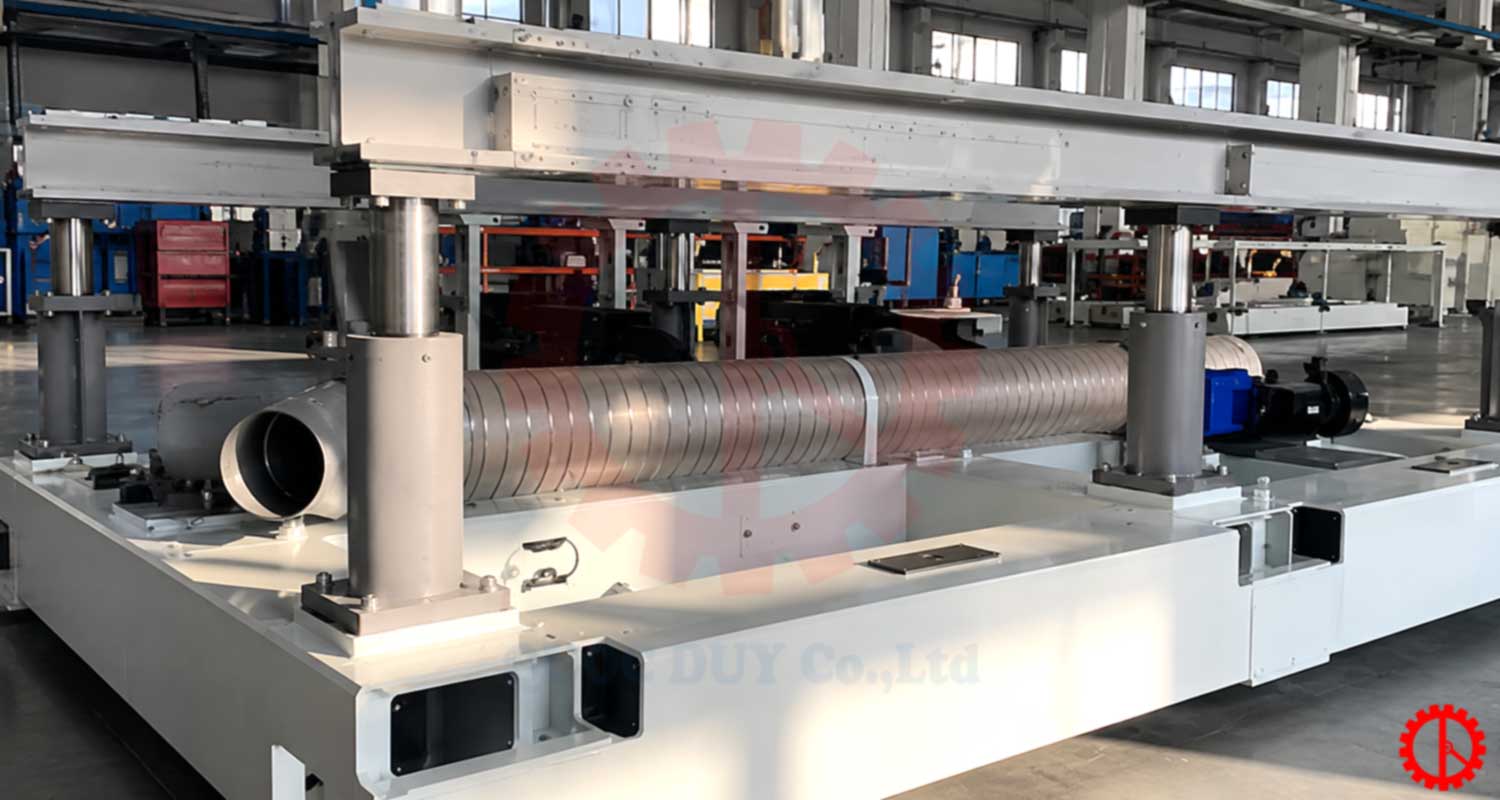

- The machine frame is fabricated from high-quality carbon steel with a heavy-duty welded structural steel design, ensuring rigidity, stability, and superior anti-vibration performance during operation.

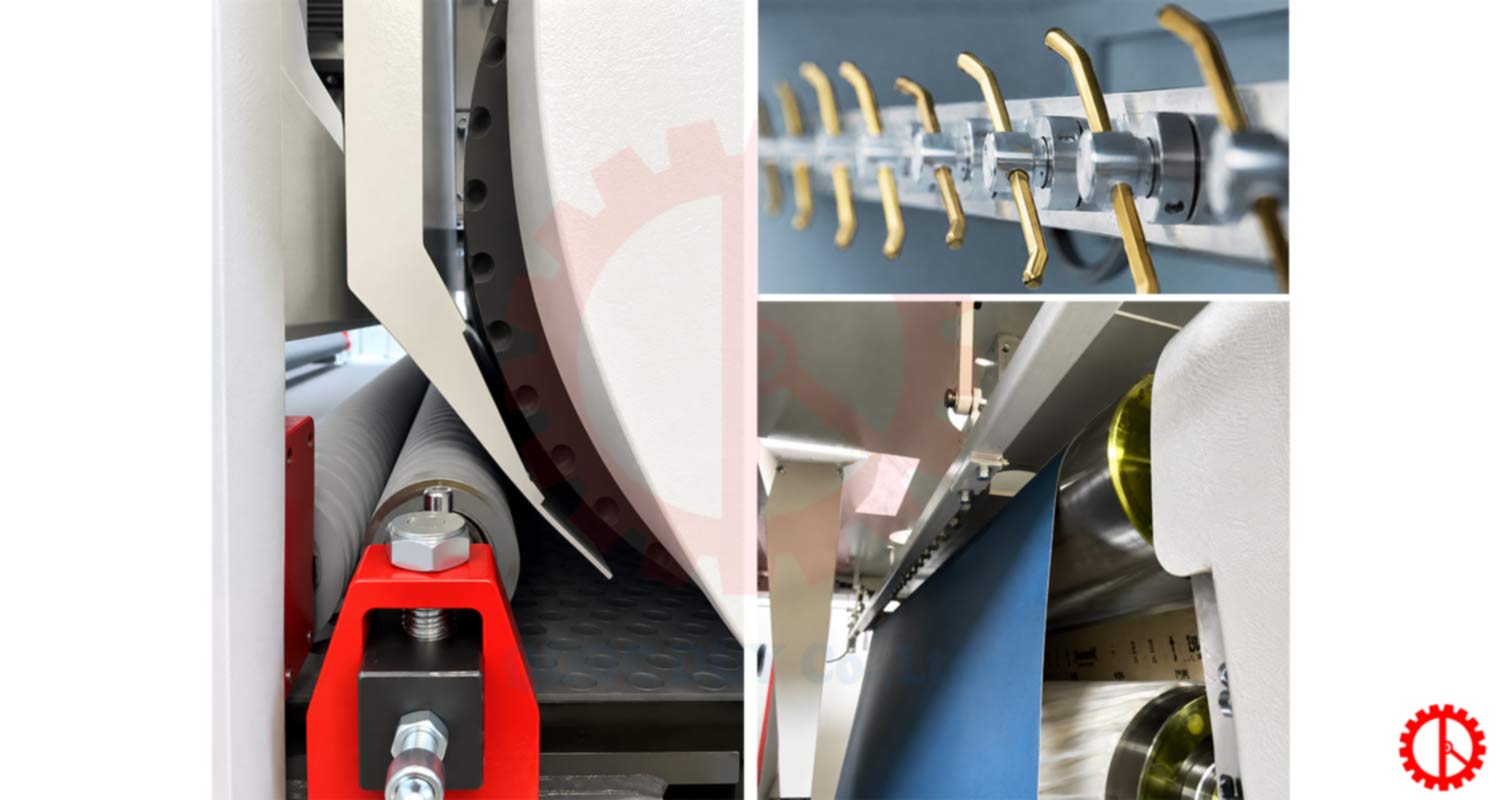

- Integrated Air Jet Cleaning system continuously cleans the sanding belt during operation, boosting sanding efficiency and extending belt lifespan.

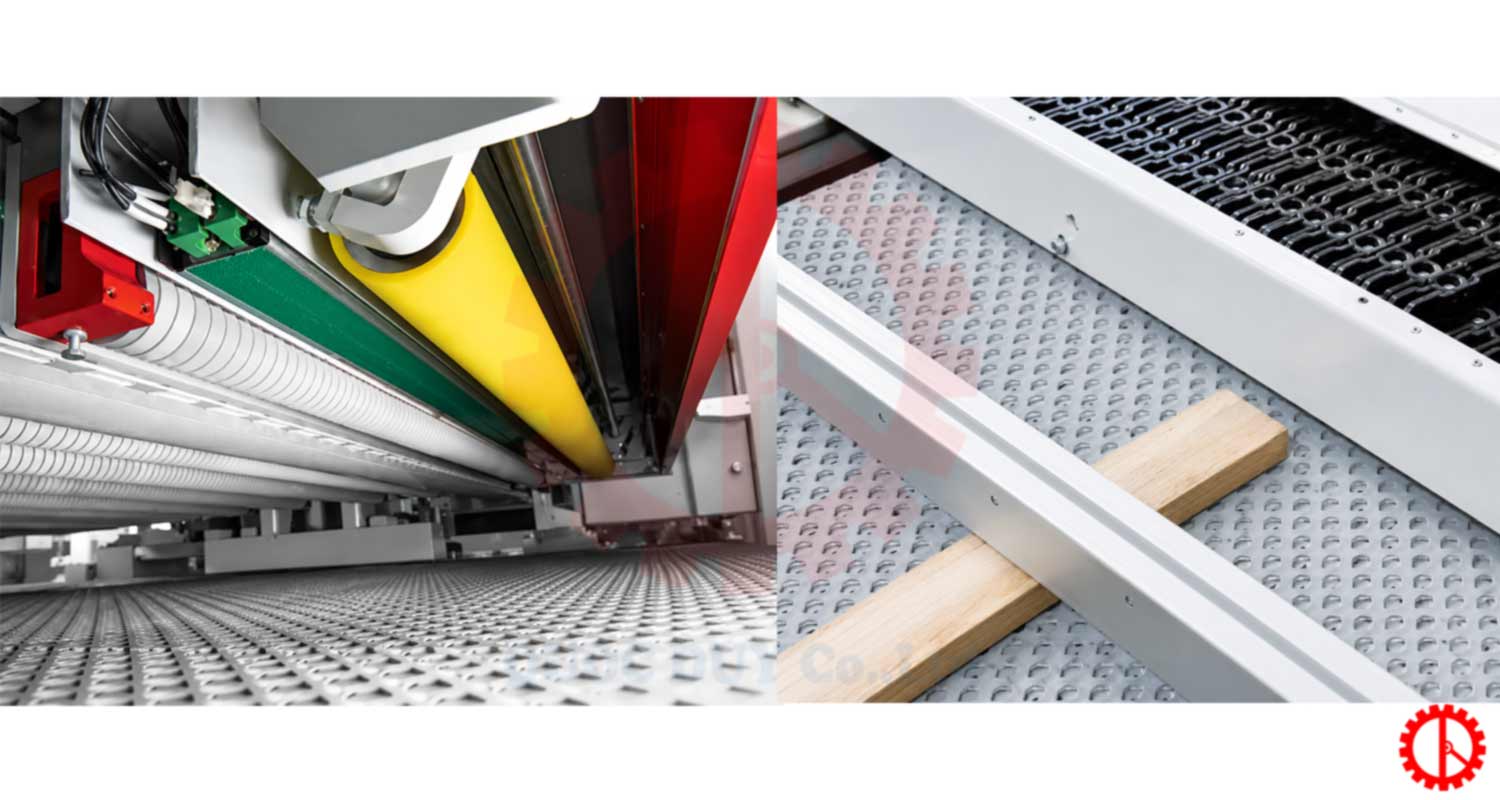

- The scanning system utilizes electronic recognition technology integrated with an Italian AI algorithm, accurately detecting workpiece geometry and positioning for smart sanding control.

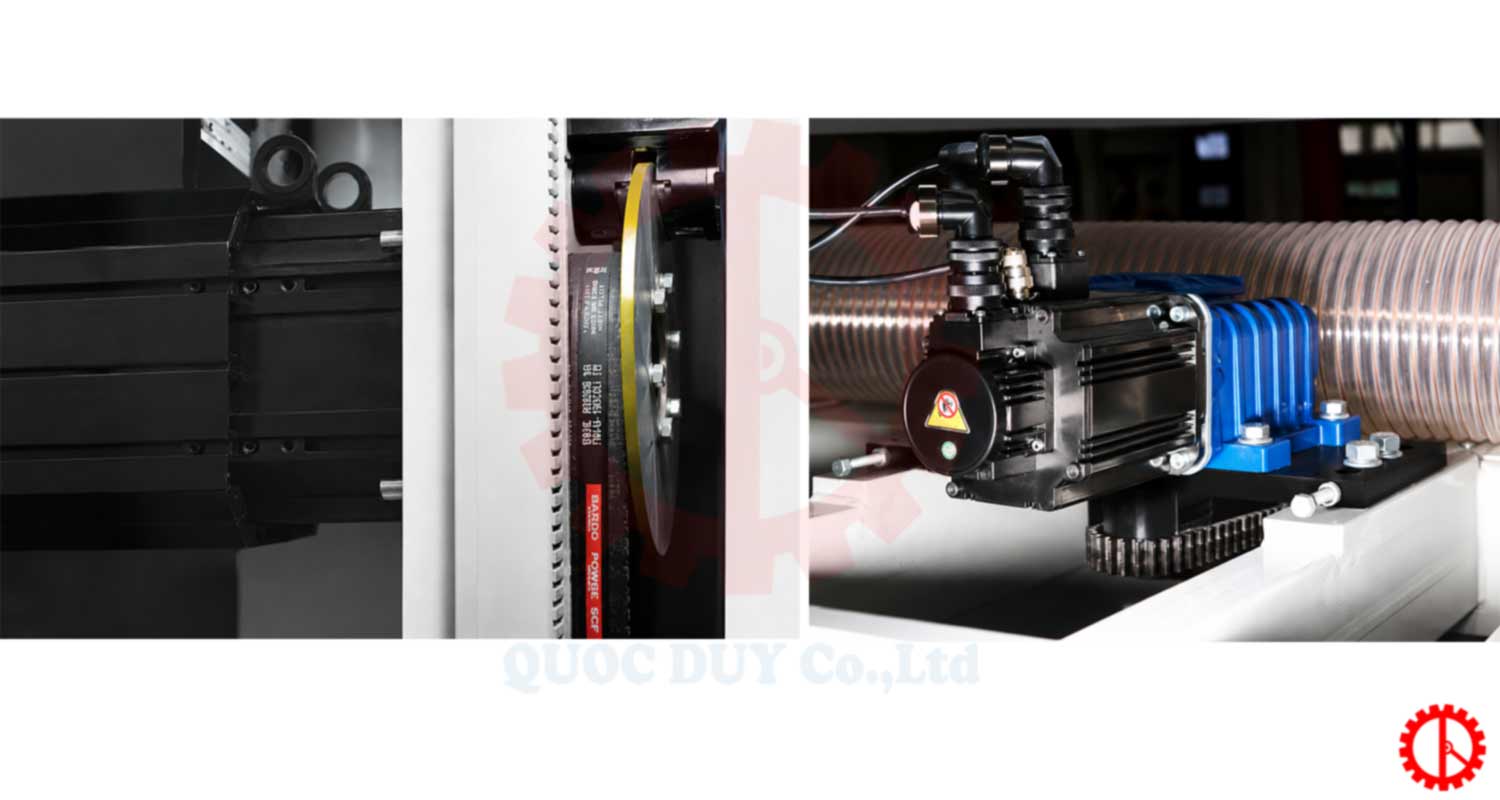

- Main drive system: Powered by a servo motor—ensuring stable and reliable performance.

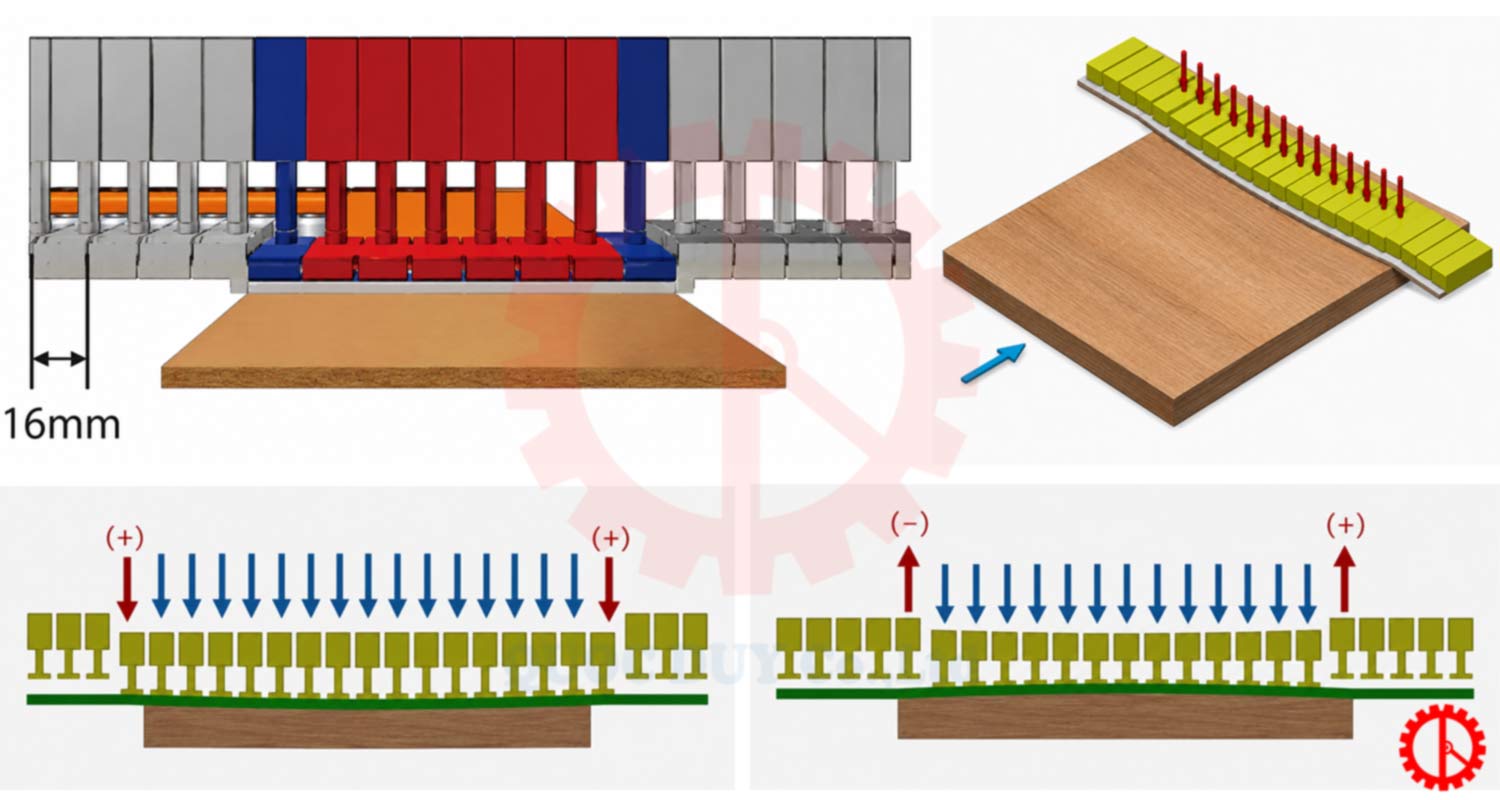

- Equipped with 80 independent sectional pressing pads (each 16 mm in width), enabling precise pressure control across the entire processing surface.
Specifications of 3-Axis sanding machine- paint & veneer
| Working Width | 1300 mm |
| Minimum Working Length | 490 mm (200 × 200 mm) |
| Working Thickness | 3 – 150 mm |
| Conveyor Speed | 7 – 36 m/min |
| Total Installed Power | 64 kW |
| Sanding Head Motor No. 1 | 15 kW |
| Sanding Head Motor No. 2 | 15 kW |
| Sanding Head Motor No. 3 | 15 kW |
| Conveyor Motor | 3 kW |
| Lifting Motor | 0.75 kW |
| Abrasive Wheel Unit Motor | 1.5 kW |

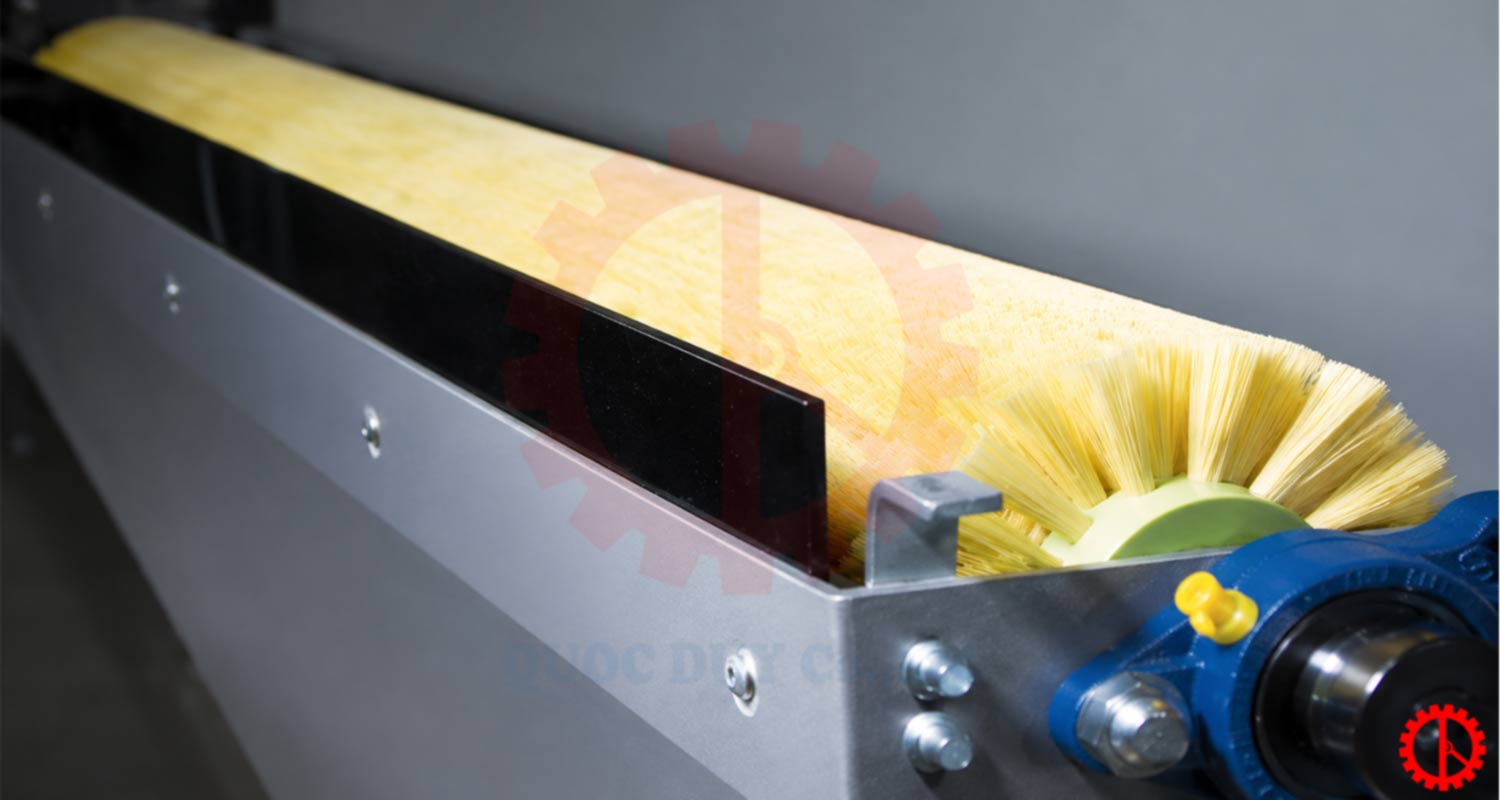

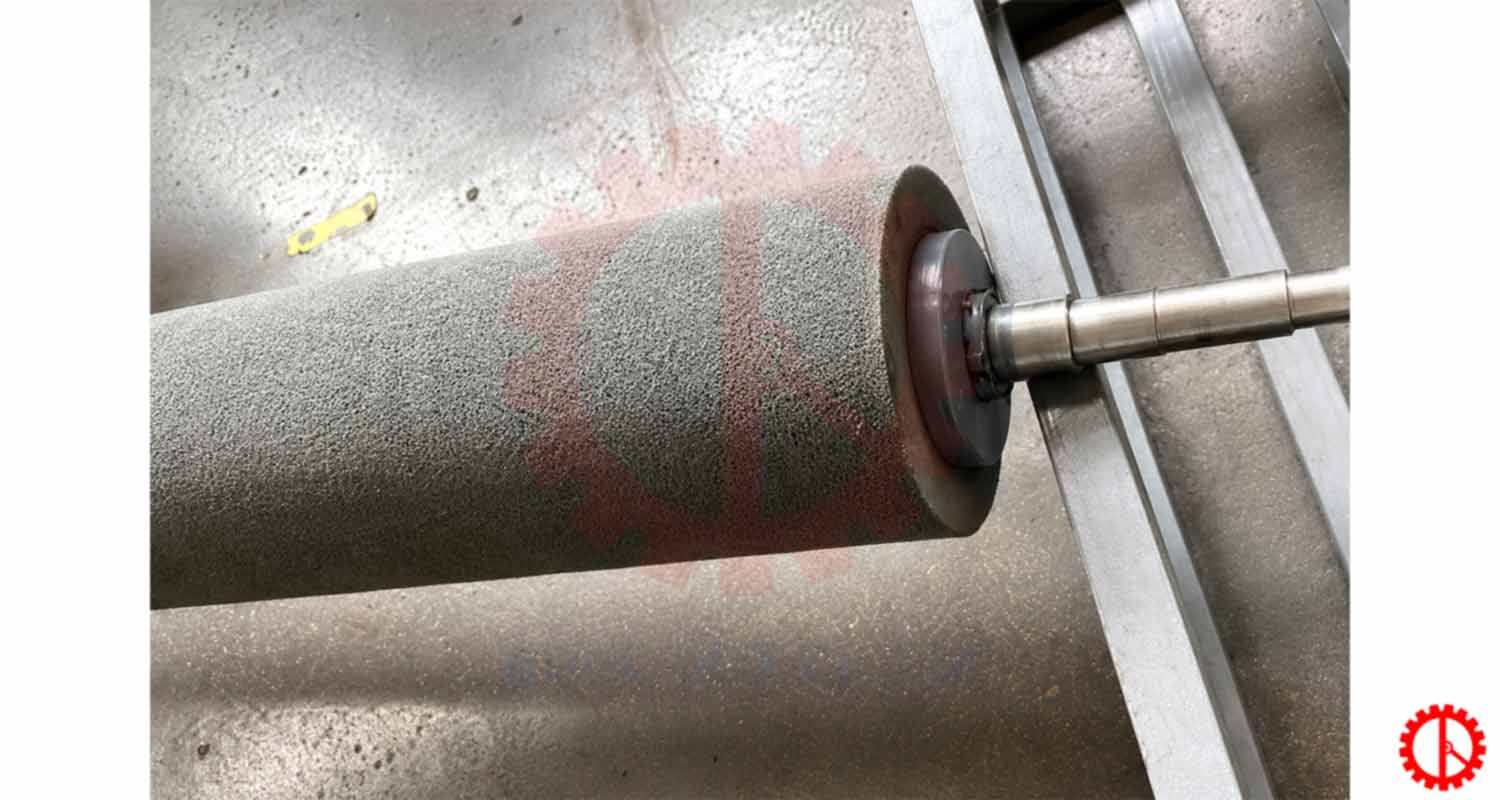

| Brush Roller Motor | 1.5 kW |
| Abrasive Belt Size | T Drum: 150 × 5320 mm; H1 Drum: 1350 × 3250 mm; H2 Drum: 1350 × 3250 mm |
| Abrasive Cloth Belt Size | T Drum: 140 × 4740 mm; H1 Drum: 1350 × 2620 mm; H2 Drum: 1350 × 2620 mm |
| Working Air Pressure | 0.6 MPa |
| Vacuum System Motor | 7.5 kW |
| Dimensions | 2260 × 4222 × 2770–2940 mm |
| Weight | 7800 kg |
| Working Table Height | 900 mm |
| Abrasive Belt Cleaning Air Blow System | Included |
| Brush Cleaning Unit | Included |
Note: Technical specifications, design features, and machine colors are subject to change without prior notice. However, such changes will not affect the machine’s functionality, performance, or operating capabilities.
Reputable Supplier of 3-Axis sanding machine- paint & veneer
If your enterprise is seeking a high-quality 3-head primer & veneer sanding machine (Model: MT 1300THH S9), Quoc Duy is one of the leading reputable suppliers in Vietnam’s woodworking machinery sector. With over 23 years of experience, Quoc Duy offers a diverse range of veneer sanding machines, primer sanding machines, and more—catering to all requirements from furniture manufacturing workshops to large-scale industrial plants.
Why Choose Quoc Duy?
Authentic Machinery & Stable Quality: Supplying genuine, high-reliability equipment that meets rigorous industrial manufacturing standards.
Experienced Technical Team: Providing tailored solution engineering optimized for your specific production lines and workflows.
Turnkey Support: On-site installation, operational training, and seamless technology transfer.
Comprehensive After-Sales: Fast-response warranty, maintenance services, and prompt spare part supply.
Live Demo Showroom: Fully equipped showroom and machinery display facility where customers can inspect and perform test runs before investing.
To receive the latest quotations for primer sanding machines and veneer sanding machines, please contact us:
- Email : info@quocduy.com.vn
- Hotline : +84 903 600 113
You are also welcome to visit our showroom and experience the machine in operation at: 401 To Ngoc Van Street, Thoi An Ward, Ho Chi Minh City, Vietnam.
