Introduce of Inclination edge banding machine
Feature of inclination edge banding machine
- Pre-milling at straight surface
- Pre-milling at inclination surface
- Panel pre-heating
- Grooving on tape
- Gluing at inclination surface 1 (option PUR)
- Gluing ports at straight surface 2
- Edge banding tape pre-heating
- Tape pressuring
- End cutting
- Rough trimming
- Fine trimming
- Corner rounding
- Scraping
- Cleaning
- Flat scraping
- Buffing
Specification of inclination edge banding machine
| Pre-milling motor power | : 1.8 kw x 2 |
| Premilling motor for L shape | : 4 kw |
| Gluing motor power | : 0.75 kw x 2 |
| Heating power | : 1.5 kw |
| Ending trimming motor power | : 0.37 kw x 2 |
| Rough trimming motor power | : 0.75 kw x 2 |
| Fine trimming motor power | : 0.75 kw x 2 |
| Corner rounding motor power | : 0.37 kw x 2 |
| Buffing motor power | : 0.37 kw x 2 |
| Belt motor power | : 3.7 kw |
| Working speed | : 12-20 m/min |
| Max edge height | : 60 mm |
| Chain feeding top pressure | : 5.5 kw |
| Heating fan | : 1 heating fan |
| Panel thickness | : 10-50 mm |
| Edge banding tape thickness | : 0.4-3 mm |
| Working air pressure | : 0.7 Mpa |
| Net weight | : 3000 kg |
| Machine size | : 9400 x 900 x 1600 mm |

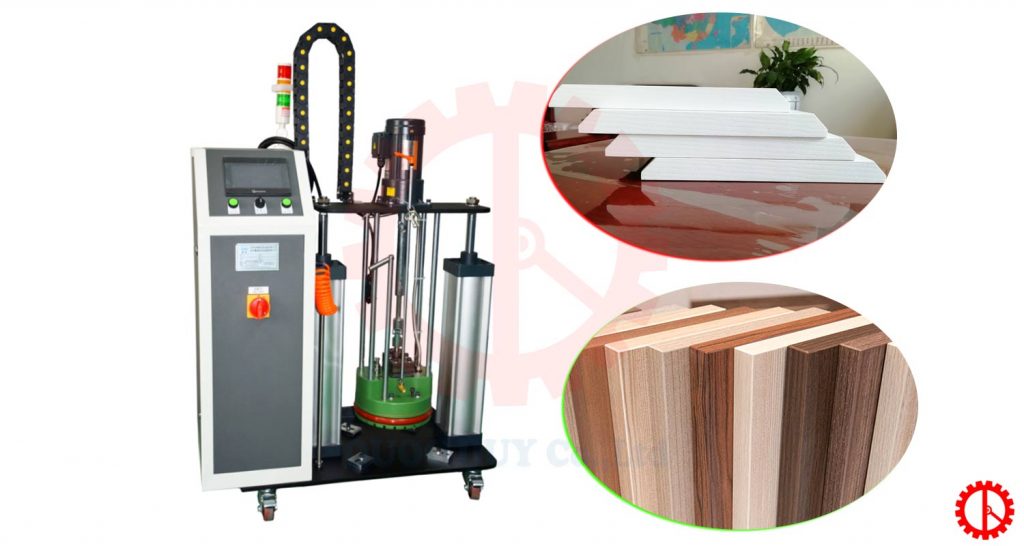

Specification of pur glue (Option)
| Installation power | : AC220V/50HZ |
| Heating capacity | : 7.5KW |
| Diameter in rubber tube | : 280 mm |
| Spin speed | : 60 rpm |
| Diameter in rubber tube | : φ8 mm |
| Air pressure | : 0.4～0.8MPa |
| Control the system | : PLC + Touch screen |
| Temperature control range | : The normal temperature -180 ℃ |
| Heating time | : 25 min |
| Pressure spray glue | : ≤50 kg/cm2 |
| Heat retention function | : No |
| Notice of overheating | : Yes |
| Notice where the temperature is too low | : Yes |
| Notice no longer glue | : Yes |
| Journey roller | : Max 600mm |
| Net weight | : 250 kg |
| Machine size | : 1040×550×1250 mm |
