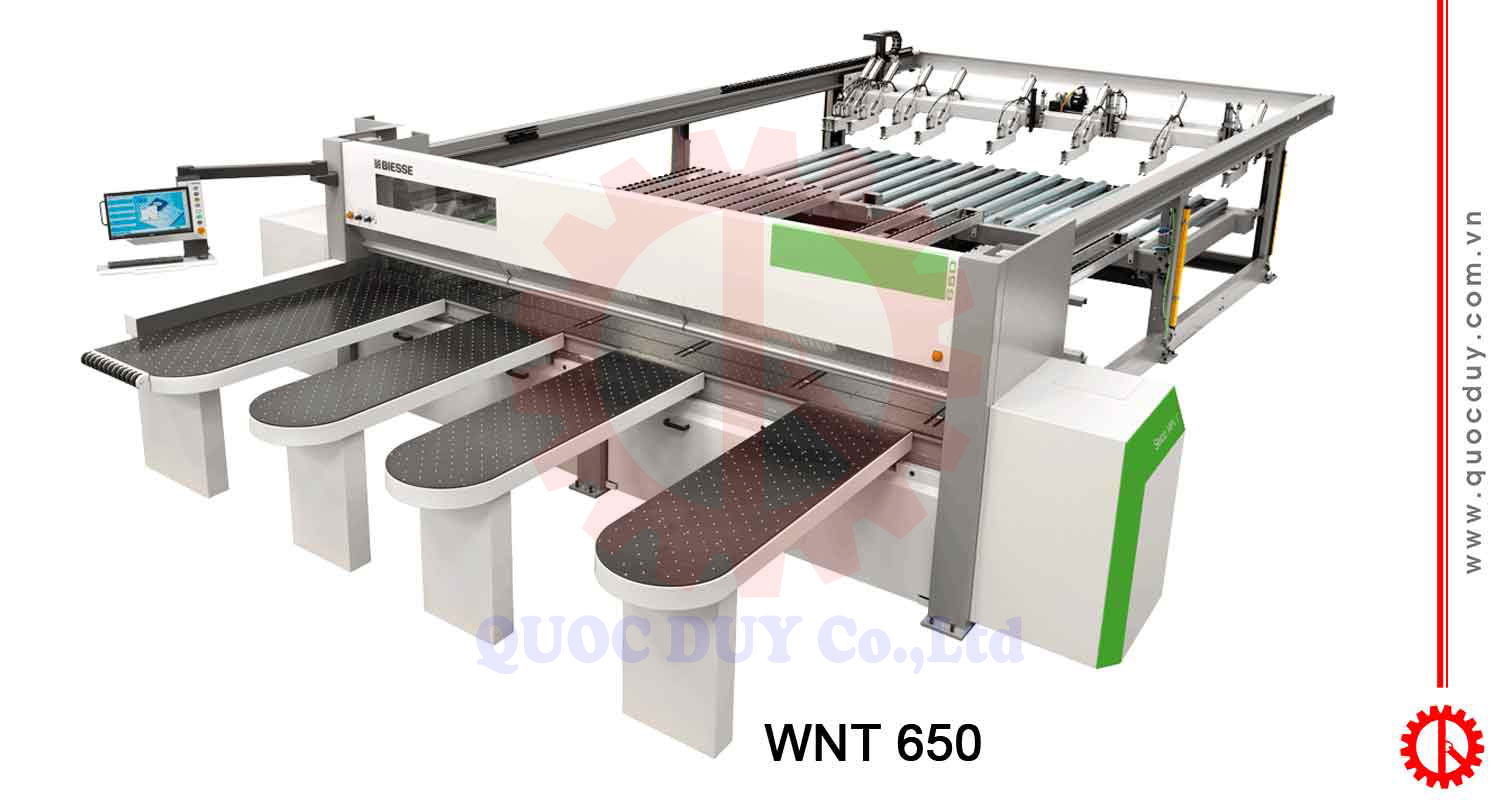

Computer panel saw for mfc biesse WNT 650
Introduction of computer panel saw for mfc biesse
Specifications
| Maximum blade protrusion | : 123 mm |
| Main blade motor | : 15.0-17.3 kw / 18.5-21.3 kw , 50-60 hz |
| Engraver blade motor | : 2.2-2.6 kw , 50-60 hz |
| Blade carriage transfer | : brushless |
| Blade carriage speed | : 0-140 m/min |
| Pushing device transfer | : brushless |
| Pushing device speed | : 90 m/min |
| Air extraction flow | : 3600 m3/h , 30 m/second |
| Averange air consumption | : 130 nl/min |
| Working area height | : 985 mm |
