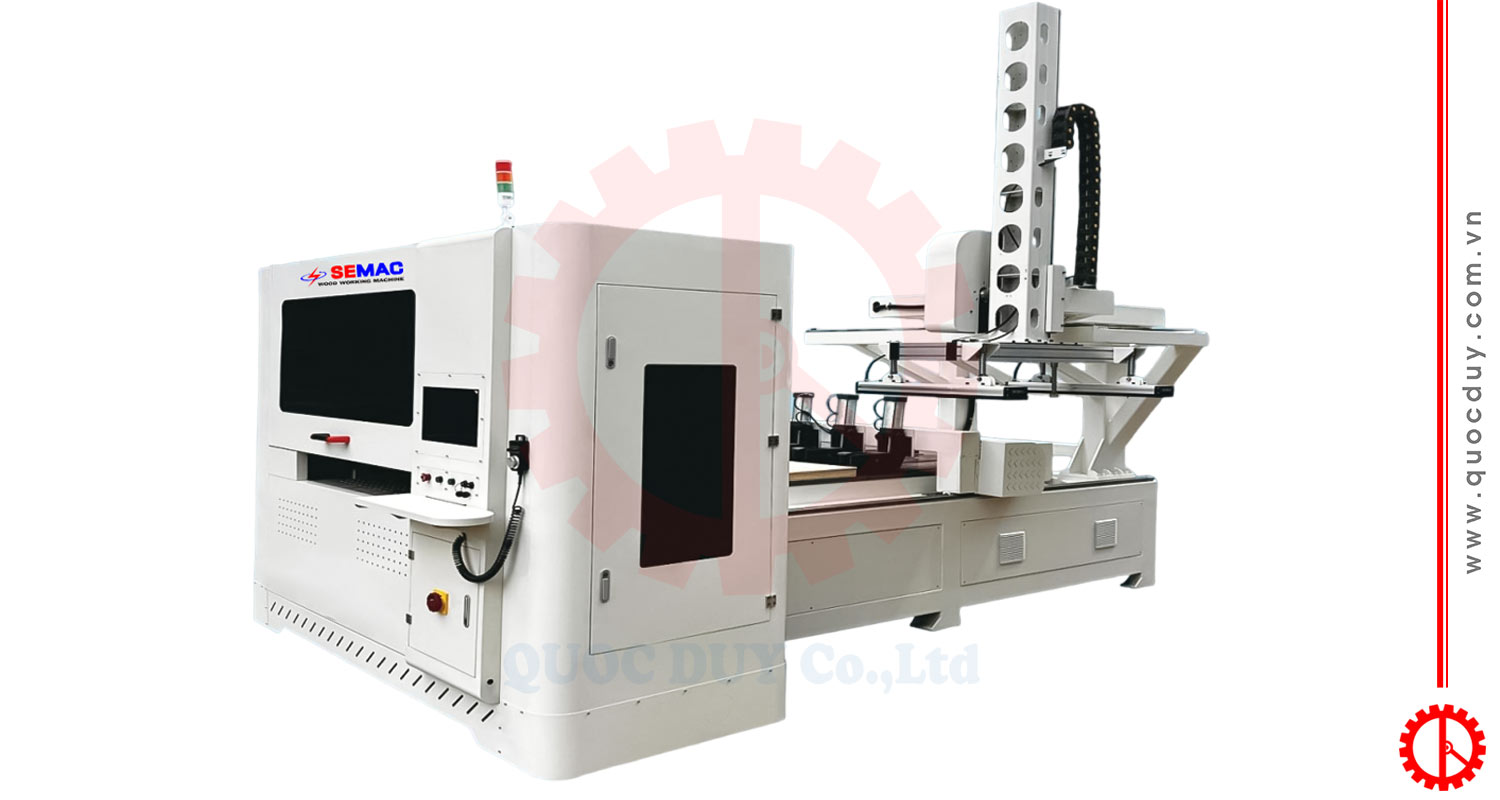

Cnc router band saw machine SM DR1
Introduction of cnc bandsaw machine
Features
- High automation CNC. Specialized for cutting and bending wood, replacing traditional saw blades. Support for DXF or XML files. Create a one-click machining program, eliminating the process of notes.
- Fast machining speed and high precision. Using a spiral-cutting tool, the rigidity is high, and compared with the strip saw, the precision of the workpiece will not be caused by the saw blade shape.
- Save the process, save labor. Straight out of the finished prodict, the processing surface is smooth , the processing angle is small, eliminating the vertical shaft process.
- High safety. No close contact with knives to ensure production safety and reduce industrial and commercial risks.
- Improve productivity and product quality
- Using a separate feed system, cutting wood is stable.
Specification
| Stroke range | : 1300×2050mm |
| Maximum processing size | : 1000×2000mm |
| Rapid traverse speed | : 60m/min |
| Maximum processing speed | : 20m/min |
| Transmission form | : XY rack/Z screw |
| Specifications of router bits | : Ø 4 – Ø 16 |
| Material grabbing device | : pneumatic clamp |
| Pressing device | : pressing roller |
| Motor | : 9KW |
| Spindle speed | : 24000rpm |
| Drive system | : Servo |
| Total power and voltage | : 15KW, 3P AC 380V/50HZ |
