Computer band saw – SDJ 2500 is specially engineered for processing chair backrests, chair legs, bed rails, and various complex curved profile components. Built for high-volume manufacturing, it delivers outstanding processing capacity, capable of producing up to 3,000 chair legs per day.
Features of computer band saw – SDJ 2500
Programmable CNC Contour Sawing: Specially designed for executing pre-programmed CAD drawings to cut complex curved profile components, including bed rails, chair legs, table legs, chair backrests, and more.
Intelligent Parameter & Cutting Path Display: Features a high-resolution display screen that provides real-time monitoring of machine parameters and the actual saw blade cutting path, allowing operators to easily make micro-adjustments.
±90 Tilting Saw Blade System: Equipped with a high-speed saw blade capable of rotating ±90, ensuring rapid processing cycles and perfectly executed angled cuts.
High-Speed, Ultra-Precise Profile Cutting: Delivers exceptional cutting speed while maintaining tight tolerances, producing flawlessly smooth curved edges directly out of the machine.
Operating principle of ban saw CNC – SDJ 2500
Not only the Ban saw CNC machine, but other woodworking machines using CNC technology have the same operating principle: the main shaft rotates in the Z direction from top to bottom and the holding table moves in the X and Y axes to feed the jigsaw blade. on all sides of the product. All of the above activities must be previously programmed on the computer.

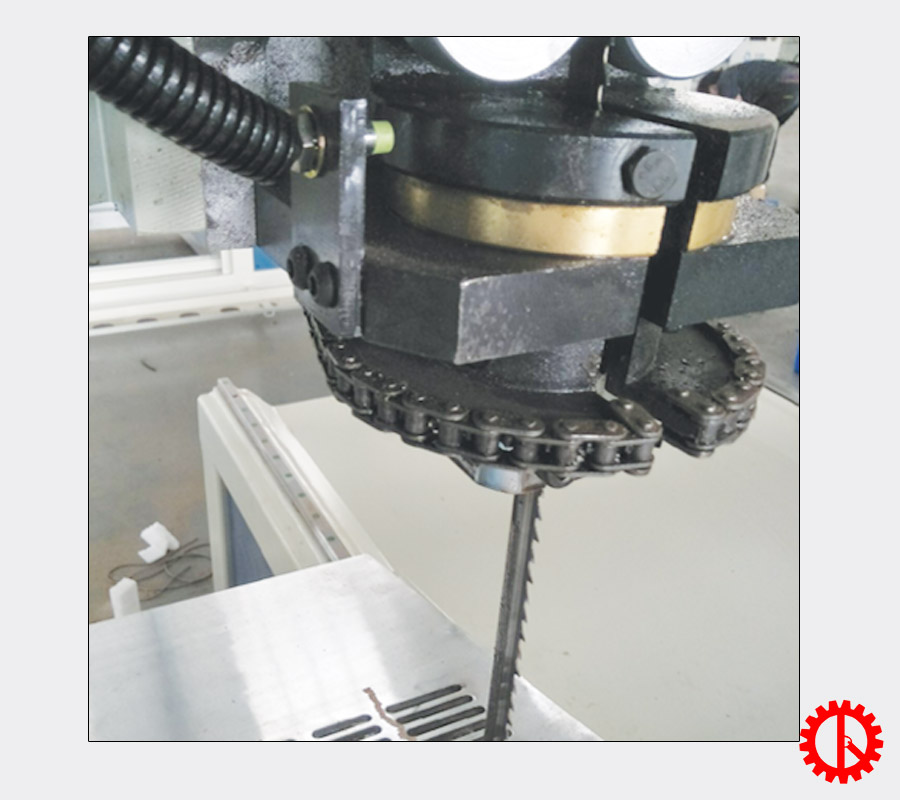

± 90 Tilting Saw Blade

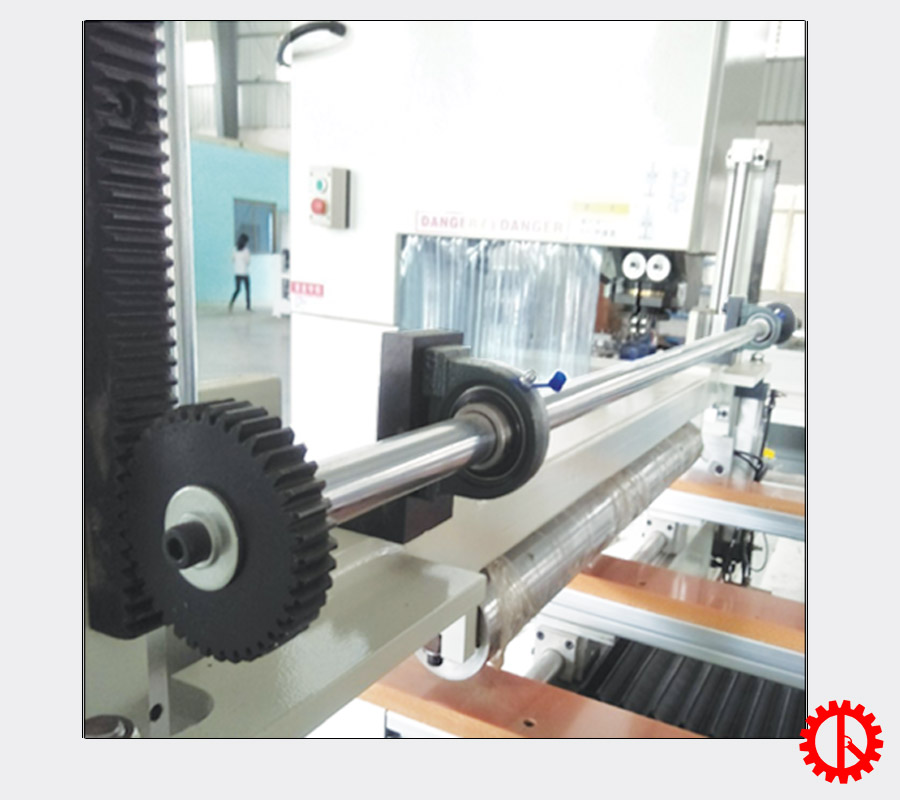

Rigid material hold-down device

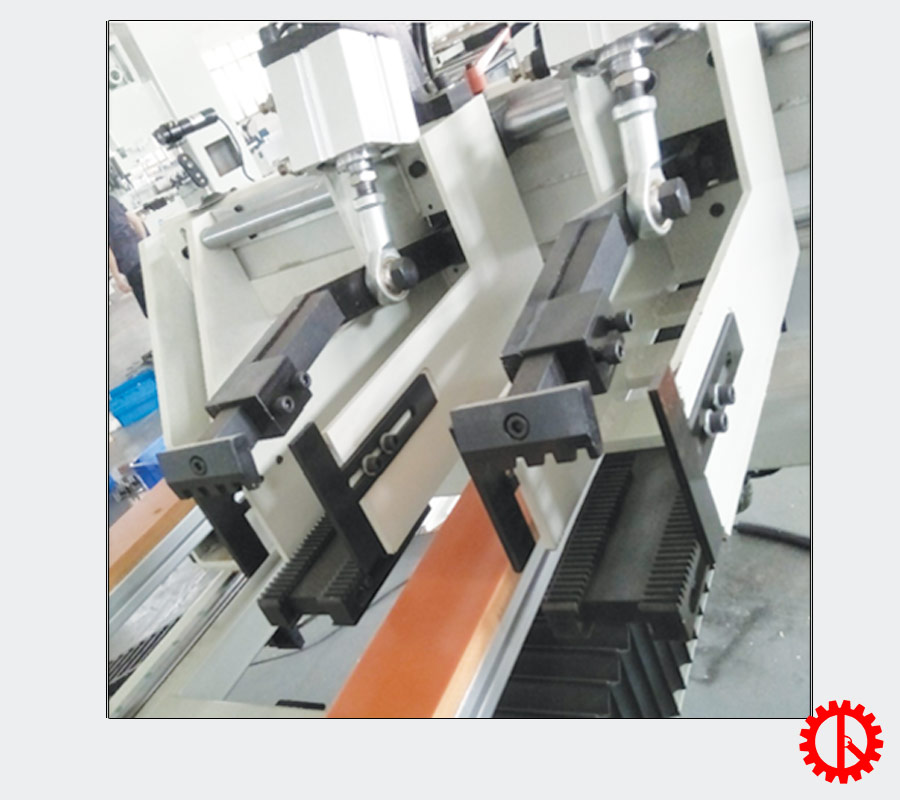

Pneumatic clamping cylinder

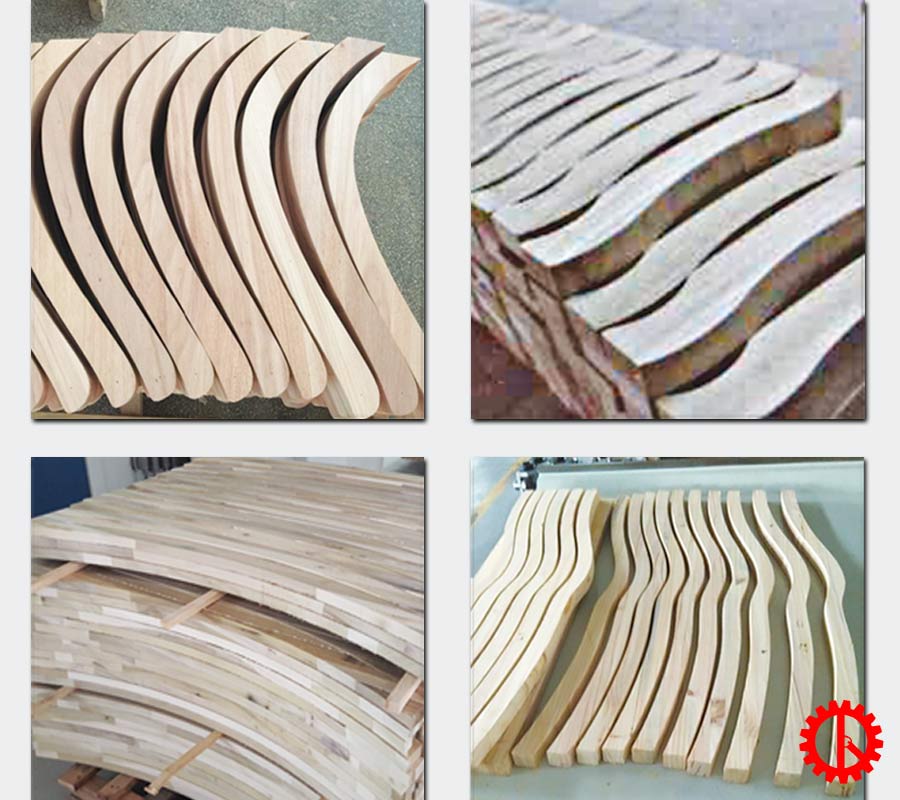

Finished Products & Workpieces
Specifications of computer band saw – SDJ 2500
| SDJ 1200 | SDJ 1500 | SDJ 2000 | SDJ 2500 | |
| Number of Axes | 3 (X-Y-Z) | 3 (X-Y-Z) | 3 (X-Y-Z) | 3 (X-Y-Z) |
| Saw Blade Size | 5340 × 16 × 0.8 mm | 5400 × 16 × 0.8 mm | 5340 × 16 × 0.8 mm | 5340 × 16 × 0.8 mm |
| Flywheel Diameter | 760 mm | 760 mm | 760 mm | 760 mm |
| Saw Blade Rotation Angle | ±90° | ±90° | ±90° | ±90° |
| Flywheel Motor Power | 7.5 kW | 7.5 kW | 7.5 kW | 7.5 kW |
| Cutting Speed | 0 – 20 m/min | 0 – 20 m/min | 0 – 20 m/min | 0 – 20 m/min |
| Feed Speed | 40 m/min | 40 m/min | 40 m/min | 40 m/min |
| Working Height | 150 mm | 150 mm | 150 mm | 150 mm |
| X-Axis Motor Power | 1.0 kW | 2.0 kW | 2.0 kW | 3.0 kW |
| Y-Axis Motor Power | 1.0 kW | 1.0 kW | 1.0 kW | 1.0 kW |
| Z-Axis Motor Power | 0.4 kW × 2 | 0.4 kW × 2 | 0.4 kW × 2 | 0.4 kW × 2 |
| Maximum Working Area | 1200 × 1250 mm | 1500 × 1250 mm | 2000 × 1250 mm | 2500 × 1250 mm |
| Minimum Turning Radius | R60 mm | R60 mm | R60 mm | R60 mm |
| Working Air Pressure | 6 kg/cm² | 6 kg/cm² | 6 kg/cm² | 6 kg/cm² |
| Dust Collection Port | Ø100 mm × 2 | Ø100 mm × 2 | Ø100 mm × 2 | Ø100 mm × 2 |
| Control Cabinet Dimensions | 1050 × 550 × 1800 mm | 1050 × 550 × 1800 mm | 1050 × 550 × 1800 mm | 1050 × 550 × 1800 mm |
| Machine Dimensions | 2800 × 2200 × 1700 mm | 1000 × 900 × 2500 mm | 1000 × 900 × 2500 mm | 5900 × 2200 × 1700 mm |
| Band Saw Dimensions | 1000 × 900 × 2500 mm | 4000 × 2200 × 1700 mm | 5000 × 2200 × 1700 mm | 1000 × 900 × 2500 mm |
Note: Technical specifications, design features, and machine colors are subject to change without prior notice. However, such changes will not affect the machine’s functionality, performance, or operating capabilities
View more: CNC router saw milling machine – SM 1500R
Operation Video COMPUTER BAND SAW – SDJ 2500
Applications of the SDJ 2500 Computer Band Saw in Furniture Manufacturing
The CNC contour band saw is specially engineered for cutting solid wood panels into complex components such as chair legs, chair slats, bed rails, and various curved profile parts. It delivers exceptional machining precision while significantly optimizing yield and reducing material waste for manufacturers.
