Computer band saw machine SDJ 2000 with parameter display screen – saw blade rotates ± 90o
INTRODUCTION OF COMPUTER BAND SAW MACHINE
Characteristics of autocad programmable wood sawing machine
- Specialized wood sawing machine for processing chair legs, bed shoulders, chair backrests, etc.
- The machine operates with high capacity, processing 3,000 chair legs/day.
Features of computer band saw machine
- The Autocad CNC SDJ 2000 programmable wood saw operates based on Autocad drawings previously programmed on the computer.
- The machine cuts out curved products details with precise cutting lines and fast cutting speed.
- The screen displays parameters, saw blade cutting path, and easy-to-adjust parameters.
- The machine operates at high speed, saving cutting workpieces.
- The saw blade is equipped with a protective shield, the saw blade rotates at an angle of ± 90 degrees.
Specifications of computer band saw machine
| Number of universal driving CNC shafts | 03 |
| Saw blade specification | 5340 x 16 x 0.8 mm |
| Saw wheel diameter | 760 mm |
| Saw blade rotation angle | ± 90o |
| Spondle power | 7.5 kw |
| Max.working speed | 0-20 m/phút |
| Max.retraction speed | 40 m/phút |
| Working height | 150 mm |
| X-axis servo motor | 2.0 kw |
| Y-axis servo motor | 1.0kw |
| Z-axis servo motor | 0.4 kw x 2 |
| Max.working size | 2000 x 1250 mm |
| Minimum turning radius | R= 60 mm |
| Working air pressure | 100 mm x 2 |
| Dust suction inlet | 6 kg/cm3 |
| Electrical cubicle sizes | 1050 x 550 x 1800 mm |
| Machine head sizes | 1000 x 900 x 2500 mm |
| Machine sizes | 5000 x 2200 x 1700 mm |
Structures of Computer band saw machine

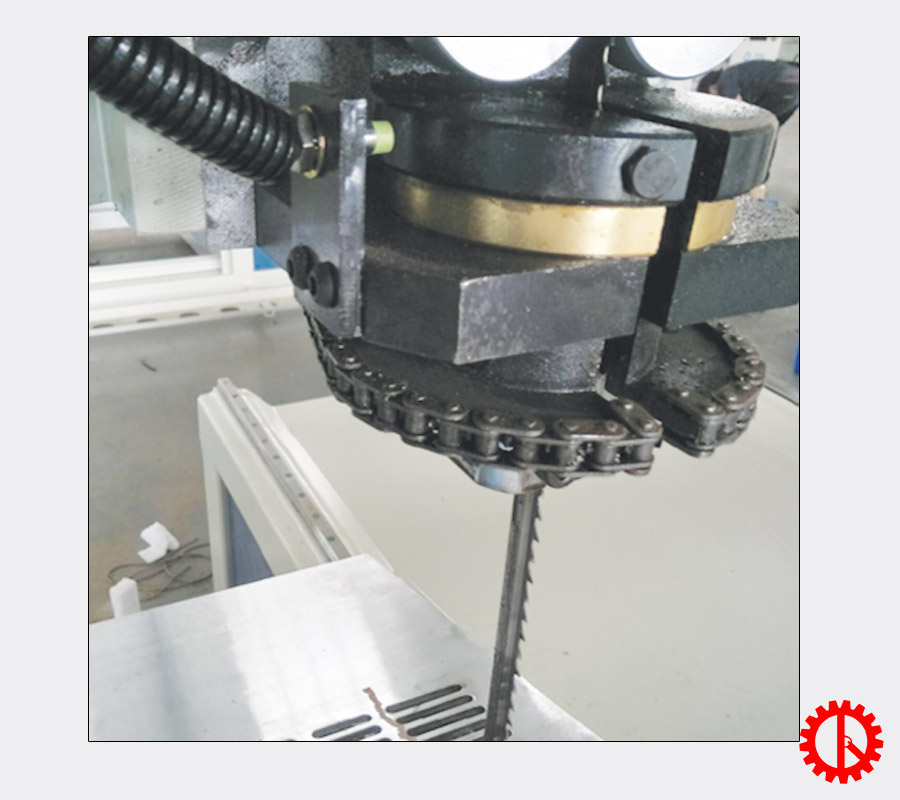

Blade saw rotary ± 90o

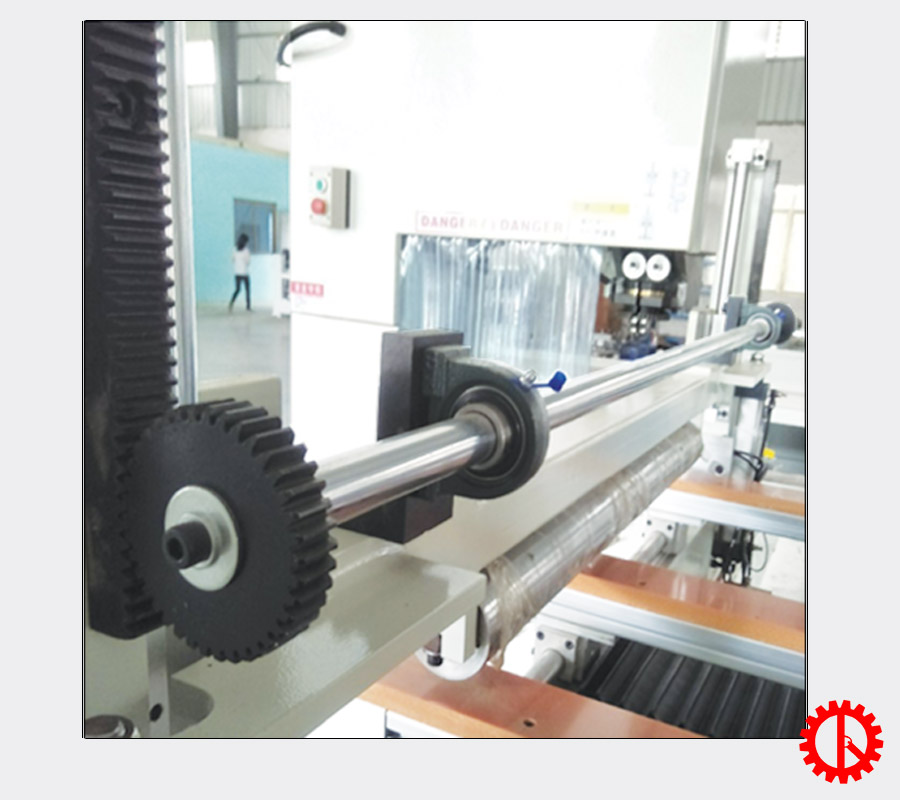

Synchoronors nip rolls is available for effectively resolving the problem of uneven timber stock

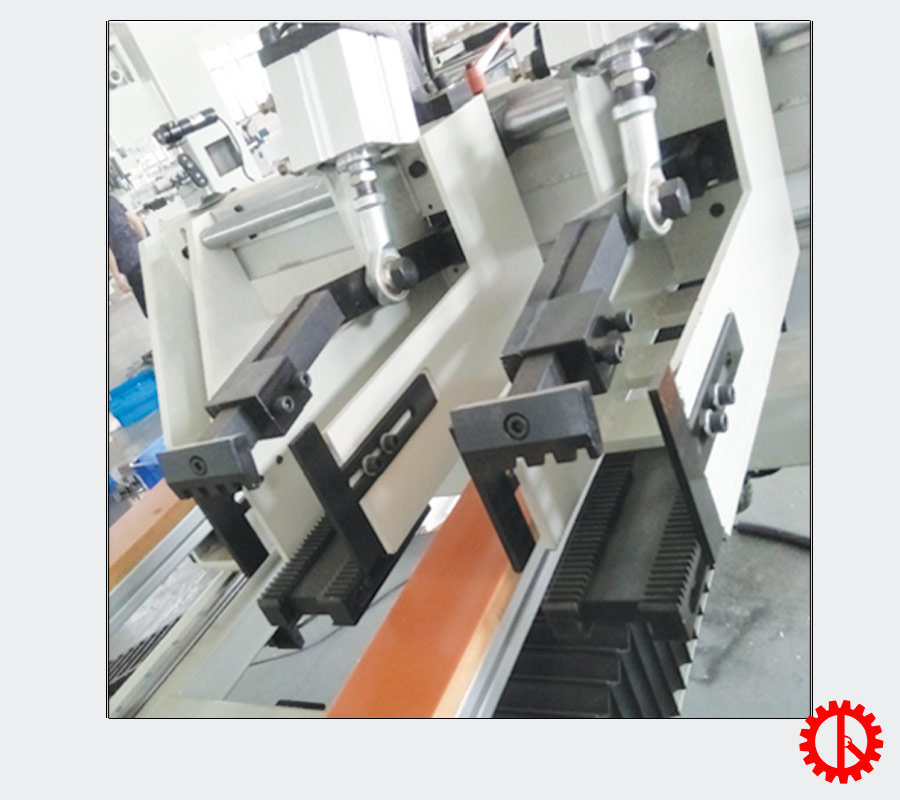

Clamping device up to 150mm

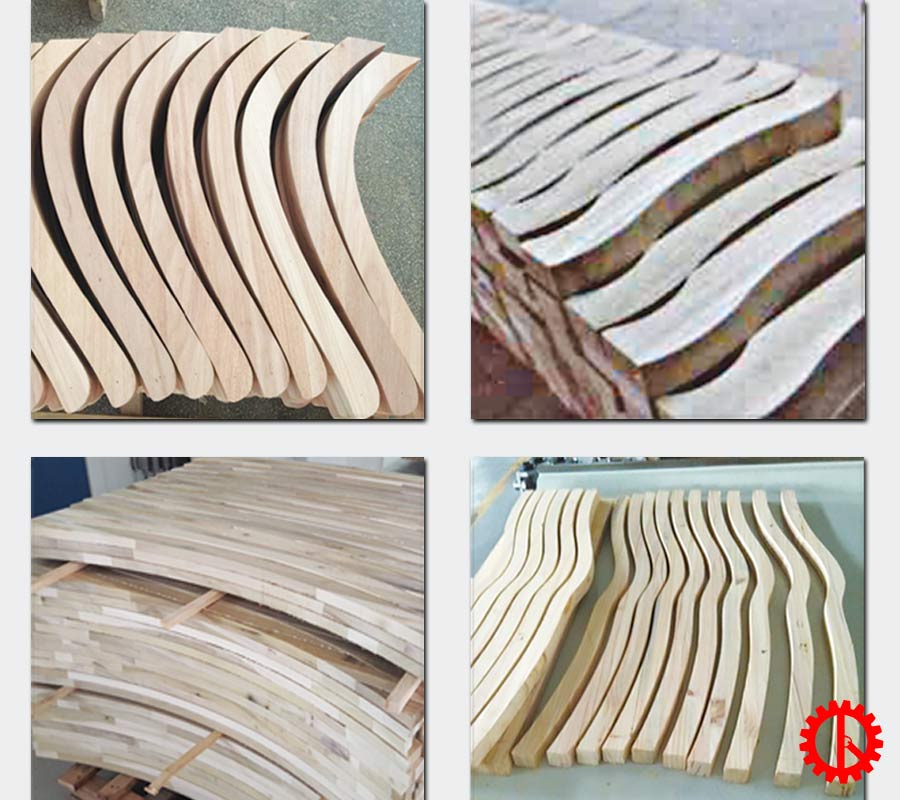

Products – processing details
VIDEO OF OPERATION OF CNC SAW MACHINE
Application of computer band saw machine
Computer band saw semac is specialized for processing curved profile details such as bed shoulders, chair legs, table legs, chair backrests, etc. Large capacity, processing 3000 processed legs/day, economical production time.
LATEST COMPUTER BAND SAW MACHINE PRICE
Ban saw CNC is one of the fast-speed woodworking machines. Capacity up to 3000 chair legs/day. A great assistant for furniture processing factories – making wooden chairs, etc. With the ability to process at high capacity – helping customers improve productivity.
To quickly update the selling price of sawing machine system. Customers can contact Quoc Duy directly via the following information:
- Email : info@quocduy.com.vn
- Hotline : 0903 600 113
- Website : www.quocduy.com.vn – www.semac.com.vn
- Showroom: 401 To Ngoc Van, Thanh Xuan Ward, District 12, Ho Chi Minh City
