Automatic heavy dual-sided planing machine – SM 635ARD

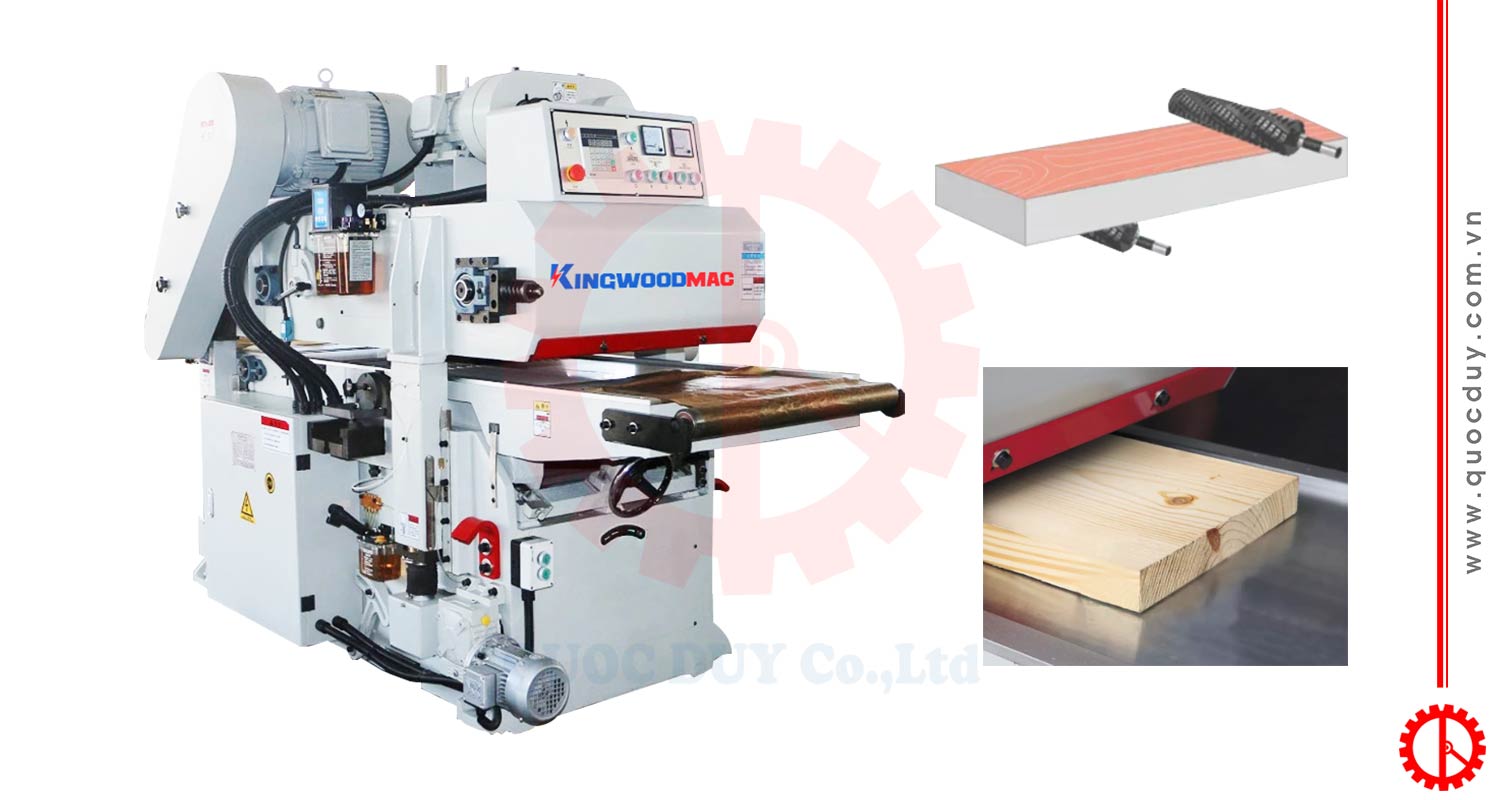

Introducing the automatic heavy dual-sided planing machine
Features of automatic heavy dual-sided planing machine
– Cast iron bed with good shock absorption and stability is processed by pentahedral processing center. The lifting column is made of turbine scroll, which provides a good foundation for tool shaft and feeding.
– Standard carbide helical shaft, high-precision imported bearings for the machine to provide a very healthy heart;
– The use of crawler-type elastic pressure claw (with lifting function) according to the thickness of the wood, the degree of bending choose elastic pressure claw feeding distance, the workpiece processing accuracy is greatly improved, feeding powerful;
– Planer machine tool knife axis and the pressure roller and the smooth feeding mechanism, equipped with manual fine-tuning and motorized mechanism, so that positioning fast and accurate. Pressure planing part of the upper and lower feed roller linkage feeding, strong thrust balance;
– Taiwan imported products equipped with digital display device, the operating panel can be directly on the processing thickness, accuracy up to 0.1mm, standard speed control feeding;
– Countertops hard chrome plated special treatment, wear-resistant, smooth.
Specifications of automatic heavy dual-sided planing machine
| Max wording width | : 635mm |
| Max wording thickness | : 200mm |
| Min wording thickness | : 10mm |
| Minwording length | : 310mm |
| Number of planing blades | : 100pcs |
| Tool shaft diameter | : 126 |
| Knife shaft speed | : 5000RPM |
| Variable frequency feed speed | : 8-18m/ min |
| Hút bụi | : trên 127mm/ dưới 152mm |
| Workbench area | : 686x2591mm |
| Upper shaft motor | : 20HP |
| Lower shaft motor | : 15HP |
| Feed motor | : 3HP |
| Mechanical dimensions | : 2672x1145x1700mm |
| Mechanical packing size | : 2772x1280x1850mm |
| Mechanical packing weight | : 3500kg |
