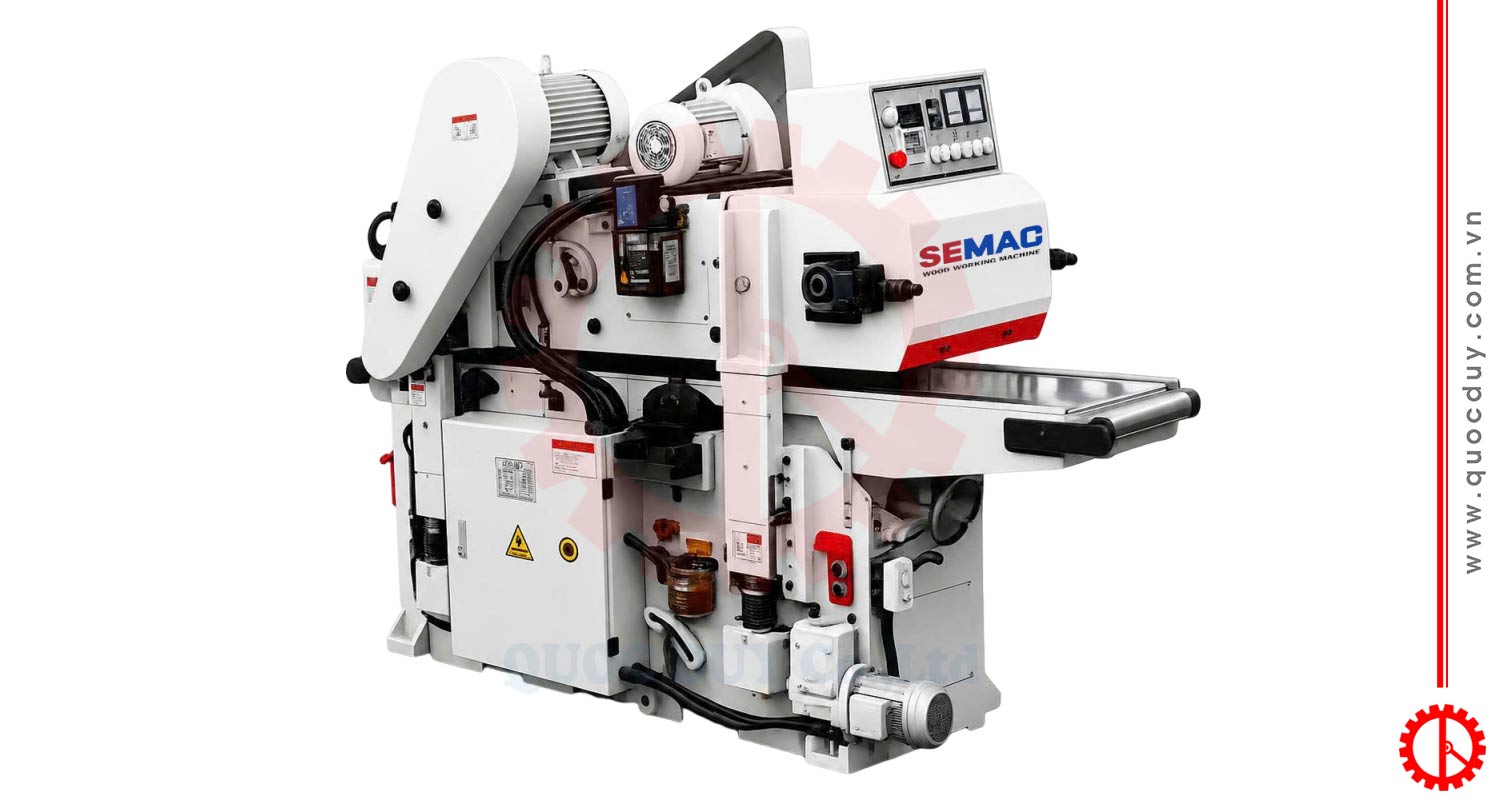

600mm heavy duty double surface planer – SMVK 610ARD is an industrial-grade wood processing equipment engineered for large-scale natural timber production and high-precision thickness calibration. Featuring synchronized top and bottom cutterheads, the machine flattens and smooths both sides of the wood within a single pass, drastically minimizing cycle times and cutting labor costs for large furniture factories.
Feature of 600mm heavy duty double surface planer
Ideal for Primary Wood Processing & Dual-Side Smoothing: Perfectly applied in the initial calibration stage to simultaneously flatten and smooth both top and bottom surfaces of the timber workpieces.
High-Grade Anti-Vibration Structure: Built with premium-quality materials, the robust machine frame completely eliminates vibrations, ensuring rock-solid stability and higher operational efficiency.
High-Power Cutterhead Motor with Spiral Blades: Equipped with a heavy-duty motor combined with an advanced spiral/helical cutterhead to deliver flawless, ultra-smooth, and flat surface finishes.
Automatic Lubrication System: Features a smart automated oil lubrication system that continuously protects moving components, drastically extending the service life of mechanical parts.
Specifications of 600mm heavy duty double surface planer
| Working thickness | : 9-200 mm |
| Working width | : 10-610 mm |
| Min. working length | : 300mm |
| Max. cutting depth | : Upper cutter 5mm, bottom cutter 5mm |
| Saw spindle diameter | : Φ100mm |
| Saw spindle speed | : 5000 rpm |
| Feeding speed | : 3–24m/min |
| Upper cutting spindle motor | : 11 kw |
| Bottom cutting spindle motor | : 7.5 kw |
| Feeding motor power | : 3 kw |
| Lifting motor power | : 0.37 kw |
| Total power | : 21.87kw |
| Dust exit diameter | : Φ150mm |
| Voltage | : 380V |
| Overall size | : 2100×1150×1700mm |
| Packing size | : 2200×1150×1750mm |
| Net weight | : 2400kg |
