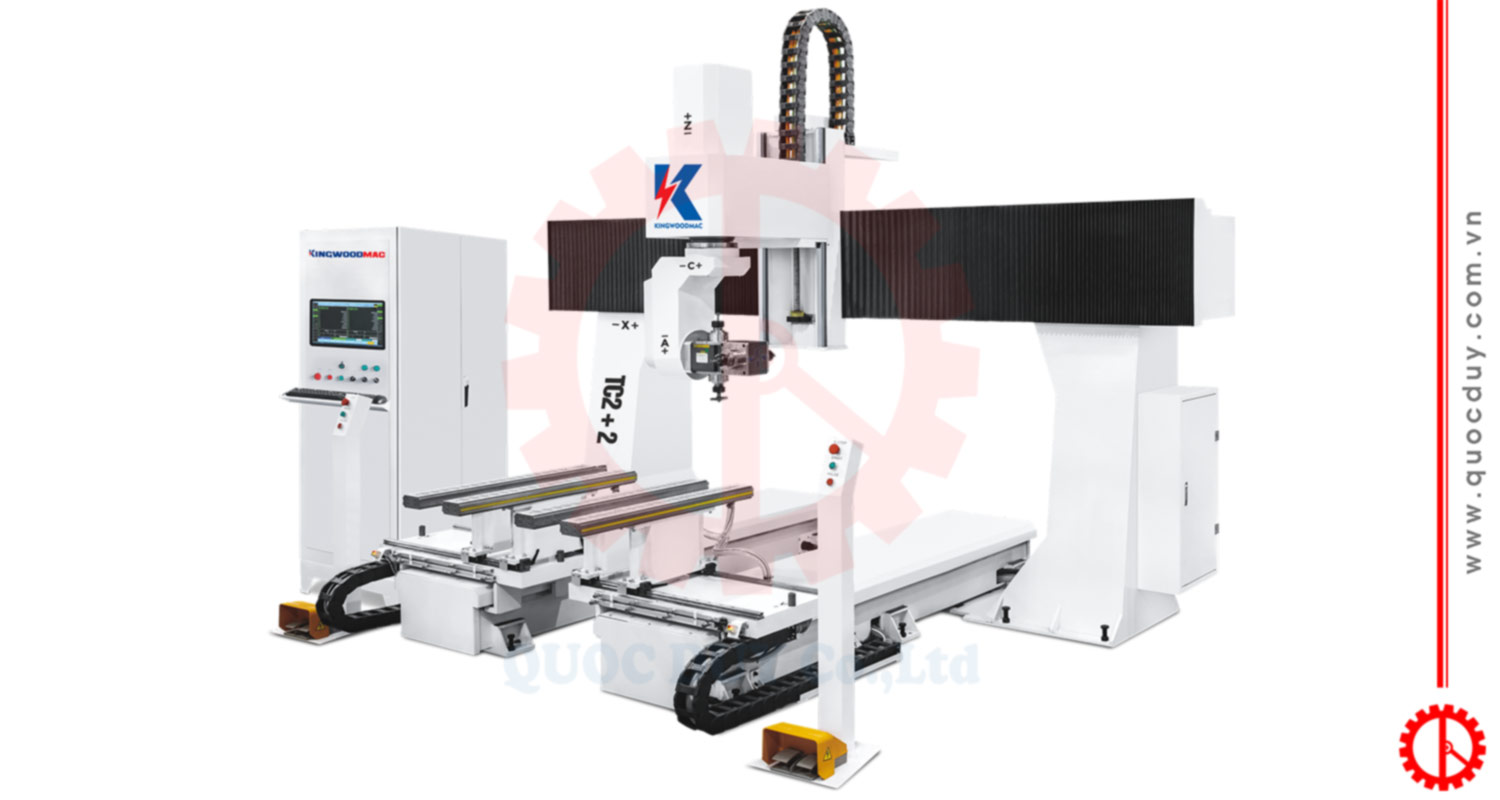

5-Axis 4-head 3D CNC machining center – KW TC2+2 is a versatile machining solution engineered for complex 3D wooden components, including chair seats, backrests, table legs, and wooden posts. Featuring 5 motion axes and integrated 3D simulation software, the machine optimizes toolpaths, minimizes collision risks, and maximizes overall machining efficiency.
Features of 5-Axis 4-head 3D CNC machining center
- The machine performs a wide range of functions—such as milling, drilling, grooving, and 45-degree bevel cutting—utilizing 5-axis motion to process complex 3D profiles like chair seats and legs.
The machine features a robust frame design, ensuring stable operation during the manufacturing process.
It utilizes dual 9kW spindles arranged in a cross configuration, allowing for the simultaneous mounting of four tools; this enables the concurrent processing of different products, increasing efficiency and reducing production time.
The adjustable vacuum bar worktable allows for flexible left-right positioning and facilitates the easy installation of pneumatic fixtures.
Specialized 3D simulation software: Helps prevent collision risks, eliminates unnecessary pauses and tool paths, reduces programming time, and enhances production efficiency. It is compatible with various market-standard programming software (such as NX, AlphaCam, etc.) and is user-friendly.
SYNTEC servo motors and high-precision drive structures: The mechanical system employs servo motors to drive high-precision transmission components on each axis.
SYNTEC (Taiwan) controller: Ensures stable, high-precision operation and ease of use.
Automatic lubrication system: Delivers oil to transmission components—such as guide rails, racks, and gears—ensuring smooth, high-precision movement.
Specifications of 5-Axis 4-head 3D CNC machining center
| Working Table Size | : 1130 x 980 mm (2 tables) |
| X-Axis Travel | : 3200 mm |
| Y/V-Axis Travel | : 2000 mm |
| Z-Axis Travel | : 820 mm |
| C-Axis Travel | : ±540° |
| A-Axis Travel | : ±360° |
| Max. X-Axis Travel Speed | : 60 m/min |
| Max. Y/V-Axis Travel Speed | : 40 m/min |
| Max. Z-Axis Travel Speed | : 30 m/min |
| X-Axis Servo Motor Power | : 1.7 kW |
| Y/V-Axis Servo Motor Power | : 1.7 kW |
| Z-Axis Servo Motor Power | : 2.4 kW |
| C-Axis Servo Motor Power | : 1.7 kW |
| A-Axis Servo Motor Power | : 1.1 kW |
| Spindle Motor Power | : 9 kW x 2 units – speed 24,000 rpm |
| Vacuum Pump | : 4 kW x 2 units |
| Voltage | : 380 V / 50 Hz |
| Working Pressure | : 0.7 – 0.8 MPa |
| Machine Weight | : 5000 kg |
| Machine Dimensions | :4500 x 3000 x 3250 mm |
Note: Technical specifications, design features, and machine colors are subject to change without prior notice. However, such changes will not affect the machine’s functionality, performance, or operating capabilities
View more: 5-Axis 4-head CNC machining center with dual z-axes – MASTER T4Z2
Trusted Supplier of 5-Axis 4-head 3D CNC machining center
With over 23 years of experience in the woodworking machinery industry, Quoc Duy Woodworking Machinery Factory is a reputable provider of diverse 5-axis 3D CNC machines and advanced CNC processing solutions. Quoc Duy offers a comprehensive range of 5-axis CNC configurations—from non-ATC (fixed-tool) units and automatic tool changers (ATC) to multi-head systems—meeting a wide variety of 3D processing requirements.
When investing in the KW TC2+2, customers receive end-to-end support, including technology consulting, configuration selection, machine delivery, installation, operational training, and technical transfer. Quoc Duy also provides up to a 12-month warranty, along with ongoing maintenance, repair, and spare parts support throughout the machine’s operational lifecycle.
