5-Axis 4-head CNC machining center with dual z-axes – MASTER T4Z2

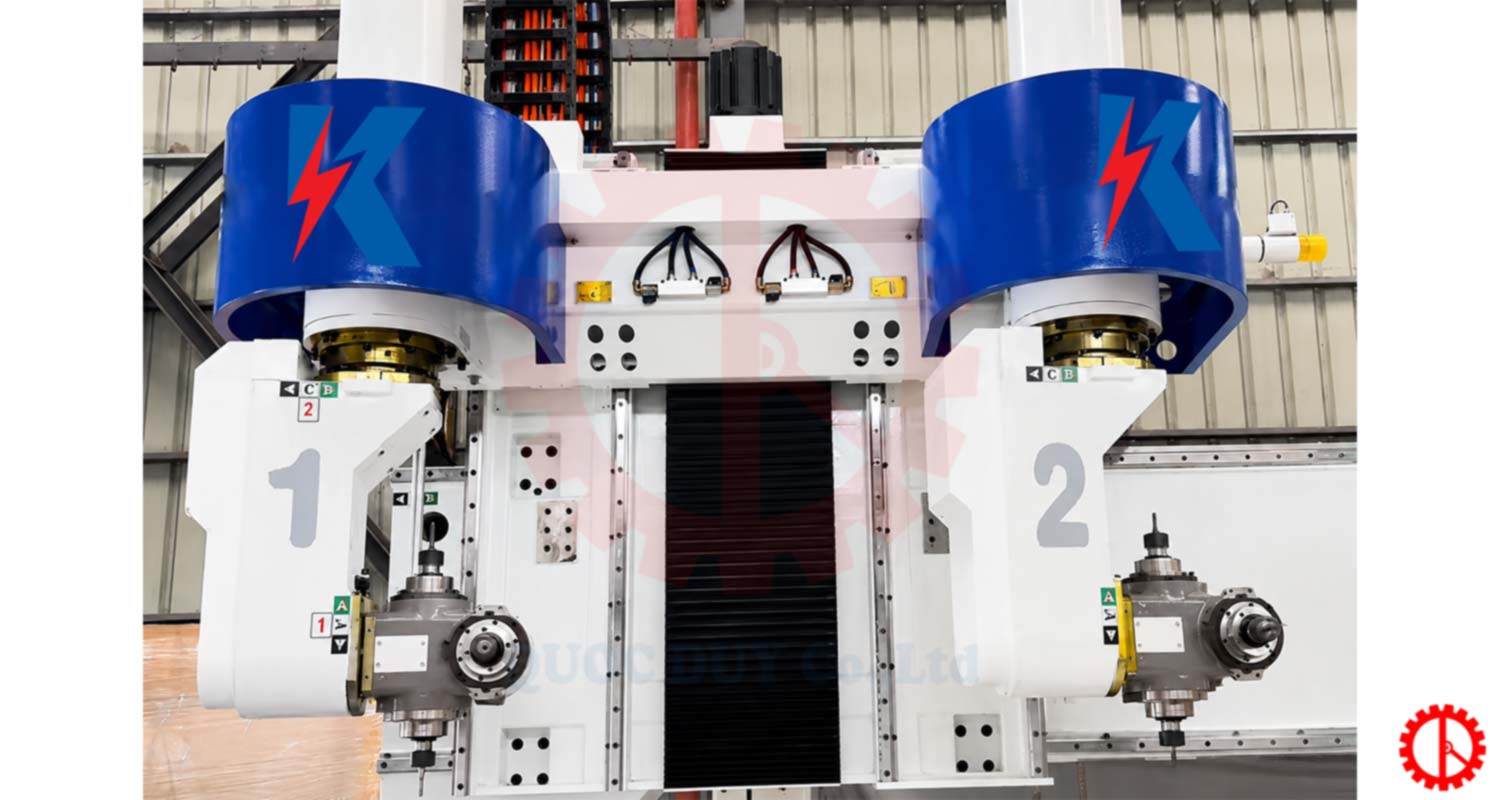

Features of 5-Axis 4 head CNC machining center with dual z-axes
Versatile 5-Axis Machining: Capable of processing complex 3D spatial curves, intricate geometric parts, and high-precision technical workpieces—significantly accelerating machining speed and shortening total production cycles.
Ultra-Fast Tool Changing: Switches between tool heads in less than 1 second, minimizing non-cutting cycle times to enhance surface finish quality and optimize operational efficiency.
Flexible Multi-Geometry Machining: Performs versatile operations across flat, curved, and inclined surfaces, compound-angled holes, 2D/3D contours, and complex 3D profiles.
Practical Applications: Engineered specifically for both roughing and finishing operations on solid wood items, custom-profiled components, and complex-shaped workpieces.
Specifications of 5-Axis 4 head CNC machining center with dual z-axes
| Maximum X-Axis Speed | 45 m/min |
| Maximum Y-Axis Speed | 45 m/min |
| Maximum U-Axis Speed | 45 m/min |
| Maximum Z-Axis Speed | 45 m/min |
| A-Axis Rotation | Spindle Head ±120° |
| C-Axis Rotation | ±380° |
| Spindle Configuration | Single Spindle, 2 Manual Tool Holders, 2R + 2L Tool Interface (2 Right + 2 Left) |
| Spindle Motor Power | 7.5 kW + 7.5 kW |
| Maximum Spindle Speed | 18000 rpm |
| Cooling Method | Water Cooling |
| Tool Holder | ER32 × 4 |
| Bearing Configuration | Imported High-Speed Ceramic Bearings |
| Tool Compatibility | Straight Cutters, Profile Cutters, and Saw Blades |
| Power Supply | 380V / 3 Phase / 50Hz |
| Working Air Pressure | 6 bar |
| Input Power | 35 kW |
| Air Inlet Diameter | Ø16 mm |
| Power Cable Size | 10 mm² |
| Dimensions | 8200 × 3010 × 3000 mm |
Note: Technical specifications, design features, and machine colors are subject to change without prior notice. However, such changes will not affect the machine’s functionality, performance, or operating capabilities.
View more: 5-Axis CNC machining center with four independent heads – MASTER T4Z4
