250mm Thick finger joint shaper – FS 3525
Features of 250mm Thick finger joint shaper

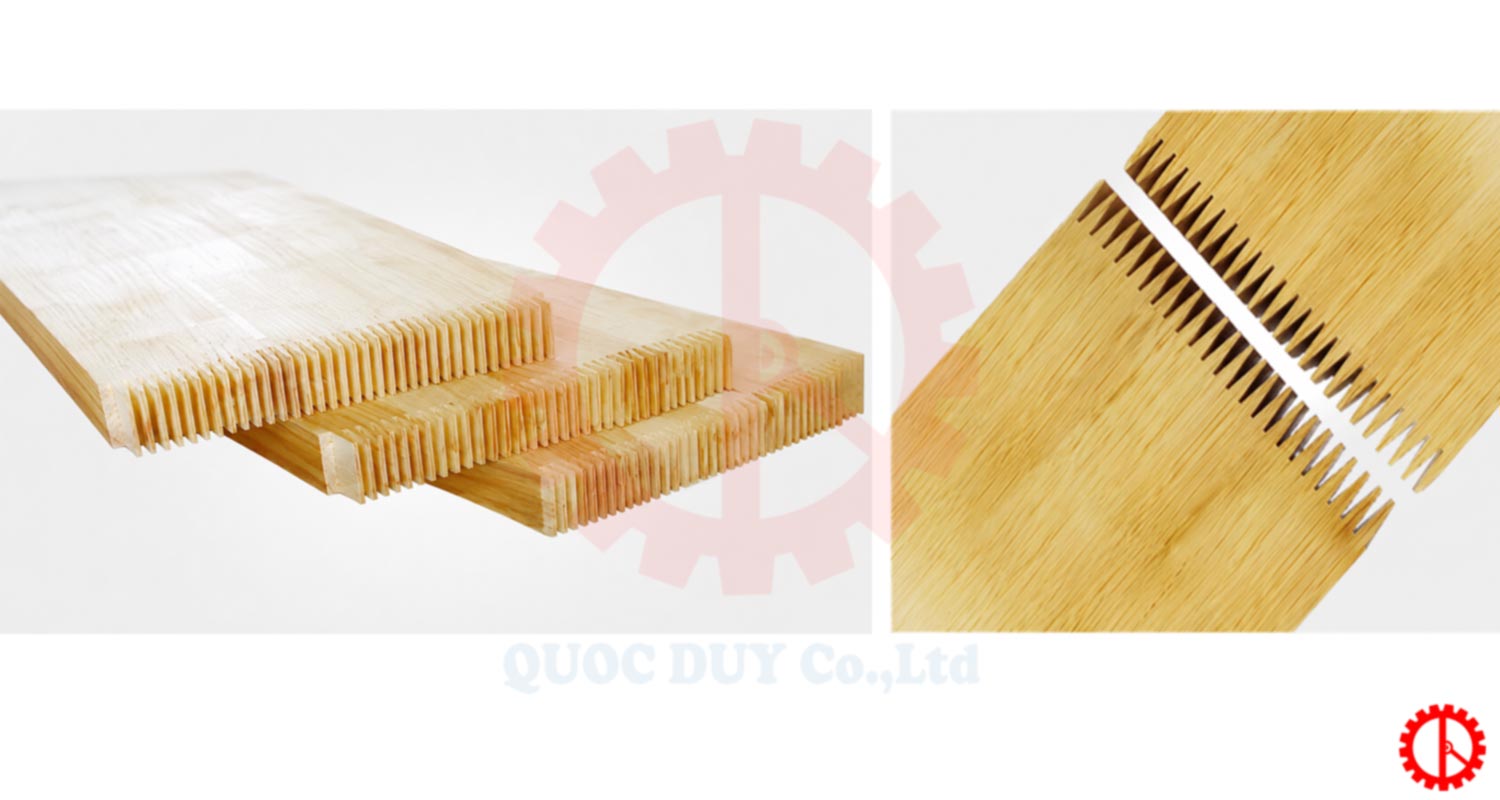

All-in-One Multi-Function Processing: Integrates end-trimming, finger profiling, waste shredding, and deburring functions into a single pass—significantly boosting overall production efficiency.
High-Speed Adjustable Spindle: The high-speed profiling spindle offers flexible vertical (up/down) adjustment to meet precise processing requirements. The main spindle is fitted with sealed angular contact ball bearings to ensure maximum running precision.
Precision Linear Guidance: The working table utilizes high-grade imported linear guide rails and precision bearings, guaranteeing stable, accurate, and long-lasting operation.
Pneumatic Clamping System: Features a reliable pneumatic clamping system that securely holds workpieces in place, ensuring operational safety and precision machining.
Servo-Driven Table Positioning: The table movement mechanism is driven by a high-precision servo system, delivering step-by-step automated infeed at high production rates.
PLC Automation & Control: Built with an advanced PLC electrical control system, offering highly stable performance, intuitive operation, and easy maintenance.
Specifications of 250mm Thick finger joint shaper
| Maximum Working Width | 500 mm |
| Minimum Working Length | 250 mm |
| Working Thickness | 20 – 250 mm |
| Saw Blade Speed | 2800 rpm |
| Saw Motor Power | 5.5 kW |
| Grooving Saw Blade Speed | 2800 rpm |
| Grooving Saw Motor Power | 0.75 kW |
| Tenoning Spindle Speed | 6500 rpm |
| Tenoning Spindle Motor Power | 22 kW × 2 (2 Spindles) |
| Tenoning Spindle Diameter | 70 mm |
| Servo Motor Power | 5.5 kW |
| Total Power | 55.75 kW |
| Working Air Pressure | 0.6 MPa |
| Compatible Cutter Diameter | 210 mm |
| Working Table Size | 700 × 650 mm |
Note: Technical specifications, design features, and machine colors are subject to change without prior notice. However, such changes will not affect the machine’s functionality, performance, or operating capabilities
