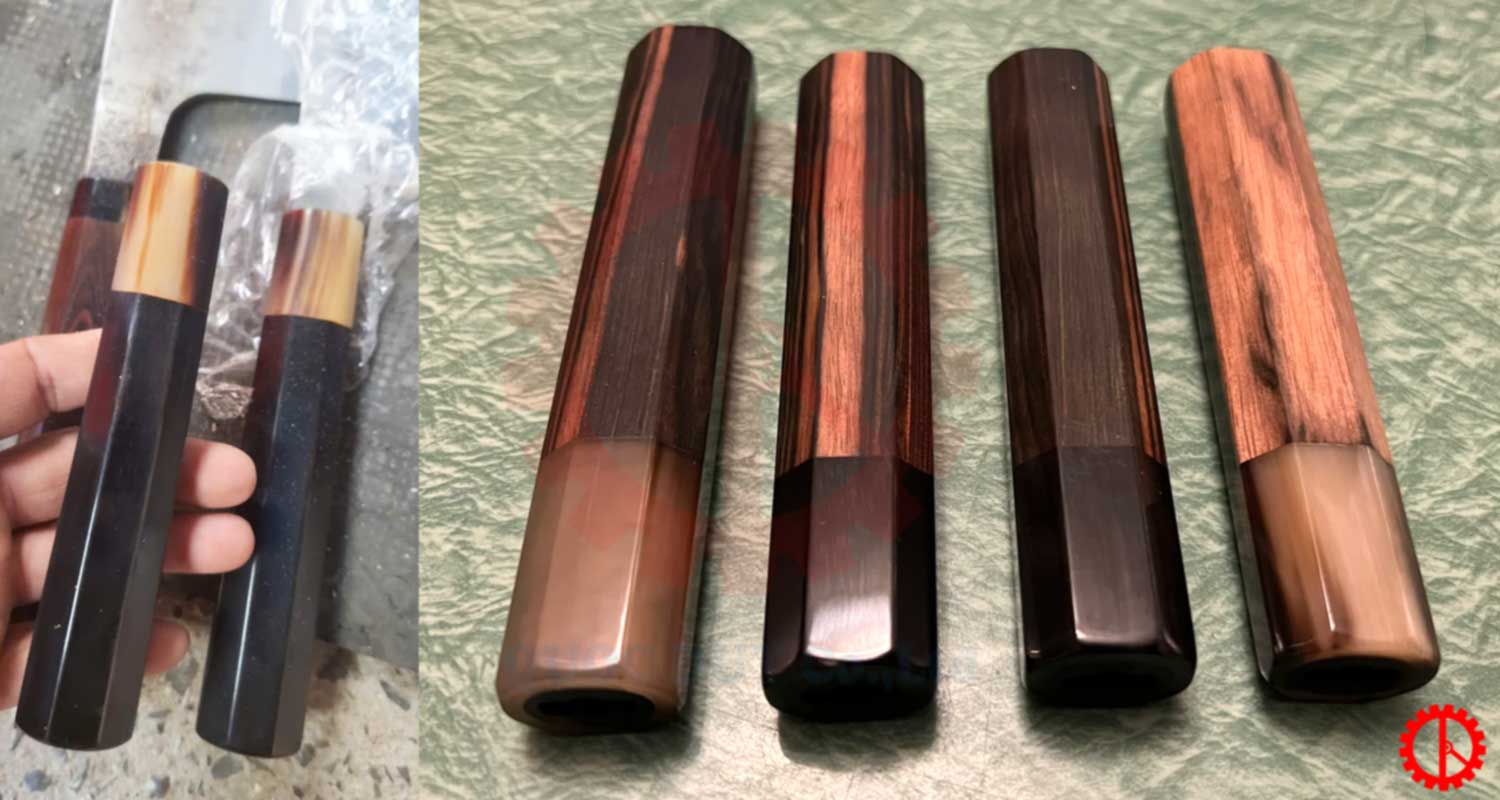

Wooden knife handle milling & turning machine – SMTJ 6M is a specialized equipment designed for shaping wooden knife handles and similar contoured wooden components. Combining both milling and turning capabilities, it enables rapid profiling with high repeatability and consistency across workpieces—making it ideal for high-volume production of knife handles, tool grips, and custom wooden accessories.
Features of Wooden knife handle milling & turning machine
Versatile Handle Profiling: Specialized for milling and turning wooden knife handles across a wide range of complex profile designs.
High Batch Consistency: Produces multiple workpieces with identical dimensions and uniform shapes, ideal for high-volume mass production.
Heavy-Duty Construction: Built with a rigid, high-durability lathe frame engineered for continuous industrial operation.
Specifications of Wooden knife handle milling & turning machine
| Machining Mode | : CNC Digital Machining (CNC Programming) |
| Control System | : Shanlong CNC Smart System |
| Processing Travel (L × W × H) | : 2000 mm × 500 mm × 100 mm |
| Travel Speed | : 0 – 15,000 mm/min |
| Spindle Motor Power | : 6.0 kW |
| Repeatability Accuracy | : ±0.05 mm |
| Program Storage Capacity | : 100 groups |
| Display Mode | : Controlled via CNC System |
| Motor System | : Leadshine Servo Motor |
| Worktable | : Aluminum Profile + Pneumatic Clamps |
| Linear Guide Rails | : PMI Linear Guide Rails (Shanghai Yintai) |
| Suitable Processing Material | : Wood |
| Number of CNC Axes | : 2 X-Axes / 2 Y-Axes / 2 Z-Axes (Total 6 Servo Assemblies) |
| Input Power Supply | : AC 380V (Three-Phase) |
| External Control Interface | : Includes Handwheel |
| Machine Dimensions | : 3700 × 1300 × 1800 mm |
| Machine Weight | : 1000 kg |
Note: Technical specifications, design features, and machine colors are subject to change without prior notice. However, such changes will not affect the machine’s functionality, performance, or operating capabilities.
View more: 5-axis 3d CNC wood lathe – KW 0415 FT
Get a quote for the Wooden knife handle milling & turning machine (2026)
For manufacturers specializing in knife handles, tool grips, and contoured wooden components, the SMTJ 6M is the ideal solution for transitioning from manual crafting to stable, high-volume production. When investing, selecting the optimal setup requires balancing product geometry, target output, and budget requirements.
Backed by over 23 years of woodworking machinery expertise, Quoc Duy provides end-to-end support—from technical consultation and equipment selection to factory delivery, installation, and hands-on operator training. 2026 pricing for the SMTJ 6M is updated based on current sales policies at the time of order placement.
