VENEER SAWING & MILLING MACHINE - SM 4000VSR

Veneer sawing & milling machine – SM 4000VSR is the ultimate solution for furniture manufacturing workshops that need to process long, straight, beautiful, and precise veneer edges. The machine features a heavy-duty design and stable operation with high-speed cutting, saving time and improving finished product quality. It delivers smooth and sharp cuts while minimizing cutting defects, making it suitable for a wide variety of veneers.

Features of Veneer sawing & milling machine – SM 4000VSR

Heavy-duty machine frame, ensuring stability during continuous operation.
Maximum working length up to 4000mm, perfectly suited for large-sized veneer sheets.

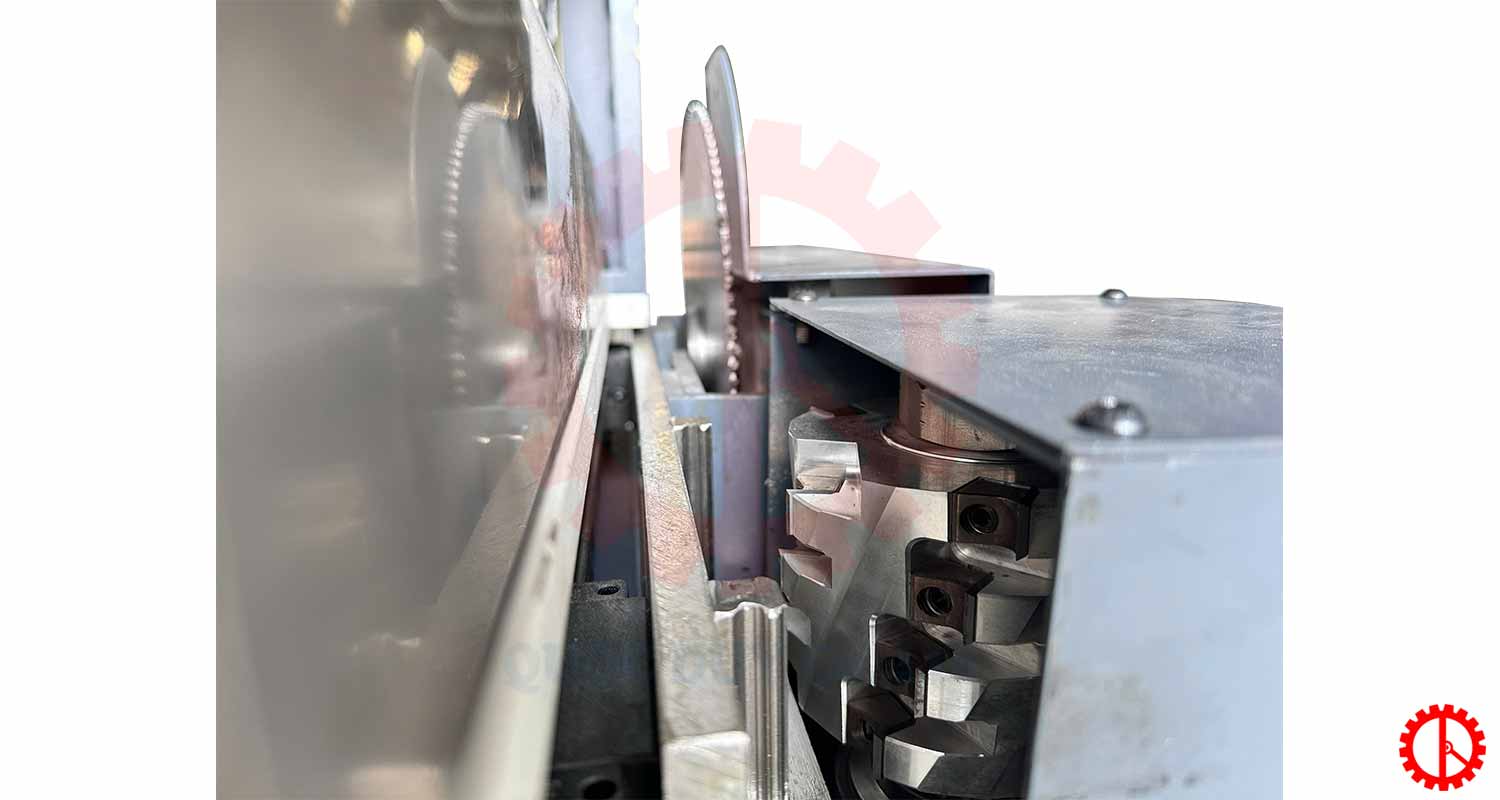

Precision edge milling system, delivering smooth and perfectly straight cuts.
Fast cutting speed, significantly boosting working efficiency.

Specifications of Veneer sawing & milling machine – SM 4000VSR

Maximum Working Length	4000 mm
Maximum Working Width	600 mm
Working Thickness	5 – 50 mm

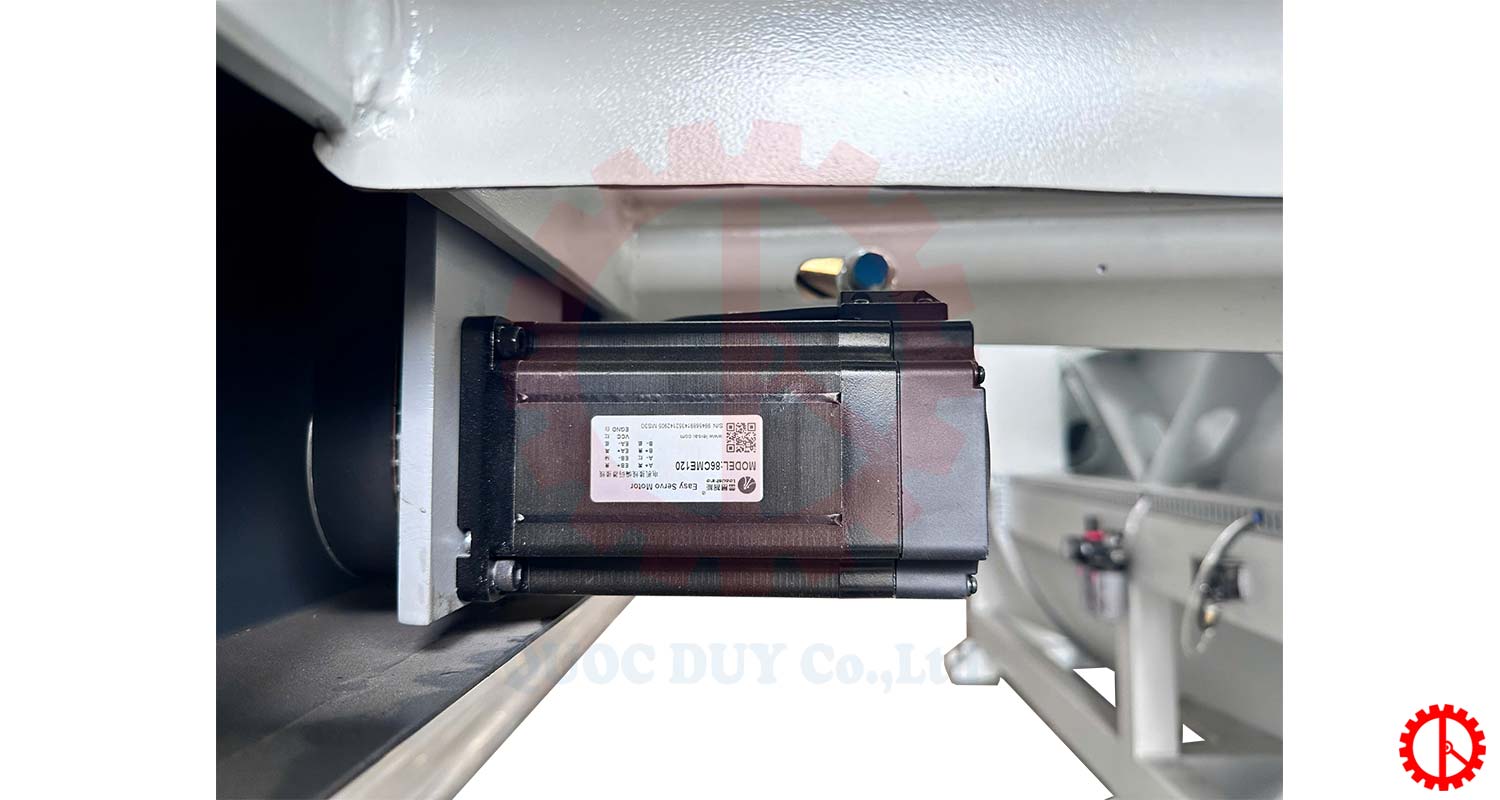

Feed Speed	5 – 15 m/min

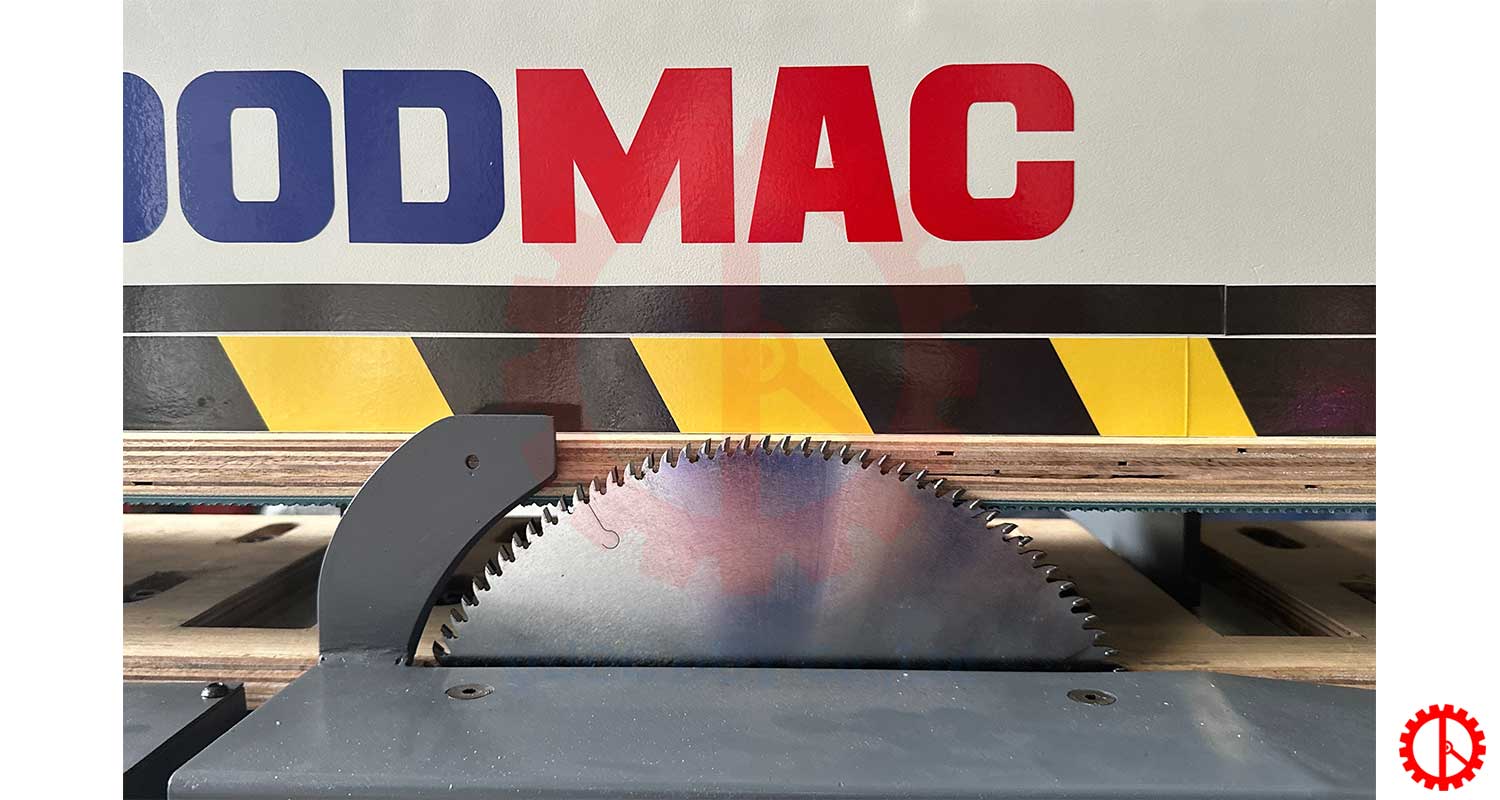

Saw Blade Size	Ø305 × 3 × 120 mm

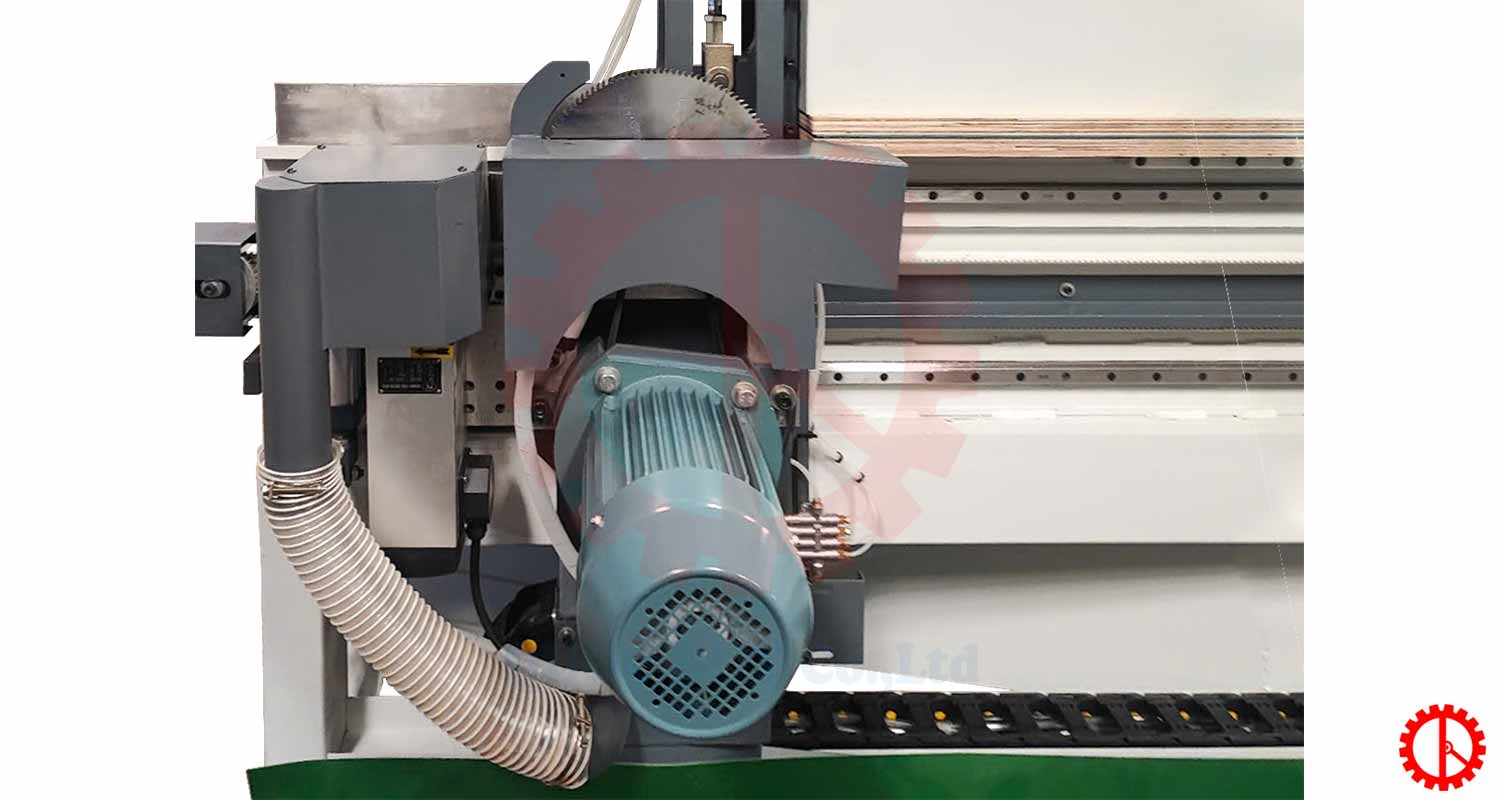

Saw Blade Motor	2.2 kW
Milling Cutter Motor	4.5 kW (9000 rpm)

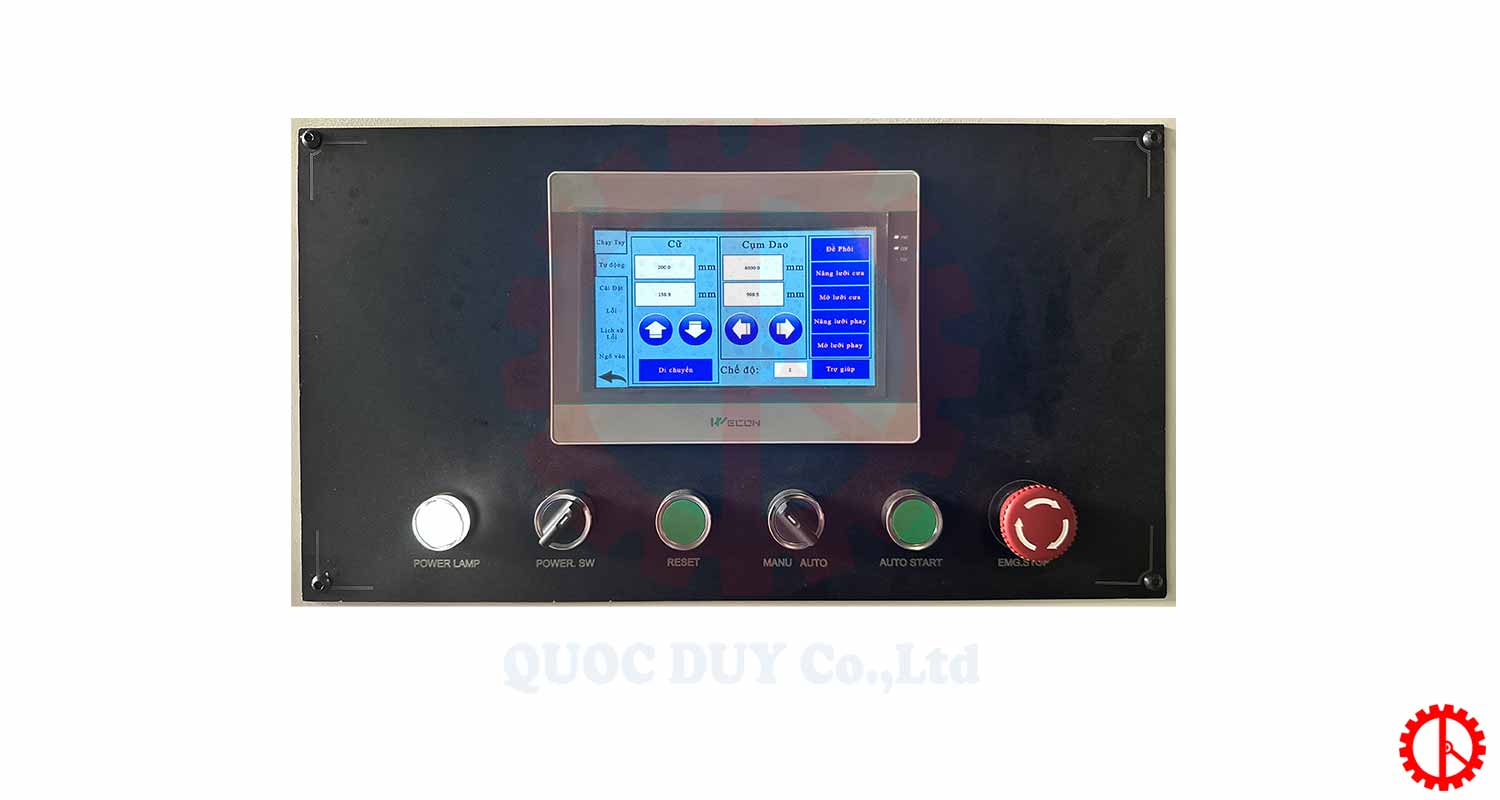

Control System	PLC with Touchscreen
Dust Collection Port	Ø100 mm × 2
Dimensions	5750 × 1500 × 1550 mm
Weight	Approx. 3000 kg

Note: Technical specifications, design features, and machine colors are subject to change without prior notice. However, such changes will not affect the machine’s functionality, performance, or operating capabilities.

Operation video Veneer sawing & milling machine - SM 4000VSR

video

Explore Other Highly Popular Veneer Processing Machines

In addition to the 4000mm Veneer Sawing and Milling Machine – KW 4000VSR, a variety of other veneer machines are highly favored today for their versatile processing capabilities, high precision, and stable performance.

Machines such as veneer splicing machines, veneer guillotines, and veneer pressing machines perfectly meet the diverse production demands of modern furniture workshops. Choosing the right machinery will significantly enhance finished product quality and optimize manufacturing costs.
