Vacuum panel loading machine for door production lines – SM L6 is engineered specifically for advanced door manufacturing operations. Featuring an expansive working capacity of up to 6 meters, this specialized system optimizes material handling workflows, drastically reduces manual labor overhead, and maximizes the overall throughput of the entire production line.
Specifications of Vacuum panel loading machine for door production lines – SM L6
| Feeding Width | 1100 mm |
| Feeding Length | 1500 – 2800 mm |
| Lifting Servo Motor | 1000 W |
| Vacuum Suction System | 1000 W |
| Horizontal Servo Motor | 750 W |
| Maximum Material Stacking Height | 1300 mm |
| Center Positioning Mechanism | 1 Set |
| Touch Screen | 7 Inch |
| PLC Controller | Xinje |
| Machine Dimensions (4 Working Stations) | 5600 × 2200 × 4300 mm |
| Machine Dimensions (5 Working Stations) | 6500 × 2200 × 4300 mm |
| Total Installed Power | 2 kW |
| Power Supply | 220V |
| Machine Weight | Approx. 800 kg |
| Air Pressure | 0.6 MPa |
Note: Technical specifications, design features, and machine colors are subject to change without prior notice. However, such changes will not affect the machine’s functionality, performance, or operating capabilities.

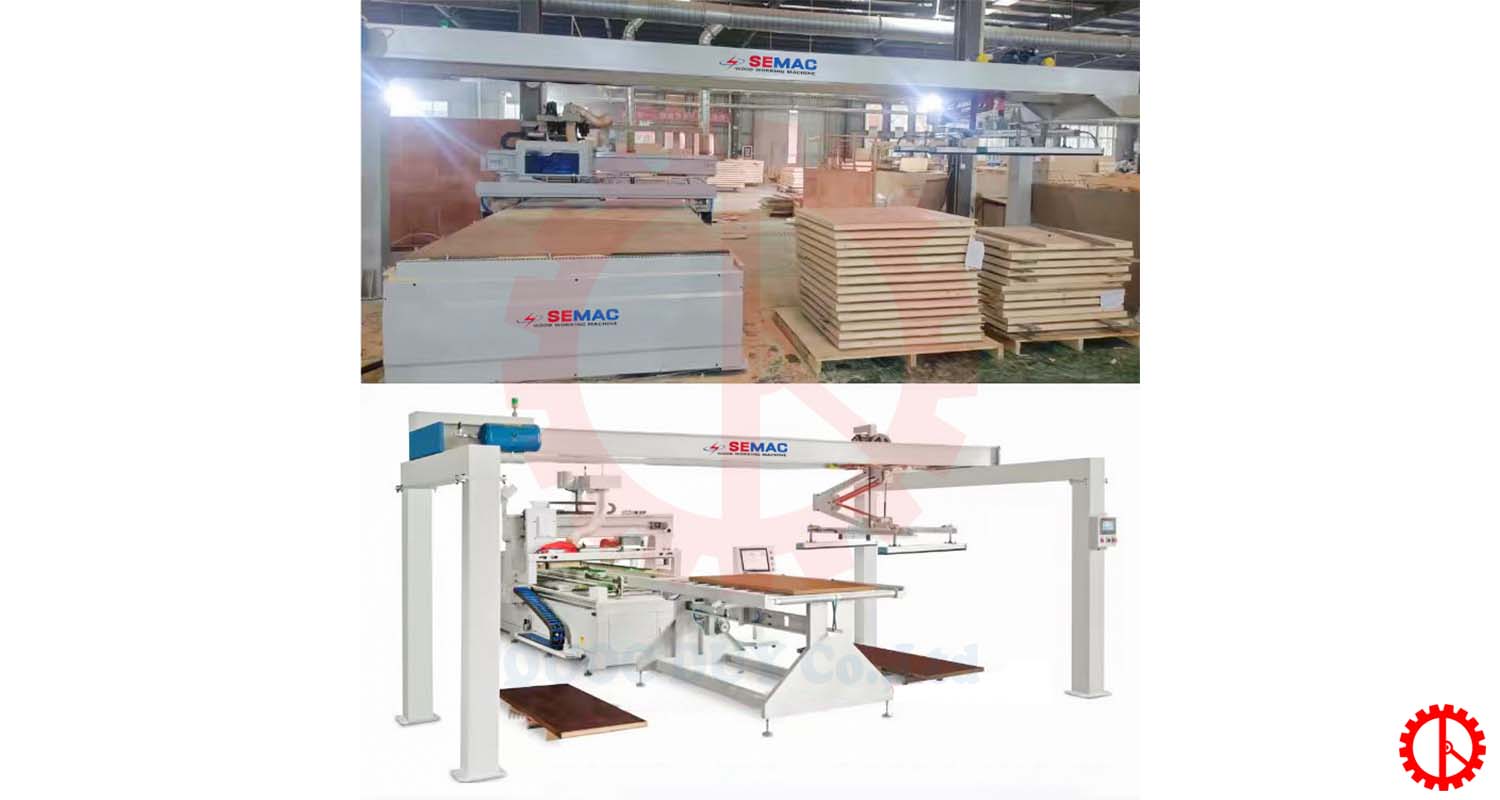

Installation Simulation Vacuum panel loading machine for door production lines – SM L6
In modern manufacturing, integrating auxiliary equipment is crucial for minimizing manual labor, optimizing material flow, and boosting overall plant throughput. These automated support systems ensure smooth, synchronized operations across all production stages—significantly enhancing manufacturing efficiency and securing consistent, predictable output for your business. Below is an installation simulation showcasing the SM L6 Vacuum Panel Loader seamlessly integrated with a Single-Spindle CNC Router with Automatic Tool Changer and Saw Blade Axis:
Explore additional auxiliary equipment you may be interested in: 90° palletizing wood vacuum gripper – TRIANS 90
Contact us for expert consultation and the fastest quotation on the Vacuum panel loading machine for door production lines – SM L6
Please reach out to Quoc Duy—a leading and highly trusted woodworking machinery supplier—to receive detailed consultation and the fastest quotation for our premium 6m Vacuum Panel Loader. Our team of highly experienced engineers is ready to support you in selecting the ideal solution tailored specifically for your door production line, ensuring optimized investment costs and maximized operational efficiency.
