Natural Wood Door Manufacturing in Only 6 Production Stages
Normally, manufacturing a natural wood door requires multiple processing and assembly steps. A complete wooden door consists of two main parts: Door Frame and Door Leaf. Today, technology continues to improve and develop rapidly, making natural wood door production easier while achieving superior quality and productivity. Quoc Duy has continuously researched and optimized its production lines, especially developing a natural wood door manufacturing process completed in only 6 STAGES. This is currently one of the most efficient and cost-effective wood door manufacturing solutions.
Stage 1: Standardizing Door Blank Dimensions
After kiln drying, wood blanks are gathered at a fixed location and jointed into long timber pieces or large panels.
The next step is cutting and sizing to form the structural components of the door, including rails, stiles, and door panels.
Various machines can be applied during this stage. Each machine model has specific advantages, therefore manufacturers must properly arrange equipment suitable for each processing step.
For long timber or finger-jointed wood, manufacturers should prioritize the following machines:
Sliding Table Saw
Model: BS-888
Origin: Taiwan
This machine quickly processes jointed wood and creates standardized dimensions for rails and stiles of natural wood doors.
► See more: Sliding Table Saw
Cross Cut Saw
Model: SM-18
Origin: SEMAC – Quoc Duy
This pneumatic crosscut saw performs similarly to a sliding table saw but offers significantly higher speed and accuracy.
► See more: Defect Cutting Saw
Stage 2: Surface Processing – Smoothing the Workpiece Surface
After defining the basic dimensions and structure for each door component, the next step is surface finishing to smooth and refine the material surface.

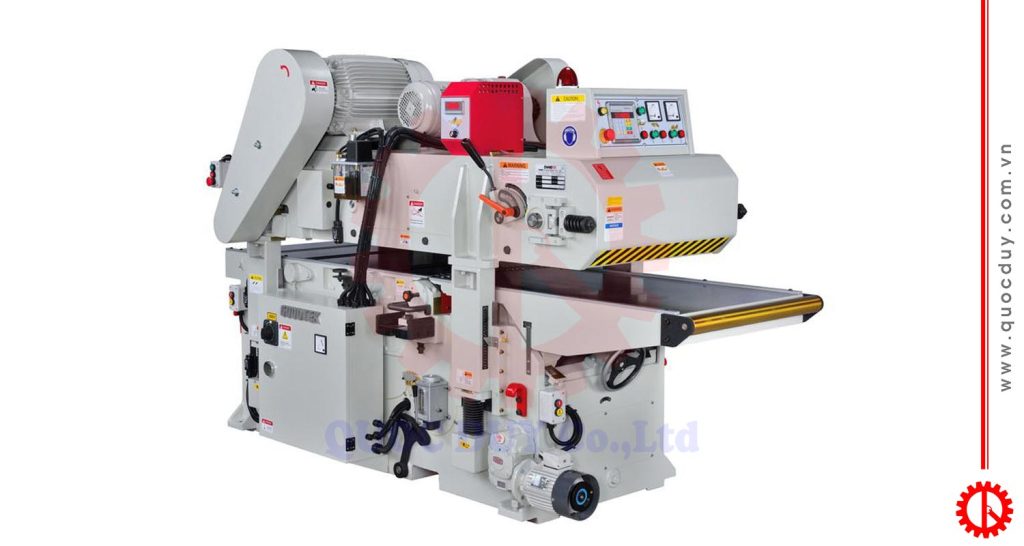

Double Surface Planer
Model: YA-610AD / GT-635ARD
Origin: Taiwan
Used for processing both top and bottom surfaces before further machining stages.
► See more:
Double Surface Planer
Four-Side Planer for Door Frames
Model: GS-423/523/623 / GN-6S23 / GH-623
Origin: Taiwan
Designed to process all four sides of long wood components while enabling groove cutting or profiling operations.
► See more:
Four-Side Planer
Stage 3: Mortising and Joint Formation for Wooden Doors
After completing the surface processing stage, the next step is creating joints (mortising and tenoning) for door assembly. This stage requires extremely high precision, as the structural strength and overall durability of the wooden door are largely determined here.
Some of the most essential machines used in this process include:

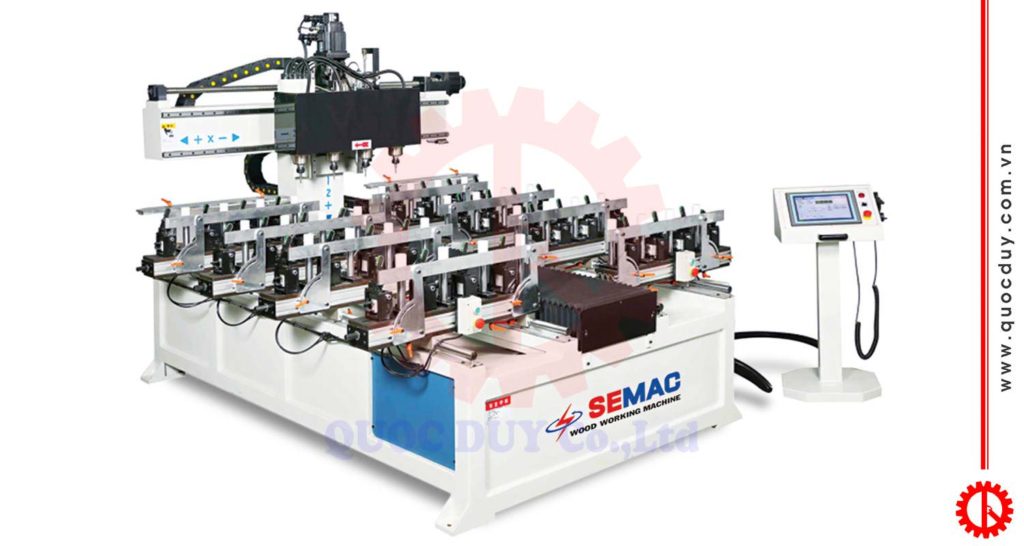

CNC Mortising Machine
Model: SDC-2000-4-4
Origin: SEMAC – Quoc Duy
Designed for high-precision mortise cutting with maximum productivity and minimal processing time.
► See more:
Mortising Machine

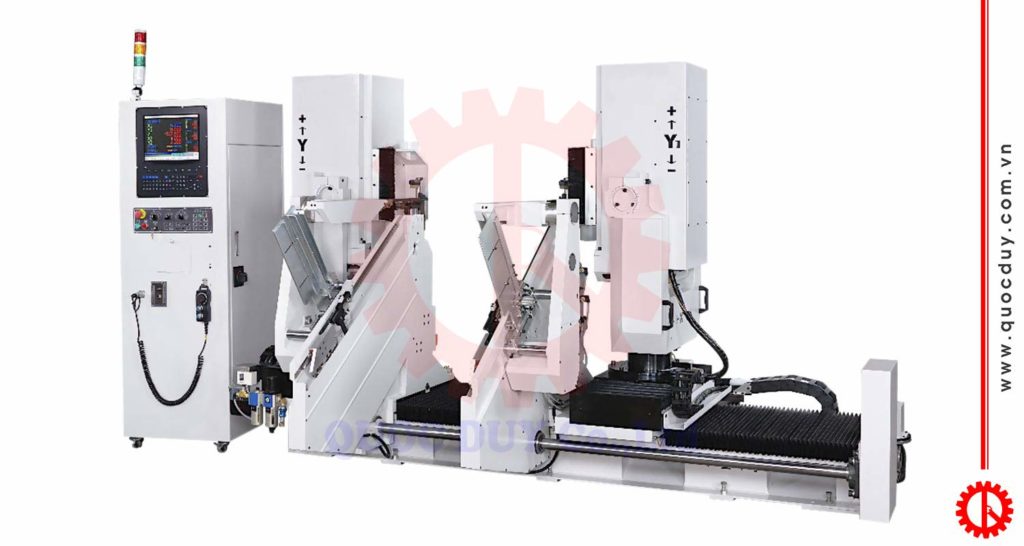

Double-End CNC Tenoning Machine
Model: DRTB-250
Origin: Taiwan
Ensures perfect joint alignment between rails and stiles with high machining speed and accuracy.
► See more:
Automatic Tenoning Machine
Stage 4: Profile Milling for Door Rails, Stiles and Panels
At this stage, the horizontal and vertical door rails and stiles are machined to create profiles and groove joints for glass installation or component assembly. In addition to rails and stiles, a wooden door consists of many structural elements, among which the door panel plays a particularly important role.
Door panels help fill empty spaces within the door structure while creating distinctive design highlights and enhancing the overall aesthetics of the finished door.
At this point, automatic spindle moulders (tupi machines) for door panel profiling are typically used, such as:

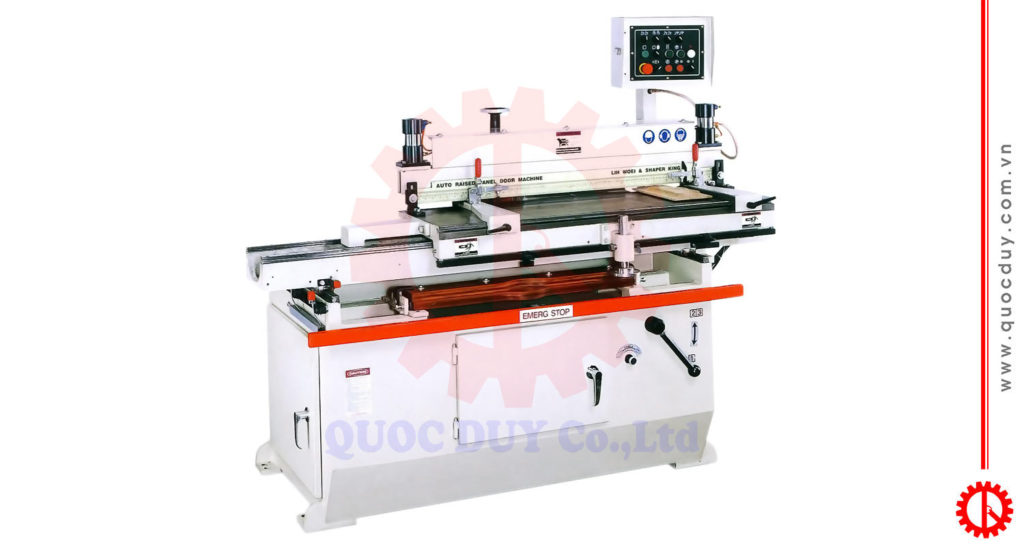

Automatic Door Frame Copy Shaper
Model: LH-1000AT / LH-1400AT / LH-2200AT
Origin: Taiwan
► See more:
CNC Door Panel Copy Machine

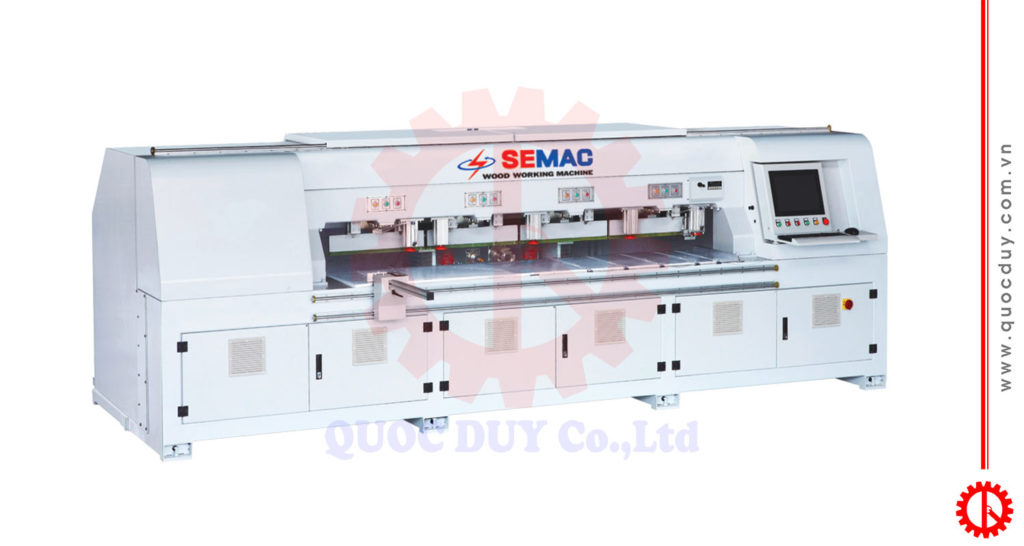

CNC Door Panel Processing Machine
Model: SM-MT-2500-4/3
Origin: SEMAC – Quoc Duy
► See more:
Door Panel Milling Machine
Stage 5: Frame Pressing and Sanding of Solid Wood Doors
After completing the previous preparation stages, manufacturers proceed with assembling and cleaning the entire door leaf before moving to the finishing process.
In some workshops, sanding is carried out on each individual door component before assembly. However, for large-scale factories, investing in industrial sanding machines allows sanding to be performed after the door has been fully assembled into a complete product.
This approach helps ensure a uniform surface finish, improves production efficiency, and prepares the door surface perfectly for the painting and finishing stage.
Let’s take a brief look at the suitable sanding solutions commonly used in this process:

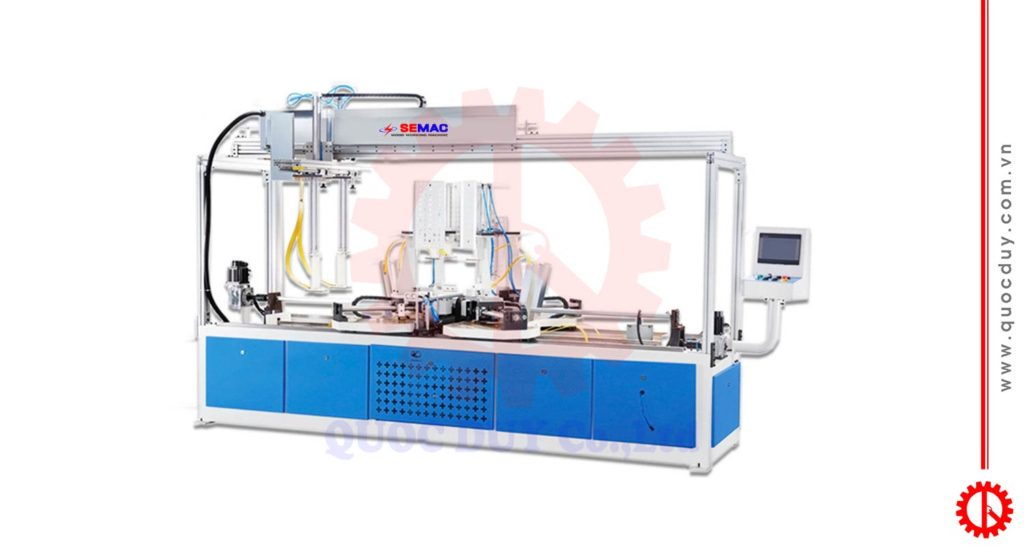

High-Frequency Door Frame Assembly Machine
Model: SM 868A
Origin: SEMAC – Quoc Duy
► See more:
Door Frame Assembly Machine

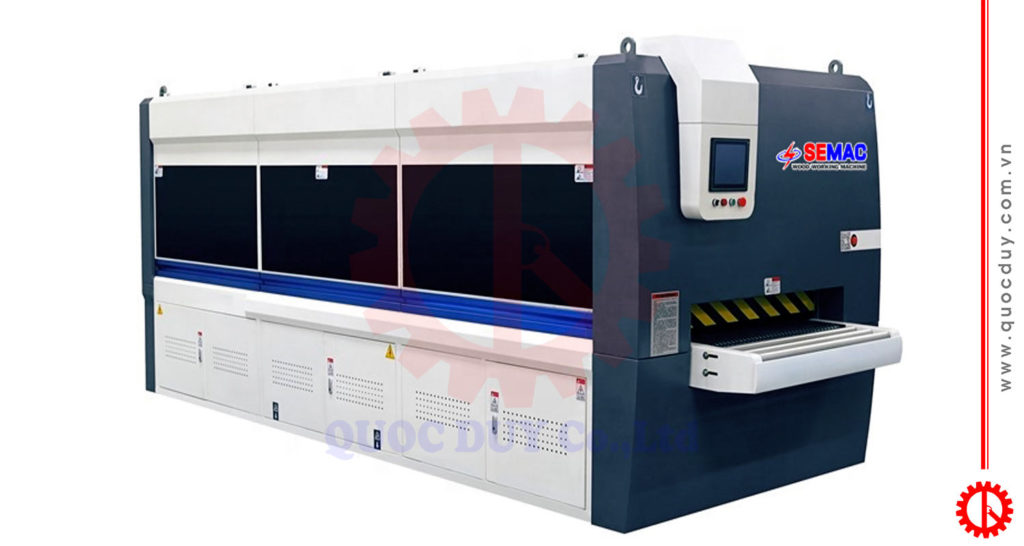

Brush Sanding Machine for Wooden Doors
Model: SM-1300 Series
Origin: SEMAC – Quoc Duy
► See more:
Brush Sanding Machine
Stage 6: Final Finishing – Solid Wood Door Painting
Painting is the final stage after completing all machining processes of a solid wood door, and it is also one of the most critical steps in the entire production process.
Since wooden doors are large-sized products, it has become increasingly common for manufacturers to invest in dedicated and modern finishing systems within their factories. These advanced painting machines offer several outstanding advantages:
Reduce labor requirements while minimizing external environmental impact.
Ensure consistent and high-quality paint finishing.
Provide better control over raw material input and finished product output.
Optimize production costs while maintaining full control throughout the manufacturing process.
Below is an intelligent wood door painting machine widely applied in modern production lines today:

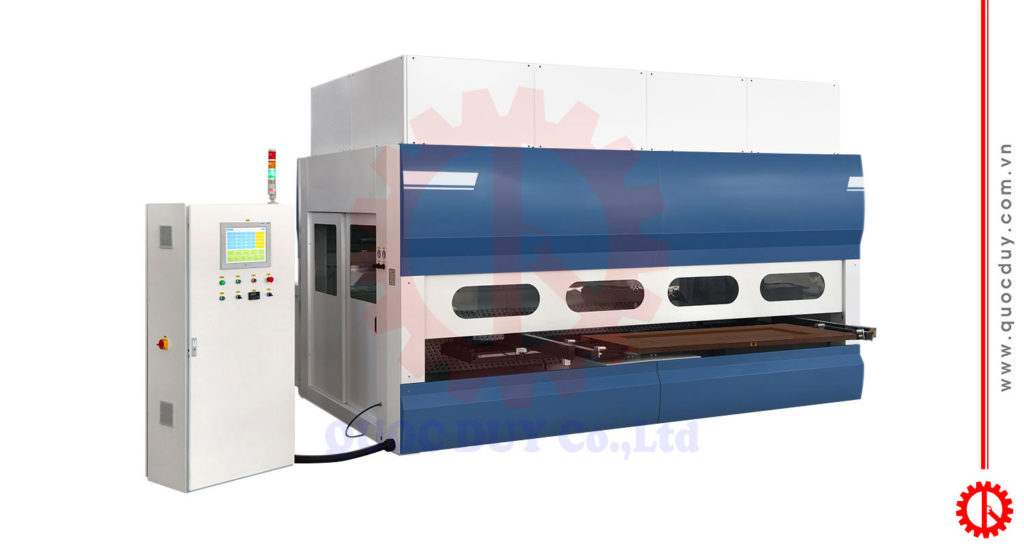

CNC Door Painting Machine
Model: SPD-2500D
Origin: SEMAC – Quoc Duy
Fully automated painting system. Operators only need to place the door onto the working table and start the program. The machine automatically sprays both sides according to preset programs.
► See more:
Automatic CNC Spray Painting System
The natural wood door manufacturing process can be completed in just 6 production stages. This is a basic door production line that Quoc Duy would like to introduce to our valued customers.
