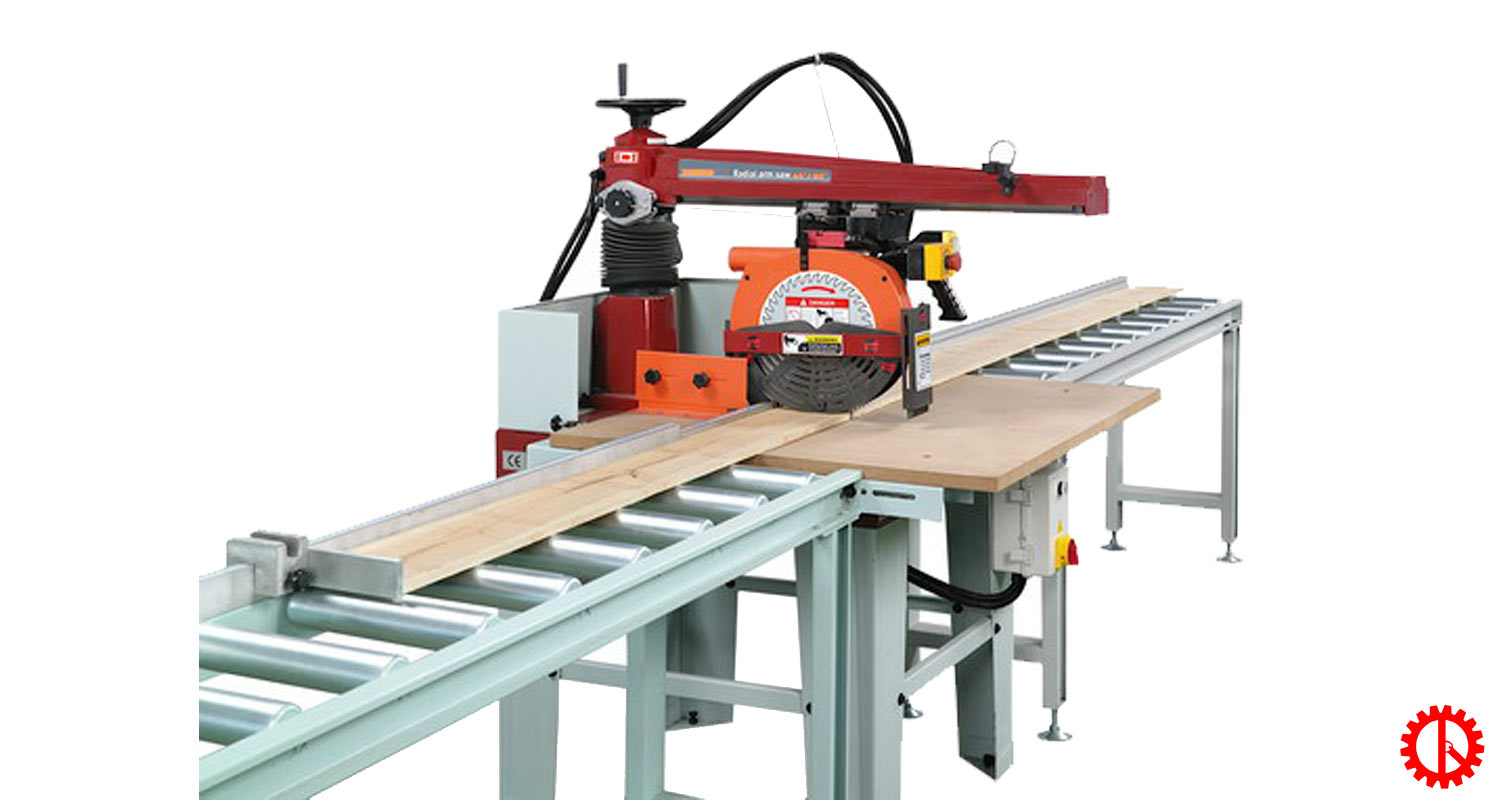

Radial arm saw machine BS 888
Introduction of radial arm saw machine
Features
– Radial arm saw machine BS 888, also known as disc machine, single-blade saw machine.
– Swing saws used for cutting natural wood, flexible sawing machines for cutting angles, high precision.
– Adjust the hand wheel around the axis: 450 to the left – 450 to the right.
– 1-blade swing saw with 45-degree angle. Types of manual adjustment: 45 degrees to the left, 45 degrees to the right.
– Saw blade angles: cut 45 degrees, straight 90 degrees (adjust the tilt of the saw blade from 0 to 90 degrees)
Specifications
Motor | 4.5 HP |
Motor speed | 2900 rpm |
Bearings for rails | 8 pcs |
Spindle bore | Ø 25.4 mm |
Blade diameter | Ø 305- 355 mm |
Head swiveling | 0 – 1800 |
Head tilting | 0 – 900 |
Max trimming width | 860 mm |
Max cross cutting length | 620 mm |
Table area | 900 x 1100 mm |
Machine size | 1120 x 1100 x 1170 mm |
Net weight | 200 kg |
