The smart CNC nesting machine with integrated labeling, drilling and cutting – PRO 48V1 is a specialized solution designed for industrial furniture manufacturers with diverse design requirements. This high-end system seamlessly integrates automatic labeling, double-sided (top & bottom) drilling, grooving, and cutting into a single, automated workflow.
Feature of the smart cnc nesting machine
- Design-to-Production Synchronization: Seamlessly integrates the entire process from design to machining, ensuring high precision and consistency across all finished products.
- Software Compatibility: Compatible with leading design software such as Yunxi, Cabinet Vision, Haixun, etc. These tools optimize material nesting and provide full control over the manufacturing process.
- High-Performance ATC Spindle: Equipped with a 9kW Auto Tool Changer (ATC) spindle featuring a 12-tool magazine, delivering rapid machining speeds and versatile production.
- Advanced Control System: Utilizes the Syntec (Taiwan) control system, renowned for its high precision and long-term stable operation.
- Premium Components: Features TBI (Taiwan) ball screws for smooth movement and superior durability.
Specification of the smart cnc nesting machine PRO 48V1

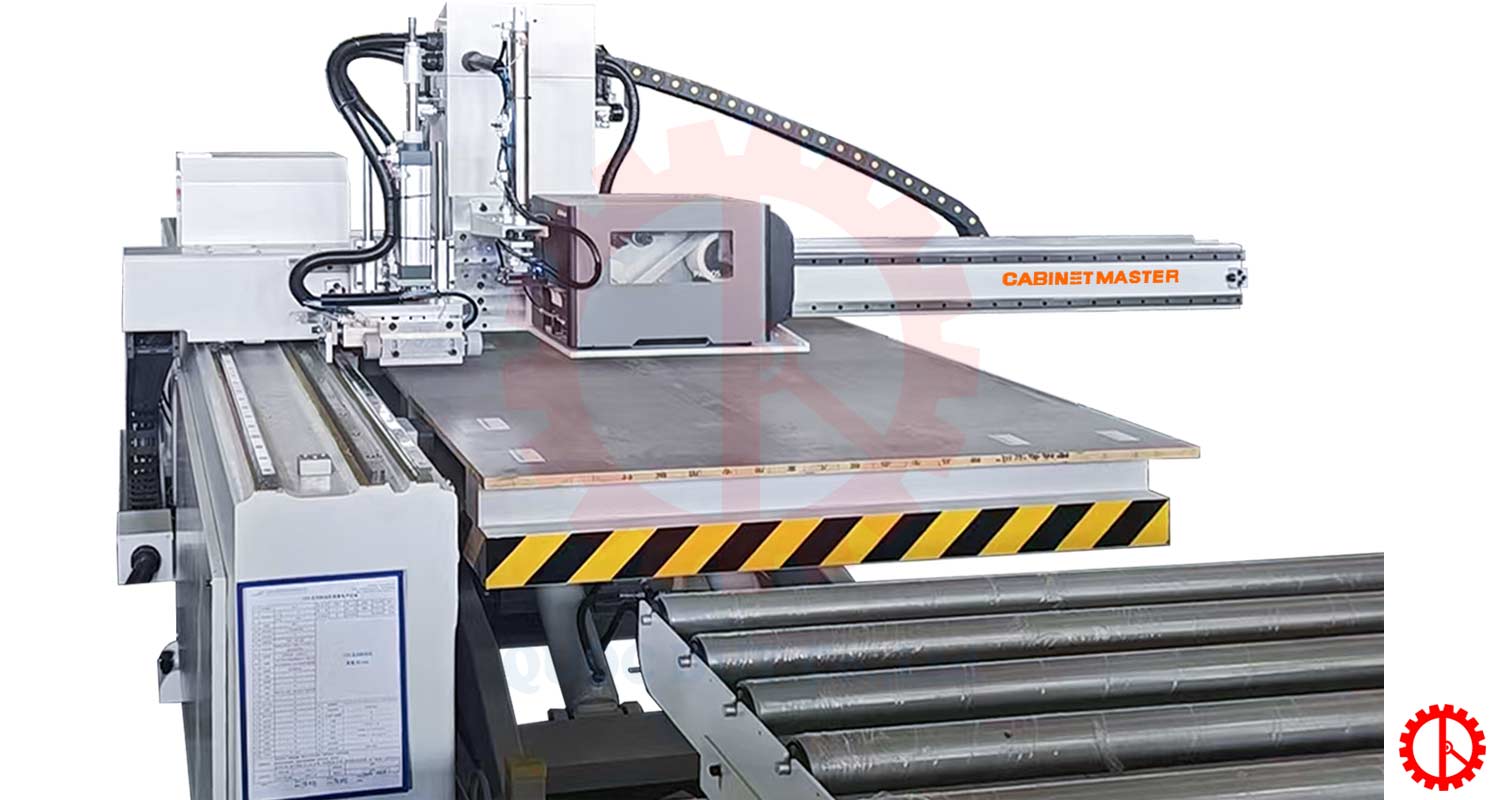

Automatic Labeling Machine
| Processing range of sheet metal | : 1200 x 2400mm |
| Mechanical stroke of X-axis | : 1250mm |
| Mechanical stroke of Y-axis | : 2500mm |
| Servo power of X-axis | : 750kW |
| Servo power of Y-axis | 1.5kW |
| Maximum idle speed of X-axis | : 78m/min |
| Maximum idle speed of Y-axis | : 78m/min |
| Printer | : Honeywell, USA |
| Labeling block | : Rotate 90° |
| Working air pressure | : 0.6 – 0.8 Mpa |
| Working voltage | : 380V AC/50Hz |
| Total power | : 5.5 kW |
| Net weight | : 1200kg |

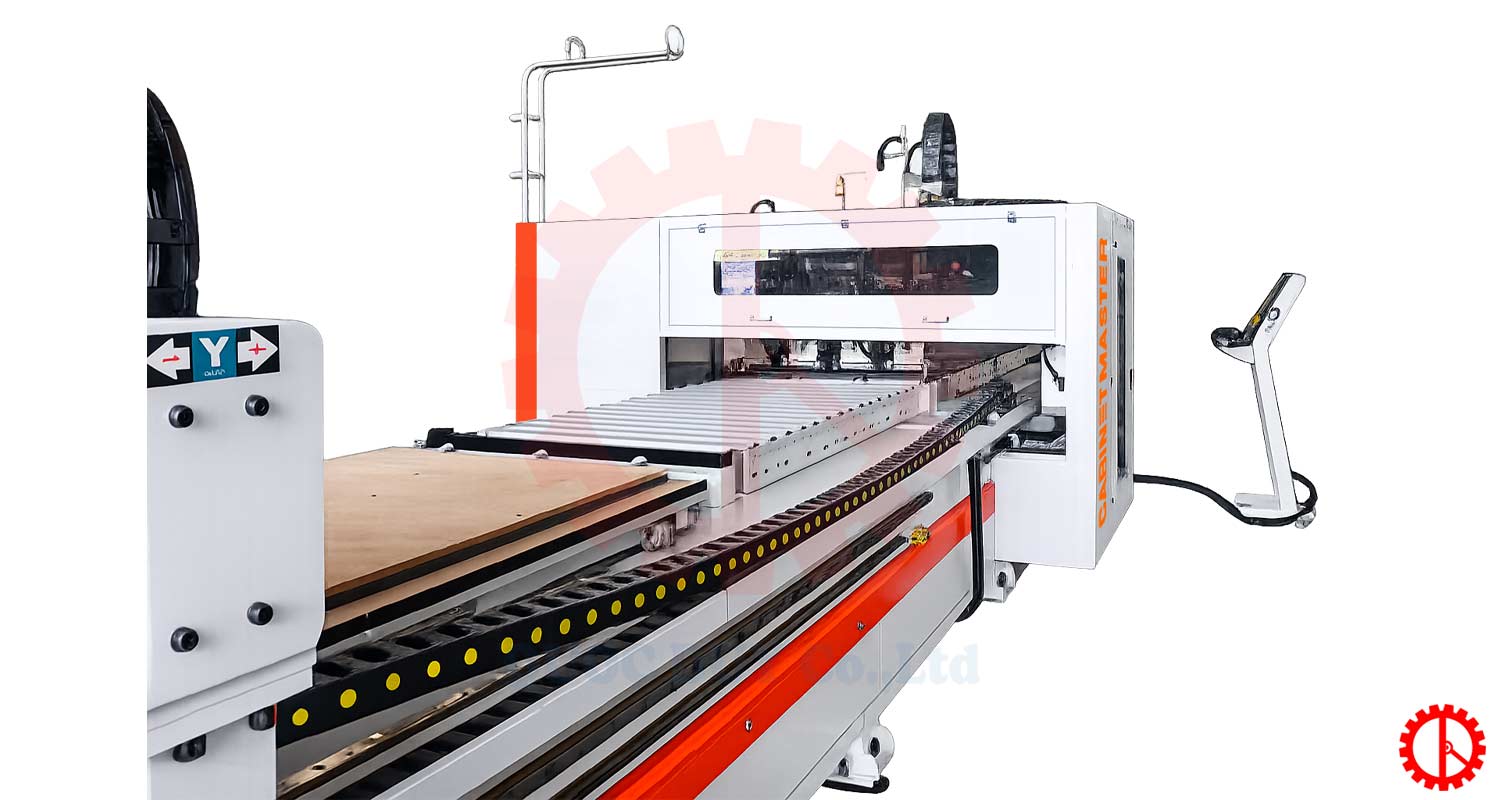

Double-Sided CNC Drilling Machine
| Processing range of sheet metal | : 1200x2400mm |
| Mechanical stroke up drill of X-axis | : 8000 mm |
| Mechanical stroke up drill of Y-axis | : 1220 mm |
| Mechanical stroke up drill of Z-axis | : 100 mm |
| Mechanical stroke down drill of U-axis | : 8000 mm |
| Mechanical stroke down drill of W-axis | : 1220 mm |
| Mechanical stroke down drill of A-axis | : 50 mm |
| Servo power up drill of X-axis | : 750KW |
| Servo power up drill of Y-axis | : 1.5KW |
| Servo power up drill of Z-axis | : 1.5KW |
| Servo power down drill of U-axis | : 750KW |
| Servo power down drill of W-axis | : 1.5KW |
| Servo power down drill of A-axis | : 750KW |
| Maximum idle speed up drill of X-axis | : 45m/min |
| Maximum idle speed up drill of Y-axis | : 78m/min |
| Maximum idle speed up drill of Z-axis | : 20m/min |
| Maximum idle speed down drill of U-axis | : 45m/min |
| Maximum idle speed down drill of W-axis | : 78m/min |
| Maximum idle speed down drill of A-axis | : 20m/min |
| Number of drilling packages | : 1 on top / 1 on bottom |
| Vertical drilling quantity | : Above 9 / Below 6 |
| Upper spindle power | : HQD 3.5KW |
| Lower spindle power | : HQD 3.5KW |
| Working air pressure | : 0.6-0.8Mpa |
| Working voltage | : AC380V/50HZ/3PH |
| Total power | : 17.5Kw |
| Net weight | : 5000kg |

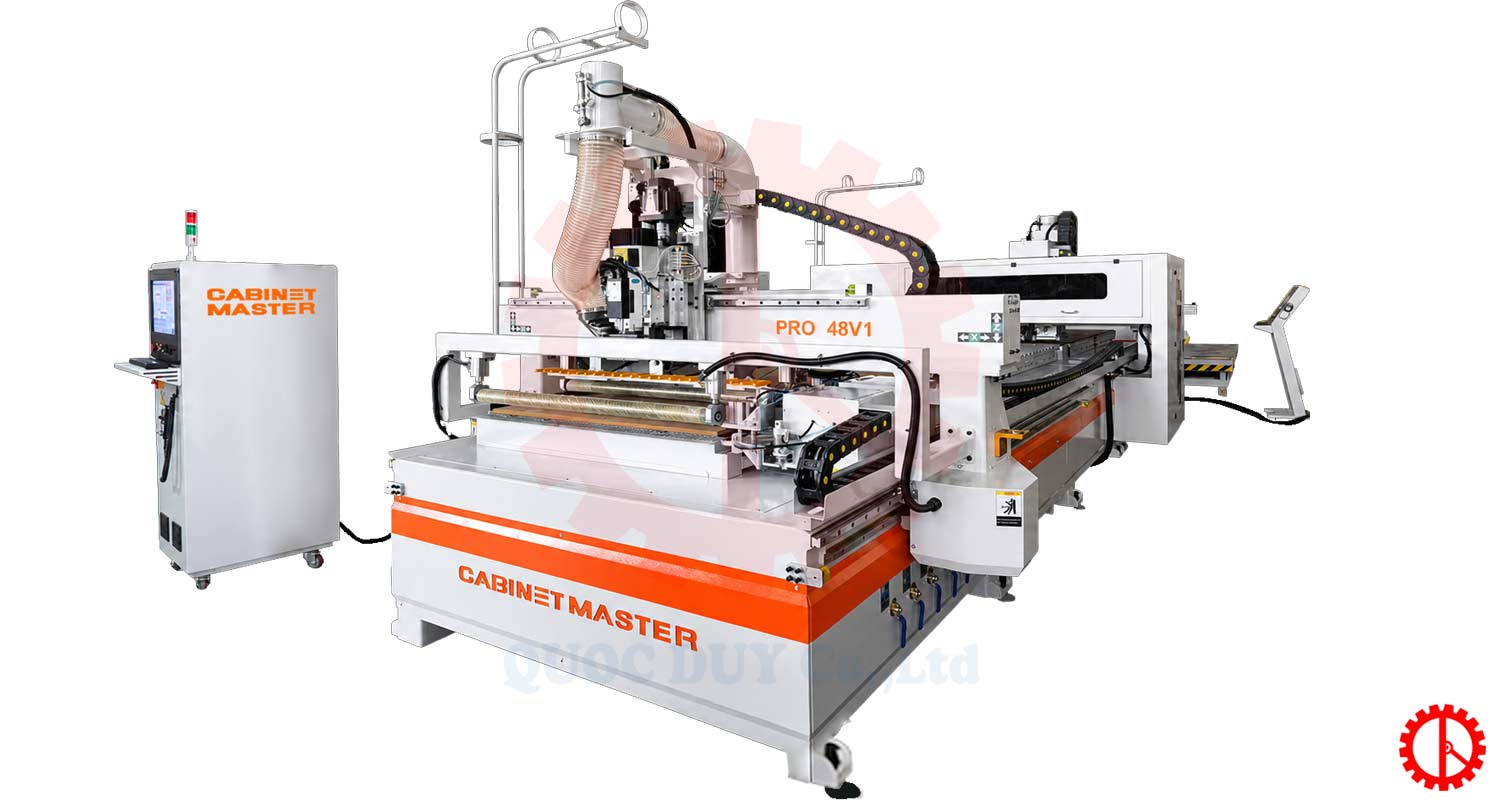

ATC CNC Router Machine
| Processing range of sheet metal | : 1200x2400mm |
| Mechanical stroke of X-axis | : 1230 mm |
| Mechanical stroke of Y-axis | : 2800 mm |
| Mechanical stroke of Z-axis | : 100 mm |
| Servo power of X-axis | : 1.5KW |
| Servo power of Y-axis | : 1.5KW x 2pcs |
| Servo power of Z-axis | : 1.5KW |
| Maximum idle speed of X-axis | : 78m/min |
| Maximum idle speed of Y-axis | : 78m/min |
| Maximum idle speed of Z-axis | : 20m/min |
| Spindle power | : HQD 9KW |
| Tool magazine capacity | : 12 pieces |
| Working air pressure | : 0.6-0.8Mpa |
| Working voltage | : AC380V/50HZ/3PH |
| Total power | : 16Kw |
| Net weight | : 5000kg |
Note: Specifications, design features and colors of the machine are subject to change without prior notice, but will not affect the function and operation of the machine.
